S-Works Turbo Levo Electric Mountain Bike – Ultimate Power, Range & Trail Performance
S-Works Turbo Levo Electric Mountain Bike – Ultimate Power, Range & Trail Performance
Specialized

2023 S-Works Turbo Levo Electric Mountain Bike - Gloss Gold Pearl over Carbon

£12,000.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2023 S-Works Turbo Levo Electric Mountain Bike - Gloss Gold Pearl over Carbon

Season:2023

Brand:Specialized

Code:349645349262

S-Works Turbo Levo Electric Mountain Bike – Ultimate Power, Range & Trail Performance

Unmatched power, range, and ride quality – the benchmark for full-power e-MTBs.

The S-Works Turbo Levo Electric Mountain Bike redefines what's possible on the trail. Designed with Specialized’s decades-long expertise in performance mountain bikes, the Turbo Levo delivers unrivaled electric assist, optimised geometry, and trail-tuned suspension, giving you the power to ride longer, climb higher, and shred harder.

At the heart of the Turbo Levo is Specialized’s Turbo Full Power 2.2 motor paired with a 700Wh battery and the MasterMind Turbo Control Unit (TCU). Together, they produce an industry-leading 90Nm of torque and 565 watts of peak power, delivering up to 5 hours of ride time on a single charge. The MasterMind TCU offers real-time ride data, micro-tunable support in 10% increments, and full customisation via the Specialized app.

Top-Tier e-MTB Performance:

The most advanced full-power e-bike from Specialized, delivering unmatched pedal-assist for aggressive trail and enduro riding.

Premium Components:

Outfitted with SRAM XX1 Eagle AXS wireless drivetrain, FOX Factory suspension, and Roval Traverse SL carbon wheels for maximum durability, precision, and weight savings.

Mixed-Wheel Setup:

A 29” front wheel and 27.5” rear wheel combine the best of rollover efficiency and nimble handling.

Customisable Geometry:

Six geometry settings, including a 63°–65.5° adjustable head angle and 7mm bottom bracket height adjustment, let you fine-tune the bike for any terrain or riding style.

Trail-Tuned Suspension:

150mm of rear travel provides exceptional small bump sensitivity, big hit capability, and efficient pedaling, perfect for technical descents and high-speed climbs.

S-Sizing Fit System:

Specialized’s innovative S-Sizing focuses on rider style and preference, not inseam length, allowing you to choose the size that fits your handling goals, from nimble agility to high-speed stability.

Whether you're crushing steep climbs, tackling rocky descents, or chasing epic singletrack, the S-Works Turbo Levo is the ultimate electric mountain bike for riders who demand the very best in power, control, and trail versatility.

SRAM XX1 Eagle AXS

XC spec and ready for the trail. XX1 Eagle AXS utilises the proven backbone of SRAM 1x. With the lightest weight materials and a 520-percent gear range. More secure and longer wearing X-Sync 2 chainring. The pinnacle of performance, paired with the connected components of Eagle AXS. Ready for the new gen of super bikes. With AXS, you experience smooth, seamless and precise shifting and braking power, giving you the lead and performance you have always dreamt of.

Technical Information
  • Frame
    FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
  • Fork
    Fox 38 Factory, Grip 2 damper, 29", 160mm travel, kashima, 44mm offset
  • Rear Shock

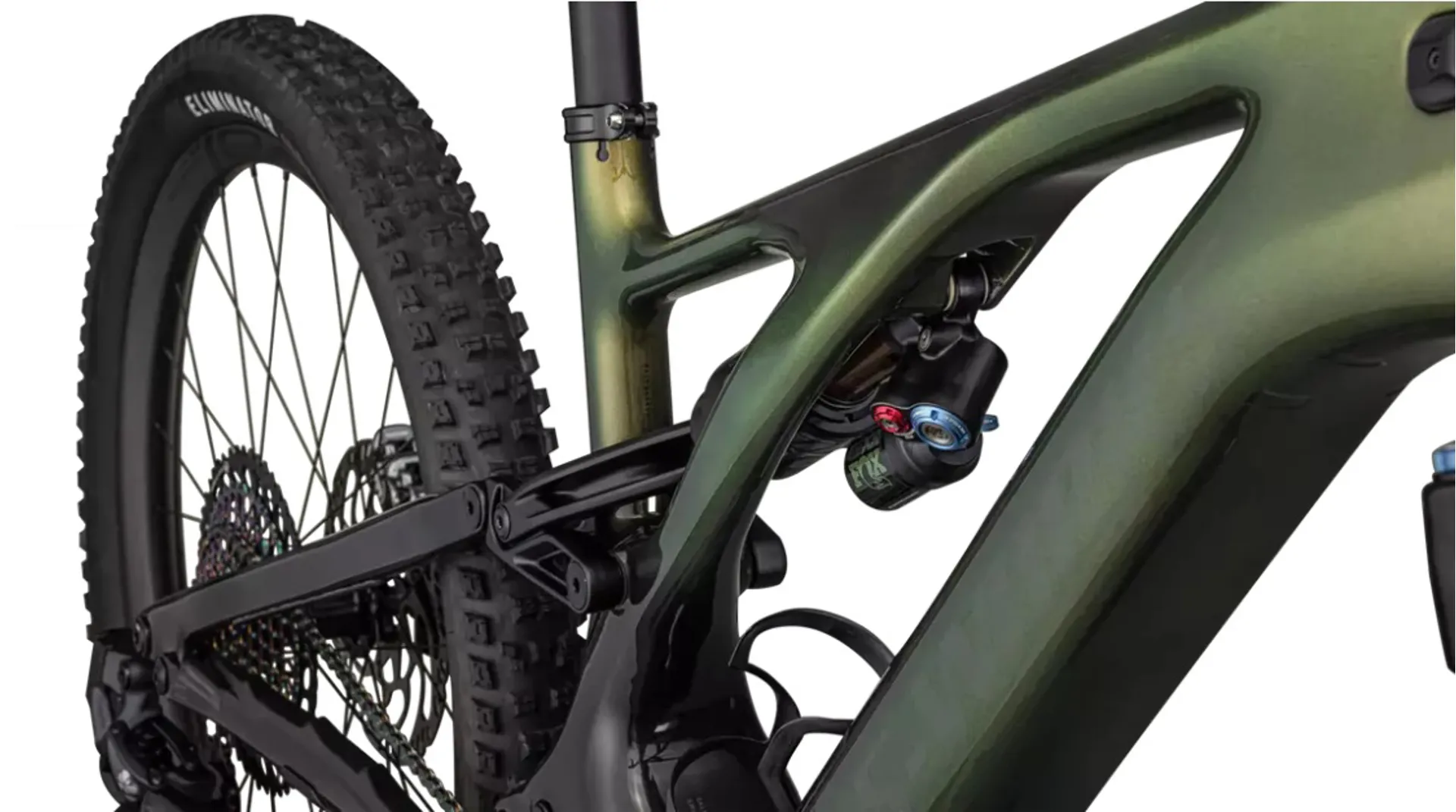

    Fox Float X2 Factory, Kashima, 210x55mm
  • Stem
    Deity, 35.0mm
  • Handlebars
    Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
  • Grips
    Deity Grips
  • Front Brake
    Magura MT7, 4 piston caliper, Loic lever blade, 203mm rotor
  • Rear Brake
    Magura MT7, 4 piston caliper, Loic lever blade, 203mm rotor
  • Shift Levers
    SRAM Eagle AXS Rocker Paddle
  • Rear Derailleur
    SRAM XX1 Eagle AXS
  • Cassette
    Sram XG-1299, 12-Speed, 10-52t
  • Crankset
    Praxis Carbon/Custom Offset/ISIS Spindle Interface, 160mm
  • Chain
    SRAM XX1 Eagle, 12-speed
  • Chainrings
    SRAM X-Sync Eagle, 104 BCD, 34t, steel
  • Front Wheel
    Roval Traverse SL 29
  • Rear Wheel
    Roval Traverse SL 27.5, 148mm spacing, XD freehub body
  • Front Tyre
    Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
  • Rear Tyre
    Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
  • Inner Tubes
    Standard, Presta Valve
  • Saddle
    Bridge, 155/143mm, Hollow Ti-rails
  • Seatpost
    RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
  • Seat Binder
    Alloy, 38.6mm
  • Motor
    Specialized 2.2 Custom Rx Trail Tuned Motor
  • UI/Remote
    Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
  • Battery
    Specialized M3-700, Integrated battery, 700Wh
  • Charger
    Custom charger, 42V4A w/ Rosenberger plug, 100-240V
  • Wiring Harness
    Custom Specialized wiring harness
  • SWAT
    SWAT CC steerer tube integrated tool with chain tool and link
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

SIZING

Size in ft5'2" - 5'5"5'5" - 5'10"5'10" - 6'1"6'1" - 6'4"
Size in cm158 - 165cm165 - 178cm178 - 185cm185 - 193cm
Bike SizeSMLXL

GEOMETRY

SizeS2S3S4S5S6
BB Drop27mm27mm27mm27mm27mm
BB Height350mm350mm350mm350mm350mm
Bike Standover Height776mm783mm787mm788mm790mm
Chainstay Length442mm442mm442mm442mm442mm
Fork Length, Full567mm567mm567mm567mm567mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Centre760mm784mm814mm843mm878mm
Head Tube Angle64.5°64.5°64.5°64.5°64.5°
Head Tube Length105mm115mm125mm135mm145mm
Reach432mm452mm477mm502mm532mm
Seat Tube Angle77.2°76.7°76.2°76.2°76.2°
Seat Tube Length390mm405mm425mm445mm465mm
Stack617mm626mm635mm644mm653mm
Trail130mm130mm130mm130mm130mm
Wheelbase1200mm1225mm1255mm1284mm1318mm
Crank Length160mm160mm160mm160mm160mm
Handlebar Width780mm780mm780mm780mm780mm
Stem Length35mm35mm35mm50mm50mm
Saddle Width155mm143mm143mm143mm143mm
Seatpost Length125mm150mm170mm170mm170mm
Max Seatpost Insertion220mm240mm255mm275mm295mm
Min Seatpost Insertion80mm80mm80mm80mm80mm
