Ex-Demo Bike: Large
Please contact 01752 849315 for details/images
As this is not a brand new bike, it may not feature the full original technical specification and is subject to change.

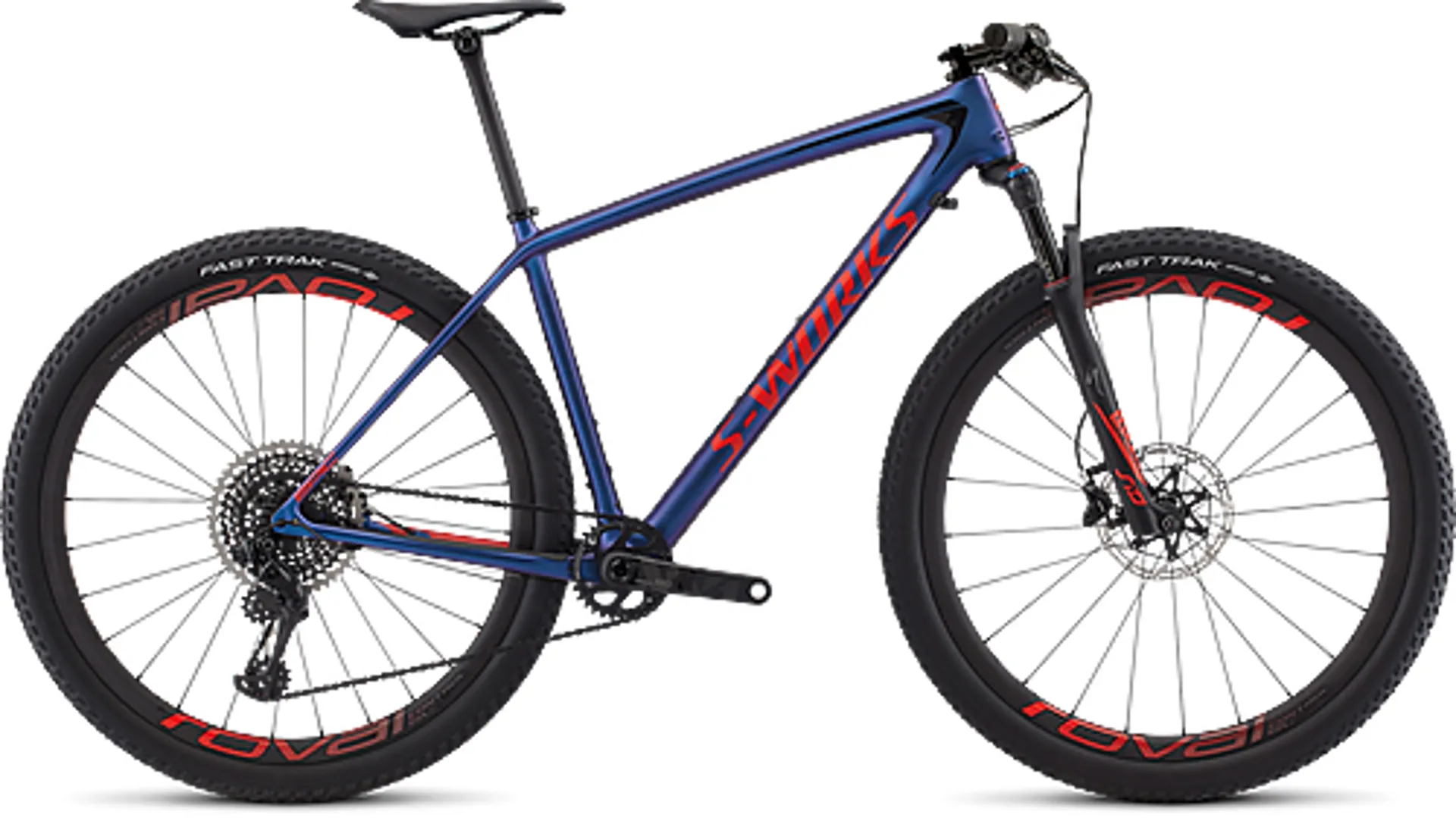

Call it a healthy disrespect for the status quo, but we were getting bored with hardtail designs. So instead of playing along with a glued-on smile, Specialized opted to turn the cross country world on its head with a bike that's the lightest mountain frame they've ever made. It's Specialized's lightest frame, period. Introducing the S-Works Epic Hardtail.
Over the last decade, cross country racing has evolved into a completely different animal; the courses are rowdier, more technical, and overall, they're inherently different. Owing to this, Specialized realised that the best bike for the job needs to not only be lightweight and stiff, but also be able to descend and climb with equal prowess. Determining the best geometry was the easier of the two, as they took their current XC race geo and added some trail DNA to the mix. This equates to a longer top tube, a shortened head tube, and a slacked out front end, the result of which is a tremendous increase in downhill stability, plus a wider fit range. This doesn't require any sacrifice of climbing proficiency. The weight aspect was more complicated, though. Specialized were posed with the question, "How do you take weight out of something that's already so light?" The answer was relatively obvious: you get the best mountain bike engineers together in one room and let the magic come out.
Up until now, there were two ways to lighten up a frame; use less of the same grade of carbon or use less of a higher-grade carbon. Option one is never a viable solution as it sacrifices stiffness and strength, two attributes that shouldn't be tampered with. While Specialized did end up using option two, they weren't content with the amount of weight they could cut out by just using a different grade of carbon. So how else do you cut weight? Specialized began looking at their layup schedules to see if they could be improved, which shed light on a new discovery; layup inefficiencies.
Beginning with Rider-First Engineered™ frame technology, each size Epic Hardtail is specifically tailored to size; every carbon layup and tube are exclusively selected based upon hundreds of hours of collected ride data. This not only creates the optimal balance of rigidity, weight, and responsiveness across every frame size, but it led to the discovery of how to save weight through the studying of the layup.
Through extensive layup studies, Specialized made the discovery that, by further controlling the construction and layup schedules, they could drastically decrease weight, all while maintaining the ride characteristics that you'd expect from a top-level XC race bike. With this discovery, each frame now features complex cut carbon plys that allow difficult junctions to be covered with less overlap. While this does complicate the carbon frame puzzle by adding more pieces to the mix, it allows them to design and place them more intelligently. The result of this is a lighter frame, stronger junctions, and a drastic increase in stiffness. Specialized then took the weight savings one step further by using Japanese military ballistic-grade carbon, which is now called 12m, to create the lightest mountain bike they've ever made; less than 900g for a size Large frame, the same weight as a full 24oz Purist water bottle.
For the build, the S-Works spares no expense, opting for a custom RockShox SID World Cup fork with Brain, SRAM XX1 Eagle™ 12-speed shifting, SRAM Level Ultimate hydraulic disc brakes, and hand-built Roval Control SL carbon wheels.
- To provide the optimal blend of stiffness, crazy light weight, and strength, the frame is constructed from an S-Works FACT 12m carbon fibre. When combined with an XC 29 Geometry, this Epic is guaranteed to deliver uncompromising, blistering speed and agile handling come race day, no matter the course.
- The RockShox SID World Cup 29 fork with Brain provides 90/100mm of efficient travel. It features Brain technology that distinguishes between terrain and rider input to maximise your power, while a Brain Fade adjusts the oil flow when not hitting bumps.
- The 1x drivetrain is controlled by SRAM's venerable XX1 Eagle™ components to form the ultimate in efficiency and intuitive feel, while also having the added benefit of significant weight savings and minimal required maintenance.
