Specialized S202500003 Headset Integrated 1-18" Upper 45.8OD x 36.8ID x 6.5mm Lower 45x45 Deg 46mm Cone Cover with Spacers IS248S-20P46
Specialized S202500003 Headset Integrated 1-18" Upper 45.8OD x 36.8ID x 6.5mm Lower 45x45 Deg 46mm Cone Cover with Spacers IS248S-20P46
Specialized

Specialized S202500003 Headset Integrated 46mm Cone Cover with Spacers

£31.90
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Specialized S202500003 Headset Integrated 46mm Cone Cover with Spacers

Brand:Specialized

Code:s202500003

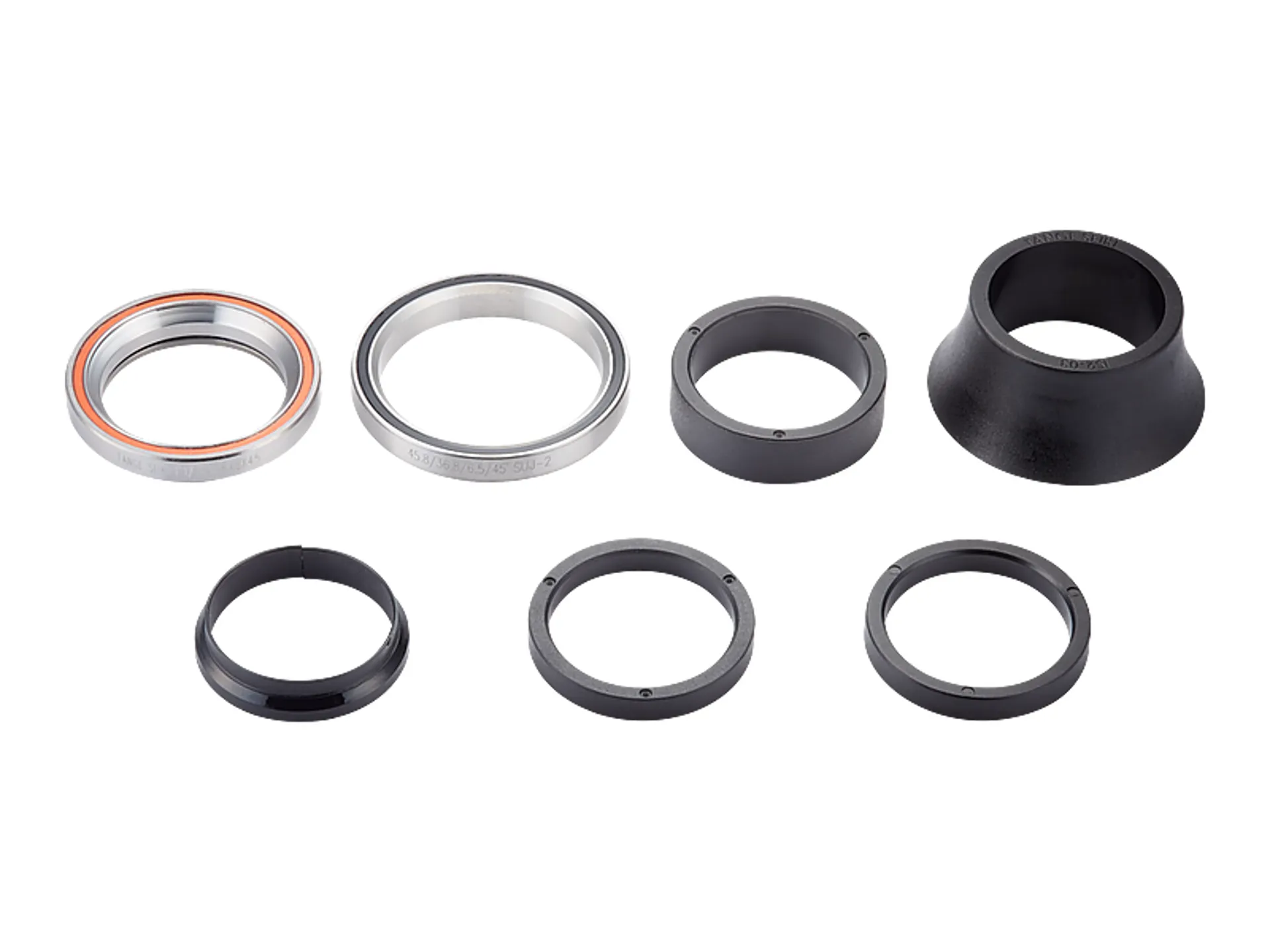

Specialized S202500003 Headset Integrated 1-18" Upper 45.8OD x 36.8ID x 6.5mm Lower 45x45 Deg 46mm Cone Cover with Spacers IS248S-20P46

Complete integrated headset with 1-1/8" upper and 45.8mm OD lower bearing for non-Future Shock equipped alloy Diverge model bikes with a 1-1/8" steerer fork.

  • Upper Bearing: 41.8mm OD x 30.5mm ID x 8mm Thick (45x45 degree)
  • Lower Bearing: 45.8mm OD x 36.8mm ID x 6.5mm Thick (45x45 degree)
  • 46mm OD / 15mm tall plastic top transition cover.
  • Split plastic compression ring, 7mm tall.
  • 5mm plastic headset spacer (2 pcs.)
  • 10mm plastic headset spacer (1 pcs.)

Used on:

  • 2026 Diverge E5
  • 2025 Diverge E5 Elite - Shimano GRX
  • 2025 Diverge E5 - Shimano Claris
  • 2025 Diverge E5 - Shimano Claris
  • 2024 DIVERGE E5 ELITE
  • 2024 DIVERGE E5
  • 2023 DIVERGE E5 ELITE
  • 2023 DIVERGE E5
  • 2022 DIVERGE E5 ELITE
  • 2022 DIVERGE E5
  • 2021 DIVERGE E5 TW
  • 2021 DIVERGE E5 ELITE TW
  • 2021 DIVERGE E5 ELITE
  • 2021 DIVERGE E5
  • 2020 DIVERGE E5 ELITE
  • 2020 DIVERGE E5
  • 2019 Women's Diverge E5 Elite
  • 2019 Women's Diverge E5
  • 2019 Men's Diverge E5 Elite
  • 2019 Men's Diverge E5
  • 2018 Women's Diverge E5 Elite
  • 2018 Women's Diverge E5
  • 2018 Men's Diverge E5 Sport
  • 2018 Men's Diverge E5 Elite
  • 2018 Men's Diverge E5
  • 2018 MEN'S DIVERGE E5 FRMSET
Sizing Information
Professional Opinion
Home Gravel and Cyclocross Components Specialized Service Parts
