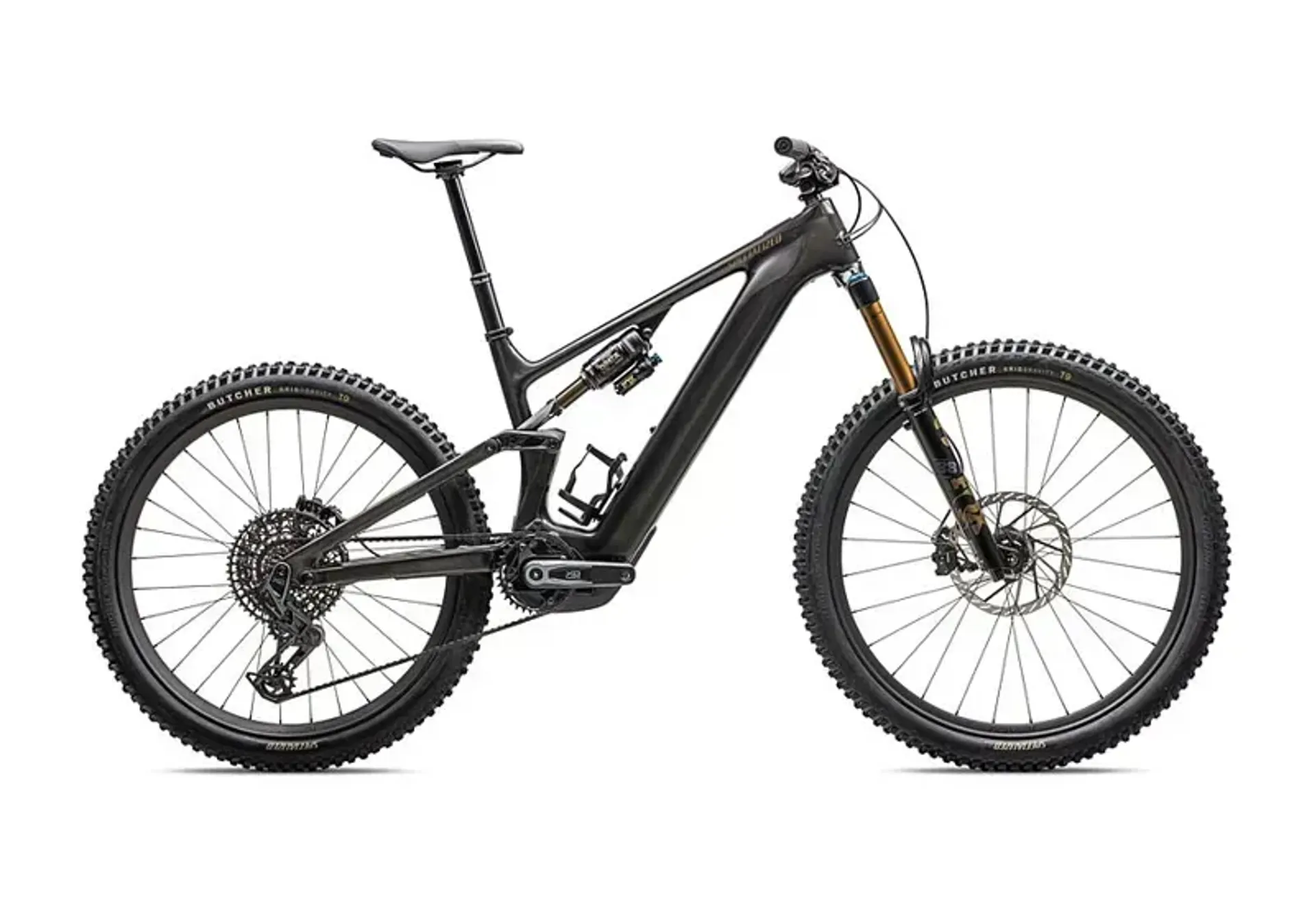

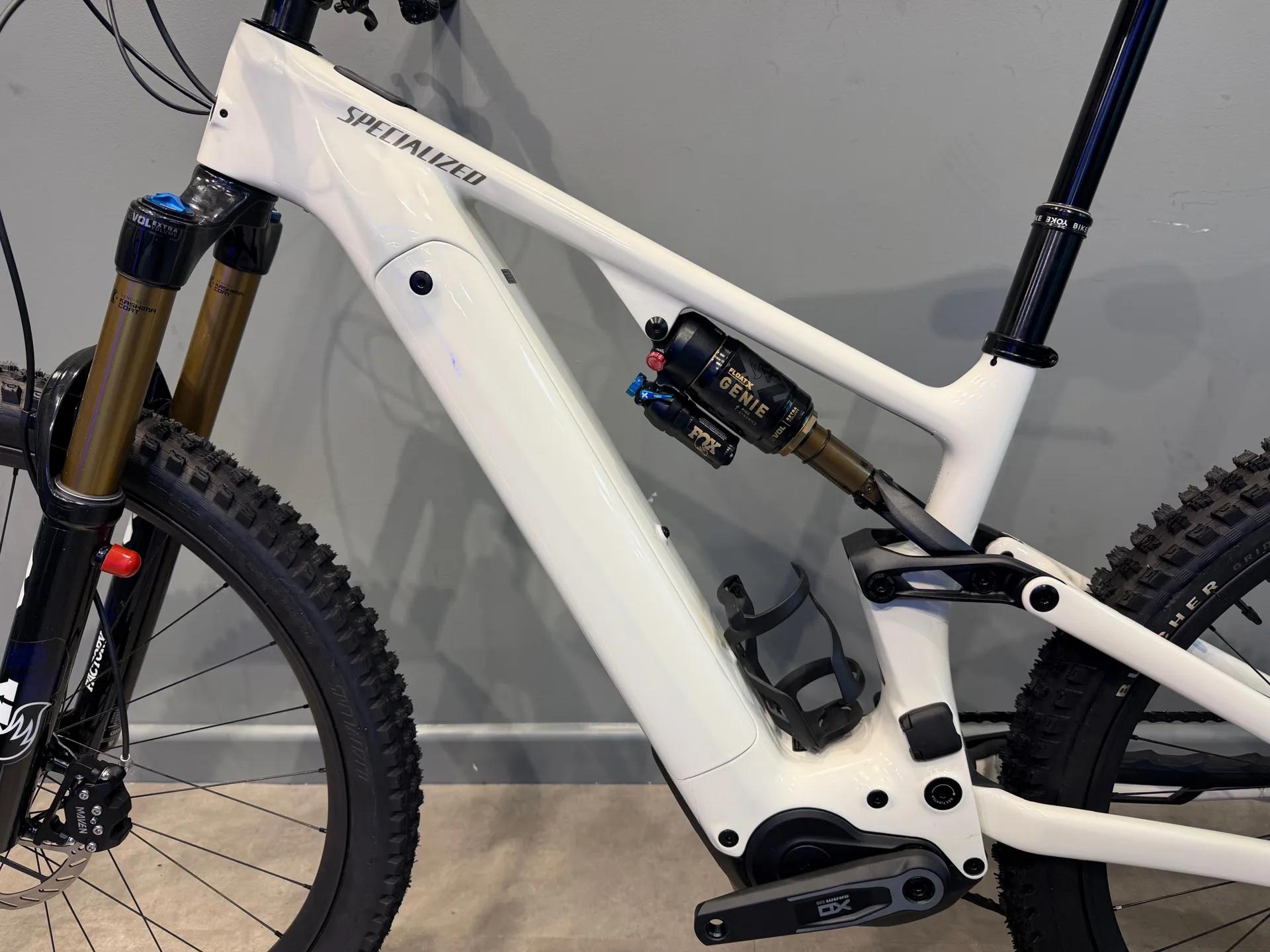

Frame
Levo 4 frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
Fork
Fox 38 Performance Elite series, 29", Grip X2 damper,15x110mm axle, 44mm offset, 160mm of travel

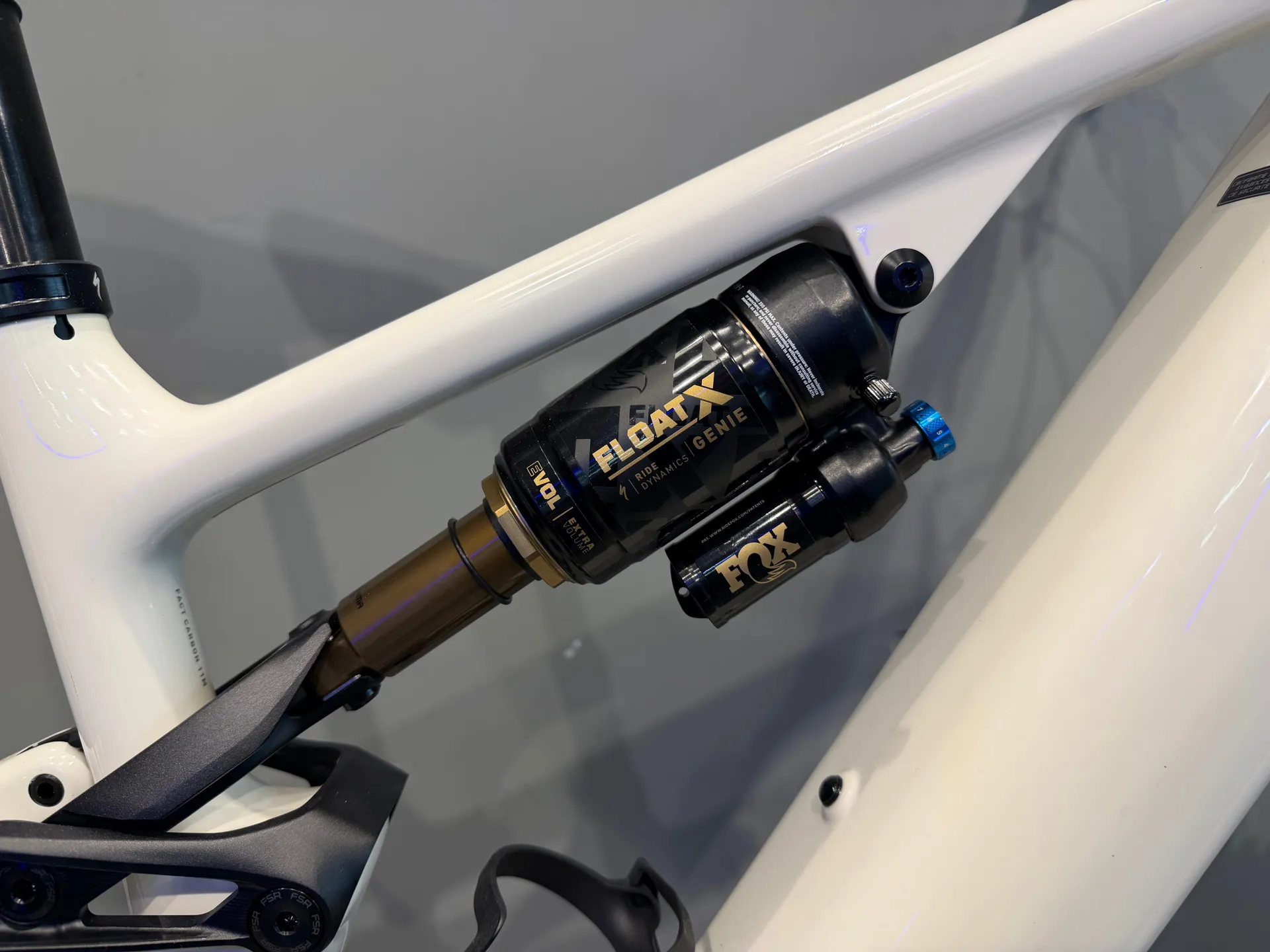

Rear Shock
Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
Seat Binder
Alloy, 38.6mm
Stem
Industry 9 Mountain stem, 35mm clamp, 40mm length
Saddle
Bridge Expert with MIMIC, Hollow Ti rails

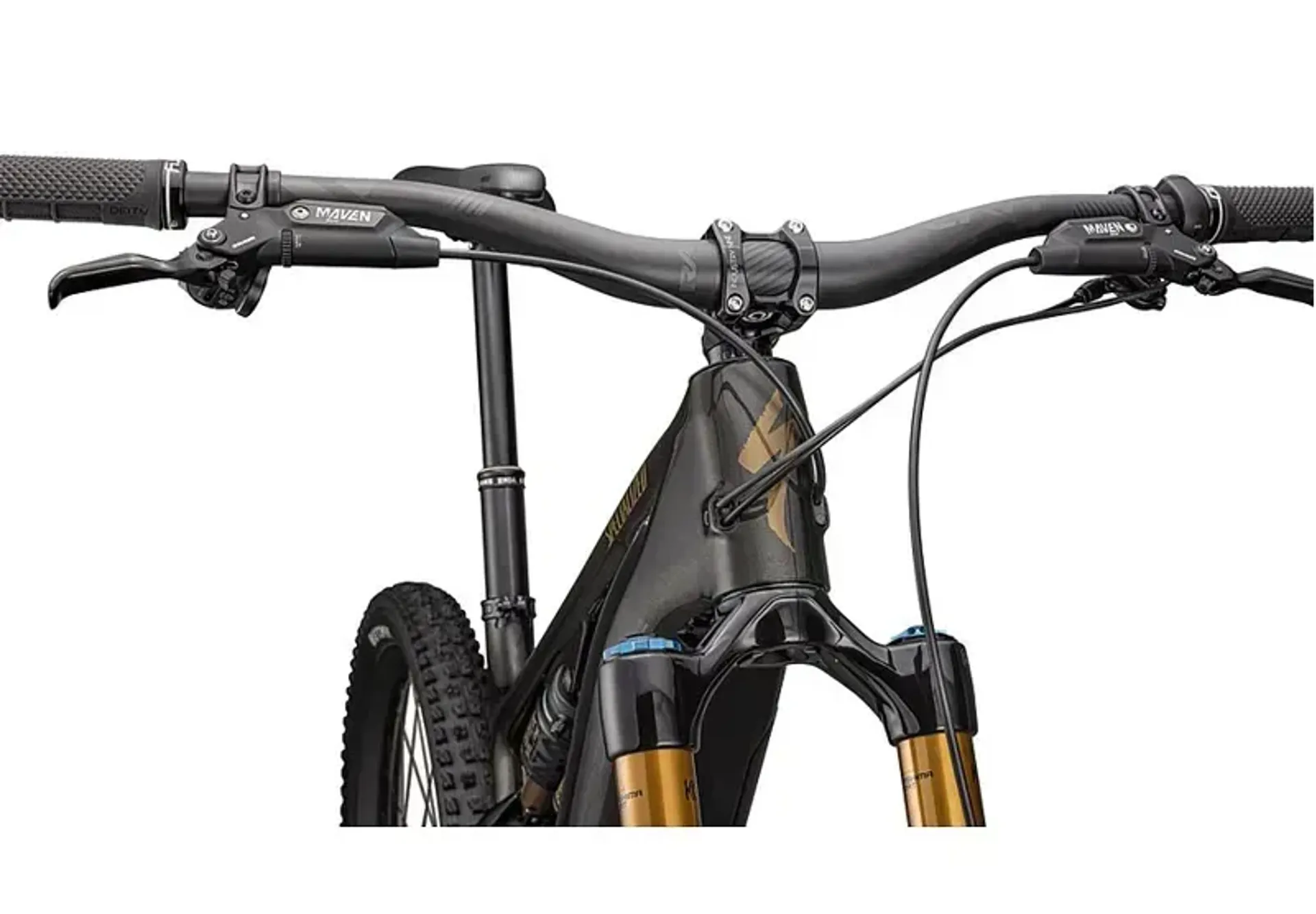

Handlebars
Race Face Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
Grips
Deity Lockjaw grips
Seatpost
Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm

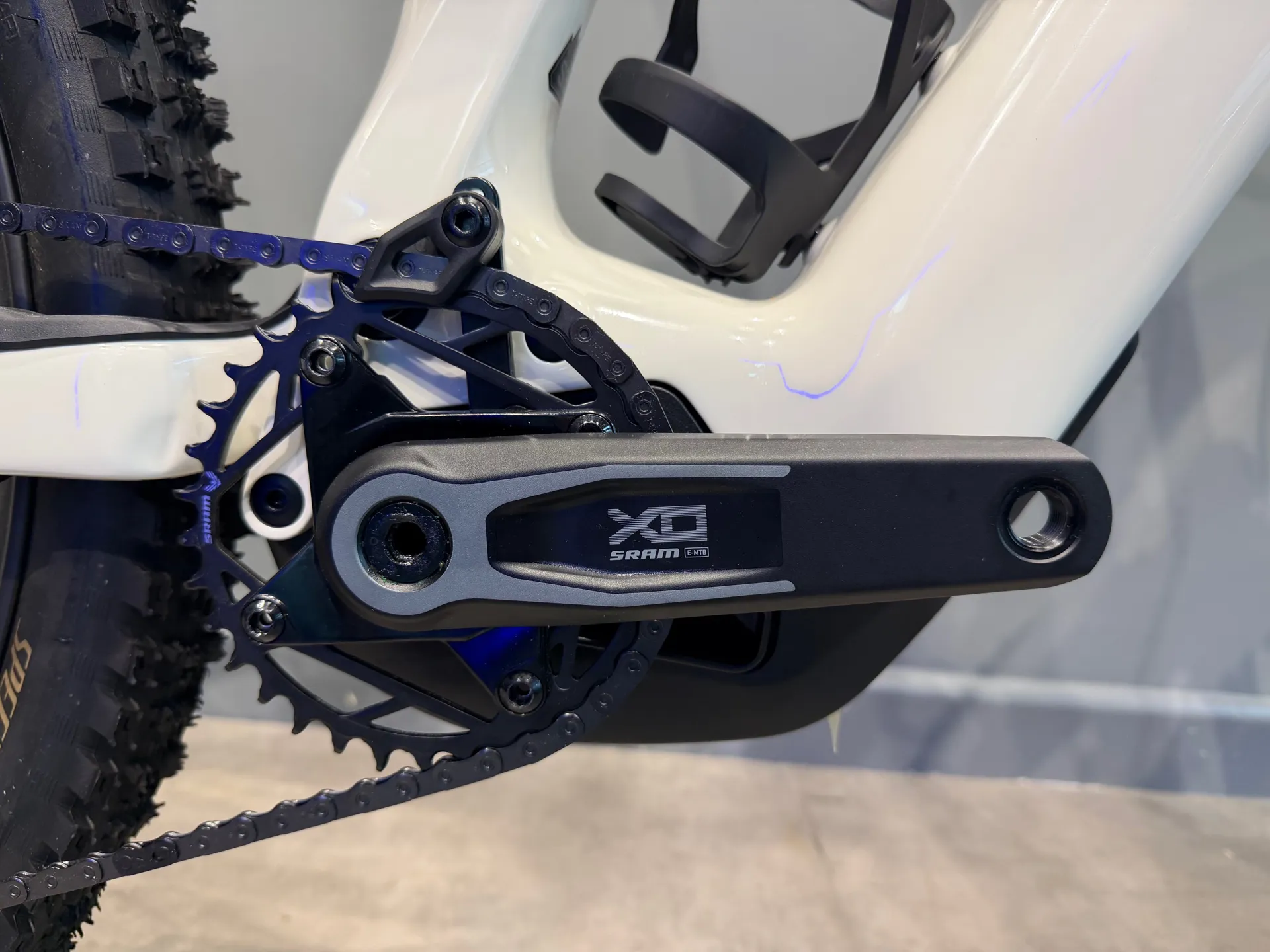

Crankset
SRAM XO Alloy crank, 155mm, ISIS interface

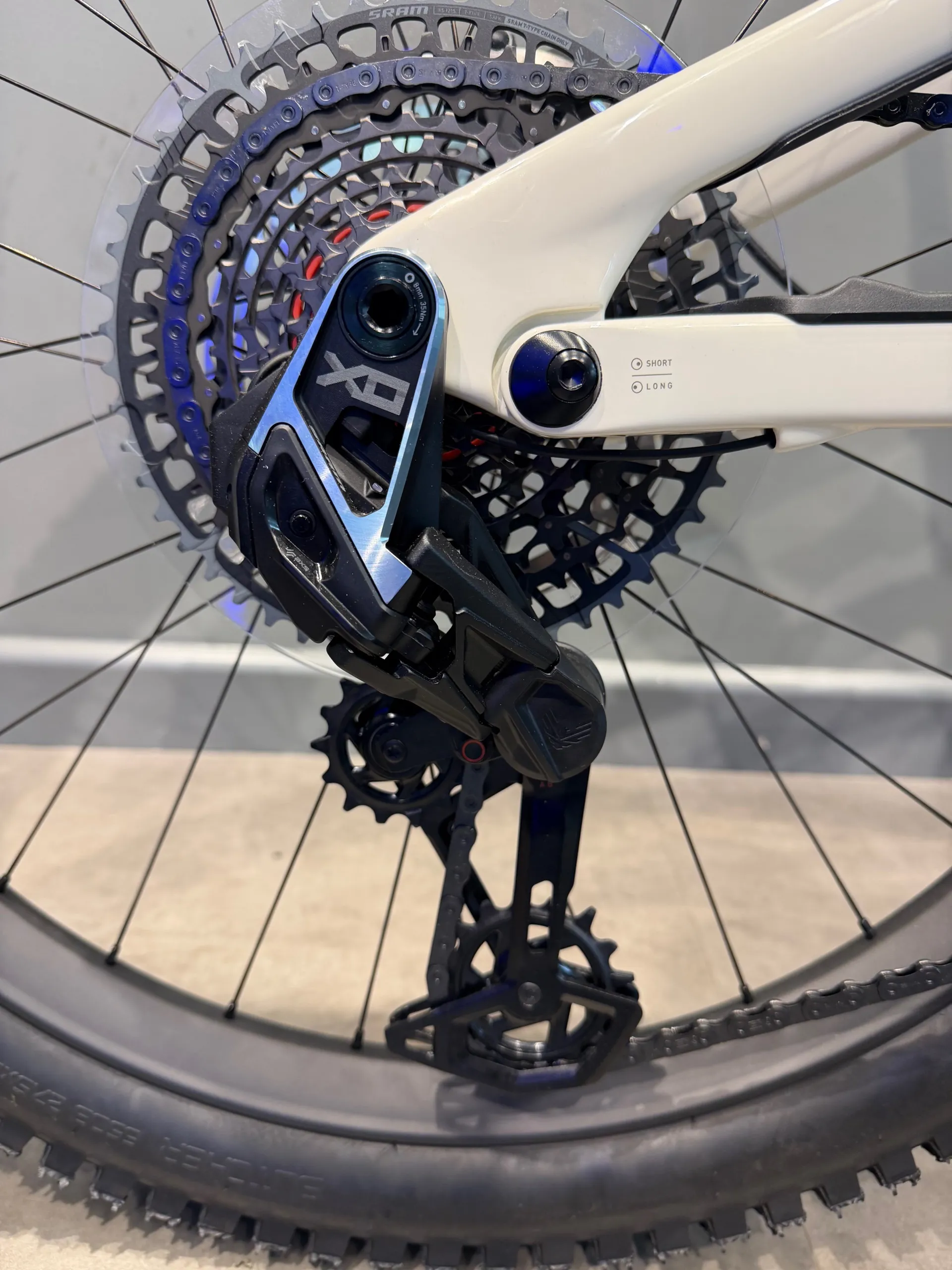

Rear Derailleur
SRAM X0 Eagle Transmission
Chain
SRAM X0
Cassette
SRAM XS 1295, 12 speed, 10-52
Shift Levers
SRAM AXS POD Controller w/discrete clamp
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel

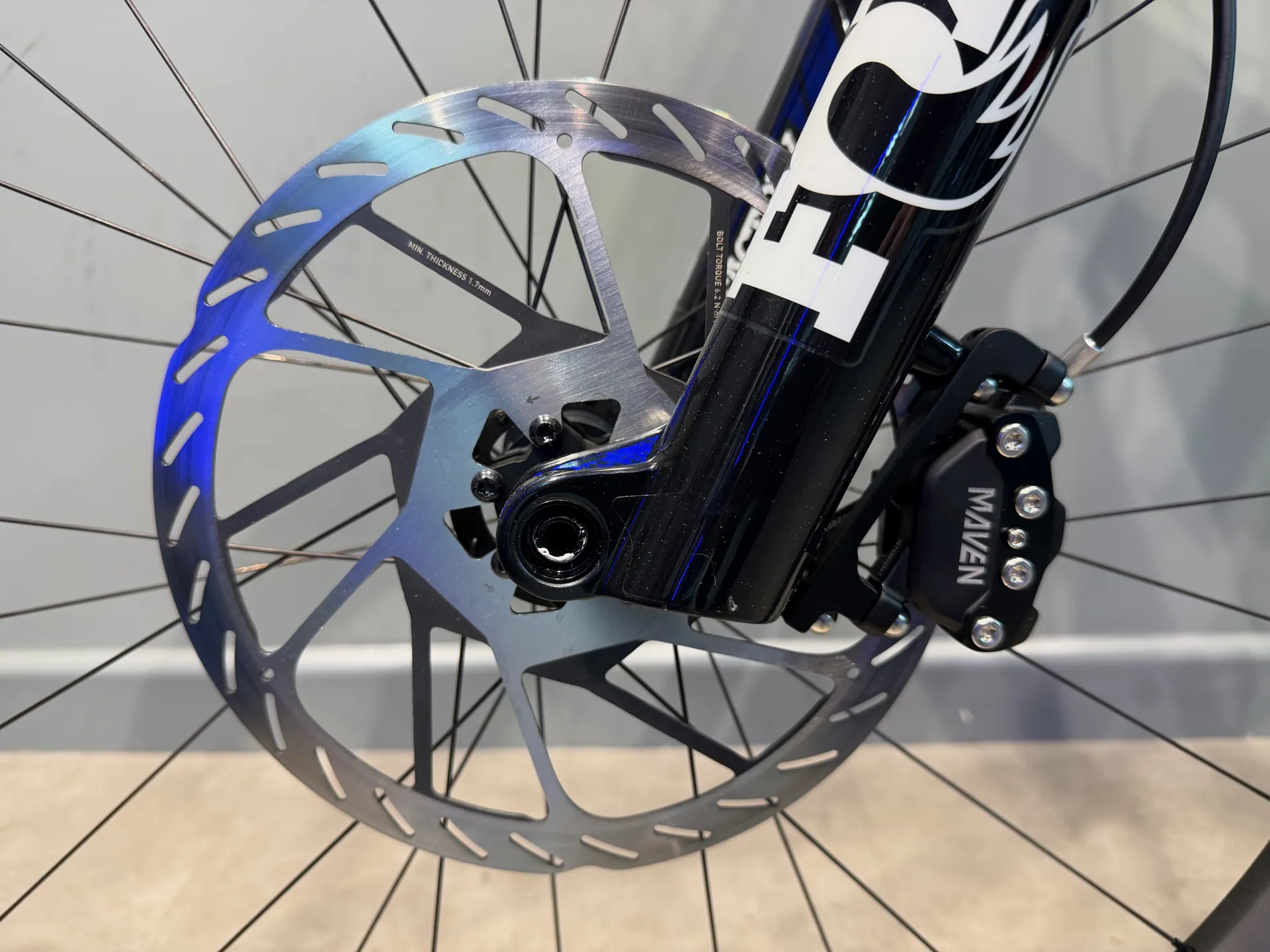

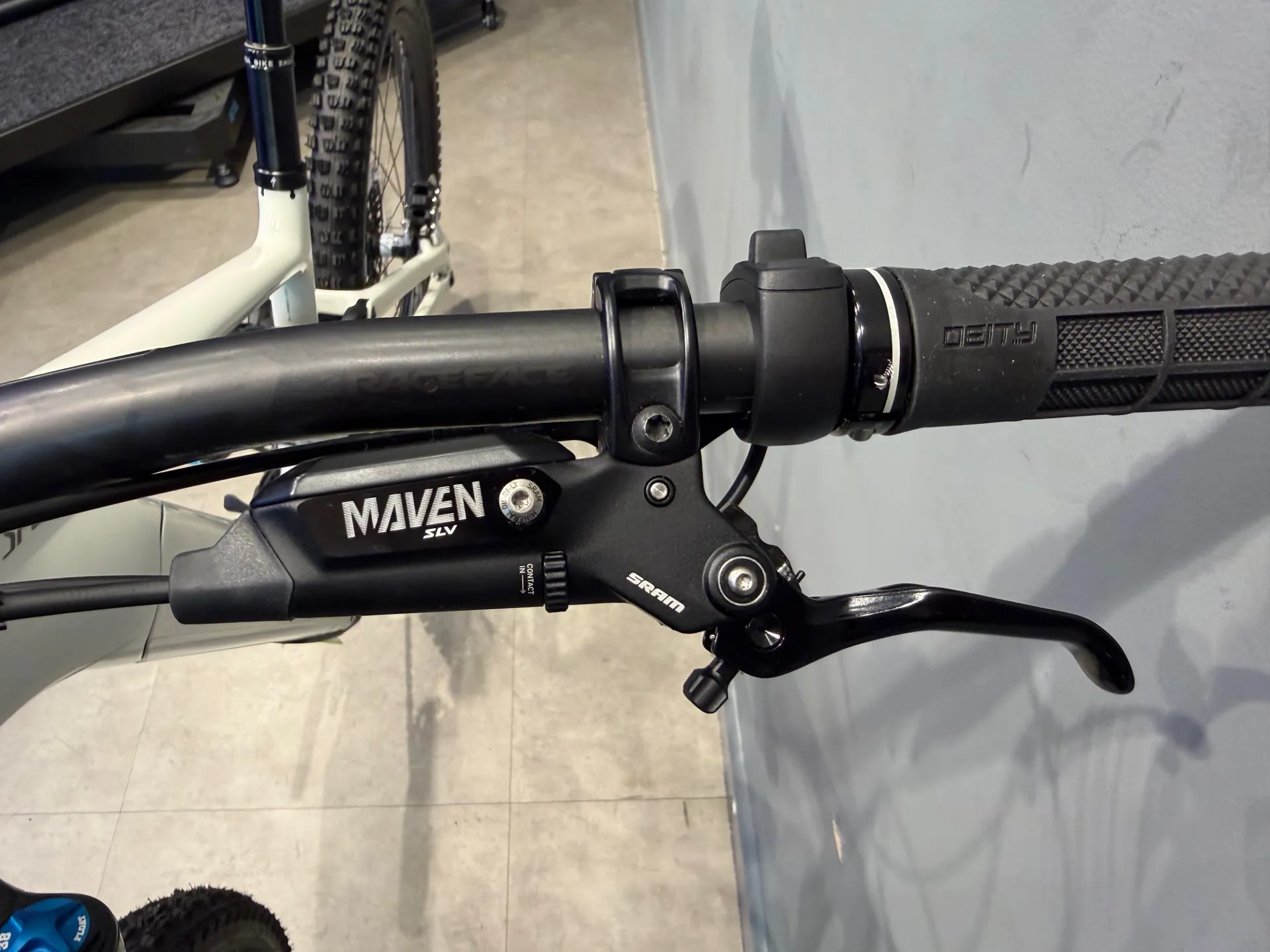

Front Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc

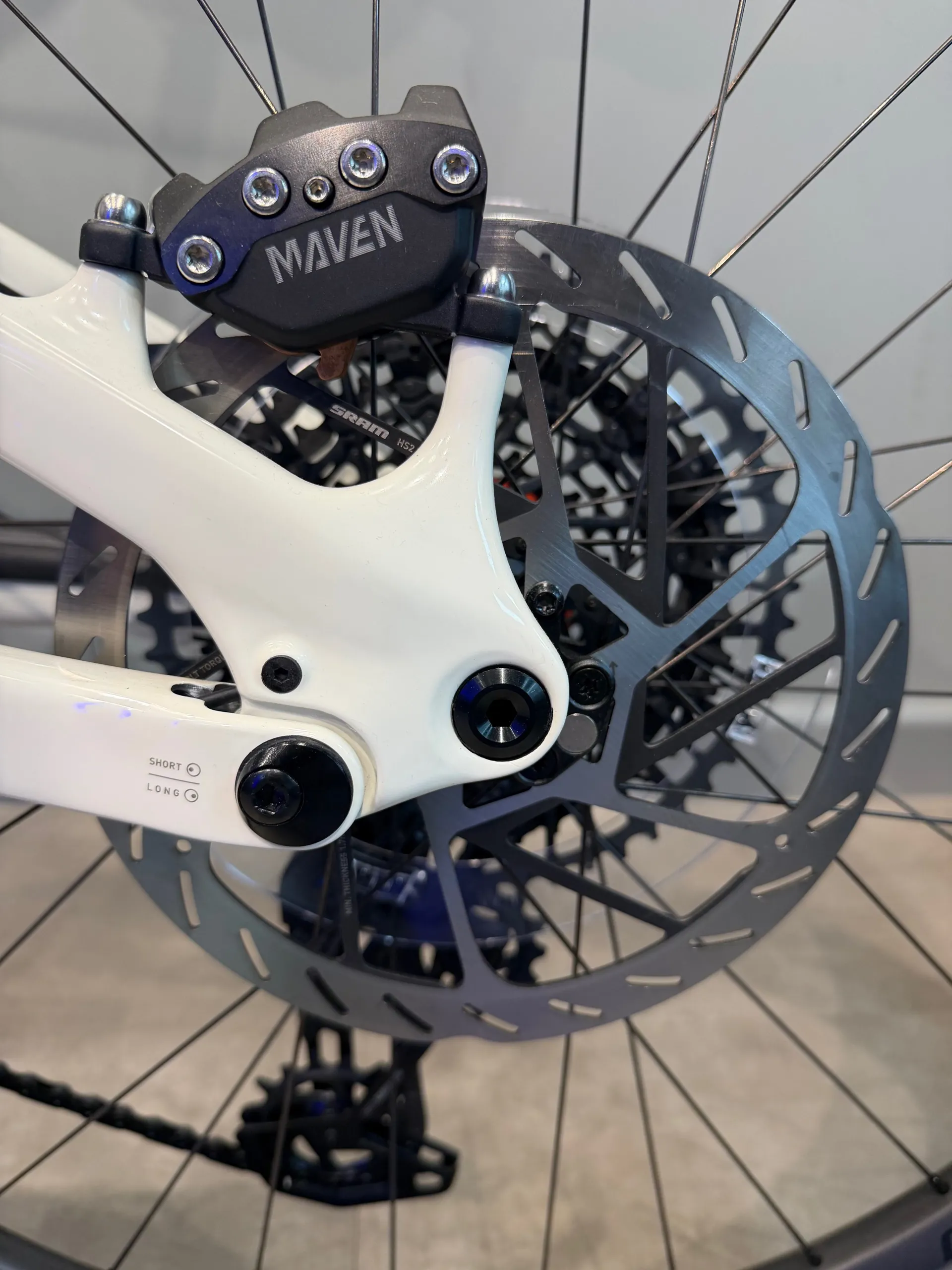

Rear Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc

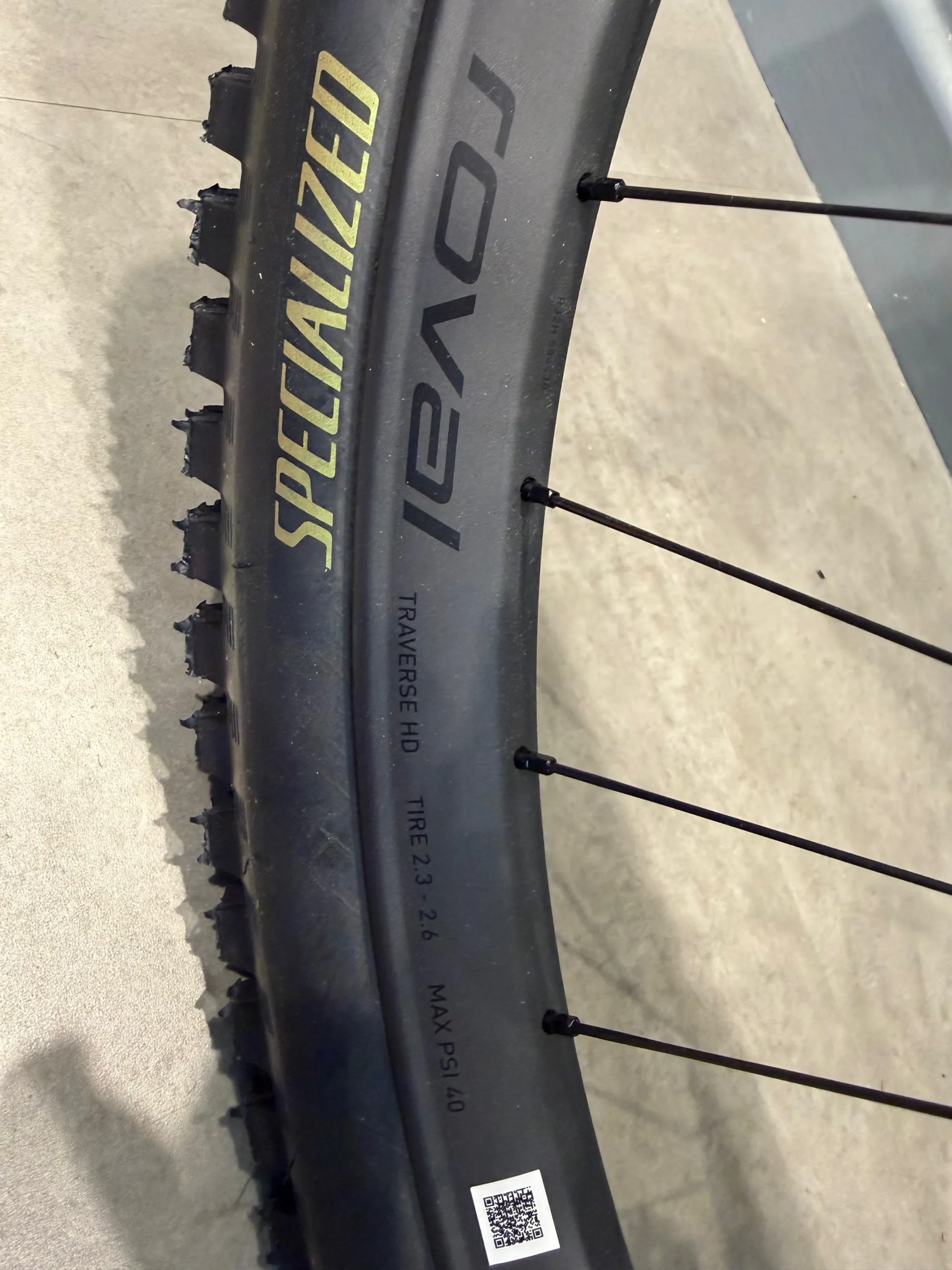

Front Wheel
Traverse HD Carbon 29" Rim, DT Swiss 350, 15x110mm, 28h
Rear Wheel
Traverse HD 27.5" carbon rim, DT Swiss 350, XD freehub body, 12x148mm, 28h
SWAT
SWAT internal downtube storage
Front Tyre
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Rear Tyre
Butcher, GRID GRAVITY Casing, Gripton T9 compound, TLR, 27.5x2.4
Inner Tubes
Standard, Presta Valve
Motor
Specialized 3.1 Motor, 101Nm torque, 666Nm power
Battery
Specialized Turbo X2 840Wh integrated battery pack
UI/Remote
Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Charger
Specialized 4amp charger
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
Weight
23.94 kg (52 lb, 12.5 oz)
Weight Size
S4
