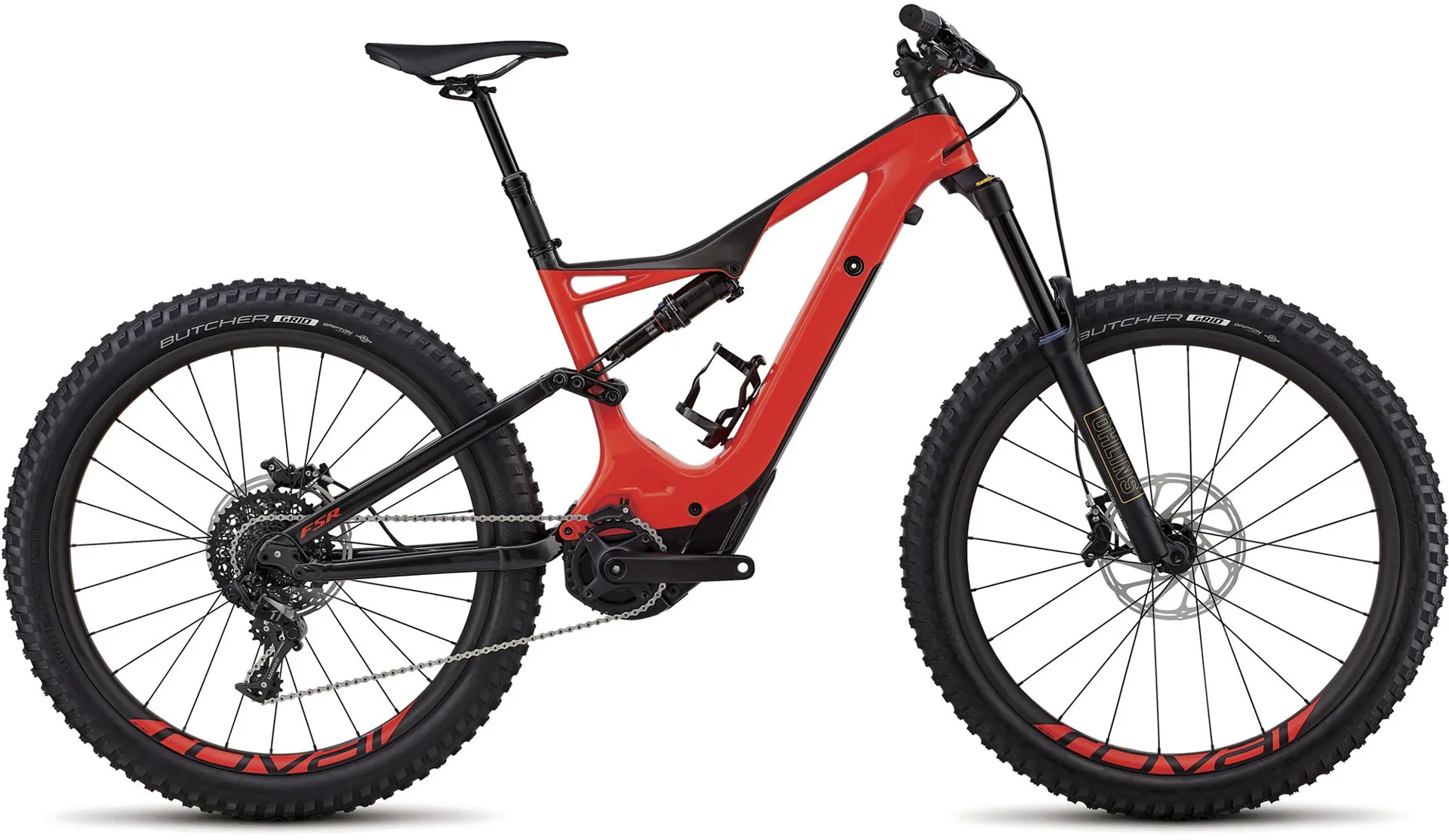

Ex-Demo: Specialized Turbo Levo FSR Exp Carbon 6Fattie/29 E-Bike Large Information

Season : 2018

Brand : Specialized

Code : 95218-3304 DEMO

Elevate your passion for trail riding with a Turbo FSR Expert Carbon 6Fattie/29, designed to take you further for longer, playfully.

It's easy to sometimes forget that the true essence of why we ride is to enjoy ourselves. Whilst many of the ear-to-ear grins come from the exploration aspect of riding, when they slowly fade as you fall into the habit of riding the same routes, day in and day out, grab a Turbo Levo FSR Expert Carbon 6Fattie/29 to experience the smile-inspiring power to give you the chance to ride more trails.

The Levo is made from the most advanced carbon technologies and engineering that come with all of the S-Works bikes with all of the hallmarks Specialized's trail bikes are known for. This means you get a 450-gram weight savings compared to the alloy Levo, a roomy top tube for an easy fit and more control, ultra-short chainstays for nimble handling, and a low bottom bracket that makes the bike feel glued to the trail.

Then comes a FACT 11m carbon chassis, with an M5 alloy rear end, and efficient and powerful Turbo technology, integrating a battery, and a new Turbo 1.3 motor that delivers 15% more power than the previous version. This also delivers a sizeable increase in efficiency, while the exclusive Rx Trail Tune at the motor smoothly and quietly brings this additional power to the pedals, making climbing the steepest of trails nearly effortless. The output is fully adjustable to conserve energy while the custom motor is also the only one on the market that features instant pedal engagement, so you get immediate power the moment you need it, and consistent torque throughout the entire cadence range.

At the battery, you'll find that it's fully integrated with the down tube and easily removable for quick charging or swaps. It has a lengthy lifespan for hitting long, out of the way trails and, along with the motor, it's strategically placed for optimal weight distribution. You'll also find the Mission Control App for full control of the Turbo technology, an integrated Trail Display with all of the ride metrics you need, a Trail Remote that lets your easily switch between modes without removing your hands from the bars, and a power meter that shows exactly how much power you're putting out vs. the motor.

This version also has a 150mm Öhlins RXF36 fork, SRAM Code R brakes, and a SRAM X01 one-by groupset. It also features a 6Fattie wheel system that decreases deflection and dramatically increases traction, floatation, and fun over the trail. This system also allows you the opportunity to toggle between 29-inch wheels (not included) and 6Fattie wheels, allowing the ultimate in configuration options for the trail at hand.

  • The Turbo Levo FSR frame is constructed with a FACT 11m carbon fibre chassis and M5 Premium Aluminium rear end, making it not only lightweight but also quite stiff and responsive.
  • The design includes a Trail 6Fattie Geometry that includes a low bottom bracket, roomy top tube, and short chainstays. Cable routing is all internal, including that of the Command Post IR, while the battery is fully integrated in the down tube and the motor is secured by a forged brace mount.
  • The custom Turbo 1.3 Rx Trail-tuned motor is built for the Levo and features a 15% power increase and a significant efficiency increase compared to the Turbo 1.2 motor. This successfully places it at the top of e-bike motor technology. It has many other features that no other e-bike can touch, like instant engagement, fantastic heat management, a double freewheel design that disengages the gear box when you hit top speed, and silent, smooth, and consistent output, even at max power.
  • The Turbo M1-504 battery features an integrated Trail Display and ANT+/Bluetooth® module with Mission Control App connectivity. It also houses 504Wh of trail-taming juice, and it's neatly integrated into the down tube.
Technical Information
FRAME FACT 9m carbon chassis / M5 Alloy rear triangle, 6Fattie/29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 135mm of travel
FORK Öhlins RXF 36, 6Fattie/29, Single-Tube design, air spring w/ adjustable 3rd chamber, adjustable low speed compression, adjustable rebound, 15x110mm thru-axle, 51mm offset, 150mm of travel
REAR SHOCK RockShox Monarch RT3, Rx Trail Tune, AUTOSAG, rebound and 3-position compression adjust, 197x48mm
FRONT HUB Specialized, sealed cartridge bearings, 15x110mm spacing, 24h
REAR HUB Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
SPOKES DT Swiss, stainless
RIMS Roval Traverse Carbon 27.5, hookless carbon, 38mm inner width, 24/28h, tubeless ready, hand-built
INNER TUBES 27.5 x 2.3" / 3.0", 40mm Presta valve
FRONT TYRE Butcher, GRID casing, Gripton compound, 2Bliss Ready, 27.5 x 2.8"
REAR TYRE Butcher, GRID casing, Gripton compound, 2Bliss Ready, 27.5 x 2.8"
CRANKSET Custom alloy crankarms
CHAINRINGS Forged steel, 32T
SHIFT LEVERS SRAM X1, trigger, 11-speed
REAR DERAILLEUR SRAM X01, 11-speed
CASSETTE SRAM XG-1175, 11-speed, 10-42t
CHAIN KMC X11ET, 11-speed w/ Missing Linkâ„¢
FRONT BRAKE SRAM Code R, hydraulic disc, 200mm
REAR BRAKE SRAM Code R, hydraulic disc, 200mm
HANDLEBARS Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp
GRIPS Specialized Sip Grip, half-waffle, XS/S: regular thickness, M/XL: XL thickness
STEM Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise
SADDLE Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST Command Post IRcc, 12-position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm of travel
SEAT BINDER Specialized, alloy, 34.9mm
MOTOR Specialized 1.3, custom Rx Trail-tuned motor, 250W Nominal
UI/REMOTE Trail Handlebar Remote, motor mode switch & walk-assist
BATTERY Specialized M1-504, integrated Trail Display, ANT+/Bluetooth® module, 504Wh, Mission Control App connectivity
CHARGER Custom charger, 42V4A with Rosenberger plug
WIRING HARNESS Custom Specialized wiring harness
PEDALS Specialized Platform, Cr-Mo axle, PP-Body
