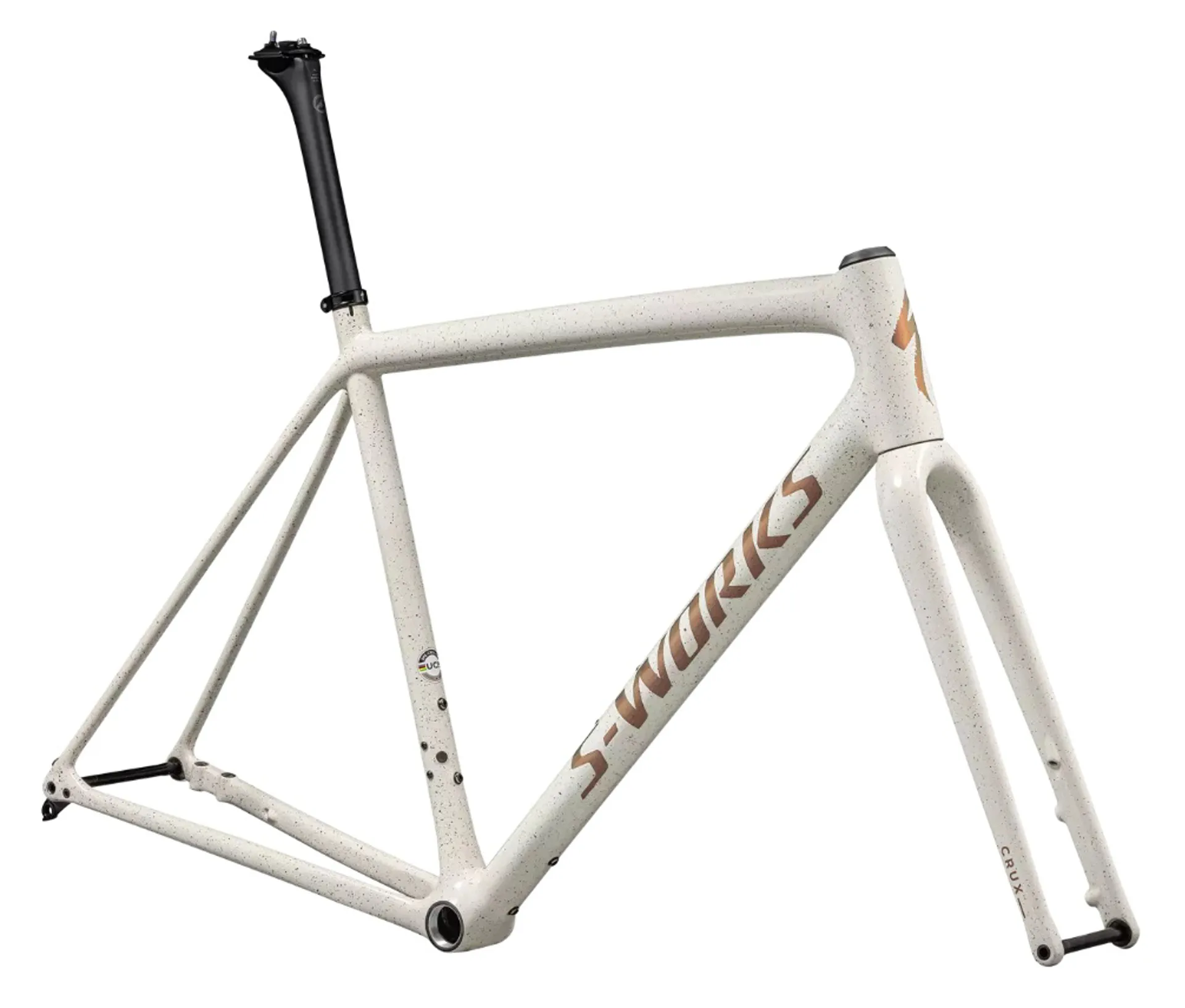

2023 S-Works Crux Cyclocross Bike Frameset - Gloss Birch Red Gold

Season:2023

Brand:Specialized

Code:336181349748

The ultimate 'cross warrior built with exceptional capability and gravel performance. The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tyre clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s the one thing that will get you so hooked on crits and gravel riding, you will always be searching for the next beaten path.

725g S-Works 12r and 825g 10r frames. The revolutionary breakthroughs that made the Aethos the lightest bike ever have been adapted to enhance the Crux. The result is a gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.

47c/650b x 2.1” tyre clearance. More clearance means more capability. With Diverge-level tyre clearance, Crux takes you anywhere you can imagine, at full gas.

Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux's iconic history in ‘cross.

Technical Information
  • Frame
    S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc
  • Fork
    S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
  • Seatpost
    Roval Alpinist Carbon Seatpost
  • Seat Binder
    Specialized Alloy, 30.0mm, titanium bolt
  • Weight
    1.5kg (3 lb, 4.9 oz)
  • Weight Size
    56 (weight taken with seatpost)
  • As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

SIZING

Size in ft4'11" - 5'2"5'2" - 5'5"5'4" - 5'6"5'6" - 5'9"5'9" - 6'0"6'0" - 6'3"6'3" - 6'6"
Size in cm150 - 158cm158 - 165cm163 - 168cm168 - 175cm175 - 183cm183 - 191cm191 - 198cm
Bike Size46495254565861

GEOMETRY

Size49cm52cm54cm56cm58cm61cm
BB Drop74mm74mm72mm72mm72mm72mm
BB Height284mm284mm286mm286mm286mm286mm
Bike Standover Height749mm772mm794mm816mm841mm866mm
Chainstay Length425mm425mm425mm425mm425mm425mm
Fork Length, Full401mm401mm401mm401mm401mm401mm
Fork Rake/Offset50mm50mm50mm50mm50mm50mm
Front Centre594mm600mm608mm618mm630mm644mm
Head Tube Angle70.5°71.25°71.5°72°72.25°72.5°
Head Tube Length100mm115mm130mm147mm167mm190mm
Reach375mm382mm388mm397mm405mm415mm
Seat Tube Angle75.5°74°74°73.5°73.5°73.5°
Seat Tube Length466mm496mm521mm546mm576mm606mm
Stack530mm547mm560mm578mm598mm621mm
Top Tube Length, Horizontal512mm539mm549mm568mm582mm599mm
Trail74mm69mm67mm64mm62mm60mm
Wheelbase1008mm1014mm1023mm1033mm1045mm1059mm
