Shop the 2027 Specialized Crux 5 Comp SRAM Rival XPLR Gravel Bike with FACT 10r carbon frame, DT G-500 wheels and 8.89kg race-ready build.
Shop the 2027 Specialized Crux 5 Comp SRAM Rival XPLR Gravel Bike with FACT 10r carbon frame, DT G-500 wheels and 8.89kg race-ready build.
Specialized

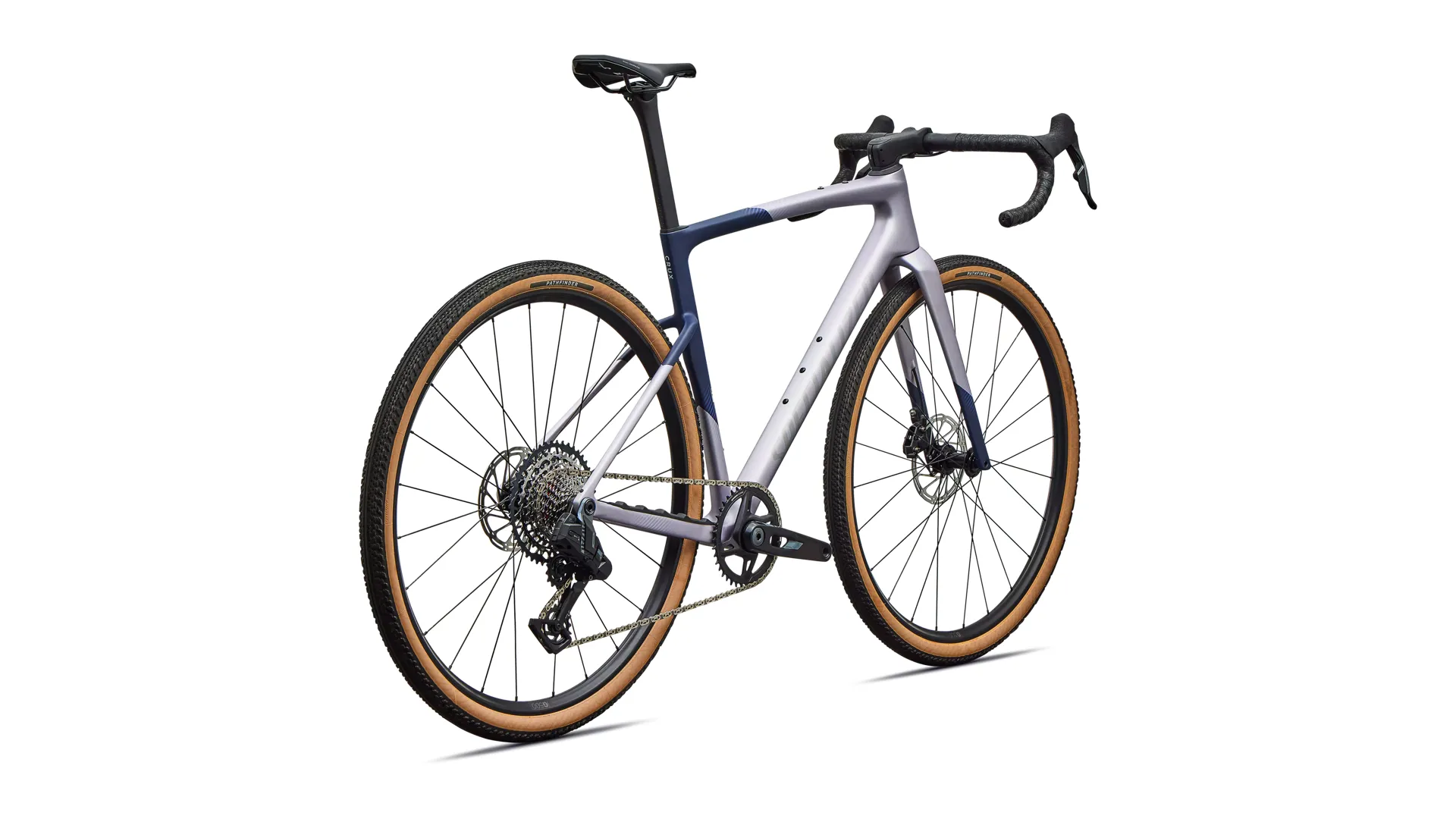

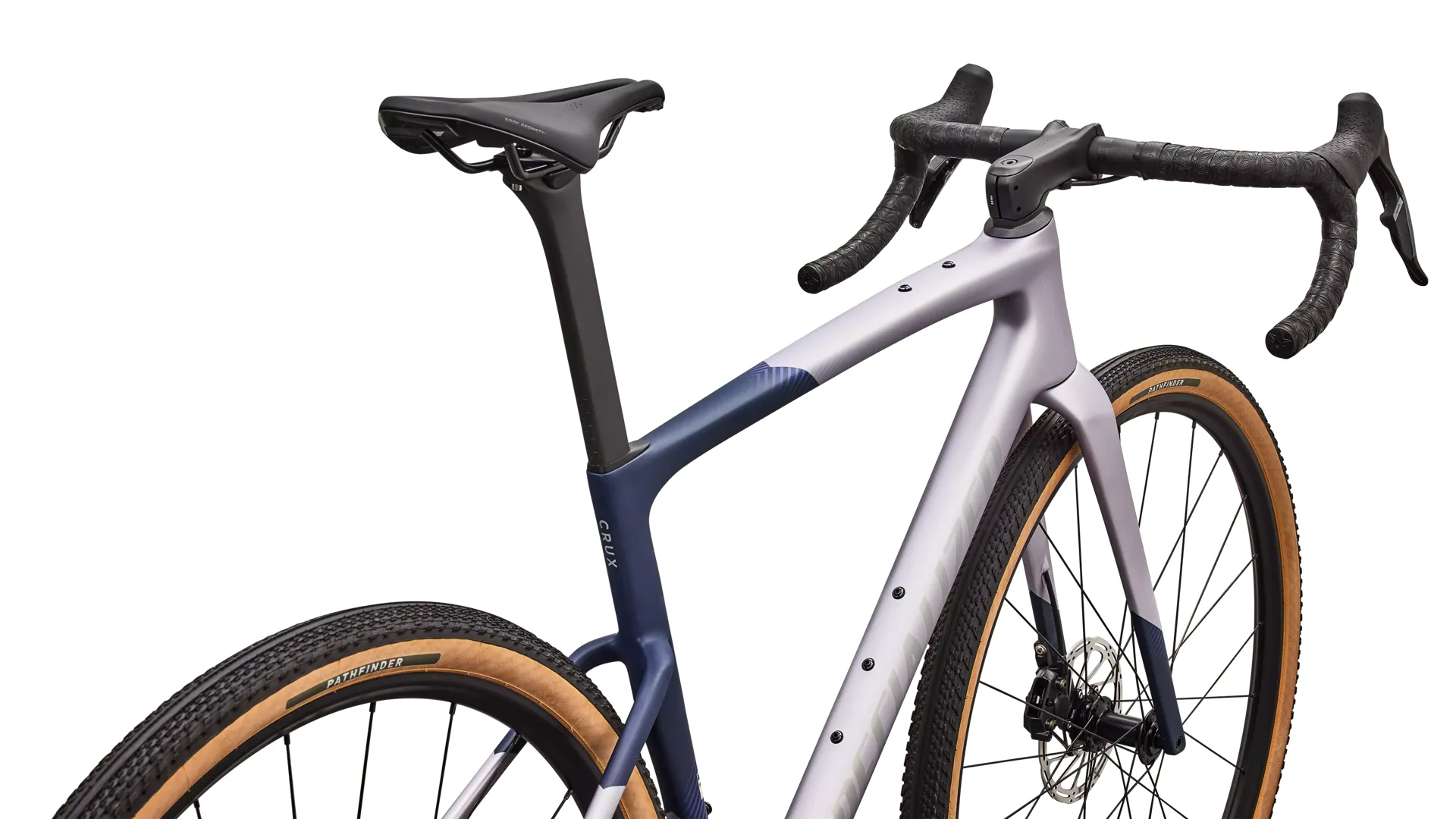

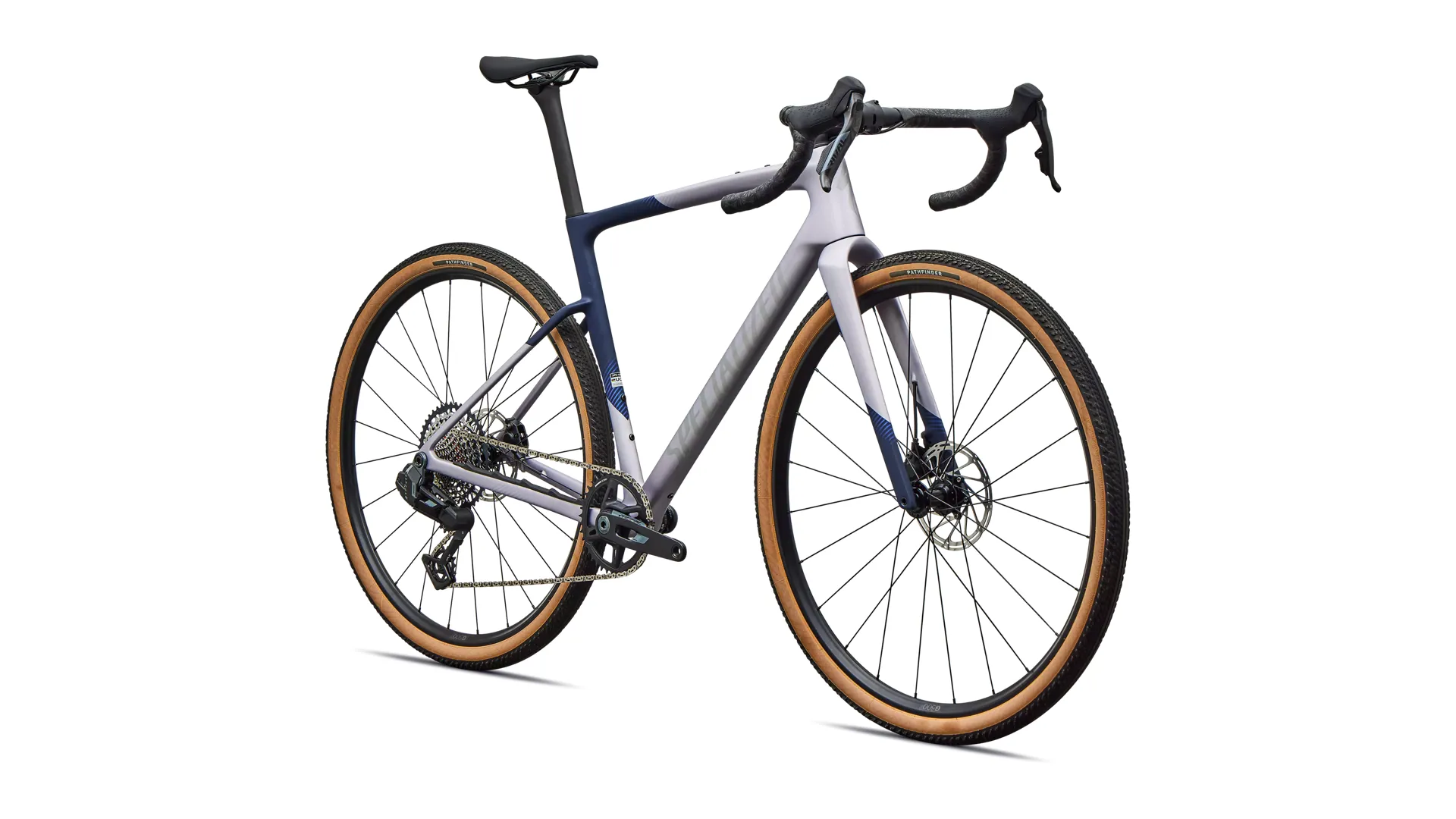

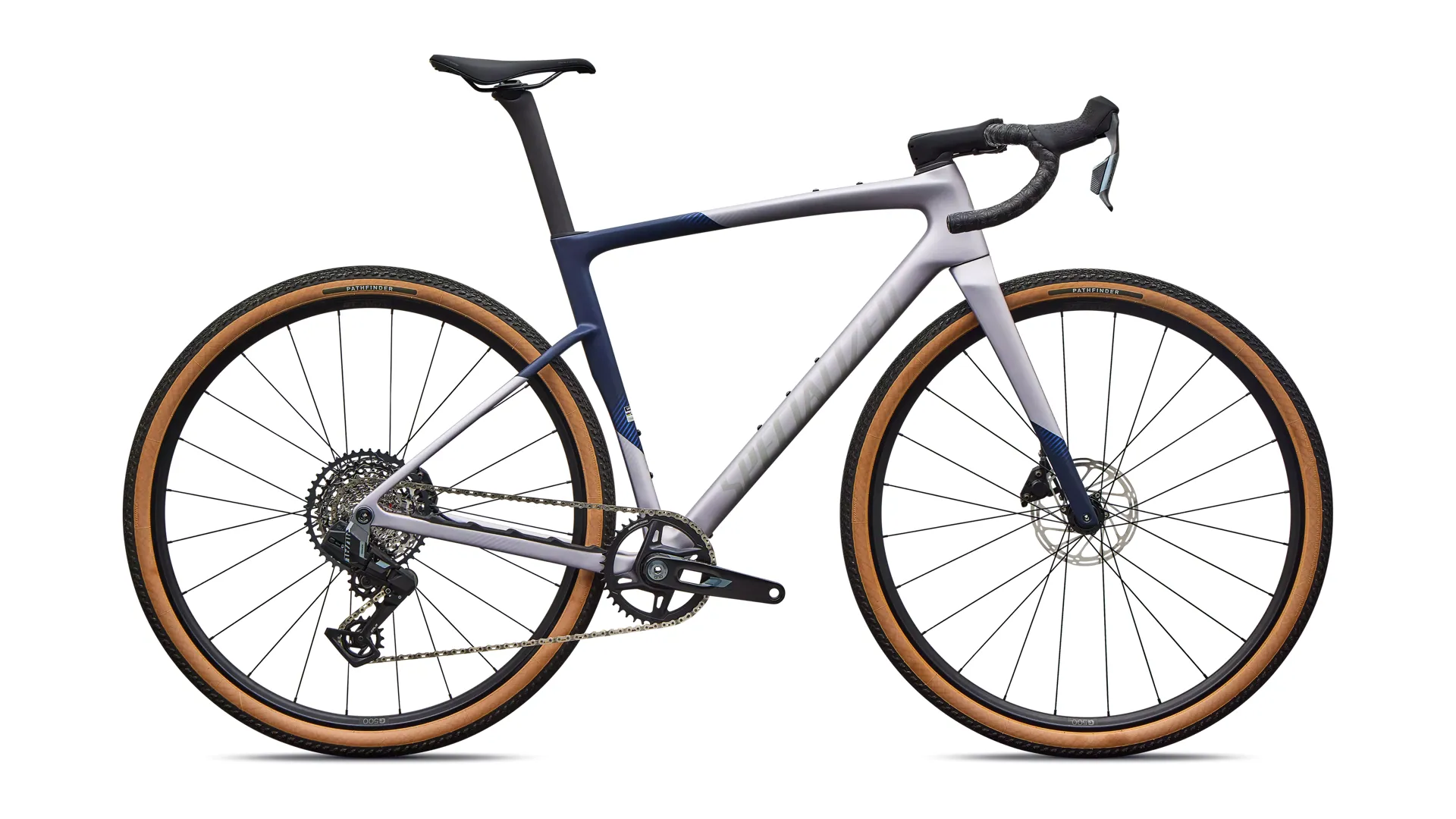

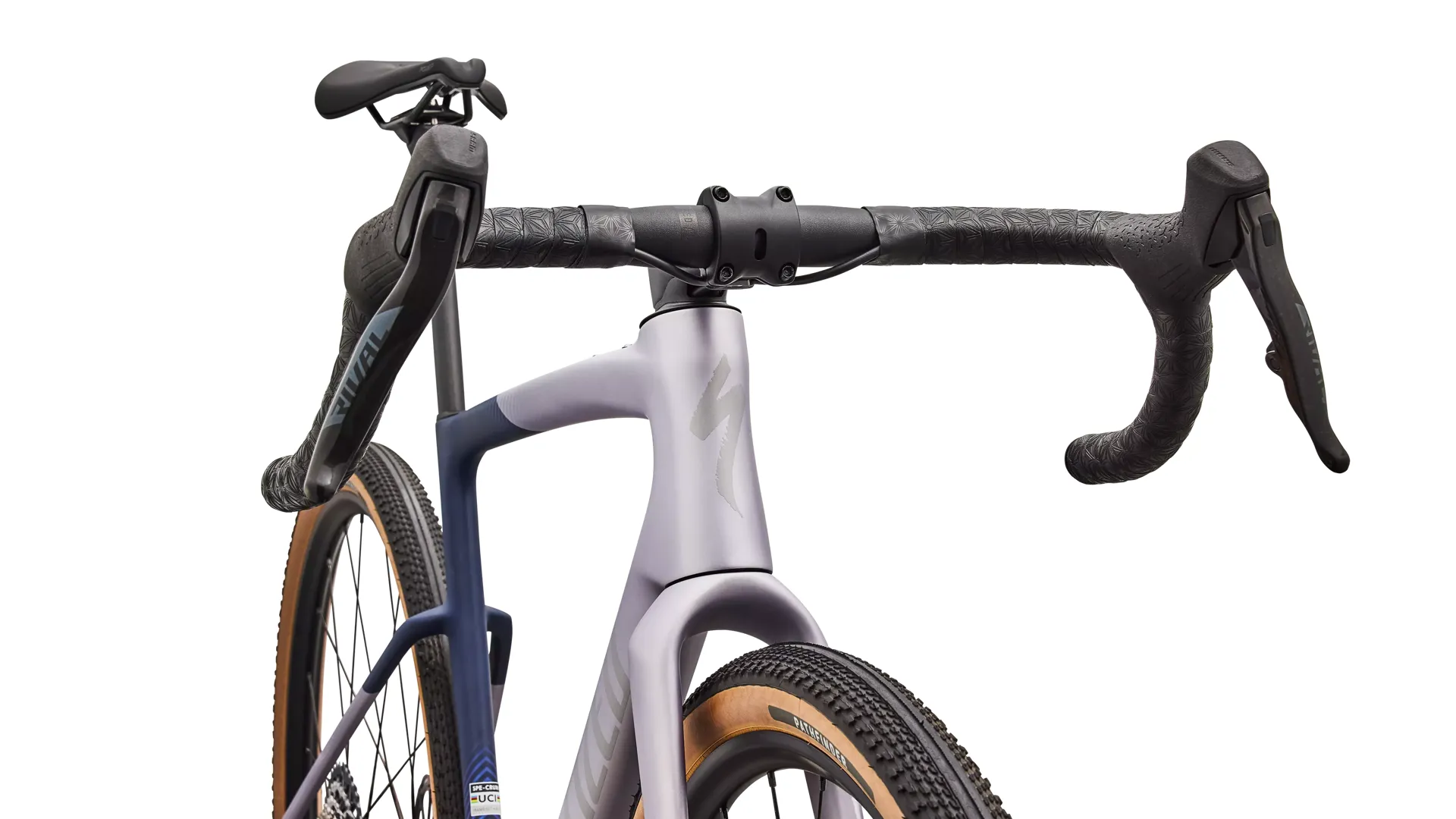

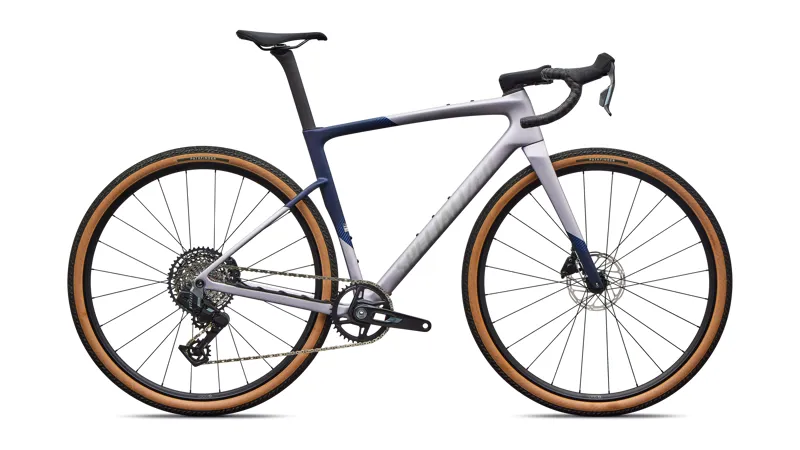

2027 Specialized Crux 5 Comp SRAM Rival XPLR Gravel Bike - Amethyst Frost

£3,999.00
I'm a Pre-launch Product. Find out more
Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2027 Specialized Crux 5 Comp SRAM Rival XPLR Gravel Bike - Amethyst Frost

Season:2027

Brand:Specialized

Code:42948325470057

2027 Specialized Crux 5 Comp Gravel Race Bike | FACT 10r Carbon, SRAM Rival AXS XPLR & DT G-500 Wheels


The Specialized Crux 5 Comp SRAM Rival XPLR Gravel Bike is a lightweight, race-ready carbon gravel bike designed for riders who want speed, efficiency and confident handling across gravel, dirt and mixed-terrain routes. Born from the fastest gravel race bike ever made, the Crux 5 Comp delivers high-performance gravel racing capability in a practical and competitive build.

  • Performance-focused 2027 Specialized Crux 5 Comp gravel bike
  • Designed for gravel racing, endurance riding and mixed-terrain speed
  • Lightweight FACT 10r carbon frame, weighing just 897g
  • Complete bike weight of approximately 8.89kg
  • Fast and responsive handling for dirt, gravel and all-road riding
  • Durable DT G-500 wheels for reliable gravel performance
  • Alloy handlebar with Rapide stem cockpit setup
  • Wireless SRAM Rival AXS XPLR drivetrain
  • Gravel-specific gearing for varied race conditions
  • Built to deliver low real-world Time to Finish across race terrain
  • Ideal for riders seeking a lightweight carbon gravel race bike

Built around a premium FACT 10r carbon frame, weighing just 897g, the Specialized Crux 5 Comp is engineered to turn more of your effort into pure speed. Its responsive ride quality and race-focused geometry help the bike handle rough gravel with precision, giving riders the confidence to push harder on climbs, descents and fast race sections.

The DT G-500 wheels provide a strong and reliable platform for gravel racing and endurance riding, while the alloy handlebar and Rapide stem offer a comfortable, controlled cockpit setup for long rides and high-speed efforts. Equipped with a wireless SRAM Rival AXS XPLR drivetrain, the Crux 5 Comp delivers smooth electronic shifting and gravel-specific gearing for varied terrain.

With a complete bike weight of approximately 8.89kg, the 2027 Specialized Crux 5 Comp is ideal for riders looking for a fast, capable and dependable gravel race bike. Whether you are competing in gravel events, taking on endurance rides or exploring mixed-surface roads, the Crux 5 Comp is built to help you ride faster and finish stronger.

Technical Information
  • Frame
    Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
  • Fork
    S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
  • Seat Binder
    Integrated Wedge
  • Seatpost
    S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
  • Stem
    Roval Rapide, alloy, 4 bolt, -6 degrees
  • Saddle
    Body Geometry Power Sport, steel rails
  • Handlebars
    Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
  • Tape
    Supacaz Super Sticky Kush
  • Front Brake
    SRAM Rival E1, hydraulic disc
  • Rear Brake
    SRAM Rival E1, hydraulic disc
  • Chain
    SRAM Rival E1
  • Cassette
    SRAM Rival E1 XPLR, 13-speed, 10-46t
  • Bottom Bracket
    SRAM DUB BSA 68 Wide
  • Crankset
    SRAM Rival E1 XPLR, DUB Wide, 40t
  • Shift Levers
    SRAM Rival AXS E1
  • Rear Derailleur
    SRAM Rival AXS E1 XPLR, 13-speed
  • Inner Tubes
    700x32-50mm, 40mm Presta valve
  • Front Tyre
    Pathfinder 700x45, Tubeless Ready
  • Rear Tyre
    Pathfinder 700x45, Tubeless Ready
  • Front Wheel
    DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
  • Rear Wheel
    DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
  • Weight
    8.89 kg (19 lb, 9.6 oz)
  • Weight Size
    56cm
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

SIZING

Size in ft4'11" - 5'2"5'2" - 5'5"5'4" - 5'6"5'6" - 5'9"5'9" - 6'0"6'0" - 6'3"6'3" - 6'6"
Size in cm150 - 158cm158 - 165cm163 - 168cm168 - 175cm175 - 183cm183 - 191cm191 - 198cm
Bike Size46495254565861

GEOMETRY

Size49cm52cm54cm56cm58cm61cm
BB Drop80mm80mm78mm78mm78mm78mm
BB Height278mm278mm280mm280mm280mm280mm
Bike Standover Height753mm766mm781mm803mm823mm849mm
Chainstay Length425mm425mm425mm425mm425mm425mm
Fork Length, Full401mm401mm401mm401mm401mm401mm
Fork Rake/Offset51mm51mm51mm51mm51mm51mm
Front Centre594mm604mm613mm626mm644mm665mm
Head Tube Angle70.5°70.75°71°71.5°71.5°71.5°
Head Tube Length95mm110mm125mm142mm163mm188mm
Reach375mm382mm388mm400mm412mm425mm
Seat Tube Angle75.5°74.5°74.5°74°74°74°
Seat Tube Length445mm456mm473mm497mm515mm545mm
Stack530mm547mm560mm578mm598mm621mm
Top Tube Length, Horizontal512mm534mm543mm566mm583mm603mm
Trail72mm71mm69mm66mm66mm66mm
Wheelbase1008mm1016mm1026mm1039mm1057mm1078mm
Crank Length165mm165mm170mm170mm172.5mm172.5mm
Handlebar Width380mm380mm400mm400mm420mm420mm
Stem Length70mm80mm90mm100mm100mm100mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length300mm300mm380mm380mm380mm380mm
