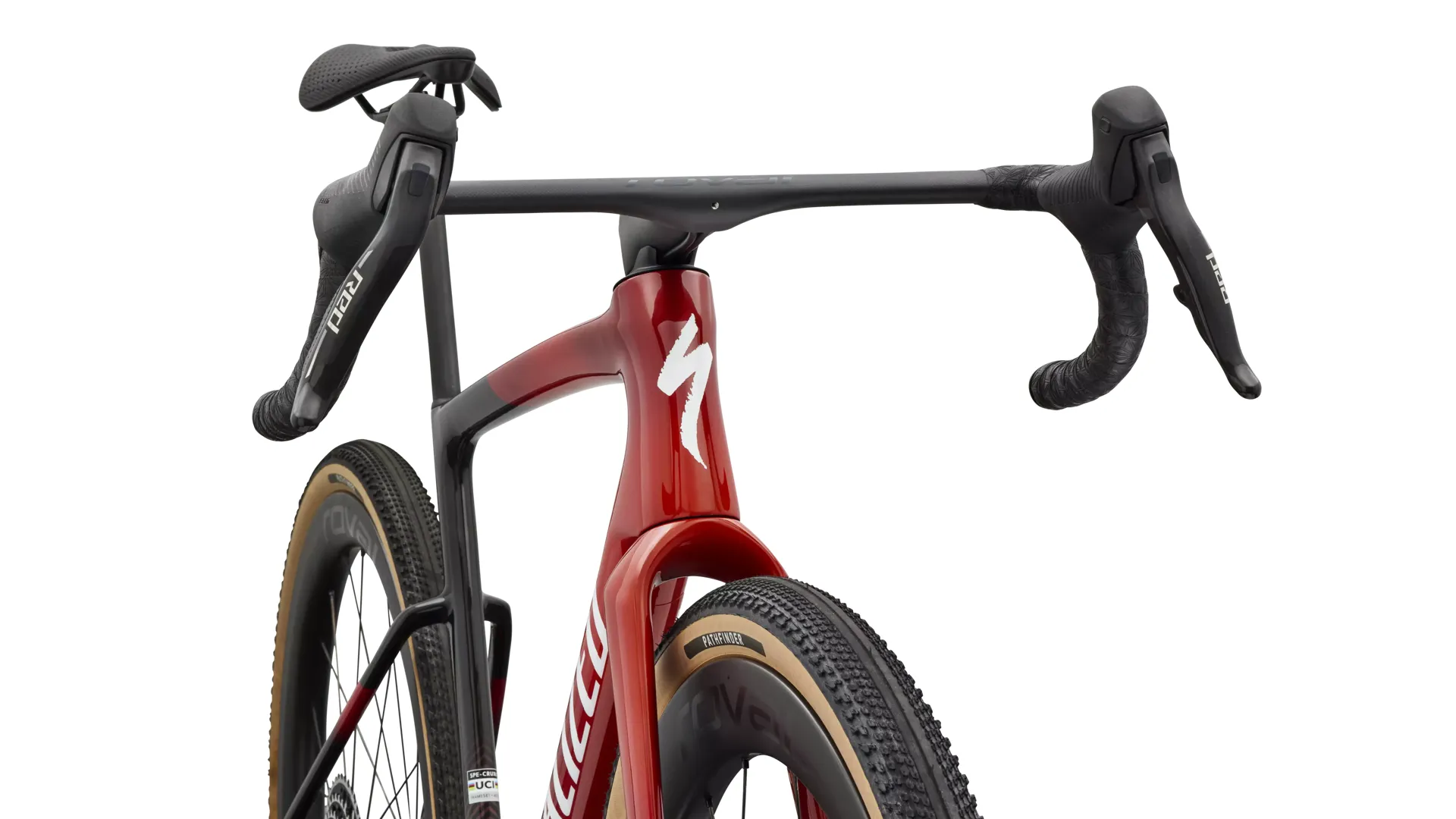

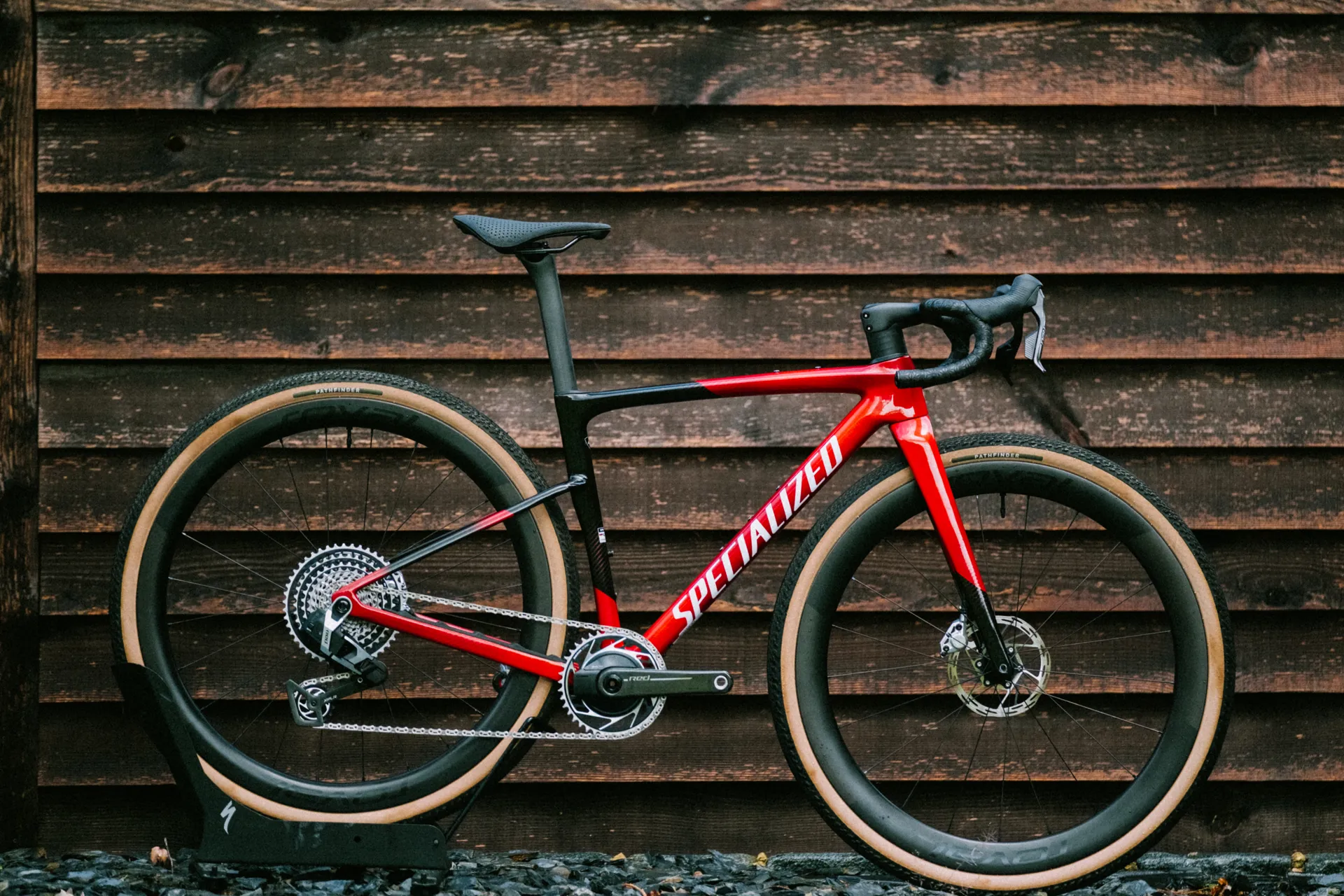

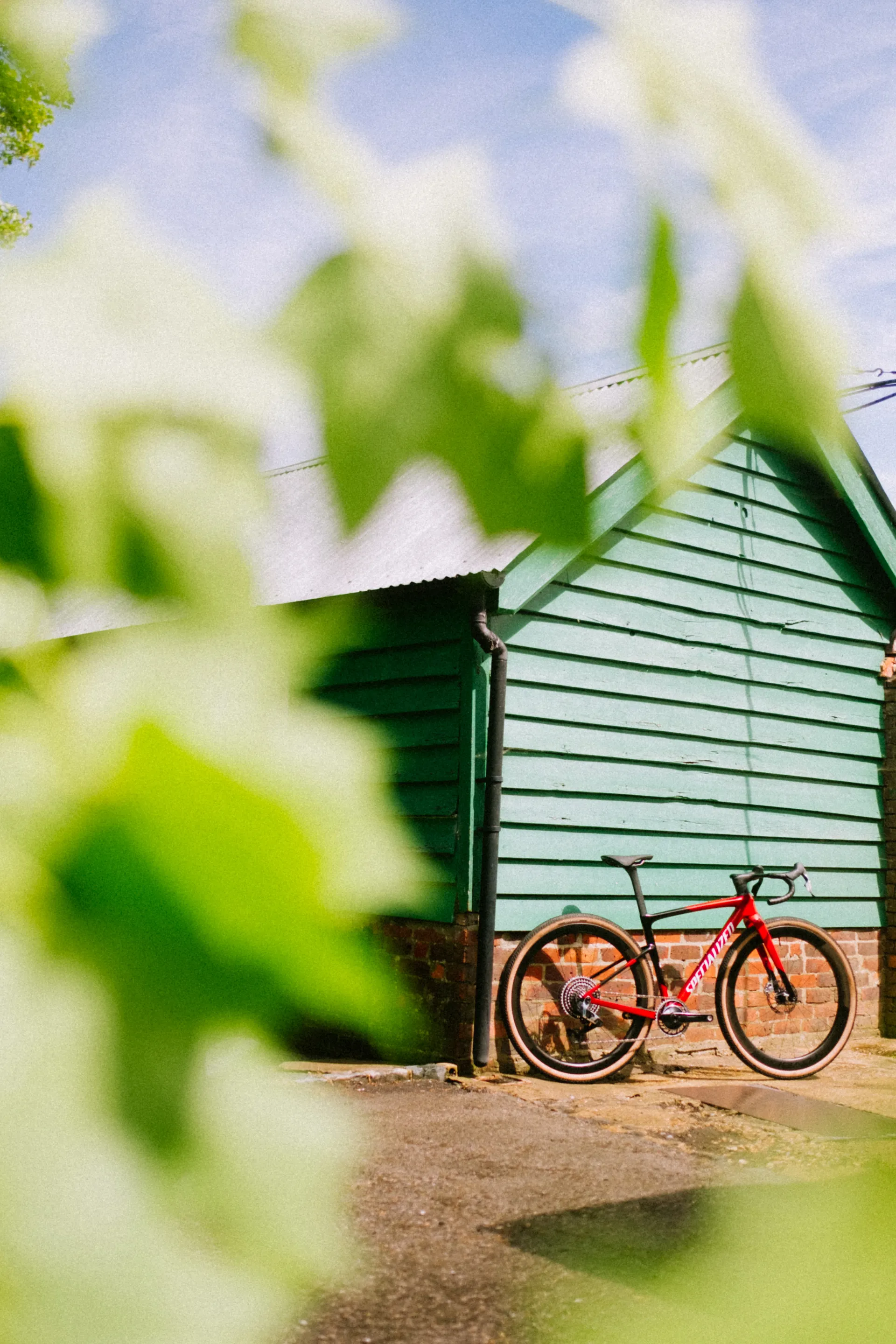

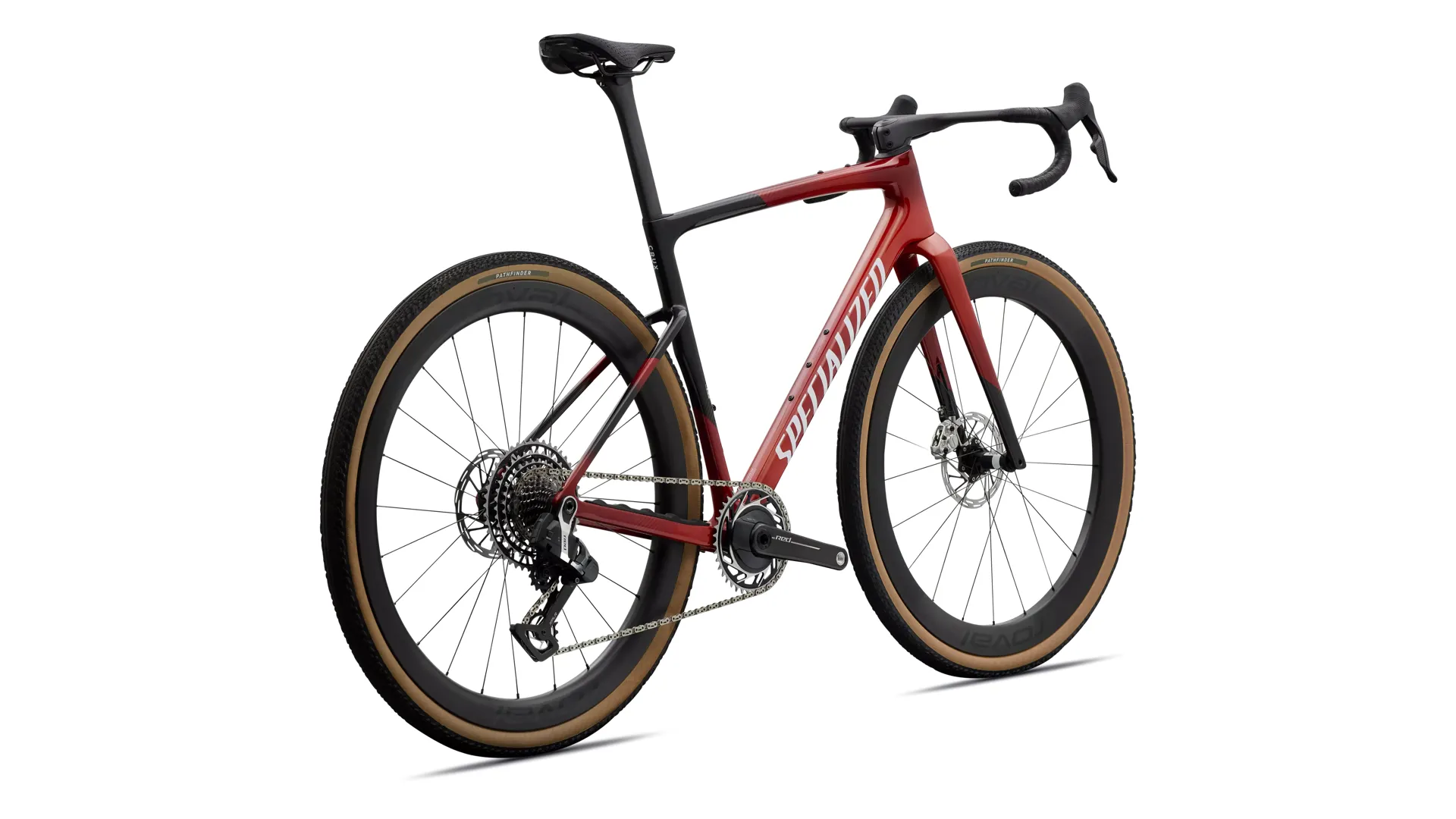

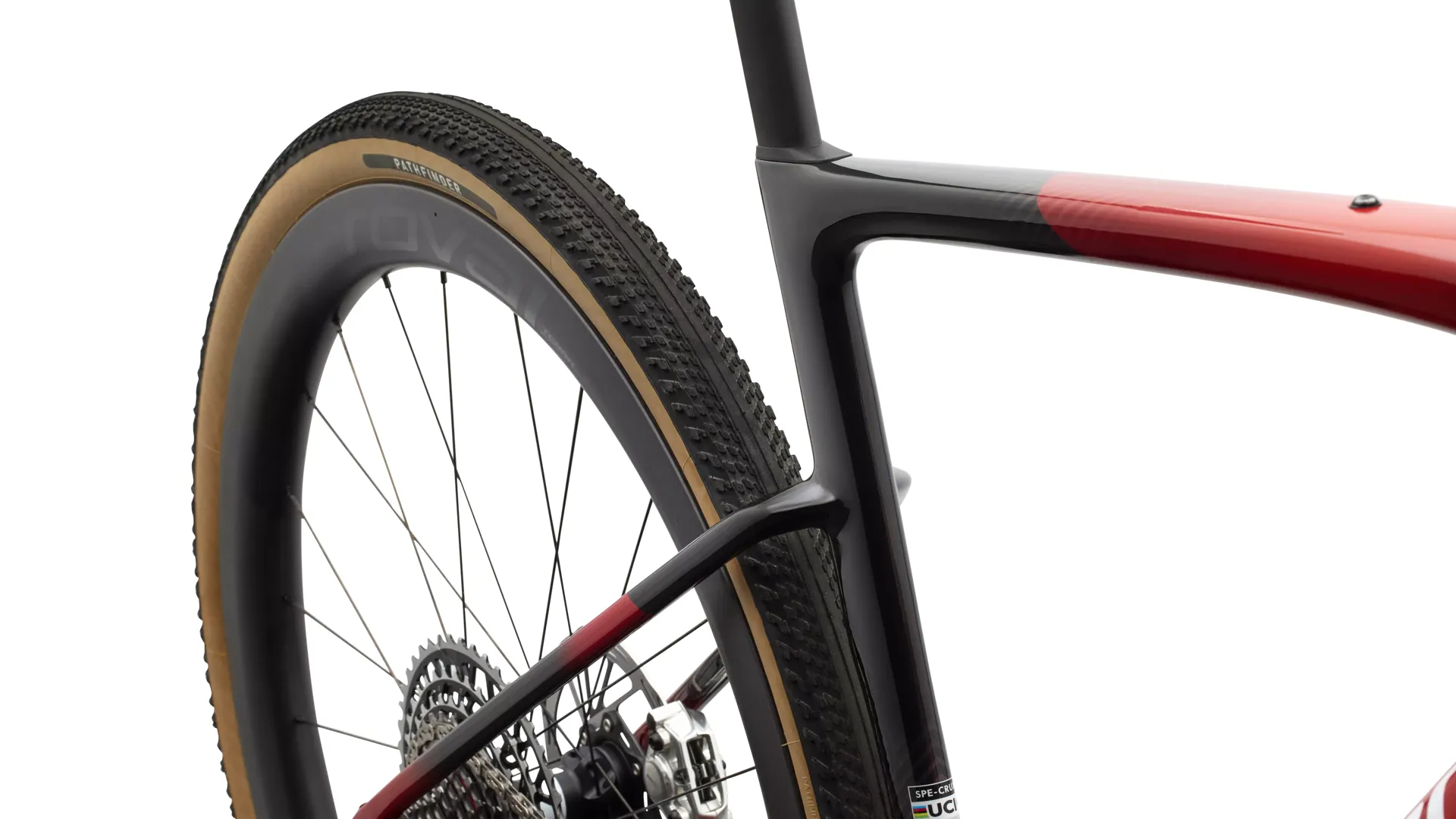

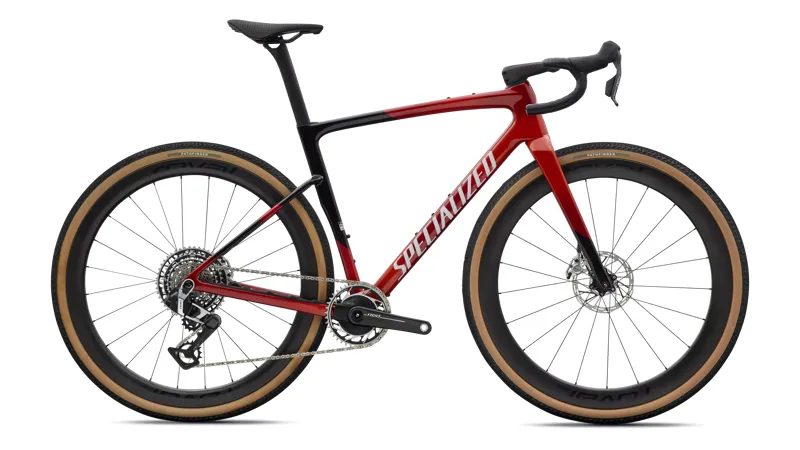

2027 Specialized Crux 5 S-Level SRAM Red XPLR Gravel Bike - Redwood

£8,749.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

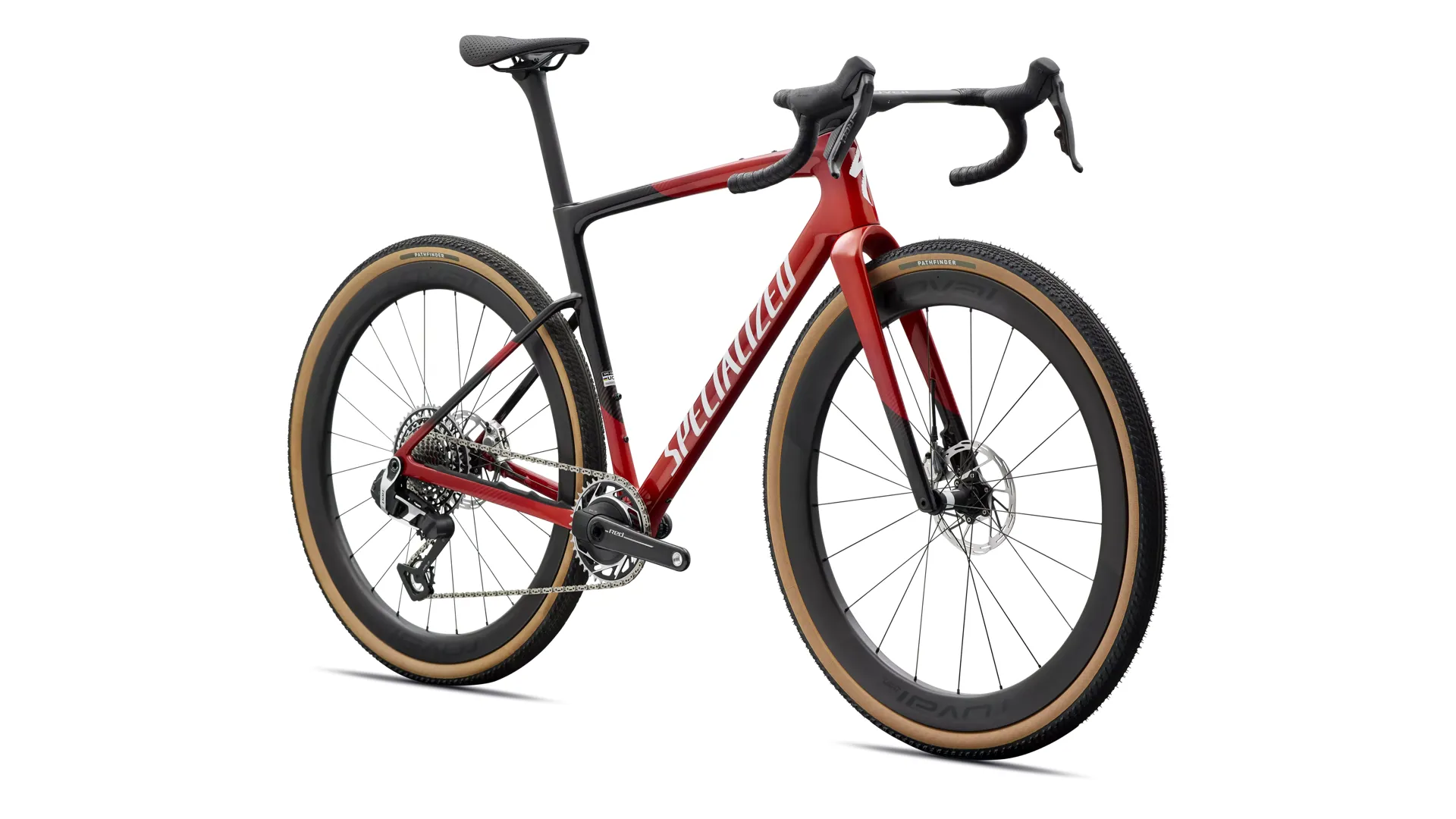

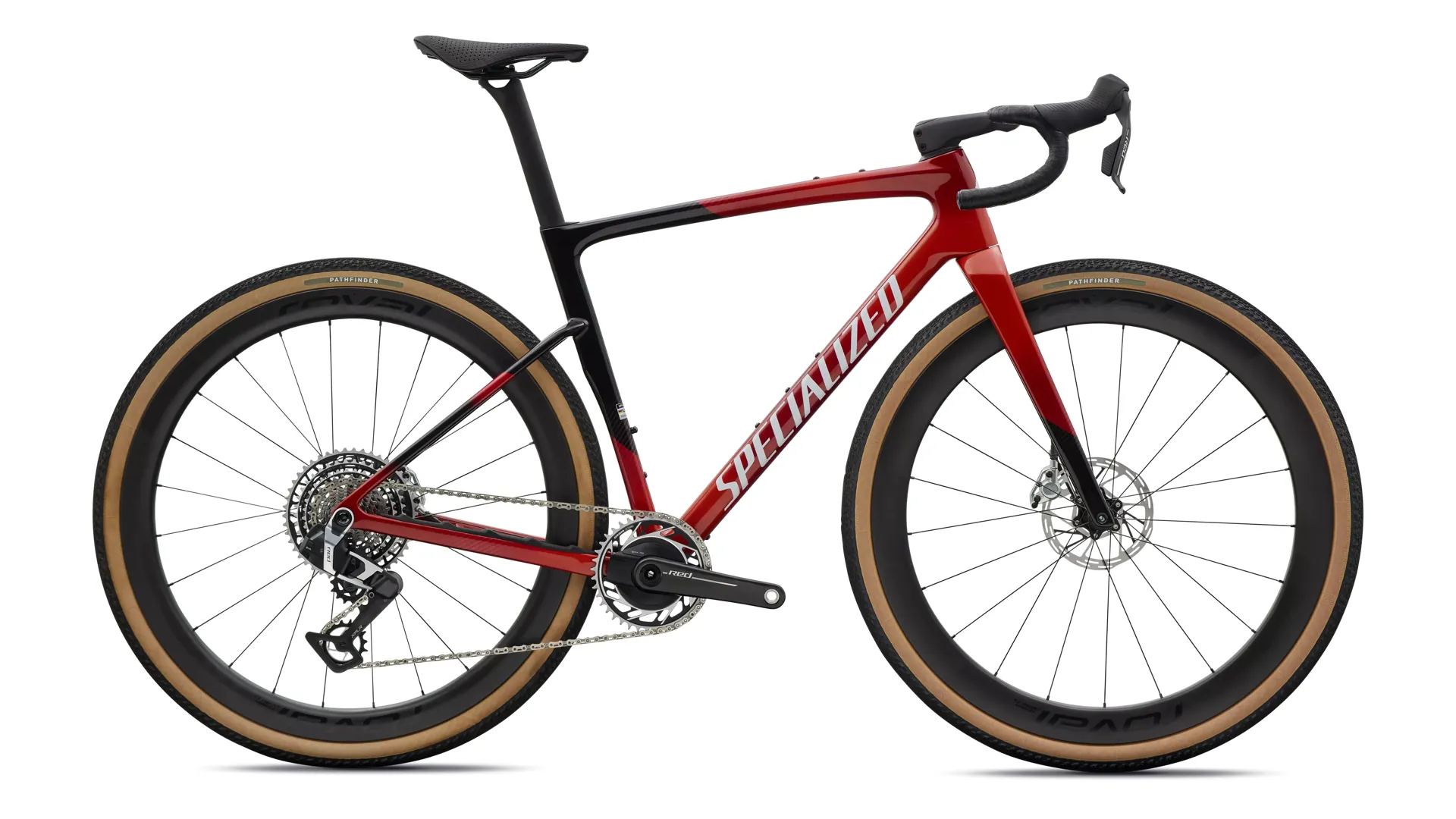

2027 Specialized Crux 5 S-Level SRAM Red XPLR Gravel Bike - Redwood

Season:2027

Brand:Specialized

Code:42948295469836

2027 Specialized Crux 5 S-Level Gravel Race Bike | FACT 10r Carbon, SRAM RED XPLR & Roval Terra Aero CL Wheels


The Specialized Crux 5 S-Level SRAM Red XPLR Gravel Bike is a high-performance carbon gravel race bike built for speed, efficiency and race-winning performance. Born from the fastest gravel race bike ever made, the Crux 5 S-Level is designed to deliver exceptional real-world speed across gravel, dirt and mixed-terrain race courses.

  • Premium 2027 Specialized Crux 5 S-Level gravel race bike
  • Designed for gravel racing and mixed-terrain speed
  • Lightweight FACT 10r carbon frame, weighing just 897g
  • Complete bike weight of approximately 7.7kg
  • Race-focused geometry for fast, confident handling on dirt and gravel
  • Roval Terra Aero CL wheels for speed, control and efficiency
  • Roval Terra Integrated cockpit for a sleek aerodynamic setup
  • High-performance SRAM RED XPLR drivetrain
  • Built for low real-world Time to Finish across race terrain
  • Ideal for competitive gravel racers and performance-focused cyclists

Engineered for riders who want to turn every watt into forward momentum, the Specialized Crux 5 S-Level combines lightweight construction, aerodynamic efficiency and sharp, responsive handling. Its premium FACT 10r carbon frame weighs just 897 grams, helping create a fast and agile gravel bike that climbs efficiently, accelerates quickly and handles rough surfaces with confidence.

The Roval Terra Aero CL wheels are designed to support speed and stability over demanding gravel terrain, while the sleek Roval Terra Integrated cockpit creates a clean, race-focused front end. Equipped with the elite-level SRAM RED XPLR drivetrain, this gravel bike delivers precise, reliable shifting and performance-focused gearing for competitive gravel racing.

With a complete bike weight of approximately 7.7kg, the 2027 Specialized Crux 5 S-Level is ideal for riders chasing podiums, faster finishing times and maximum efficiency on race day. Whether you are competing in gravel events, endurance races or fast mixed-surface rides, the Crux 5 S-Level is built to help you ride harder, faster and further.

Technical Information

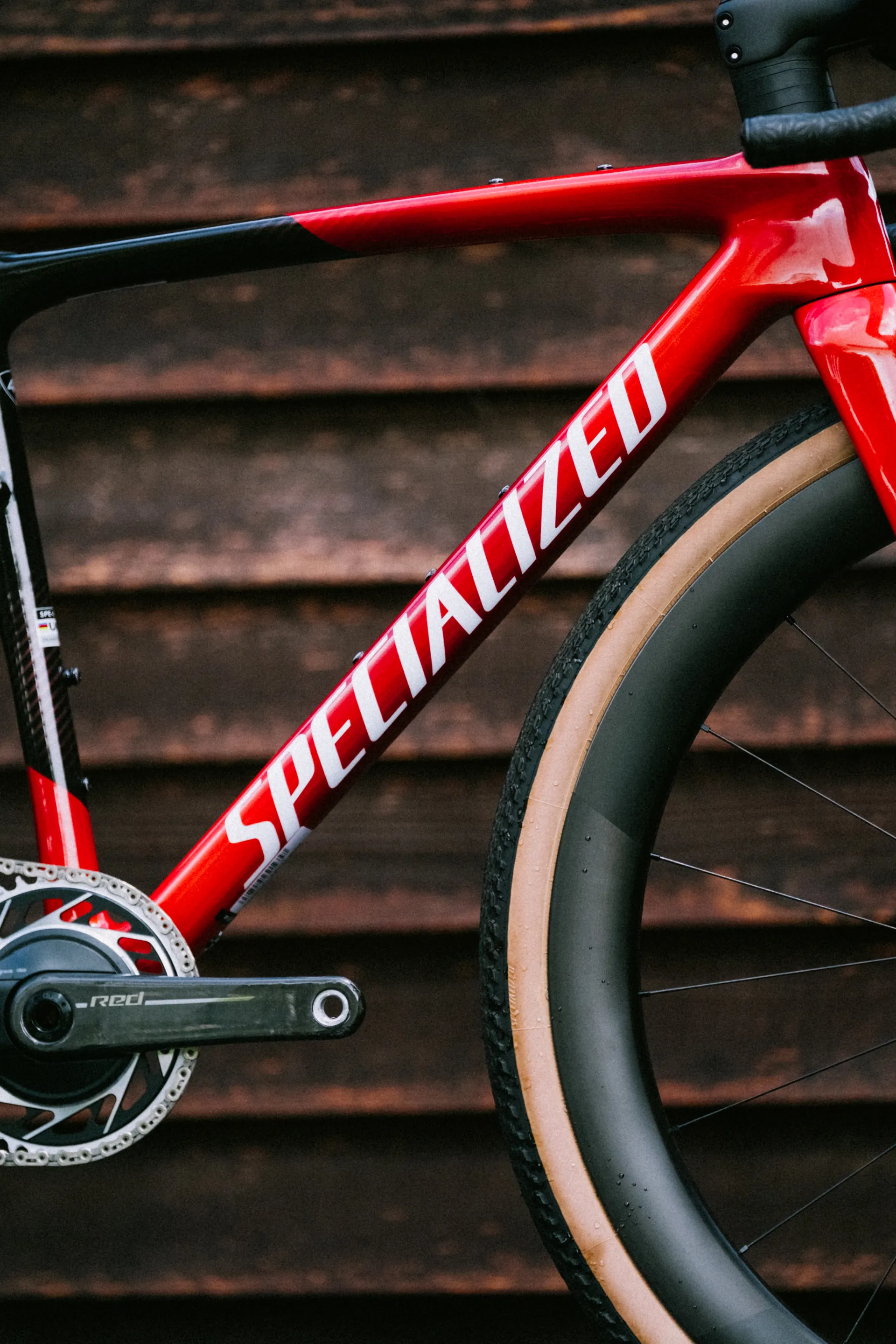

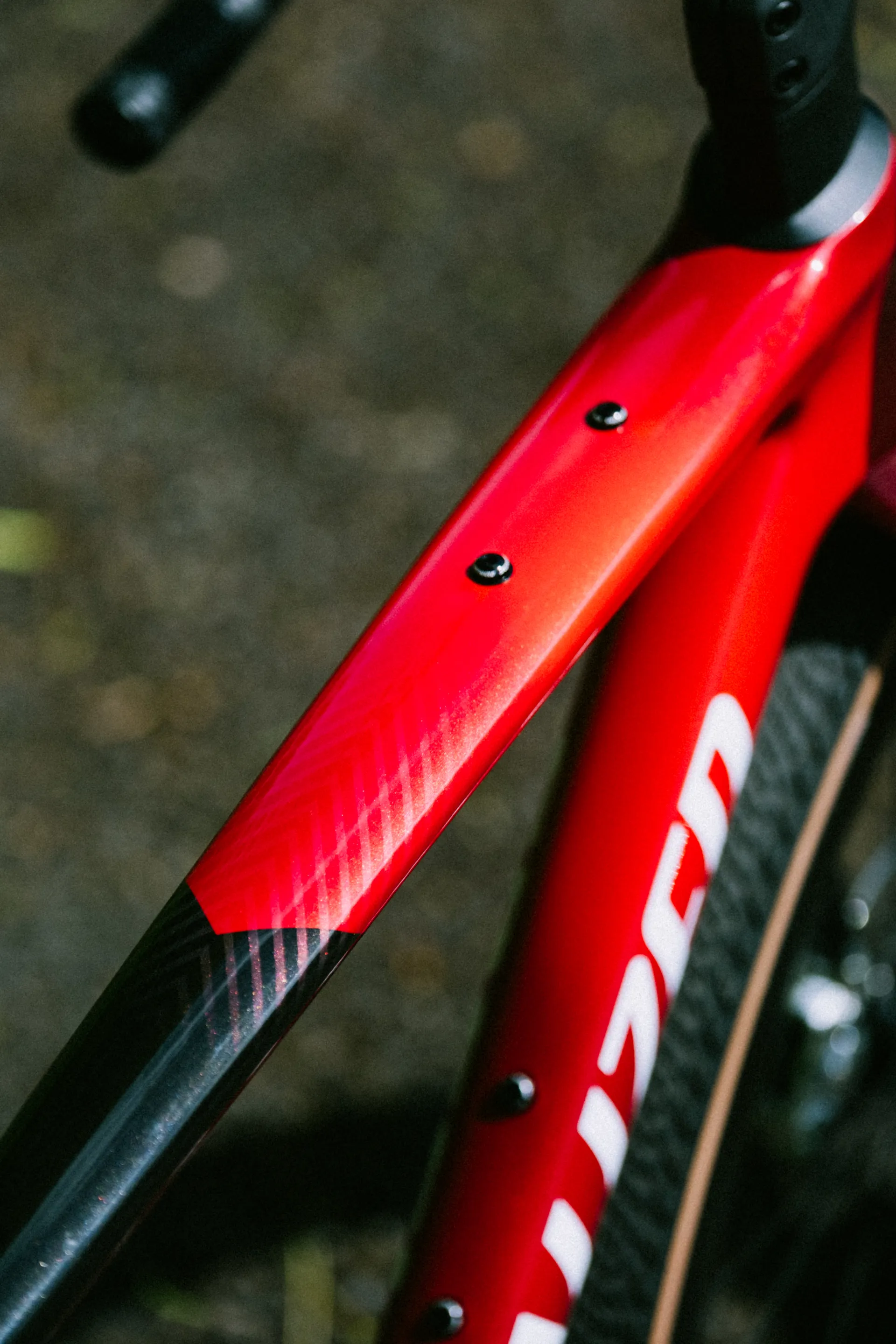

  • Frame
    Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

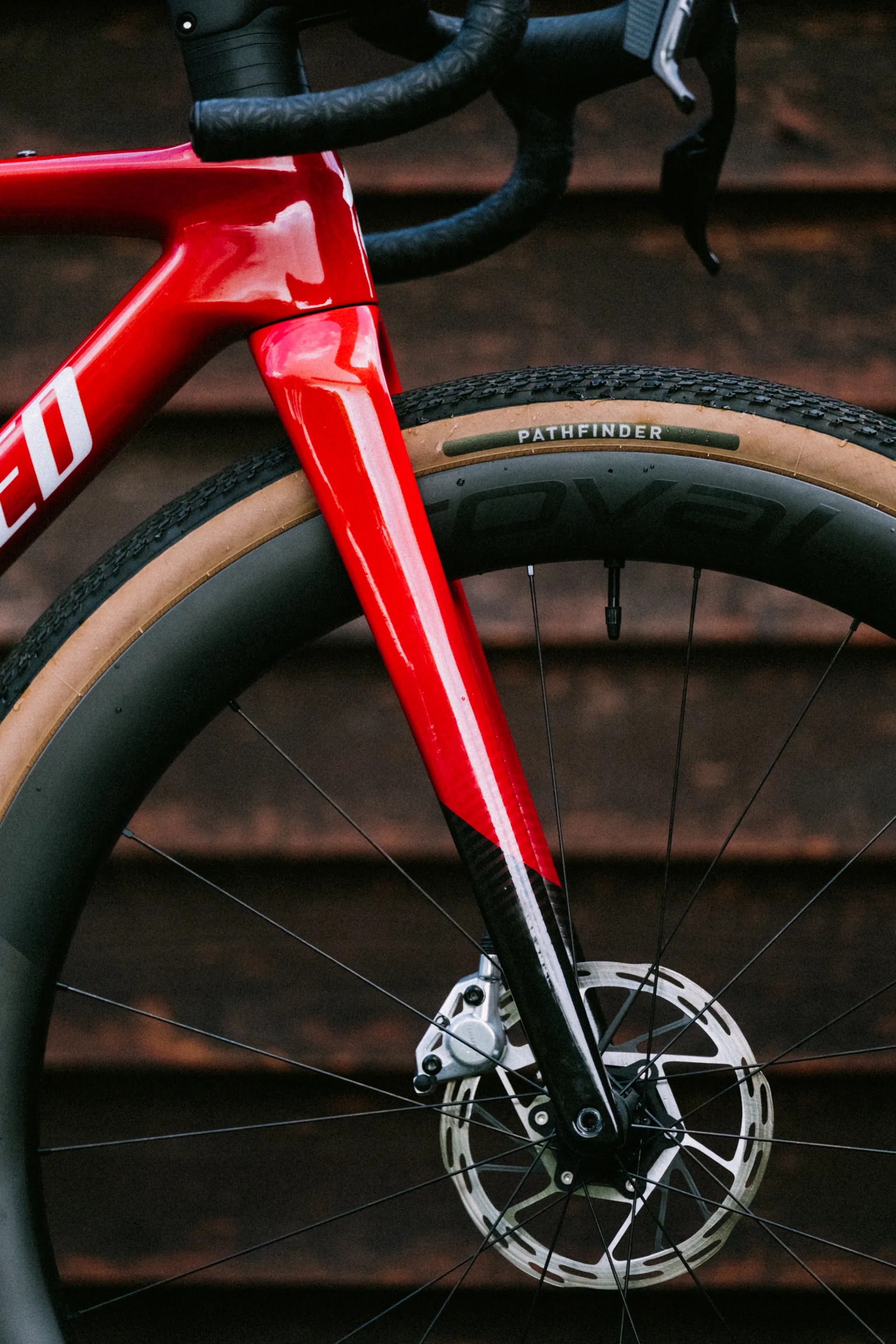

  • Fork
    S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
  • Seat Binder
    Integrated Wedge
  • Seatpost
    S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
  • Saddle
    Power Pro Mirror, Hollow Ti rails

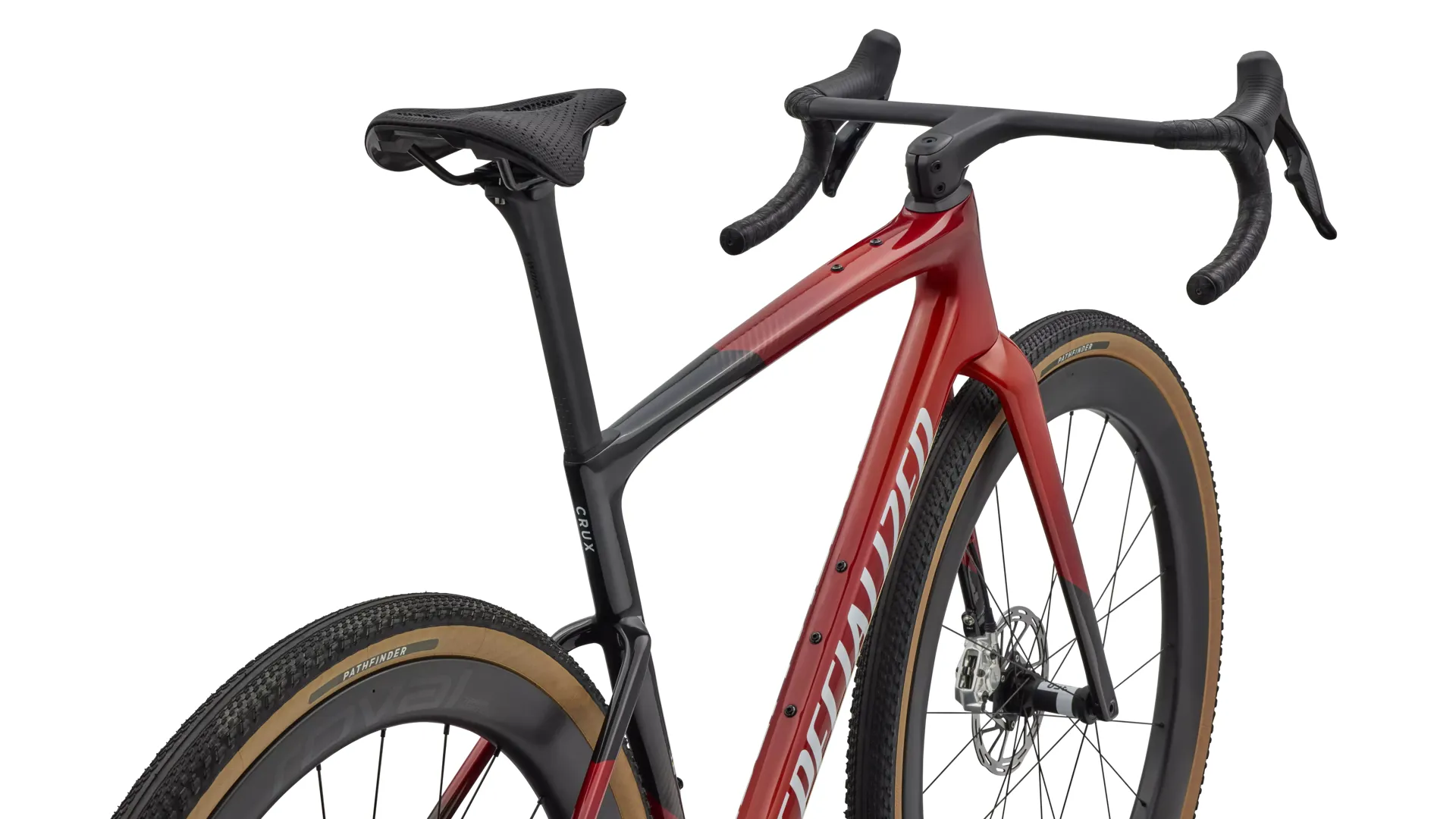

  • Handlebars
    Roval Terra Cockpit, Integrated Bar/Stem
  • Tape
    Supacaz Super Sticky Kush
  • Front Brake
    SRAM RED E1, hydraulic disc
  • Rear Brake
    SRAM RED E1, hydraulic disc
  • Chain
    SRAM RED E1
  • Cassette
    SRAM RED XPLR E1, 13-speed, 10-46t
  • Bottom Bracket
    SRAM DUB BSA 68 Wide

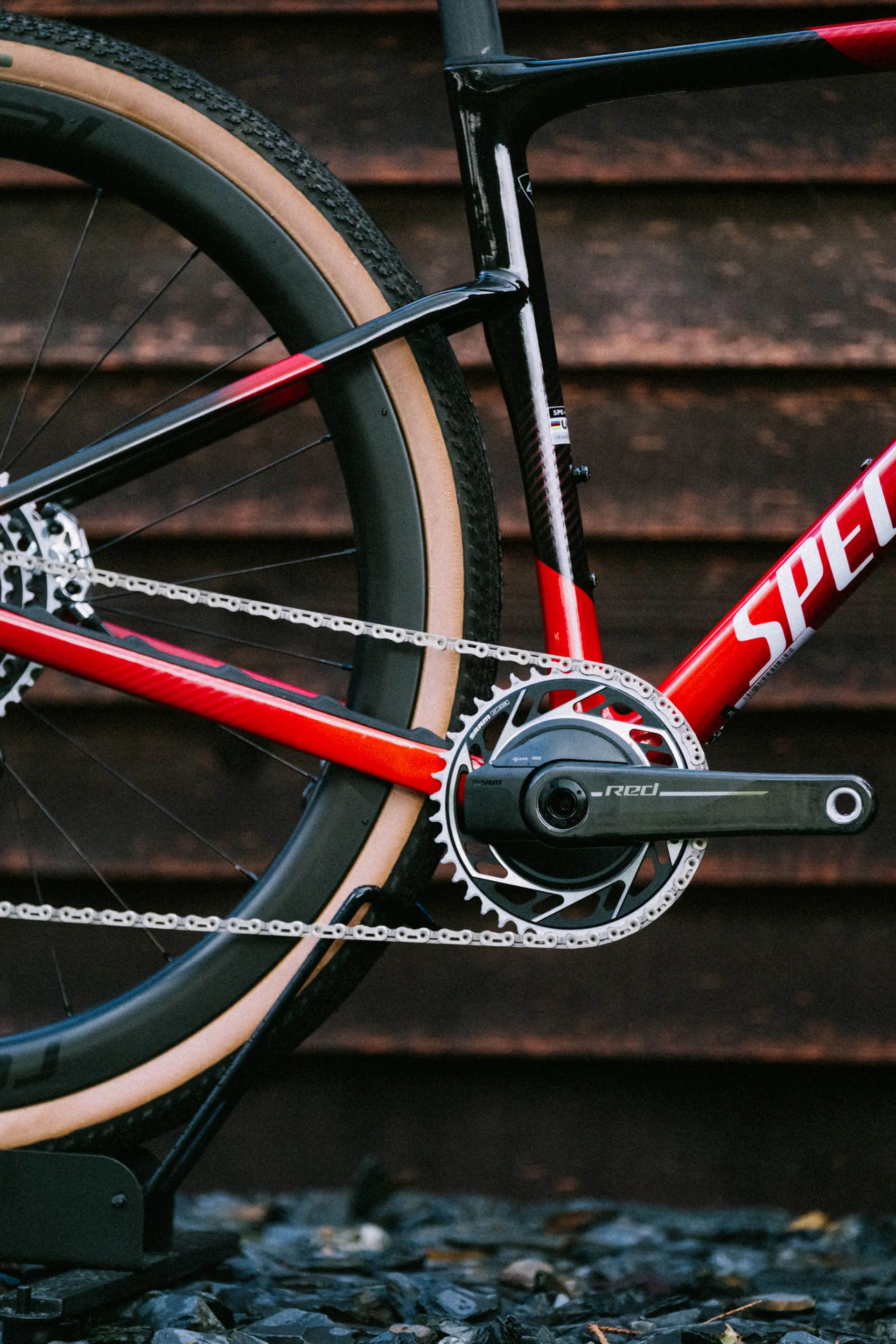

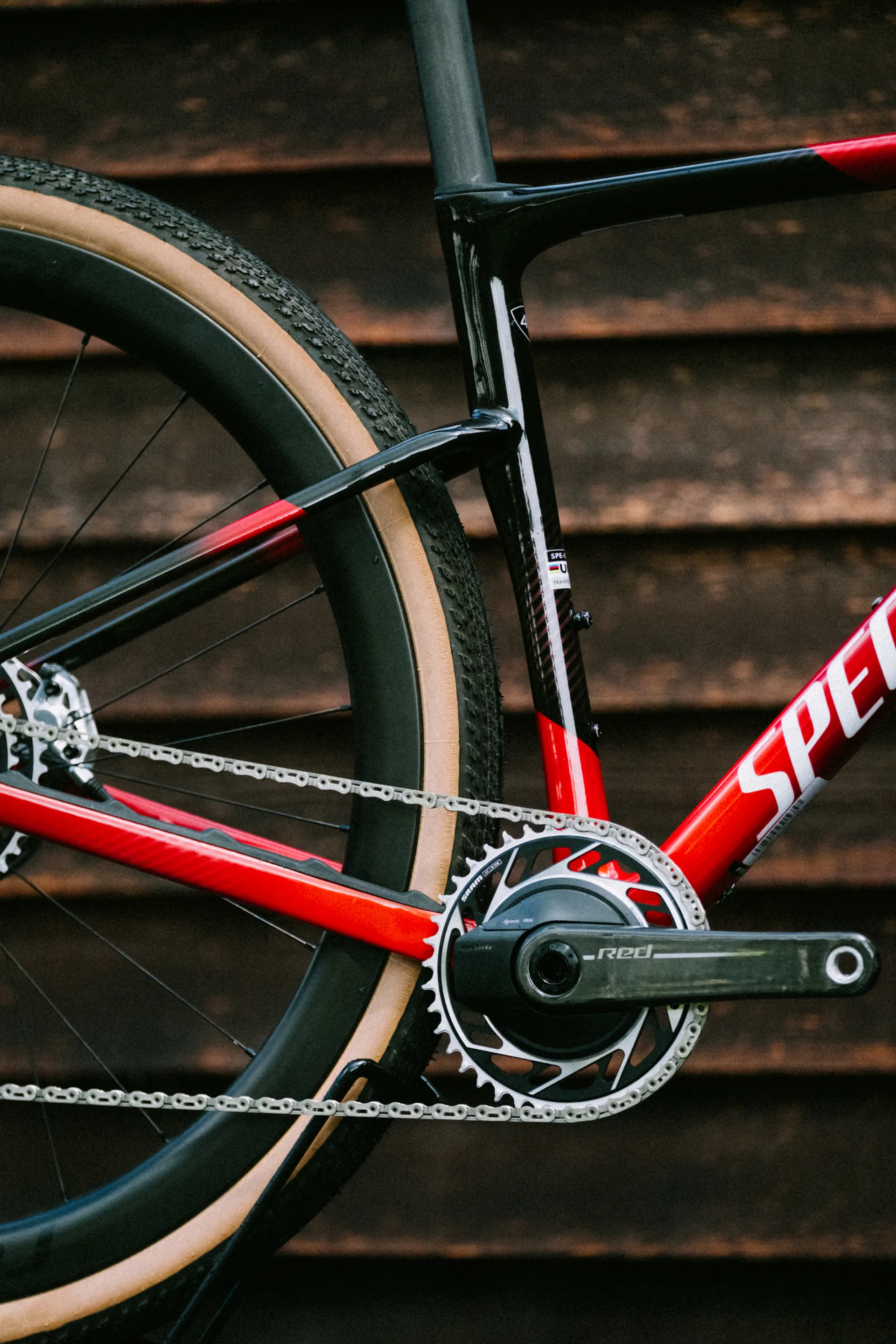

  • Crankset
    SRAM RED XPLR E1, Quarq power meter, 40t
  • Shift Levers
    SRAM RED AXS E1, hydraulic disc

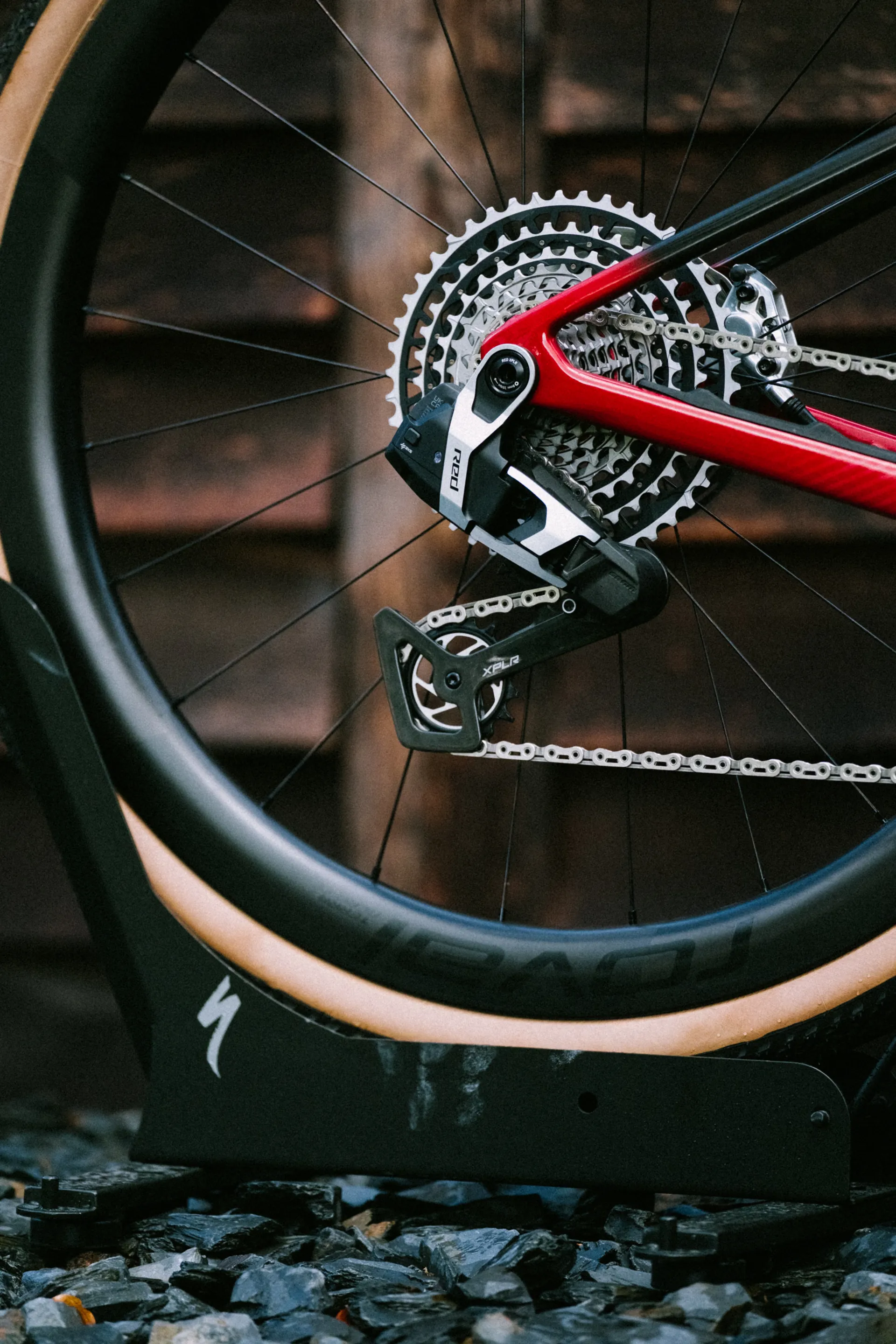

  • Rear Derailleur
    SRAM RED AXS XPLR E1, 13-speed
  • Inner Tubes
    700x32-50mm, 60mm Presta valve
  • Front Tyre
    Pathfinder 700x45, Tubeless Ready
  • Rear Tyre
    Pathfinder 700x45, Tubeless Ready
  • Front Wheel
    Roval Terra Aero CL, 27mm internal width, tubeless ready, 50mm depth, 21h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes
  • Rear Wheel
    Roval Terra Aero CL, 27mm internal width, tubeless ready, 45mm depth, 24h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes
  • Weight
    7.7 kg (16 lb, 15.6 oz)
  • Weight Size
    56cm
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

SIZING

Size in ft4'11" - 5'2"5'2" - 5'5"5'4" - 5'6"5'6" - 5'9"5'9" - 6'0"6'0" - 6'3"6'3" - 6'6"
Size in cm150 - 158cm158 - 165cm163 - 168cm168 - 175cm175 - 183cm183 - 191cm191 - 198cm
Bike Size46495254565861

GEOMETRY

Size49cm52cm54cm56cm58cm61cm
BB Drop80mm80mm78mm78mm78mm78mm
BB Height278mm278mm280mm280mm280mm280mm
Bike Standover Height753mm766mm781mm803mm823mm849mm
Chainstay Length425mm425mm425mm425mm425mm425mm
Fork Length, Full401mm401mm401mm401mm401mm401mm
Fork Rake/Offset51mm51mm51mm51mm51mm51mm
Front Centre594mm604mm613mm626mm644mm665mm
Head Tube Angle70.5°70.75°71°71.5°71.5°71.5°
Head Tube Length95mm110mm125mm142mm163mm188mm
Reach375mm382mm388mm400mm412mm425mm
Seat Tube Angle75.5°74.5°74.5°74°74°74°
Seat Tube Length445mm456mm473mm497mm515mm545mm
Stack530mm547mm560mm578mm598mm621mm
Top Tube Length, Horizontal512mm534mm543mm566mm583mm603mm
Trail72mm71mm69mm66mm66mm66mm
Wheelbase1008mm1016mm1026mm1039mm1057mm1078mm
Crank Length165mm165mm170mm170mm172.5mm172.5mm
Handlebar Width380mm380mm400mm400mm420mm420mm
Stem Length75mm90mm90mm100mm100mm100mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length300mm300mm380mm380mm380mm380mm
