Specialized made the Crux Cyclocross Bike, the lightest gravel bike in the world, even lighter.
Specialized made the Crux Cyclocross Bike, the lightest gravel bike in the world, even lighter.
Specialized

Shop Soiled: 2025 S-Works Crux SRAM Red XPLR Gravel Bike - 58cm

£8,499.00 £11,500.00 26% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

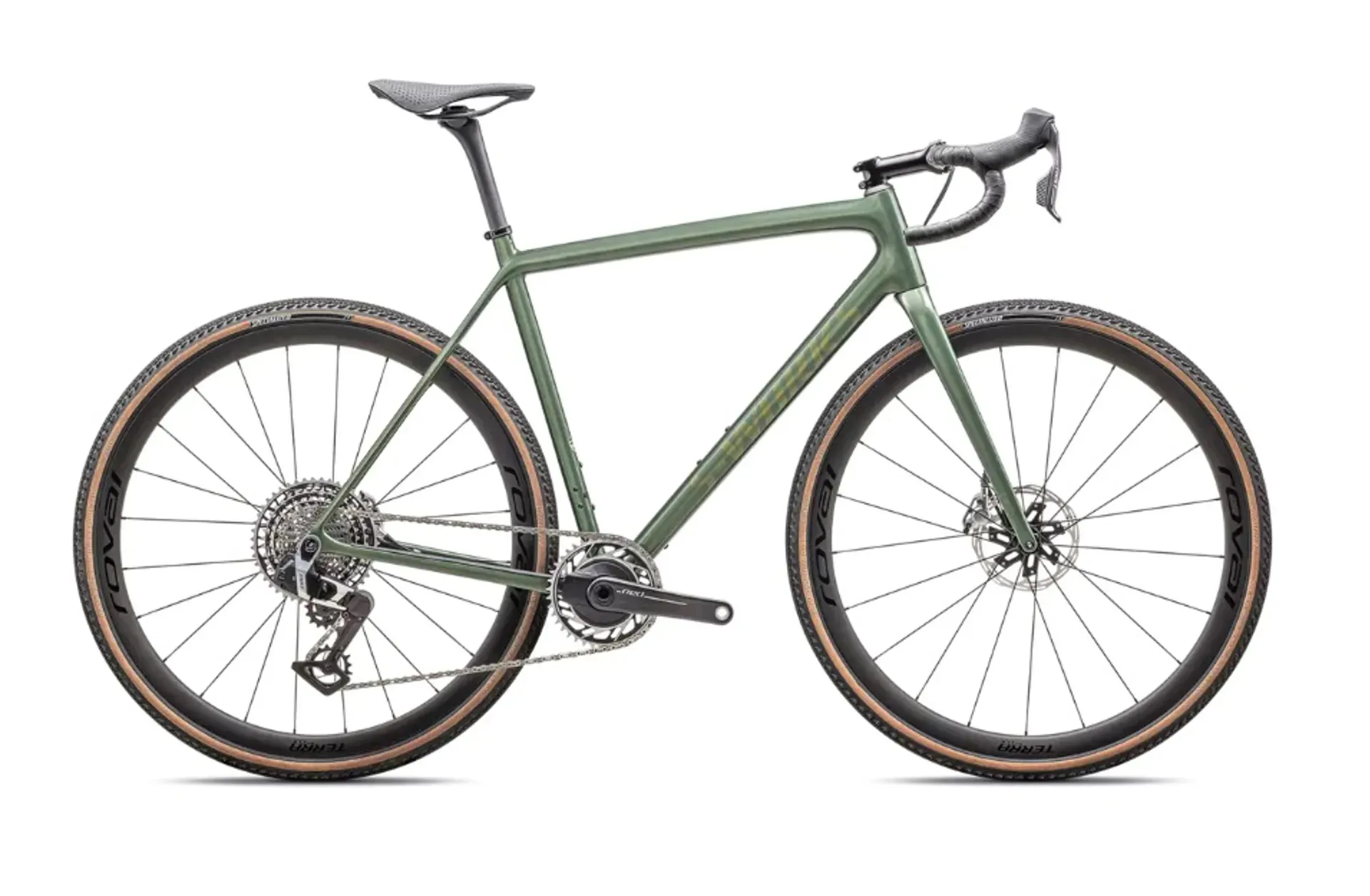

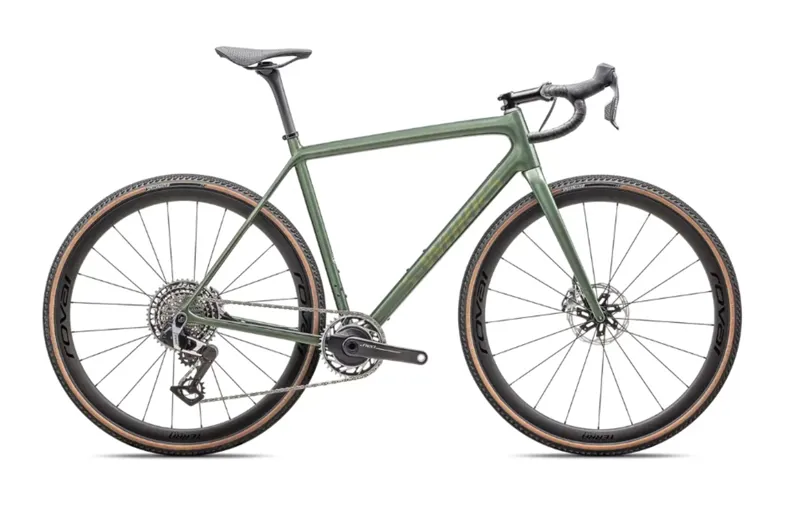

Shop Soiled: 2025 S-Works Crux SRAM Red XPLR Gravel Bike - 58cm

Season:2025

Brand:Specialized

Code:91425-0058 SS 4135V

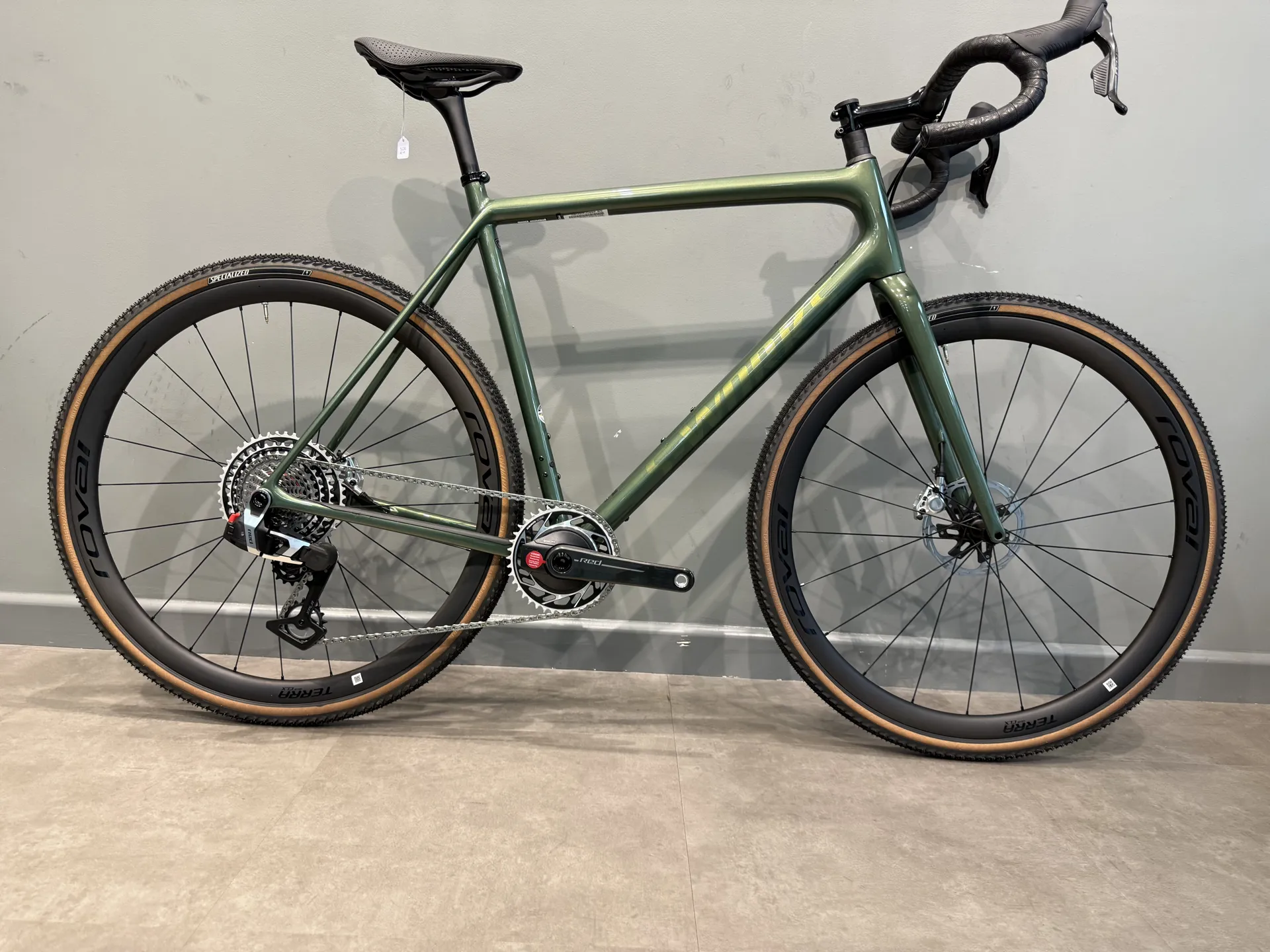

Bike is brand new but may have cosmetic damage. No manuals or pedals supplied.

Please contact 01752 849315 for details/images.

Specialized made the Crux Cyclocross Bike, the lightest gravel bike in the world, even lighter. With unmatched massive tyre clearance and performance gravel geometry, it stands as the pinnacle of gravel performance, a one-way ticket to gravel enlightenment.

Featuring UDH and the all-new SRAM RED XPLR, the S-Works Crux sheds an additional 102g. Equipped with Roval Terra CLX II wheels, Terra Bars, Alpinist seat post, S-Works Power Saddle with Mirror, and Pathfinder Pro tyres, this premium build of the S-Works Crux with SRAM RED XPLR sets a new standard.

Lightest Frame: 725g S-Works 12r

Leveraging the breakthroughs that made the Aethos the lightest bike ever, the Crux now climbs effortlessly, glides over rugged terrain, and weighs less than a full water bottle.

Massive Tyre Clearance: 47c/650b x 2.1”

With Diverge-level tyre clearance, the Crux offers unparalleled capability, taking you to any destination at full speed.

Responsive Geometry

Designed with nimble, supple, and reactive performance in mind, the Crux's race-influenced fit ensures responsiveness at the pedals and comfort in the saddle.

Equipped with UDH and SRAM RED XPLR

Now featuring a Universal Derailleur Hanger (UDH) and built with the new SRAM RED XPLR, it boasts a 13-speed 10-46 cassette, power meter, updated lever ergonomics, and brake calipers that reduce brake effort by up to 80%.

SRAM RED XPLR AXS: Ultimate Gravel Drivetrain

Effortless Resilience and Precision. The SRAM RED XPLR AXS is designed for the ultimate gravel experience: resilient, precise, light, and fast.

Full Mount Resilience

Attaching to frames with the UDH interface, the Full Mount RED XPLR AXS rear derailleur ensures a precise fit and superior impact resistance, eliminating the need for a hanger.

Full Mount Precision

Offering fast, precise shifting with simple setup, the Full Mount derailleur removes hanger variances, providing perfect shifting without adjustment screws.

The new Specialized Crux Cyclocross Bike, equipped with SRAM RED XPLR AXS, is the epitome of gravel bike innovation, promising unparalleled performance and resilience.

Technical Information
  • frame

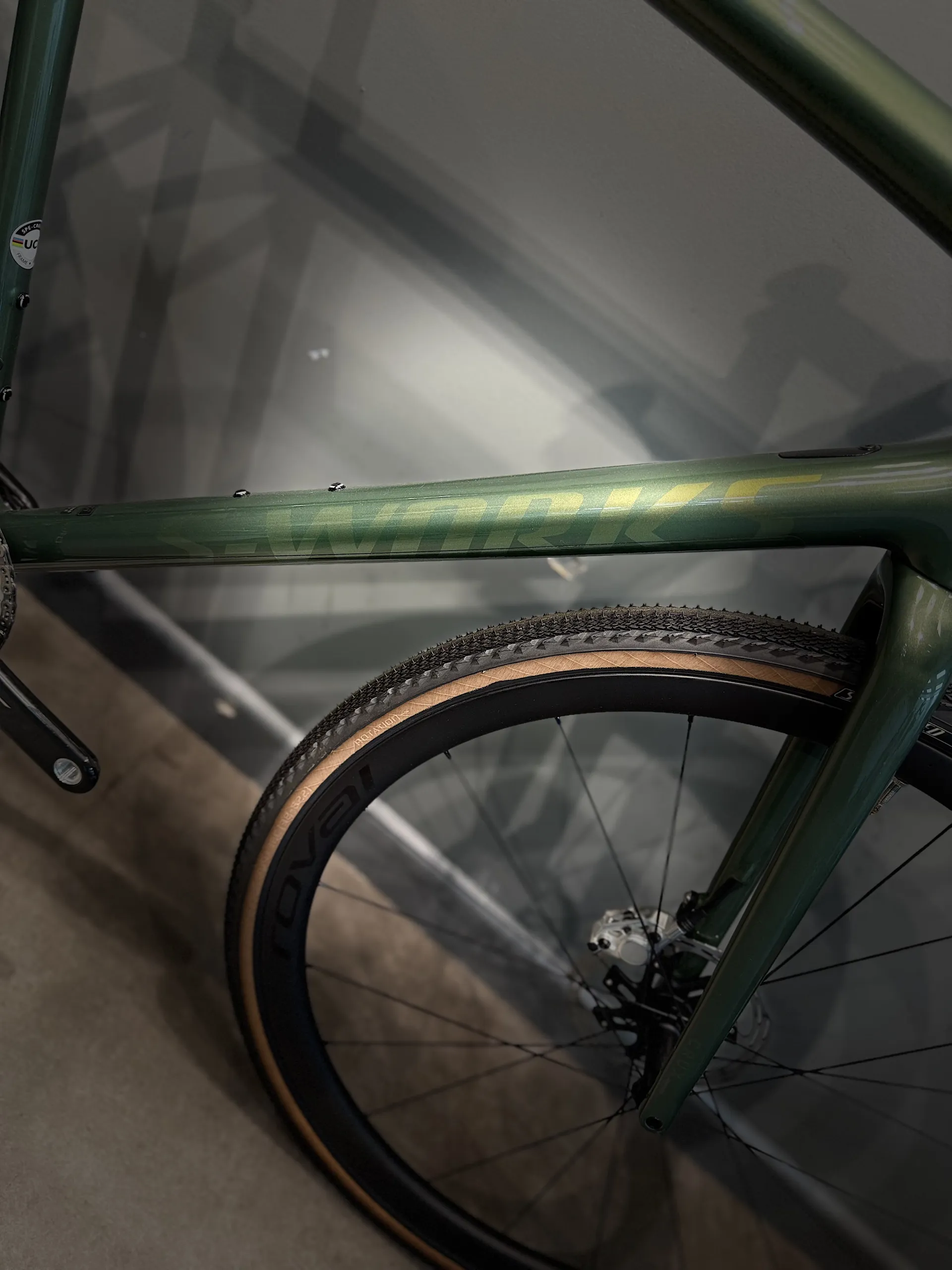

    S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
  • fork

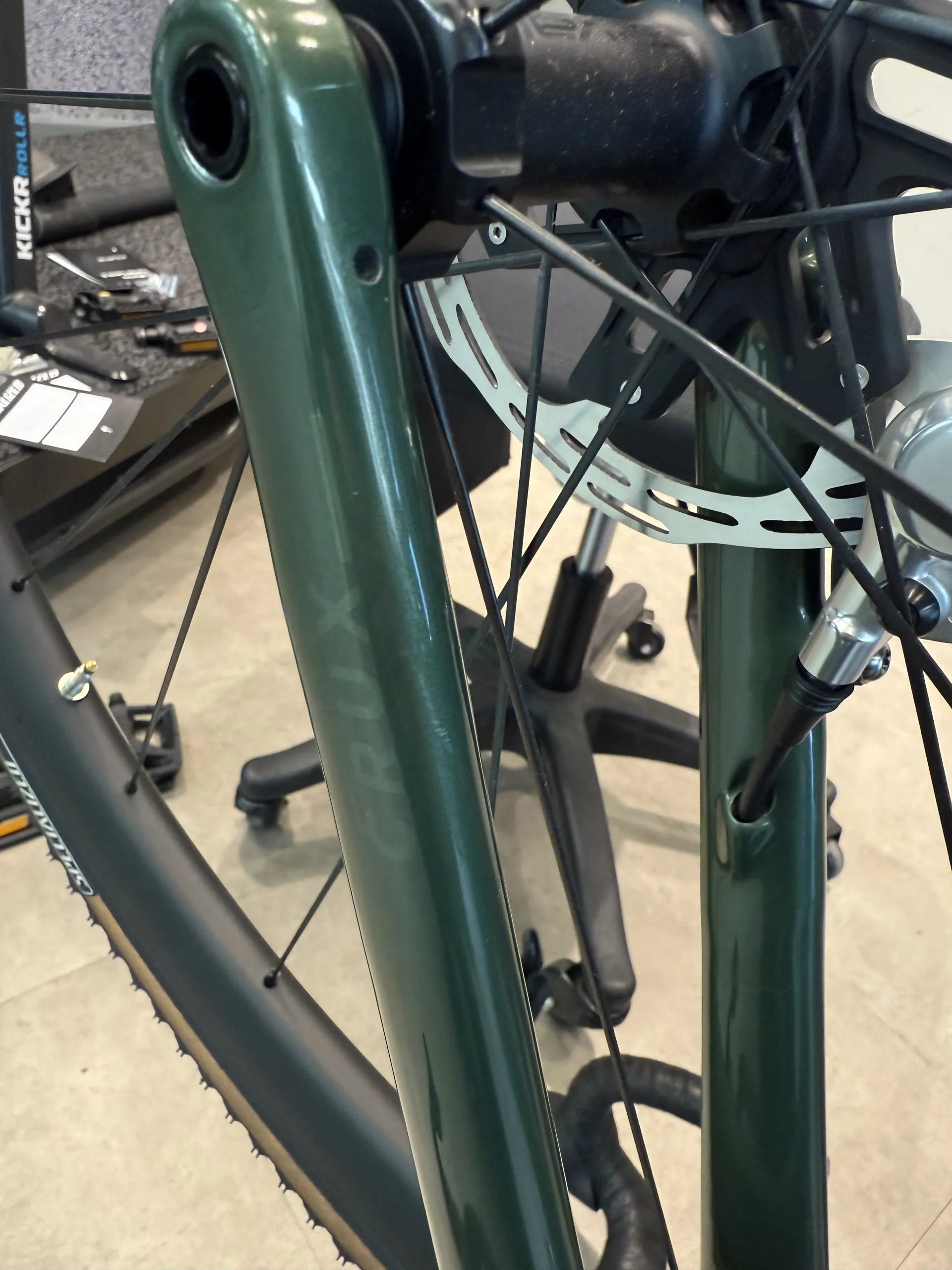

    S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
  • front brake
    NEW SRAM Red XPLR, Hydraulic Disc
  • rear brake
    NEW SRAM Red XPLR, Hydraulic Disc
  • chain
    NEW SRAM Red XPLR, 13sp
  • cassette
    NEW SRAM Red XPLR, 13sp, 10-46t
  • bottom bracket
    SRAM DUB BSA

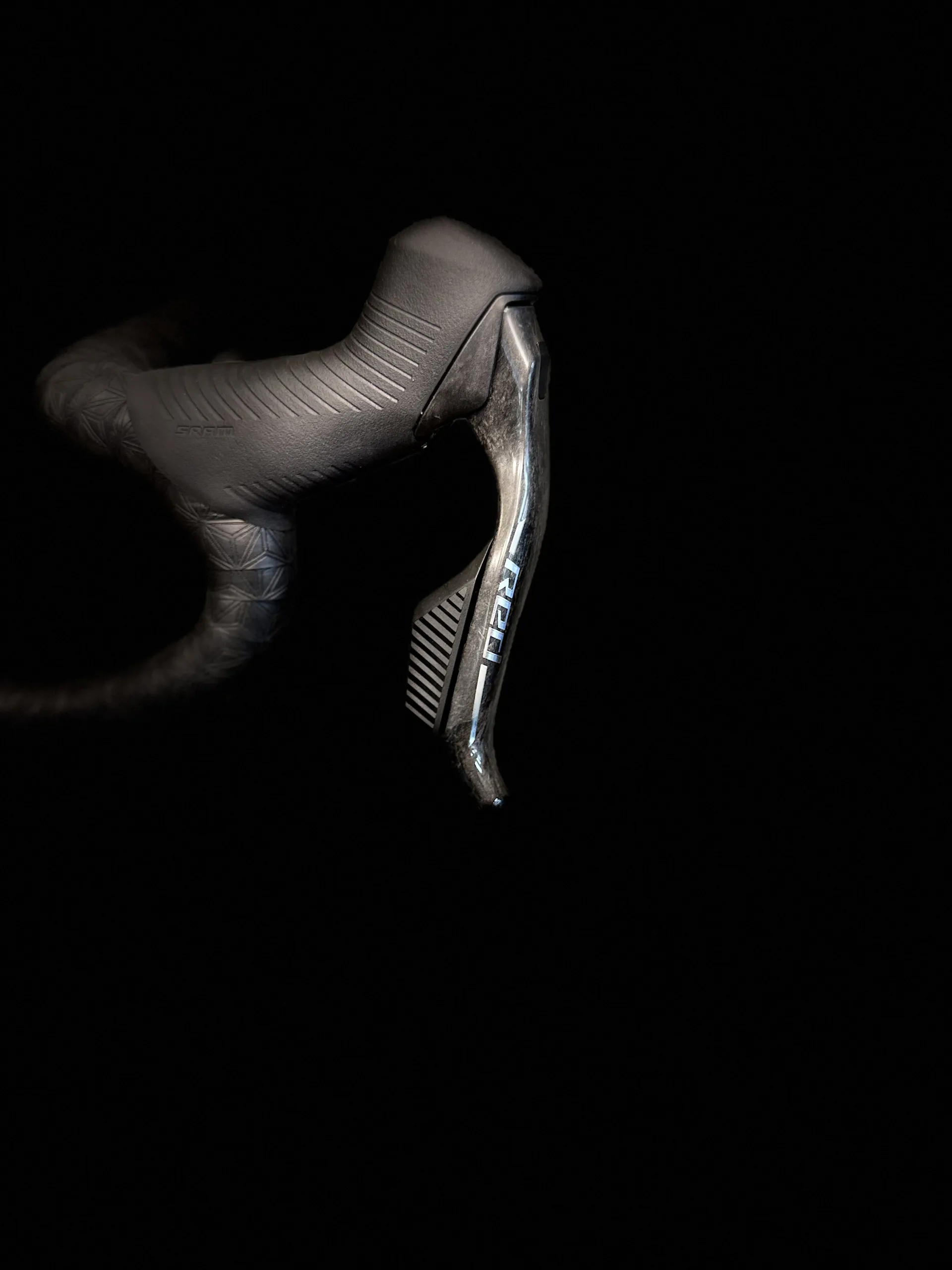

  • shift levers
    SRAM Red AXS
  • crankset

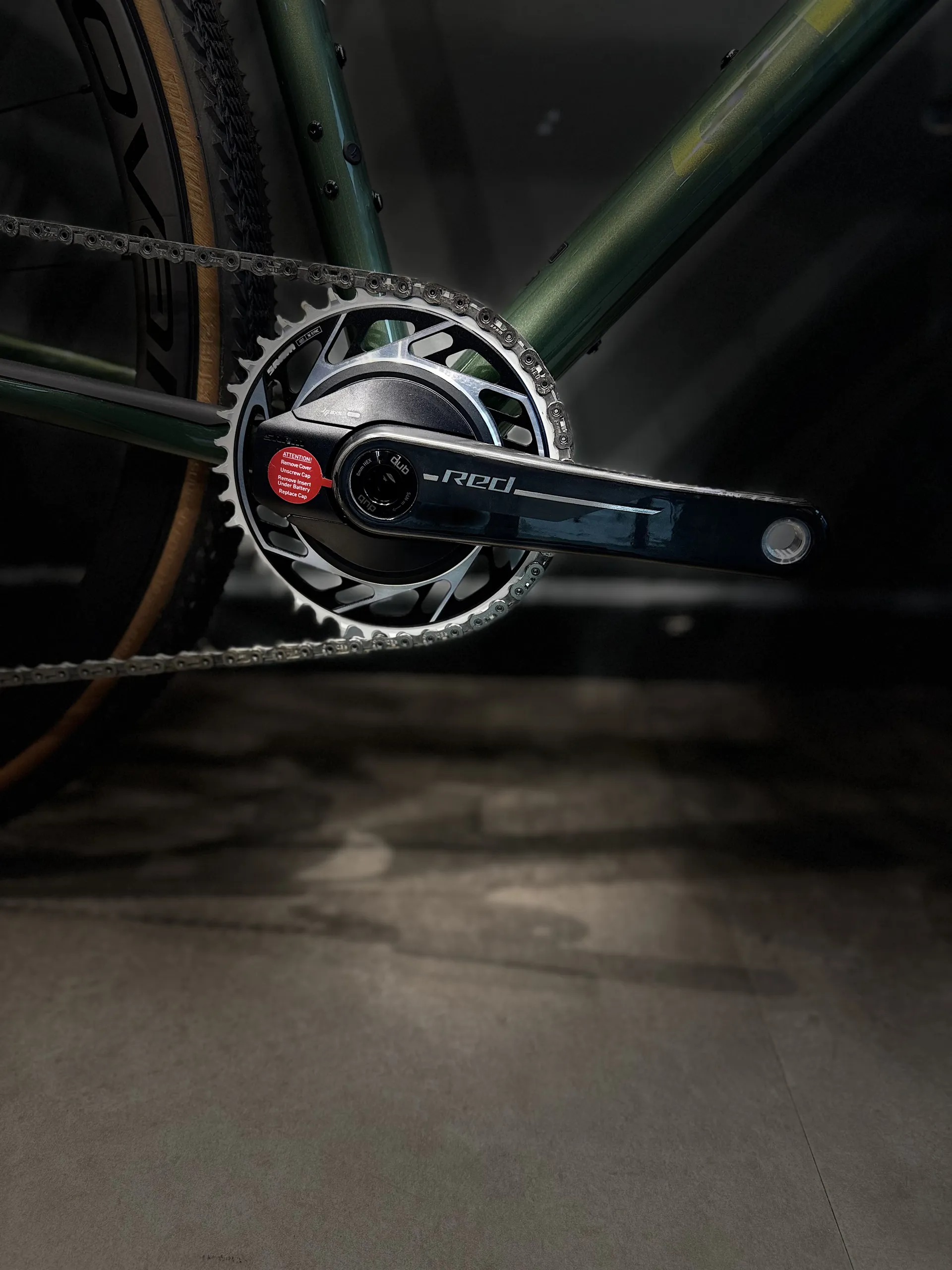

    SRAM Red AXS Power Meter
  • rear derailleur

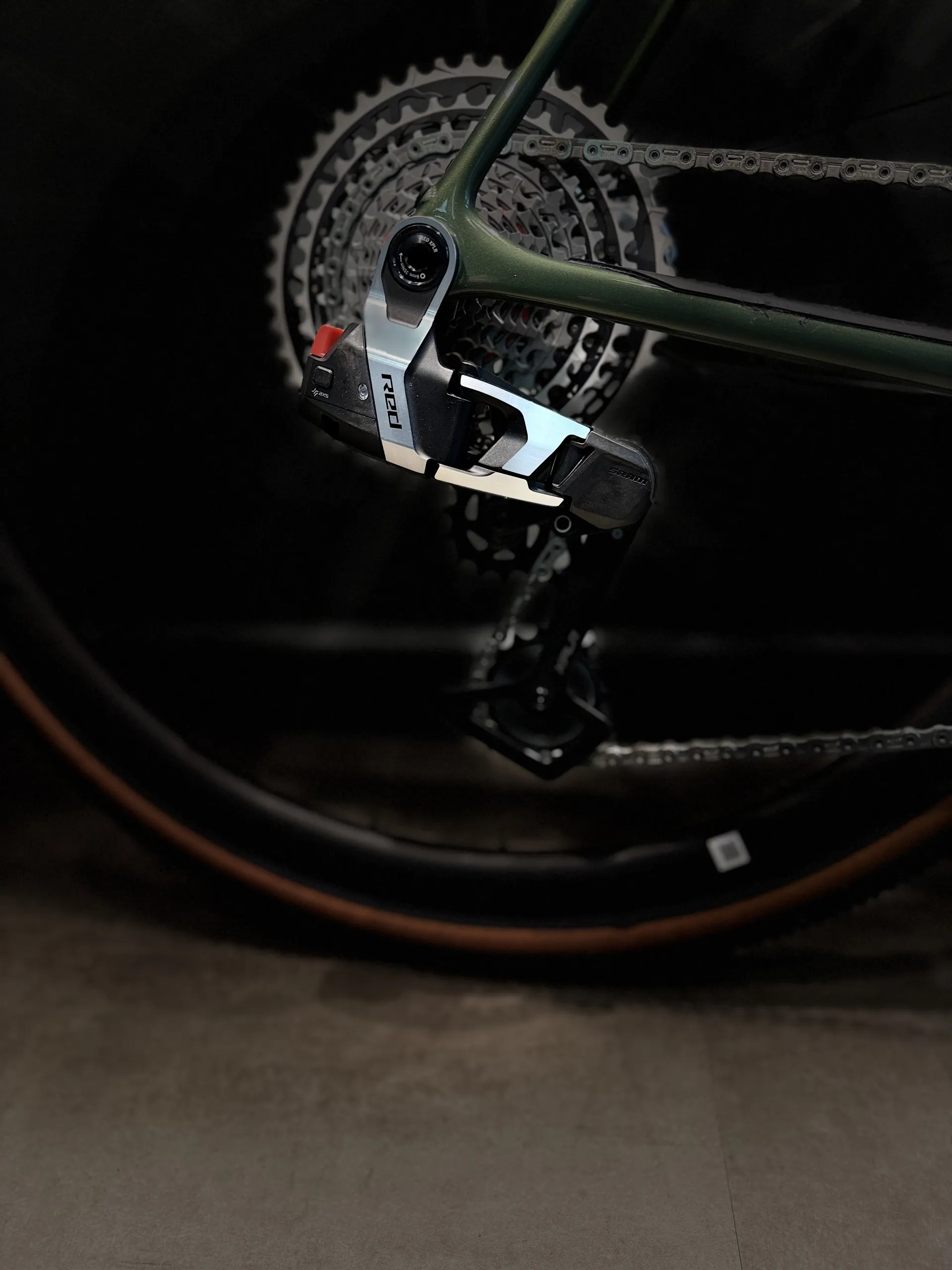

    NEW SRAM Red XPLR, 13sp
  • chainrings
    40t

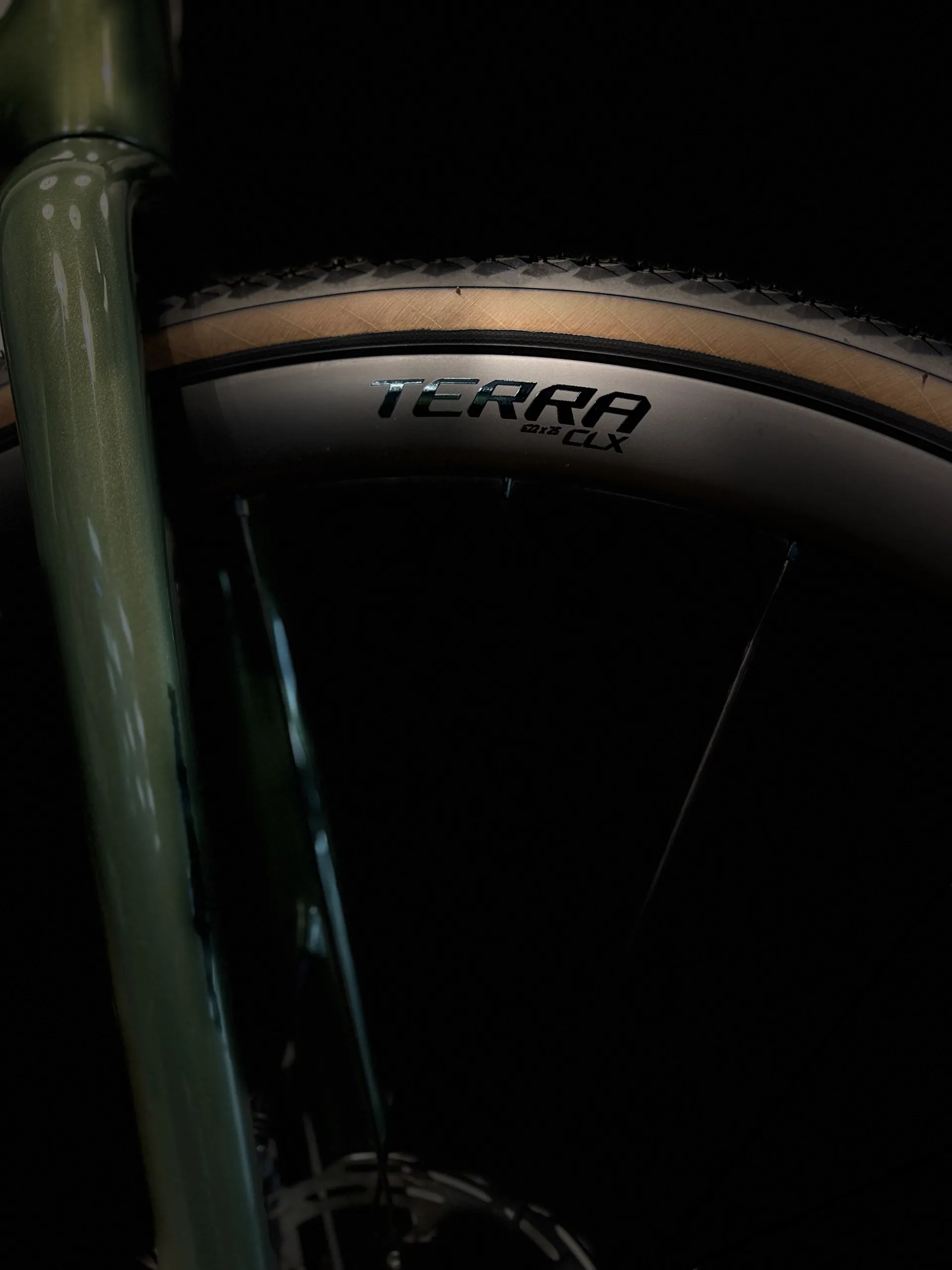

  • front wheel

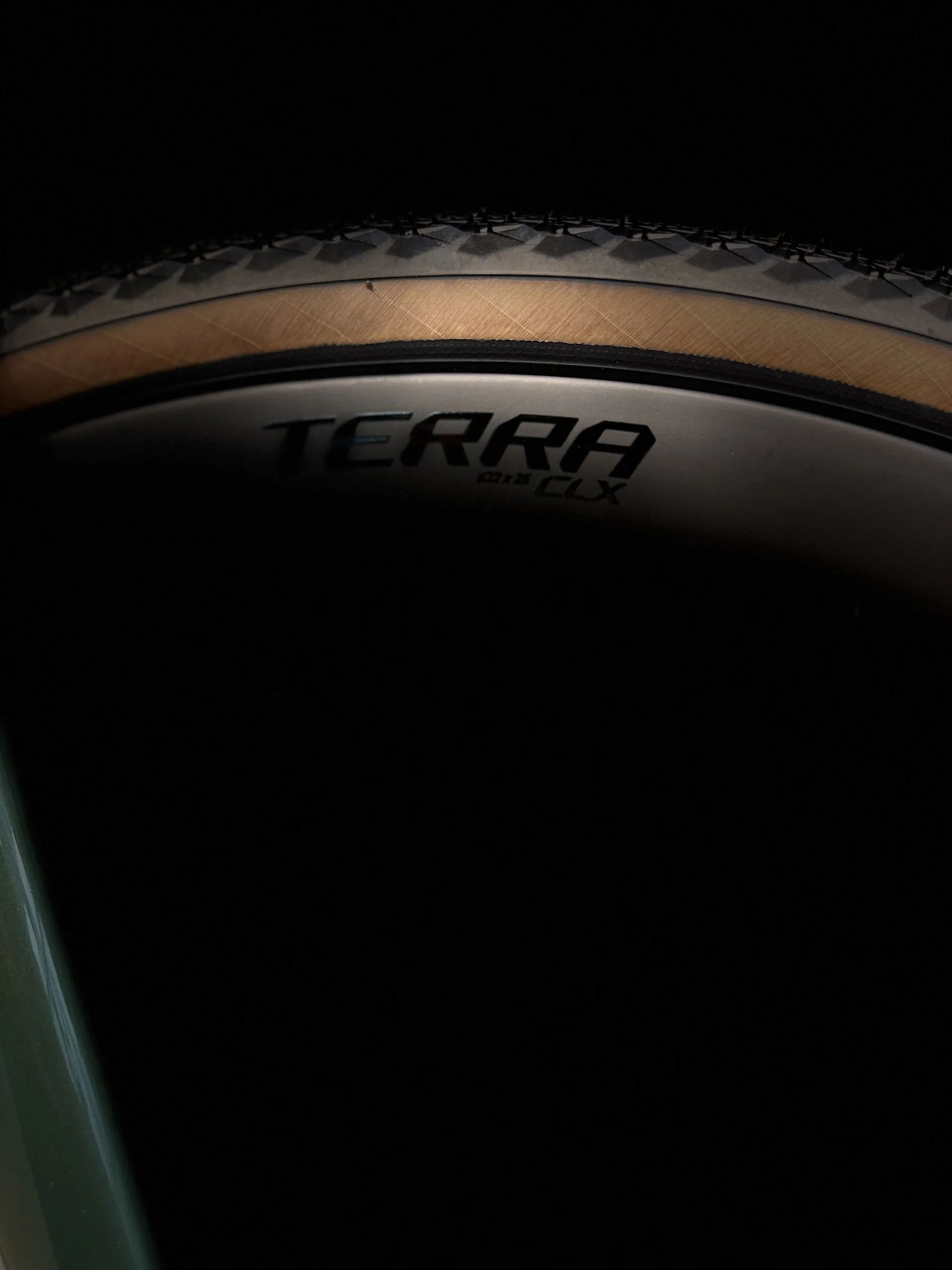

    Roval Terra CLX II, 25mm internal width, Tubeless ready, 32mm depth, 21h, Roval AFD1, Centerlock, DT Swiss Aerolite spokes
  • rear wheel
    Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval AFD2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes
  • front tyre
    Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c
  • rear tyre
    Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c
  • inner tubes
    700x28/38mm, 48mm Presta valve
  • saddle
    S-Works Power with Mirror
  • seatpost
    Roval Alpinist Carbon Seatpost
  • handlebars
    Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
  • stem
    S-Works SL, alloy, titanium bolts, 6-degree rise
  • seat binder
    Specialized Alloy, 30.0mm, titanium bolt
  • tape
    Supacaz Super Sticky Kush
  • weight
    6.94 kg (15 lb, 4.8 oz)
  • weight size
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

SIZING

Size in ft4'11" - 5'2"5'2" - 5'5"5'4" - 5'6"5'6" - 5'9"5'9" - 6'0"6'0" - 6'3"6'3" - 6'6"
Size in cm150 - 158cm158 - 165cm163 - 168cm168 - 175cm175 - 183cm183 - 191cm191 - 198cm
Bike Size46495254565861

GEOMETRY

Size49cm52cm54cm56cm58cm61cm
BB Drop74mm74mm72mm72mm72mm72mm
BB Height284mm284mm286mm286mm286mm286mm
Bike Standover Height749mm772mm794mm816mm841mm866mm
Chainstay Length425mm425mm425mm425mm425mm425mm
Fork Length, Full401mm401mm401mm401mm401mm401mm
Fork Rake/Offset50mm50mm50mm50mm50mm50mm
Front Centre594mm600mm608mm618mm630mm644mm
Head Tube Angle70.5°71.25°71.25°72°72.25°72.5°
Head Tube Length100mm115mm130mm147mm167mm190mm
Reach375mm382mm388mm397mm405mm415mm
Seat Tube Angle75.5°74°74°73.5°73.5°73.5°
Seat Tube Length466mm496mm521mm546mm576mm606mm
Stack530mm547mm560mm578mm598mm621mm
Top Tube Length, Horizontal512mm539mm549mm568mm582mm599mm
Trail74mm69mm67mm64mm62mm60mm
Wheelbase1008mm1014mm1023mm1033mm1045mm1059mm
Crank Length165mm170mm172.5mm172.5mm175mm175mm
Handlebar Width380mm400mm420mm420mm440mm440mm
Stem Length70mm80mm90mm100mm110mm110mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length300mm300mm300mm360mm360mm360mm
