Frame
FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
Seat Binder
Alloy, 38.6mm

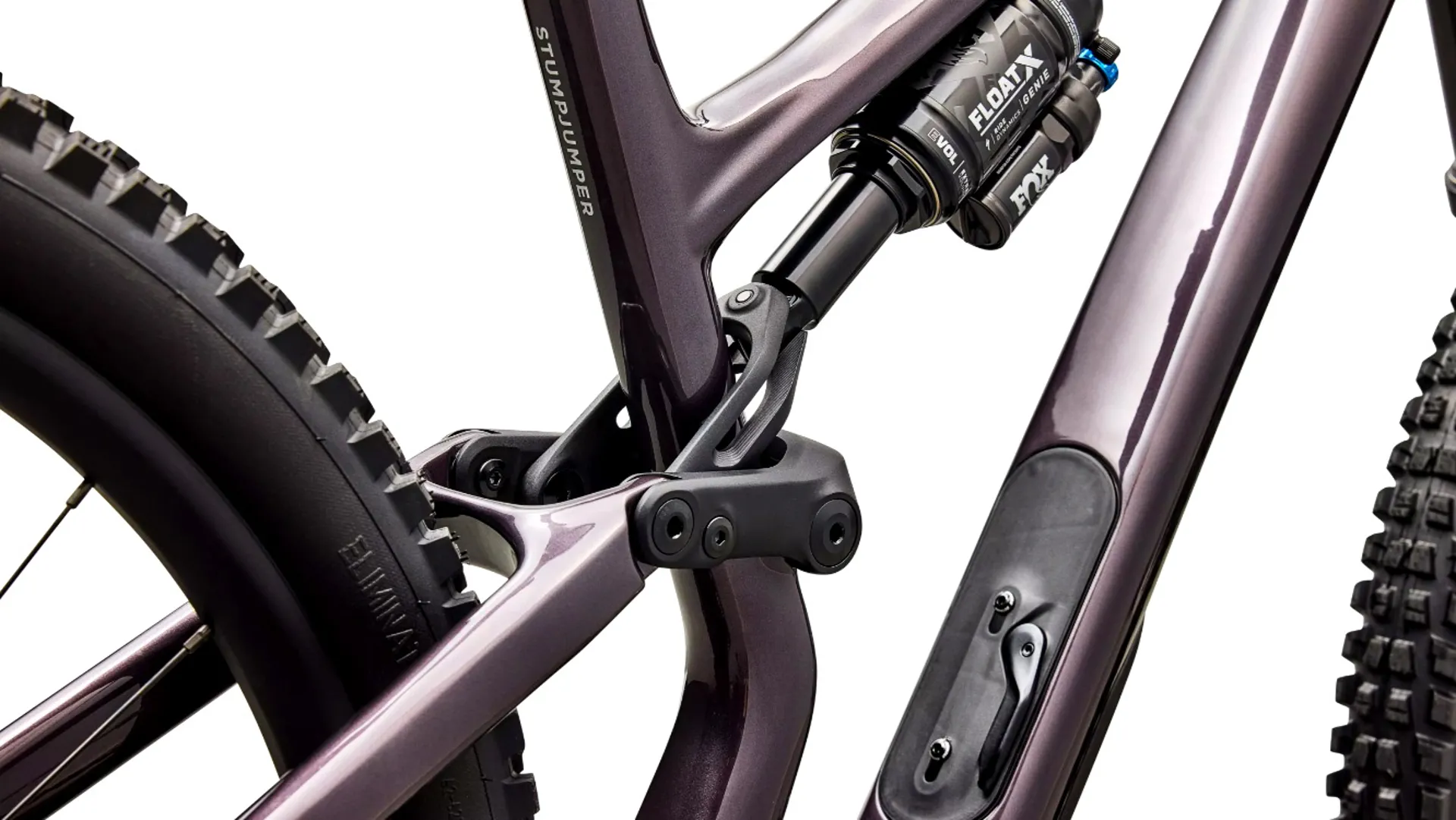

Rear Shock
FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSC adjustment, LSR adjustment, 210x55mm
Fork
FOX FLOAT 36 Performance Elite, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm Kabolt axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel
Saddle
Bridge Comp, Hollow Cr-mo rails S1-S2:155mm, S3-S6:143mm
SeatPost
PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S1: 125mm, S2: 150mm, S3: 175mm, S4-S5: 200mm, S6: 225mm
Stem
Alloy Trail Stem, 35mm bar bore

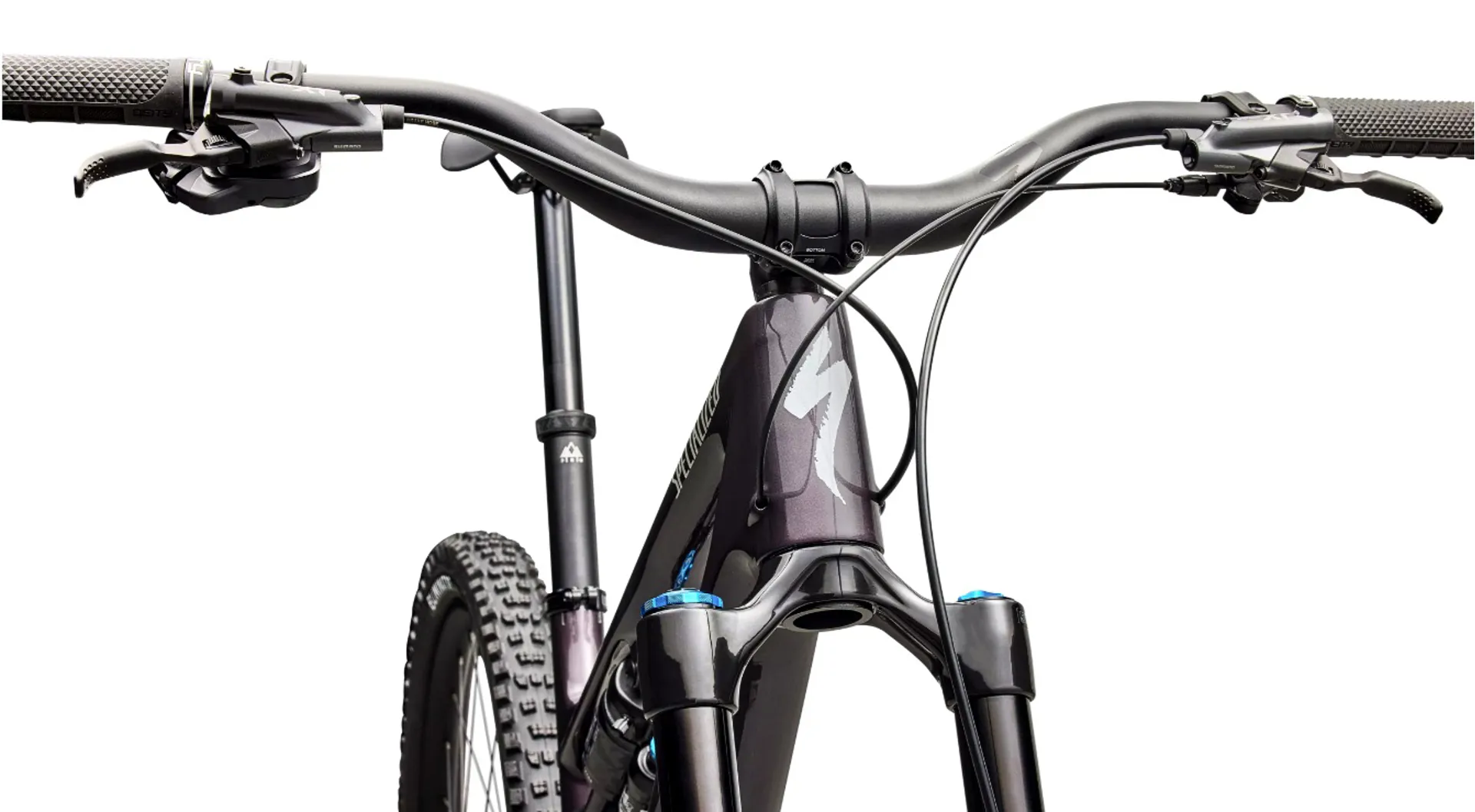

Handlebars
Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise
Grips
Deity Lockjaw Grips
Front Brake
Shimano Deore XT brake, 4 piston, Metal pad w/fin
Rear Brake
Shimano Deore XT brake, 4 piston, Metal pad w/fin
Rear Derailleur
Shimano XT Di2, 12-speed
Shift Levers
Shimano XT Di2
Cassette
Shimano XT M8200, 12-speed, 10-51
Chain
Shimano XT M8100, 12-speed w/ quick link
Crankset
Shimano XT, 55mm chainline, 32T, S1-S3: 165mm, S4-S6: 170mm
Bottom Bracket
Shimano, BB-MT801, Threaded
Front Wheel
Roval Traverse 29" Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370, 15x110mm, 28h, Sapim Force Spokes
Rear Wheel
Roval Traverse Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370, 15x110mm, 28h, Sapim Force Spokes
Front Tyre
Butcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4
Rear Tyre
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
Inner Tubes
Standard, Presta Valve
SWAT
SWAT 4.0 internal downtube storage
Weight
14.48 kg (31 lb, 14.8 oz)
Weight Size
S4
