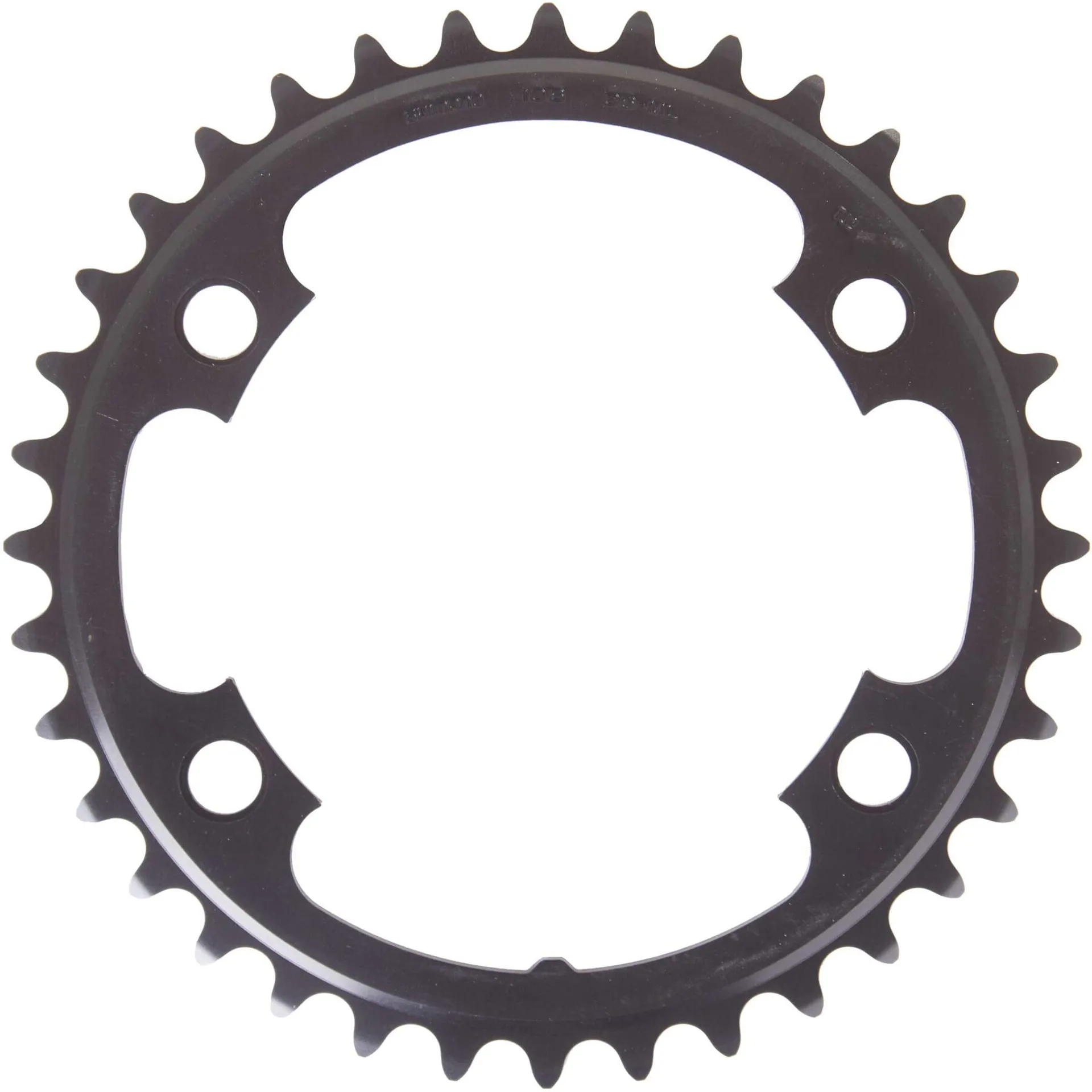

The Shimano Tiagra FC-4700 36T-ML Chainring is a genuine Shimano replacement inner chainring designed for compatible Tiagra FC-4700 10-speed road cranksets using a 52-36T chainring combination.
Ideal for replacing a worn, damaged or heavily used chainring, this genuine Shimano component is engineered to restore smooth shifting, efficient power transfer and reliable drivetrain performance.
The chainring tooth profile has been developed specifically for use with Shimano HG 10-speed chains, helping improve chain engagement and maintain accurate front shifting under load.
Genuine Shimano Tiagra Replacement Chainring
The FC-4700 36T-ML is an original Shimano replacement part manufactured to match the specification of the factory-fitted chainring.
Using a genuine Shimano chainring helps maintain correct compatibility, shifting performance and drivetrain durability.
Designed for 52-36T Tiagra Cranksets
This 36-tooth inner chainring is specifically matched to the 52T-ML outer chainring used on compatible Shimano Tiagra FC-4700 double cranksets. The matched chainring profile helps ensure smooth transitions between the inner and outer rings.
Optimised for Shimano HG 10-Speed Chains
The tooth shaping is designed specifically around Shimano HG 10-speed chains, improving contact between the chain and chainring teeth. This helps support efficient pedalling, dependable chain retention and smooth front shifting.
110mm BCD 4-Arm Design
The chainring uses Shimano’s 110mm bolt circle diameter with a 4-arm fitting, providing the correct interface for compatible FC-4700 cranksets.
Always confirm crankset model, tooth count and chainring code before installation.
Key Features
- Genuine Shimano Tiagra FC-4700 replacement chainring
- 36-tooth inner chainring
- ML designation
- Designed for 52-36T chainring combinations
- Compatible with Shimano Tiagra FC-4700 cranksets
- Optimised for Shimano HG 10-speed chains
- Helps restore smooth front shifting
- Designed for efficient power transfer
- 110mm bolt circle diameter
- 4-arm chainring fitting
- Suitable for road and time trial / triathlon use
- Grey finish
Compatibility
- Crankset: Shimano Tiagra FC-4700
- Chainring Combination: 52-36T
- Matching Outer Ring: 52T-ML
- Matching Shimano Part Number: Y1RC98060
- 36T-ML Part Number: Y1RC36000
- Compatible Chain: Shimano HG 10-Speed
