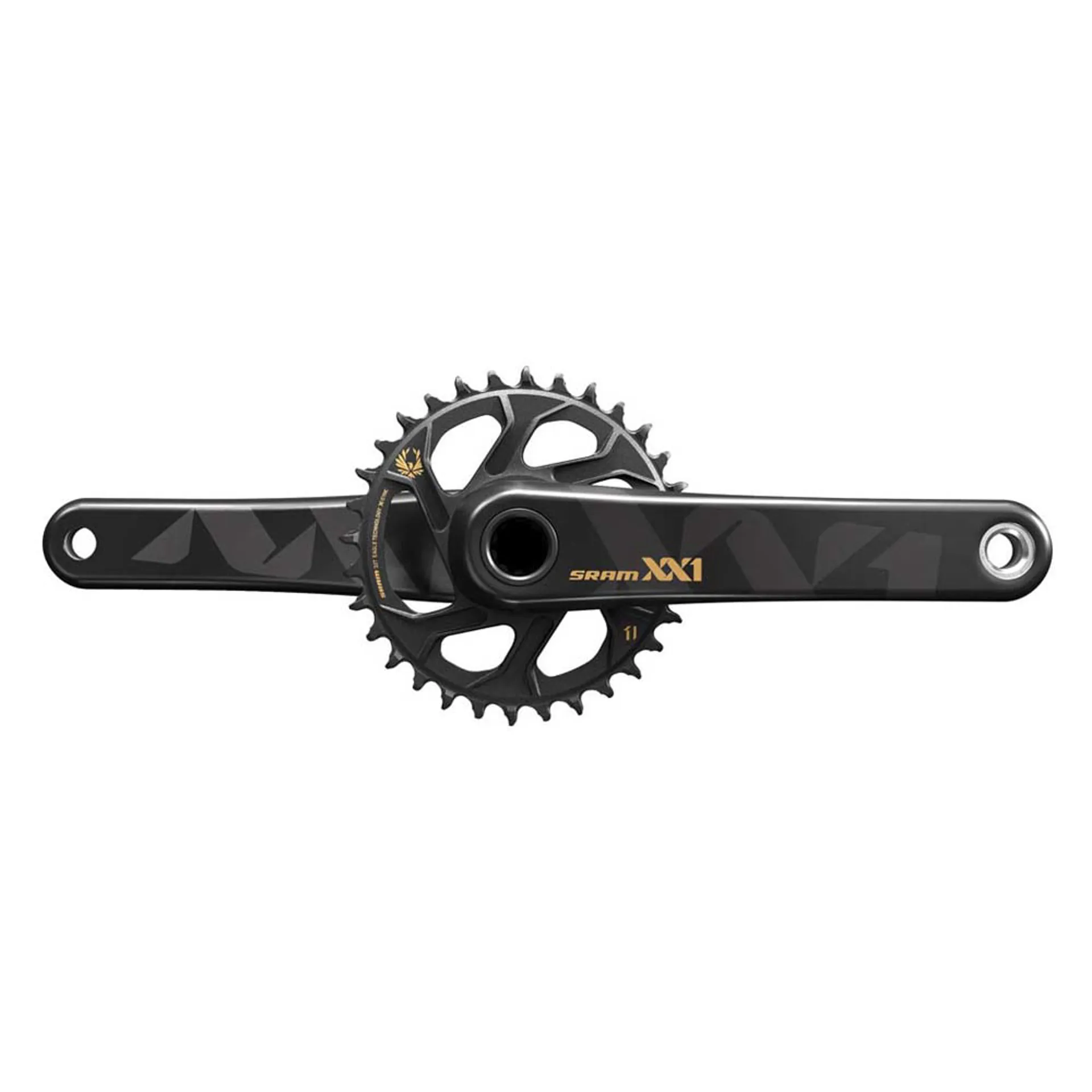

SRAM XX1 Eagle BB30 Direct Mount Crankset

True competitors are always looking for a performance advantage; a relentless pursuit of equipment that is lighter, stiffer and stronger. To create the best drivetrain possible, SRAM started with a completely reengineered crankset design. The all-new XX1 Eagle crankset is the lightest, stiffest and strongest on the market. A special hollow internal architecture, combined with SRAM's proprietary carbon tuned lay-up, allows them to build a lightweight and ultra-energy-efficient crankset perfectly suited for the high-wattage output and smooth style of cross country riding and racing. The direct mount chainring, as an integral part of the Eagle drivetrain, the new XX1 Eagle crankset puts more focused power into every ride.

Features:

• The lightest, stiffest, strongest crankset available
• All-new crank-arm design optimised for cross-country and trail applications
• All-new SRAM CARBON TUNED crank technology provides extreme stiffness and light weight
• All-new chainring technology is designed specifically for Eagle chains and drivetrains
• The X-SYNC 2 chainring provides significantly quieter performance, with better mud clearing and extraordinary durability

Specifications:

• Arm Material: Carbon composite - hollow core
• Chainring Material: Forged and CNC machined
• Available Arm Lengths: 175mm
• Bolts: Direct mount
• Bottom Bracket: BB Compatibility - BB30, PF30-68-73mm
• Lengths: 175mm
• Recommended Chain: Eagle? chain

Technology:

• BB30: Besides serious weight savings, this bottom bracket means narrow Q-factor, more ankle clearance, greater bearing durability and stronger crank construction.
• CARBON TUNED: Strength and stiffness where you need it, lightweight like you want it. Proprietary SRAM carbon lay-up design increases thickness and stiffness at critical stress areas. Tapered, terraced, carbon architecture ensures the greatest weight savings without compromising strength.
• GXP®: GXP's Gutter Seal design cuts friction and weight, improving both feel and performance.
• PressFit: A variant of the external GXP bottom bracket, PressFit cuts weight by up to 40g and eases installation by allowing you to press the bearing cups into the frame instead of threading them. It requires no change to the crank spindle length and diameter.
• Pressfit 30: This is a new design led by SRAM. It´s all the best from BB30 and Press-Fit bottom brackets in one captivating package. This bottom bracket is designed for 30mm spindle cranksets. The key difference with PressFit 30 is how the bearings are fitted into the frame. Bearings are housed in nylon cups which will be pressed into the frames bottom bracket shell. PressFit 30 will feature an integrated seal, pre-assembled into the cups, to further prolong bearing life. Frames will need a 46mm inner-diameter bottom bracket shell to accommodate this system. PressFit 30 for road will require a 68mm wide shell while PressFit 30 for - MTB will require a 73mm wide shell. Advantages: Huge weight savings, narrow Q-factor, more ankle clearance, greater bearing durability, stiffer/stronger crank construction, simple installation. Allows for larger diameter frame tubes increasing frame stiffness.
• X-Sync 2: X-SYNC 2 Eagle is the next evolution of SRAM X-SYNC technology. The aggressive teeth design provides better chain retention for a smoother, more efficient pedal feel. With a focus on long wear-life, the X-SYNC EAGLE design reduces friction and the accumulation of mud, grit and grime.

Features Sram XX1 Eagle BB30 Direct Mount Crankset

• Colour: Black
• Sensor Type: Without sensors
• Product Type: Sets
• Recommended use: Mountain biking MTB
