The Demo Expert Downhill Mountain Bike offers speed, versatility, traction and capability in abundance for even your most technical downhill challenges.
The Demo Expert Downhill Mountain Bike offers speed, versatility, traction and capability in abundance for even your most technical downhill challenges.
Specialized

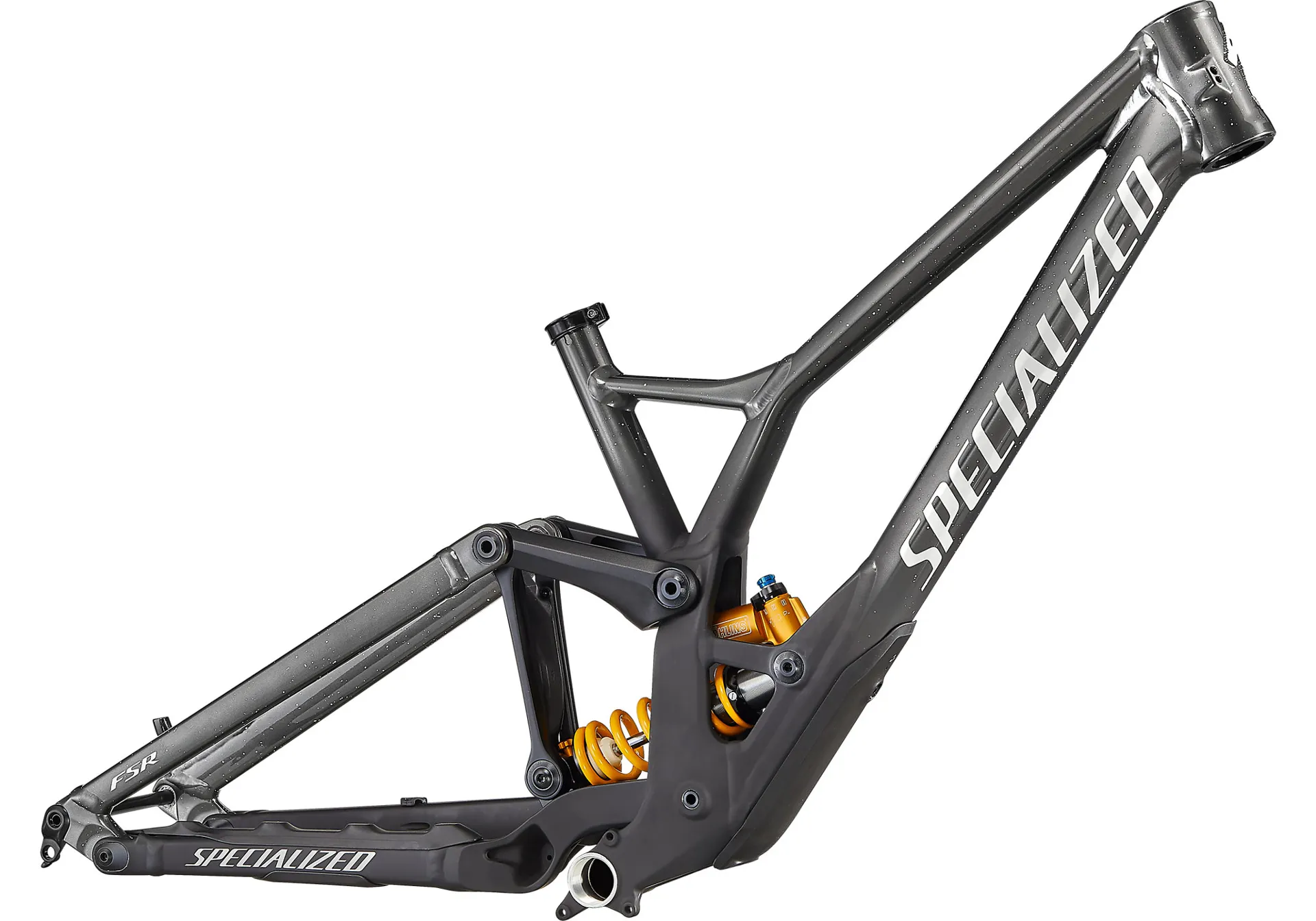

2022 Specialized Demo Race Mountain Bike Frameset - Gloss Black Chrome

£2,100.00 £2,400.00 13% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2022 Specialized Demo Race Mountain Bike Frameset - Gloss Black Chrome

Season:2022

Brand:Specialized

Code:320376331279

Specialized Demo Race Downhill Mountain Bike Frameset: A World Cup Winner

The Specialized Demo Race Downhill Mountain Bike Frameset, renowned for its success in its debut World Cup season, now features 27.5/29-inch rear wheel compatibility, offering an optimal balance of speed, traction, and maneuverability with unparalleled versatility. The Ohlins TTX 22 M coil shock provides superior suspension performance, ready for your race setup to achieve podium finishes.

Chassis Design: The Demo Expert M5 alloy frame is engineered to leverage the traction benefits of a 29-inch front wheel and the maneuverability of a 27.5-inch rear wheel. This design allows for rear wheel size adjustments to a 29-inch, accommodating various terrains and riding styles, with an adjustable rear end to maintain precise chainstay length and bottom-bracket height.

Suspension Excellence: The Ohlins TTX 22 M coil shock is crafted for the toughest World Cup Downhill tracks, featuring external low-speed compression and rebound adjustment. The Trunnion mount offers additional bushing overlap, enhancing durability and performance.

  • Speed and Traction: Achieve optimal speed and traction with the compatibility of different wheel sizes, tailored to enhance your downhill riding experience.
  • Maneuverability: Enjoy increased maneuverability with the 27.5-inch rear wheel while having the option to switch to a 29-inch rear wheel for different terrains.
  • Durability: The adjustable rear end and robust Ohlins TTX 22 M coil shock ensure your bike can handle the rigors of downhill racing.
  • Upgrade your downhill racing experience with the Specialized Demo Race Downhill Mountain Bike Frameset, designed for world-class performance and versatility.
Technical Information
  • frame
    M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
  • rear shock
    Ohlins TTX 22 M Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225x75
  • saddle
    Body Geometry Henge DH, hollow titanium rails, 130mm
  • seatpost
    Thomson, alloy, straight, 12-degree clamp
  • seat binder
    Alloy, 34.9mm
  • As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information
Size in ft5'2" - 5'9"5'5" - 6'0"5'8" - 6'4"
Size in cm158 - 175cm165 - 183cm173 - 193cm
Equivalent to Bike SizeSML
Bike SizeS2S3S4

DEMO (STYLE SPECIFIC-SIZING) MY21 SIZING GUIDE

S-Sizing is based on what matters; rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be more nimble, thanks to their shorter reach and front-center measurement, while bigger S-Sizes deliver more stability and a roomier ride.

  • SIZE DOWN FOR MORE MANEUVERABILITY
  • SIZE UP FOR MORE STABILITY

GEOMETRY

SizeS2S3S4
BB Drop25mm25mm25mm
BB Height350mm350mm350mm
B-B Height (29 mid)355mm355mm355mm
B-B Height (27.5 mid)345mm345mm345mm
Chainstay Length (mid)443mm443mm443mm
Chain-Stay Length (27.5)438mm438mm438mm
Chain-Stay Length (29)448mm448mm448mm
Fork Rake/Offset56mm56mm56mm
Front Centre801mm821mm841mm
Front-Center (27.5 mid)801mm821mm841mm
Front-Center (29 mid)801mm821mm841mm
Head Tube Angle62.8°62.8°62.8°
Head Tube Angle (27.5 mid)62.5°62.5°62.5°
Head Tube Angle (29 mid)63.2°63.2°63.2°
Head Tube Length105mm105mm105mm
Reach426mm446mm466mm
Reach (27.5 mid)423mm443mm463mm
Reach (29 mid)430mm450mm470mm
Seat Tube Angle78.2°76.8°76.8°
Seat-Tube Angle (27.5 mid)77.8°76.4°76.4°
Seat-Tube Angle (29 mid)78.5°77.1°77.1°
Seat Tube Length394mm420mm420mm
Stack632mm632mm632mm
Stack (27.5 mid)635mm635mm635mm
Stack (29 mid)629mm629mm629mm
Trail130mm130mm130mm
Trail (27.5 mid)132mm132mm132mm
Trail (29 mid)127mm127mm127mm
Wheelbase (mid)1244mm1264mm1284mm
Wheelbase (27.5)1239mm1259mm1279mm
Wheelbase (29)1249mm1269mm1289mm
Professional Opinion
