The groundbreaking Specialized Turbo Levo Electric Mountain Bike is a force to be reckoned with, empowering riders with unprecedented power to conquer more trails.
The groundbreaking Specialized Turbo Levo Electric Mountain Bike is a force to be reckoned with, empowering riders with unprecedented power to conquer more trails.
Specialized

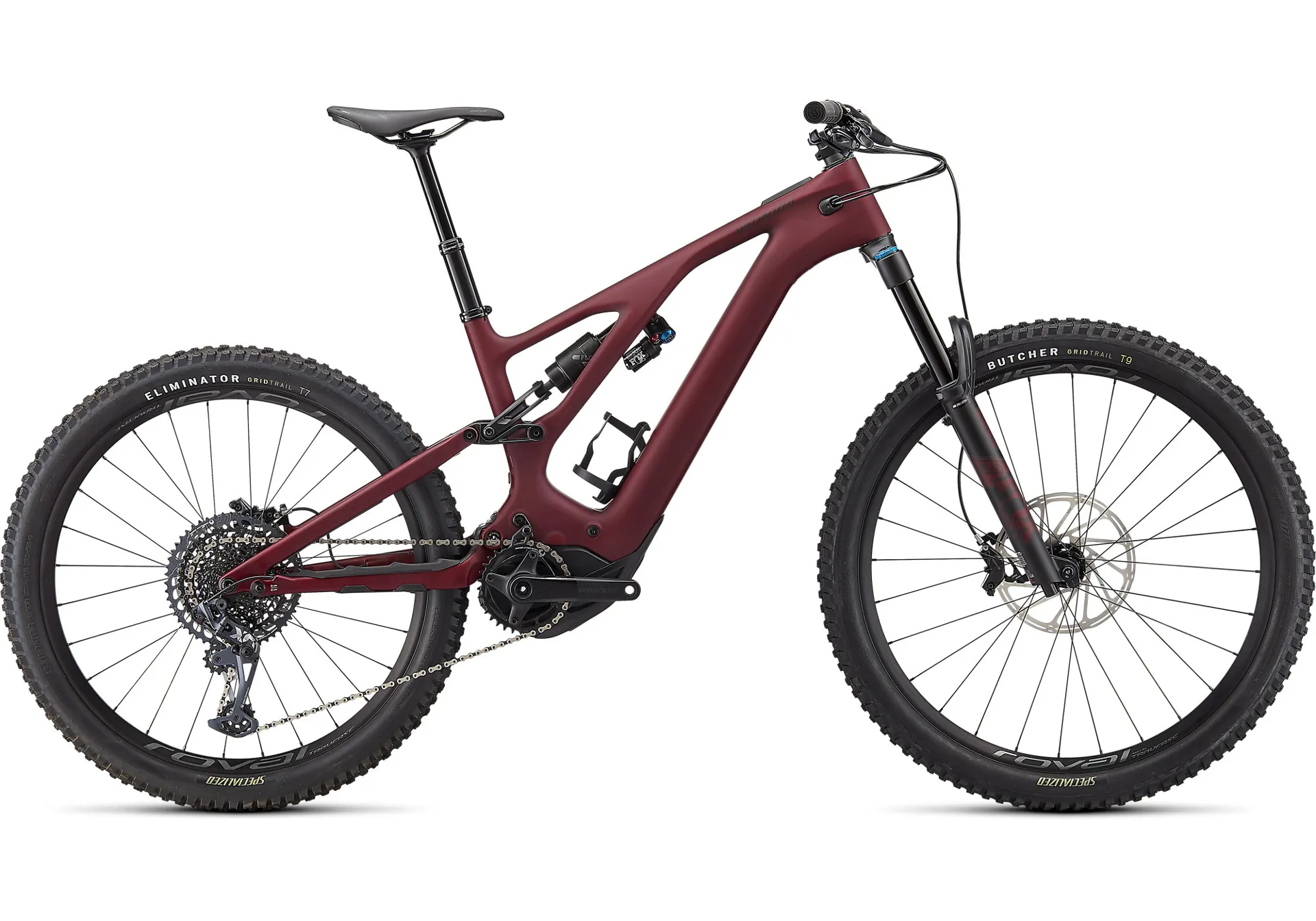

2022 Specialized Turbo Levo Expert Carbon Electric Mountain Bike - Maroon

£5,999.00 £10,000.00 40% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2022 Specialized Turbo Levo Expert Carbon Electric Mountain Bike - Maroon

Season:2022

Brand:Specialized

Code:317312329256

The groundbreaking Specialized Turbo Levo Electric Mountain Bike is a force to be reckoned with, empowering riders with unprecedented power to conquer more trails. Crafted with an unparalleled blend of ride quality, usable power, and limitless range, this bike epitomises the culmination of a 40-year dedication to crafting the finest mountain bikes in the world. Since its inception, the Levo has consistently set the standard that every other e-MTB aspires to, and the latest iteration raises that standard yet again.

At its core lies a Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), seamlessly amplifying your efforts by a remarkable 4 times, granting you the freedom to choose where and when to ride. Breaking barriers in terms of range, the Levo extends your trail time with up to five hours of uninterrupted riding. With an optimised chassis featuring 150mm of custom-tuned rear suspension and adjustable geometry, the Levo delivers a stable and intuitive ride experience like no other.

Here's where things get serious. The Levo Expert steps up to the plate with SRAM's robust X01 Eagle 12-speed drivetrain, precision-engineered FOX Performance Elite suspension, and a high-performance Roval Traverse wheelset.

  • Levo's fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver an unmatched 90 Nm of torque and 565 watts of power, providing up to five hours of ride time. This empowers you to push boundaries and ride faster and farther than ever before.
  • The MasterMind Turbo Control Unit serves as your central information hub, offering customisable display fields, including precise battery level percentages. With the innovative MicroTune function, adjust power delivery in 10% increments to tailor your ride experience precisely.
  • A dedicated mixed-wheel size design, featuring a 27.5” rear wheel and 29” front wheel, ensures a nimble ride that outperforms other full-power e-MTBs. The generous cockpit optimizes traction and cornering control, while the low bottom bracket, slack headtube angle, and reduced fork offset ensure stability on challenging terrain.
  • Levo offers six distinct geometry settings, enabling easy customisation for any riding style and terrain. Adjustments include head tube angle variations between 63 and 65.5 degrees and fine-tuning of bottom bracket height by 7mm.
  • With 150mm of rear travel, the Levo effortlessly absorbs small bumps and tackles square-edged hits with ease, while delivering exceptional pedal response and efficient power transfer to the ground.
  • The Levo's S-Sizing prioritizes rider size and style over inseam length, offering six sizes with similar headtube lengths and standover heights. Choose the size that best suits your individual style, with smaller S-Size numbers offering agility and larger sizes delivering stability and comfort.
Technical Information
  • Frame
    FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
  • Fork
    FOX FLOAT 38 Performance Elite 29, Grip2 damper, 44mm offset, HSC, LSC, HSR, LSR, 110x15mm, 1.5" tapered steerer, 160mm travel
  • Rear Shock
    S1: Fox Float DPS Performance Elite, 3- position adjustment, 52.5x210mm, Rx Trail Tune, S2-S6: FOX FLOAT X2 Performance Elite, LSC, LSR, 2-position lever, 55x210mm
  • Stem
    Alloy Trail Stem, 35mm bar bore
  • Handlebars
    Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
  • Grips
    Deity, Knuckleduster, Black
  • Front Brake
    SRAM Code RS, 4-piston caliper, hydraulic disc, S/M: 200mm, L/XL: 220mm
  • Rear Brake
    SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
  • Shift Levers
    SRAM XO1 Eagle trigger, 12-speed, single click
  • Rear Derailleur
    Sram X01 Eagle, 12-speed
  • Cassette
    Sram XG-1275, 12-speed, 10-52t
  • Crankset
    Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
  • Chain
    SRAM GX Eagle, 12-speed
  • Chainrings
    SRAM X-Sync Eagle, 104 BCD, 32T, steel
  • Front Wheel
    Traverse 29
  • Rear Wheel
    Traverse 27.5
  • Front Tyre
    Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
  • Rear Tyre
    Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
  • Inner Tubes
    Standard, Presta Valve
  • Saddle
    Bridge Comp, Hollow Cr-mo rails, 155/143mm
  • Seatpost
    X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
  • Seat Binder
    Alloy, 38.6mm
  • Motor
    Specialized Turbo Full Power System 2.2 Motor
  • UI/Remote
    Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
  • Battery
    Specialized M3-700, Integrated battery, 700Wh
  • Charger
    Custom charger, 42V4A w/ Rosenberger plug, 100-240V
  • Wiring Harness
    Custom Specialized wiring harness
  • SWAT
    SWAT CC steerer tube integrated tool with chain tool and link
  • As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information
Size in ft4'11" - 5'3"5'2" - 5'8"5'5" - 5'11"5'8" - 6'2"5'10" - 6'4"6'2" - 6'8"
Size in cm150 - 160cm158 - 173cm165 - 180cm173 - 188cm178 - 193cm188 - 203cm
Equivalent to Bike SizeXSSMLXLXXL
Bike SizeS1S2S3S4S5S6

S-Sizing is based on what matters; rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be more nimble, thanks to their shorter reach and front-centre measurement, while bigger S-Sizes deliver more stability and a roomier ride.

  • SIZE DOWN FOR MORE MANEUVERABILITY
  • SIZE UP FOR MORE STABILITY

GEOMETRY

SizeS1S2S3S4S5S6
BB Drop25mm27mm27mm27mm27mm27mm
BB Height352mm350mm350mm350mm350mm350mm
Bike Standover Height752mm776mm783mm787mm788mm790mm
Chainstay Length442mm442mm442mm442mm442mm442mm
Fork Length, Full557mm567mm567mm567mm567mm567mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Centre738mm760mm784mm814mm843mm878mm
Head Tube Angle64.5°64.5°64.5°64.5°64.5°64.5°
Head Tube Length105mm105mm115mm125mm135mm145mm
Reach412mm432mm452mm477mm502mm532mm
Seat Tube Angle78°77.2°76.7°76.2°76.2°76.2°
Seat Tube Length380mm390mm405mm425mm445mm465mm
Stack605mm617mm626mm635mm644mm653mm
Trail130mm130mm130mm130mm130mm130mm
Wheelbase1179mm1200mm1225mm1255mm1284mm1318mm
Crank Length160mm160mm160mm160mm160mm160mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Stem Length40mm40mm40mm40mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length100mm125mm150mm170mm170mm190mm
Max Seatpost Insertion210mm220mm240mm255mm275mm295mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
