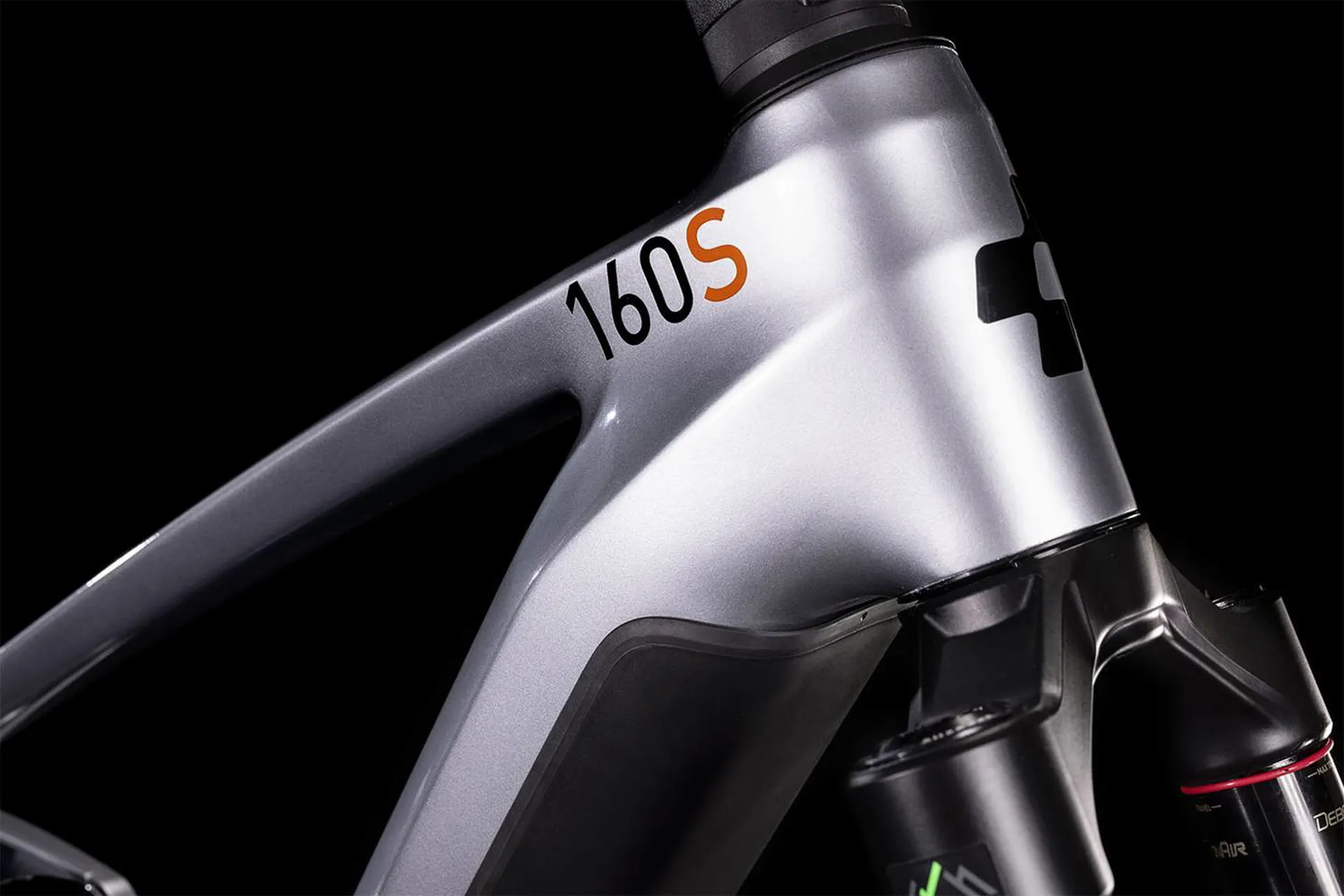

Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Size
M (18"), L (20"), XL (22")
Fork
RockShox ZEB Select Charger RC, 15x110mm, Tapered, eMTB Approved, 170mm

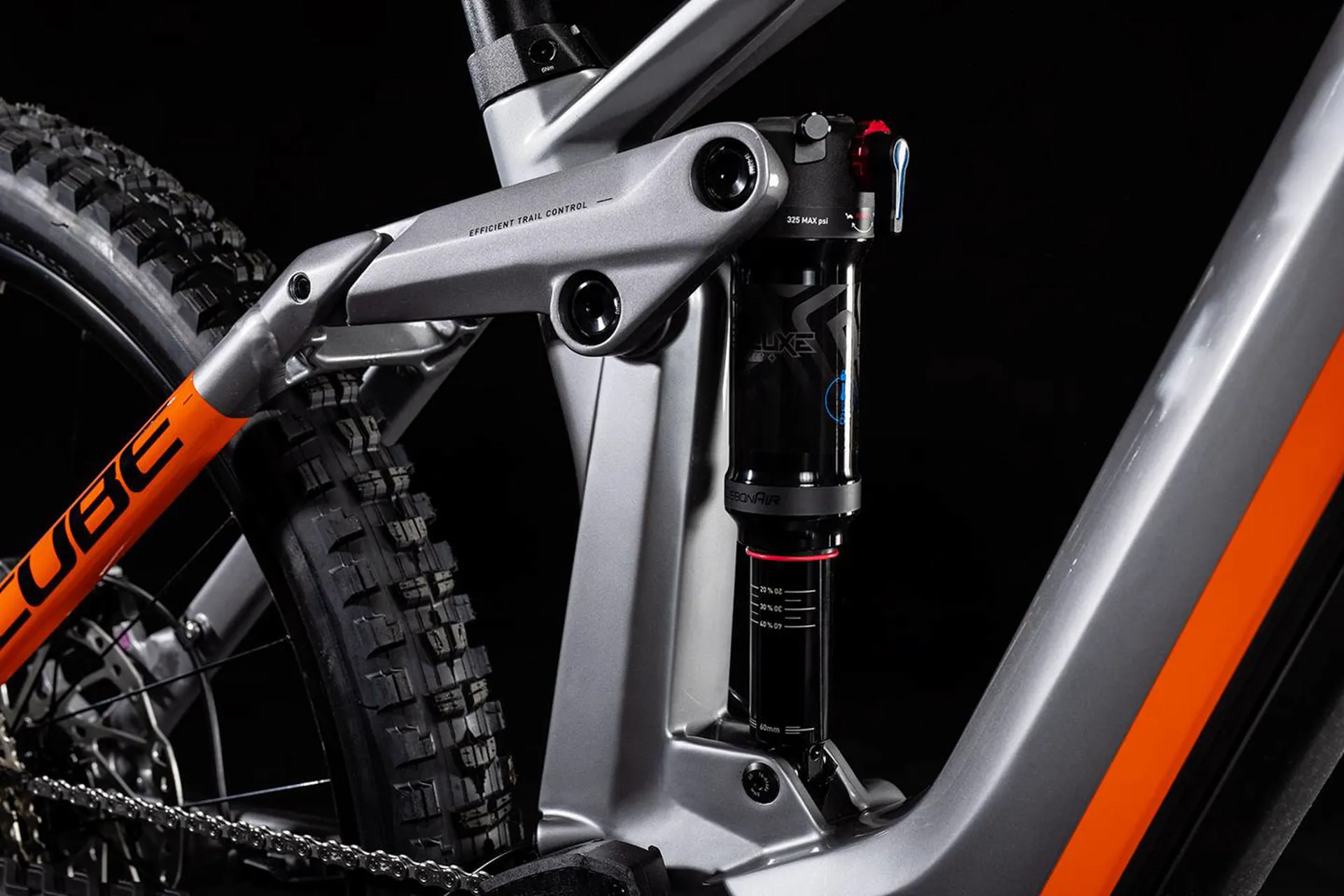

Shock
RockShox Deluxe Select+, 205x65mm, Rebound Adjust, Trunnion Mount, Lockout
Shock Hardware
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
Drive Unit
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Display
Bosch Kiox 300
Charger
Bosch 4A
Brake System
Shimano Deore BR-M6120, Hydr. Disc Brake (203/203)
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus

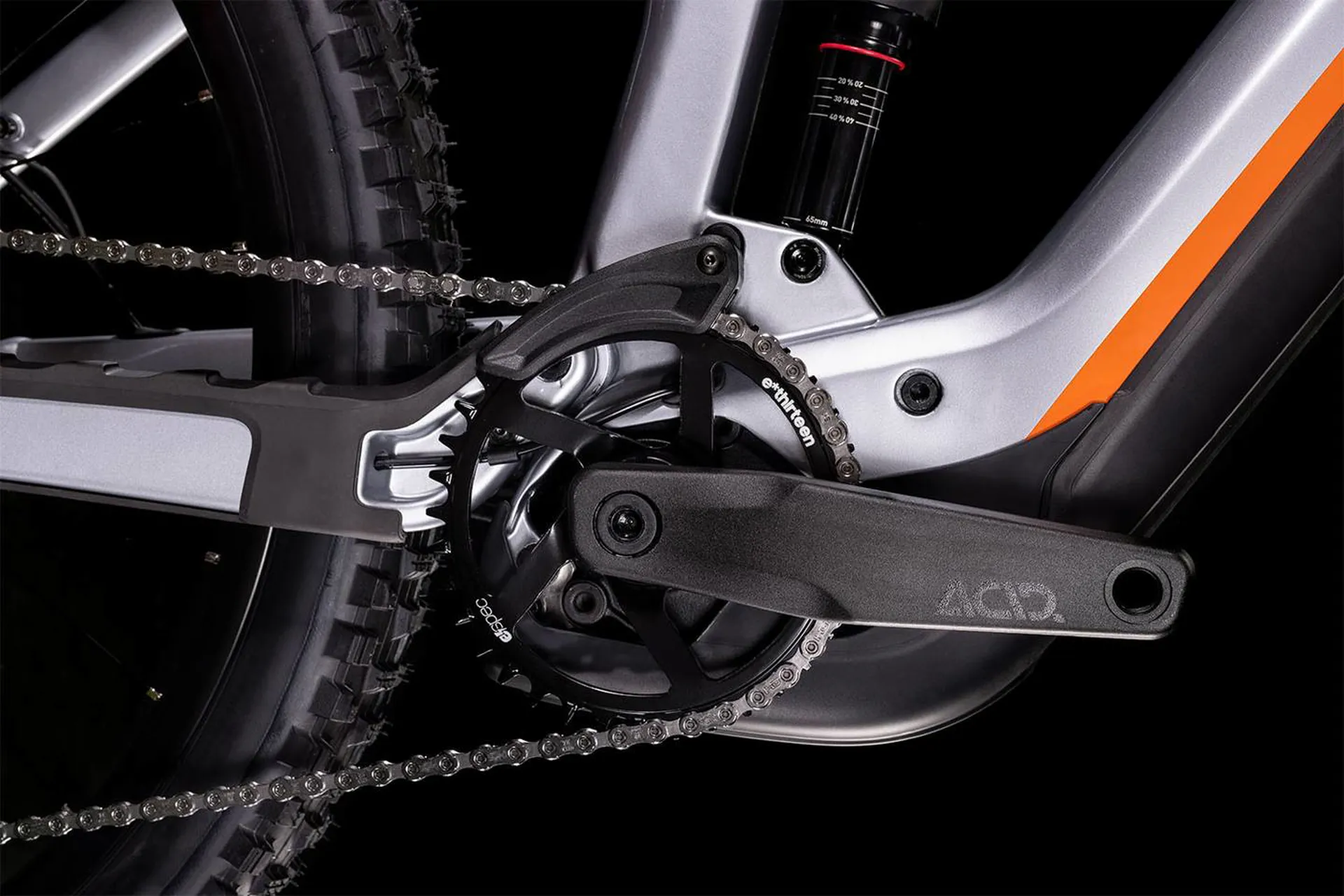

Crankset
ACID E-Crank, 165mm, 36T
Chain Guide
Reverse Flip-Guide E-Kettenführung, Direct Mount, GEN4
Cassette
Shimano Deore CS-M6100, 10-51T
Chain
Shimano CN-M6100
Wheelset
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front Tire
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
Rear Tire
Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 780mm
Grips
ACID Disrupt, Soft Compound
Seat Post
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (M: 125mm, L,XL: 150mm)
Seatclamp
CUBE Screwlock Semi Integrated, 34.9mm

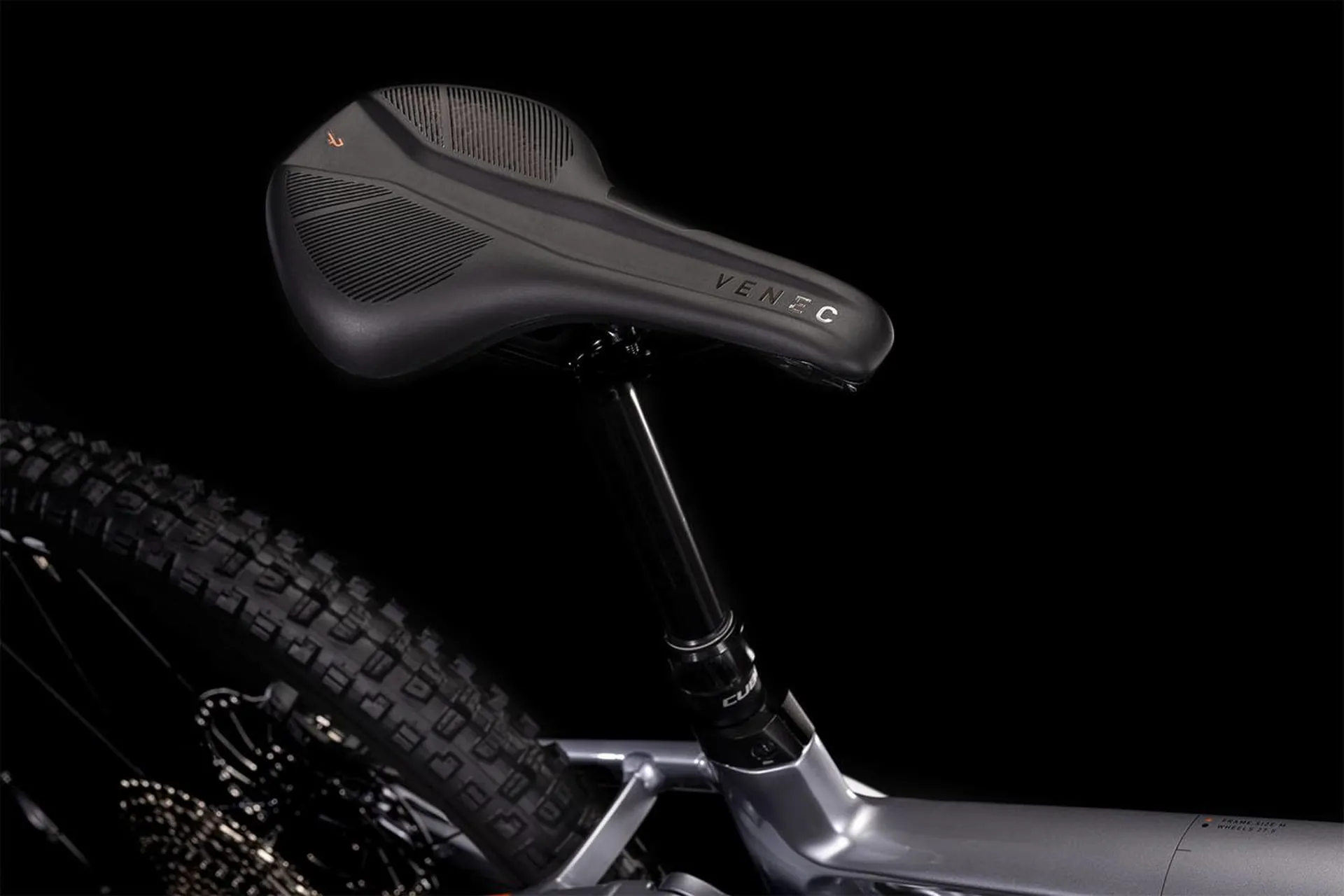

Saddle
Natural Fit Venec
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Weight
24,5 kg
Colour
polarsilver´n´orange
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
