Cube Kathmandu Pro 800 Electric Hybrid Bike with Bosch CX drive, 800Wh PowerTube battery, Shimano XT gears, Integrated Carrier 3.0, and hydraulic disc brakes. Perfect for commuting, touring, and e-bike adventures.

Cube Kathmandu Pro 800 Electric Hybrid Bike with Bosch CX drive, 800Wh PowerTube battery, Shimano XT gears, Integrated Carrier 3.0, and hydraulic disc brakes. Perfect for commuting, touring, and e-bike adventures.

Cube

2026 Cube Kathmandu Hybrid Pro 800 Electric Hybrid Bike - Lizard

£3,299.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2026 Cube Kathmandu Hybrid Pro 800 Electric Hybrid Bike - Lizard

Season:2026

Brand:Cube

Code:112220221222LIZARDBLK

It's time to make memories on a bike designed for adventure. Experience the ultimate in electric hybrid bike performance with the Cube Kathmandu Pro 800. Designed for long-distance comfort, urban commuting, and adventurous off-road exploration, this e-bike combines classic Cube design with cutting-edge technology.

Powered by a Bosch CX drive system and a high-capacity 800Wh PowerTube battery, the Kathmandu Pro 800 delivers effortless pedaling power and extended range for all your cycling adventures. The frame features Efficient Comfort Geometry paired with a 100mm travel suspension fork, ensuring smooth, controlled rides even on rough terrain.

The Kathmandu Pro 800 comes equipped with Shimano XT 1x12 gears for precise, reliable shifting, and 4-piston Shimano hydraulic disc brakes for confident stopping power in all conditions. Integrated cables, a UDH dropout, and an integrated chain guard mount keep the frame clean, modern, and ready for future upgrades.

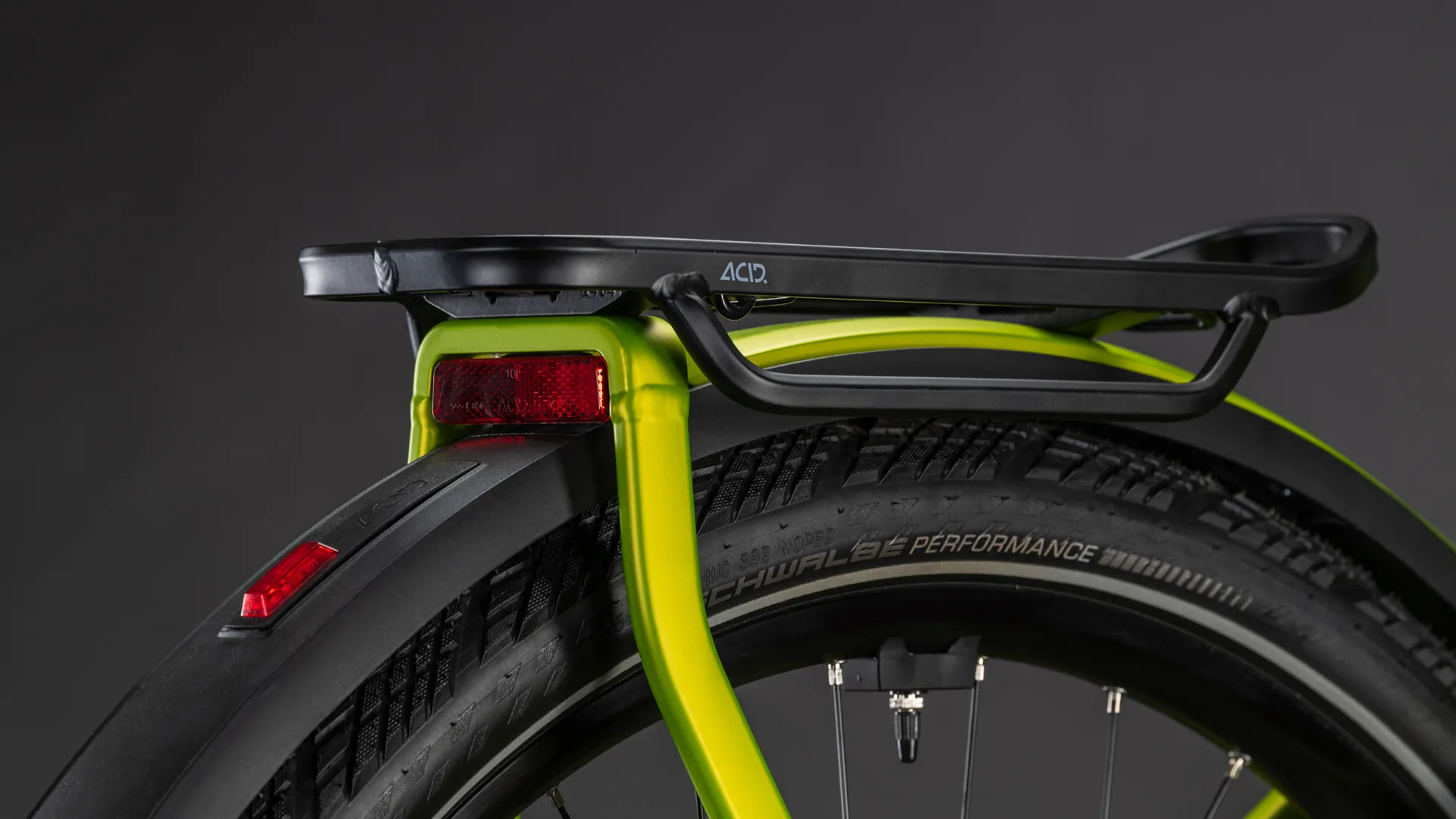

Cleverly designed for adventure, the bike features the Integrated Carrier 3.0, providing a strong, stable platform to carry all your gear while maintaining the bike’s sleek, minimalist aesthetic. A parallelogram suspension seatpost adds extra comfort for long rides, making every journey enjoyable.

Whether commuting, touring, or exploring trails, the Cube Kathmandu Pro 800 Electric Hybrid Bike is your passport to freedom, offering unmatched comfort, control, and reliability in a stylish e-bike package.

Technical Information
  • Frame
    Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, Fully Integrated Battery, IC 3.0, Advanced Internal Cable Routing, Integrated Seatclamp
  • Size
    Classic: 50cm, 54cm, 58cm, 62cm
  • Suspension fork
    SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm
  • Drive unit
    Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
  • Remote
    Bosch LED Remote
  • Battery
    Bosch PowerTube 800
  • Display
    Bosch Kiox 500
  • Charger
    Bosch 2A
  • Brake system
    Shimano BR-MT420, Hydr. Disc Brake (180/180)
  • Rear derailleur
    Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
  • Shifters
    Shimano Deore SL-M6100-IR, Direct Attach
  • Crankset
    ACID MTB Hybrid Pro, 40T
  • Cassette
    Shimano Deore CS-M6100, 10-51T
  • Chain
    KMC e12
  • Headset
    ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
  • Stem
    CUBE Comfort Stem Pro, 31.8mm, Adjustable
  • Handlebar
    CUBE Comfort Trail Bar, 700mm
  • Grips
    ACID Travel Comfort
  • Wheelset
    ACID SLX 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
  • Tyres
    Schwalbe Marathon Efficiency, PerfL, 55-622
  • Saddle
    ACID Sequence 180
  • Seat post
    SR Suntour NVX, 31.6mm
  • Pedals
    ACID PP Trekking
  • Front light
    ACID Front Light PRO-E 150 X-Connect, 12V, DC
  • Rear light
    ACID Mudguard Rear Light PRO-E, 12V, DC
  • Kickstand
    ACID FM Pure Kickstand
  • Mudguards
    ACID 65 Integrated Carrier 3.0
  • Bell
    Reich Cycle Bells Ringsound
  • Carrier
    ACID Integrated Carrier 3.0, CUBE Adapter Compatible
  • Weight
    28,2 kg
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

GEOMETRY

Size50cm54cm58cm62cm
Seat Tube460mm510mm560mm600mm
Top Tube Horizontal590mm610mm630mm650mm
Seat Angle73.5°73°73°73°
Head Tube Angle68°68.5°68.5°68.5°
Chainstays499mm499mm499mm499mm
Head Tube110mm125mm140mm165mm
Wheelbase1173mm1182mm1203mm1226mm
BB-Height to Hub68mm68mm68mm68mm
Protrusion Height - 80mm777mm817mm850mm882mm
Reach401mm410mm426mm439mm
Stack638mm654mm668mm692mm

ERGONOMICS

Size50cm54cm58cm62cm
Length Seat Post350mm350mm350mm350mm
Diameter Seat Post31.6mm31.6mm31.6mm31.6mm
Crank Length175mm175mm175mm175mm
Diameter Tyre Maximum750mm750mm750mm750mm
Width Tyre Maximum56mm56mm56mm56mm
Handlebar Width700mm700mm700mm700mm
Stem Length65mm80mm80mm80mm
Max. Insertion Depth Seat Post180mm230mm280mm280mm

All values are given in millimetres or degrees.
