Giant Revolt Advanced 3 Men’s Gravel Bike – Carbon Gravel Racing & Adventure Bike
Giant Revolt Advanced 3 Men’s Gravel Bike – Carbon Gravel Racing & Adventure Bike
Giant

2025 Giant Revolt Advanced 3 Mens Gravel Bike - Gloss Panther

£1,849.00 £2,499.00 26% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

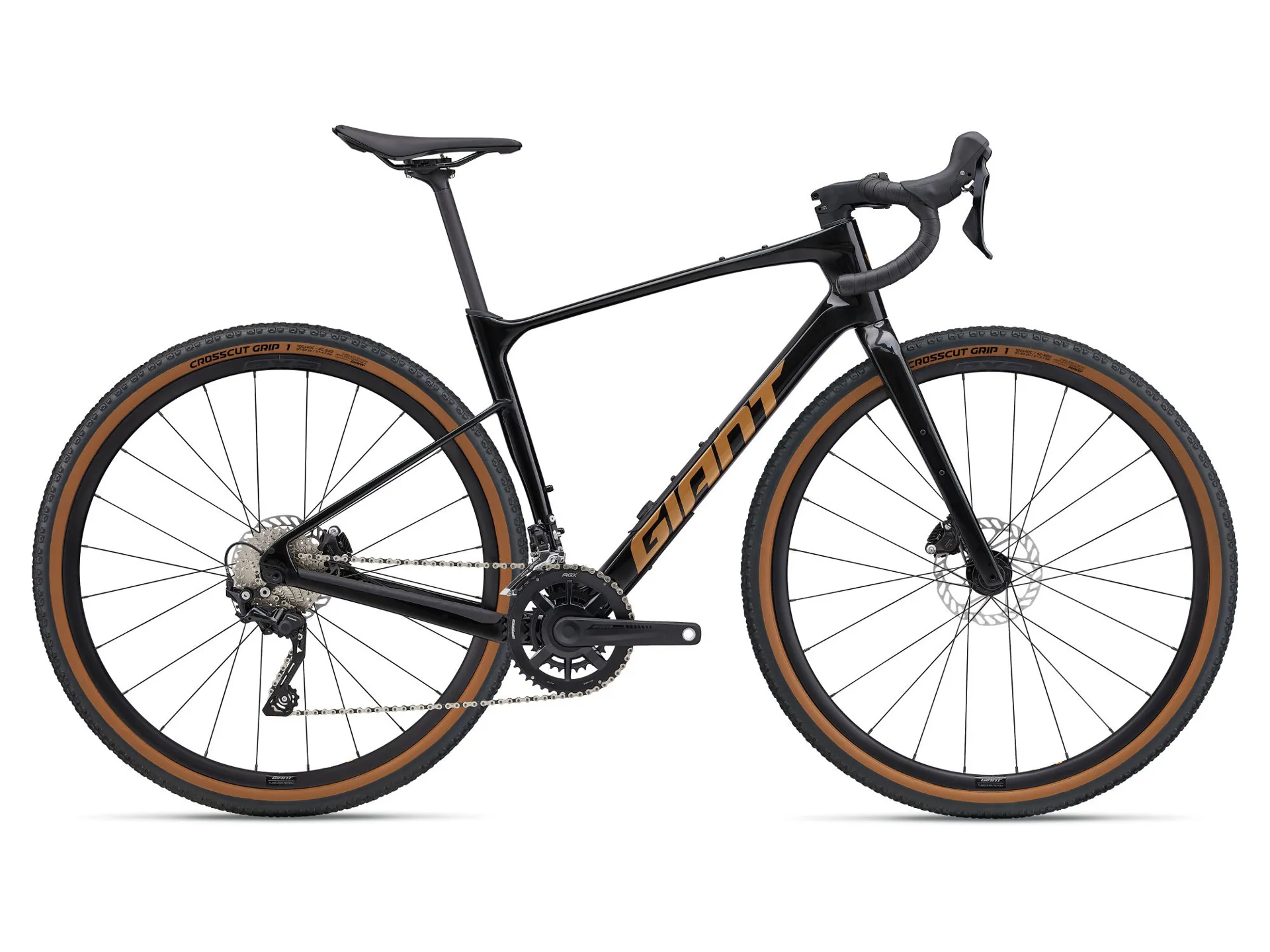

2025 Giant Revolt Advanced 3 Mens Gravel Bike - Gloss Panther

Season:2025

Brand:Giant

Code:9079016Panther

The Giant Revolt Advanced 3 Men’s Gravel Bike is built for speed, versatility, and long-haul adventure. With a lightweight Advanced-grade carbon composite frame and fork, this high-performance gravel bike delivers efficiency, control, and compliance on any terrain whether you’re racing for the podium or exploring endless backroads.

Engineered with flip chip adjustable geometry, massive 53mm tyre clearance, and an all-new internal storage system, the Revolt Advanced 3 is a true all-rounder for gravel racing, bikepacking, and endurance rides.

Lightweight Carbon Frame & Fork

  • Advanced-grade composite construction for stiffness, low weight, and responsive handling
  • Modified Monocoque Construction for maximum strength-to-weight performance

Flip Chip Adjustable Geometry

  • Short wheelbase for quicker handling on fast gravel races
  • Long wheelbase for greater stability and tyre clearance up to 53mm

Optimised Compliance & Comfort

  • Dropped seatstays with smaller diameter tubing absorb bumps and vibrations
  • D-Fuse seatpost and handlebar system flex to reduce fatigue on long rides
  • Compatible with round 30.9mm seatposts or dropper posts for added versatility

Smart Integration & Storage

  • Internal cable routing for a clean, aerodynamic cockpit
  • Hidden down tube storage compartment for tools, spares, and ride essentials
  • Additional mounts for top tube bags, racks, mudguards/fenders, and accessories

Advanced Gravel Technology

  • OverDrive steerer system for precise front-end steering control
  • Tubeless-ready wheels for fewer punctures, smoother rides, and lower rolling resistance
  • Moulded chainstay and downtube protectors for durability and quiet performance

Perfect for: Gravel riders, endurance cyclists, bikepackers, and adventure racers who want a fast, efficient, and fully equipped carbon gravel bike.

The Giant Revolt Advanced 3 combines the best of gravel race bike design with the comfort and adaptability needed for multi-day adventures and off-road endurance rides. With its lightweight composite frame, smart storage, and modern gravel geometry, it’s a bike that thrives in every condition, from gravel racing and all-road riding to bikepacking expeditions.

Technical Information
  • Sizes
    S, M, M/L, L, XL
  • Colours
    Gloss Panther
  • Frame
    Advanced-grade composite
  • Fork
    Advanced-grade composite
  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips
  • Stem
    Giant Contact AeroLight, -10 degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant D-Fuse, composite, 14mm offset
  • Saddle
    Giant Grit
  • Pedals
    Pedals not supplied
  • Shifters
    Shimano GRX RX-400, 2x10
  • Front Derailleur
    Shimano GRX-RX400
  • Rear Derailleur
    Shimano GRX-RX400
  • Brakes
    Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano GRX RX-400 hydraulic
  • Cassette
    Shimano Tiagra, 11x34
  • Chain
    KMC X10-1
  • Crankset
    FSA Omega
  • Bottom Bracket
    FSA BB-AL86, press fit
  • Rims
    Giant P-X2 Disc wheelset, alloy
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Sapim
  • Tyres
    Giant Crosscut Grip TR, 700x40c, tubeless
  • Extras
    Tubeless prepared, in-frame storage bag
  • Max Tyre Clearance
    53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All Giant bikes are designed for best-in-class weight and ride quality.
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

SIZING

Size in ft5'3" - 5'7"5'7" - 5'11"5'9" - 6'1"5'10" - 6'3"6'2" - 6'7"
Size in cm159 - 171cm169 - 181cm174- 186cm179 - 191cm189 - 200cm
Bike SizeSMMLLXL

GEOMETRY

Size

S

Short/Long

M

Short/Long

ML

Short/Long

L

Short/Long

XL

Short/Long

Seat Tube Length450mm470mm490mm510mm530mm
Seat Tube Angle73.5°73.5°73°73°73°
Top Tube Length550mm560mm575mm585mm600mm
Head Tube Length135mm150mm165mm180mm195mm
Head Tube Angle71°71.5°72°72°72°
Fork Rake50mm50mm50mm50mm50mm
Trail72/75mm68/72mm65/68mm65/68mm65/68mm
Wheelbase1020/1030mm1026/1036mm1031/1041mm1041/1051mm1056/1066mm
Chainstay Length425/435mm425/435mm425/435mm425/435mm425/435mm
Bottom Bracket80/81mm80/81mm80/81mm80/81mm80/81mm
Stack570mm586mm602mm616mm630mm
Reach381mm387mm391mm397mm407mm
Stand Over Height740/747mm757/764mm774/780mm791/797mm807/814mm
Handlebar Width420mm440mm440mm460mm460mm
Stem Length60mm70mm80mm80mm90mm
Crank Length170mm172.5mm172.5mm175mm175mm
Wheel Size700c700c700c700c700c
