Specialized Diverge 4 Pro LTD SRAM Red XPLR Gravel Bike – Carbon Adventure Racing Gravel Bike
Specialized Diverge 4 Pro LTD SRAM Red XPLR Gravel Bike – Carbon Adventure Racing Gravel Bike
Specialized

2026 Specialized Diverge 4 Pro LTD SRAM Red XPLR Gravel Bike - Gloss Vivid Red

£8,499.00
I'm a Pre-launch Product. Find out more
Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

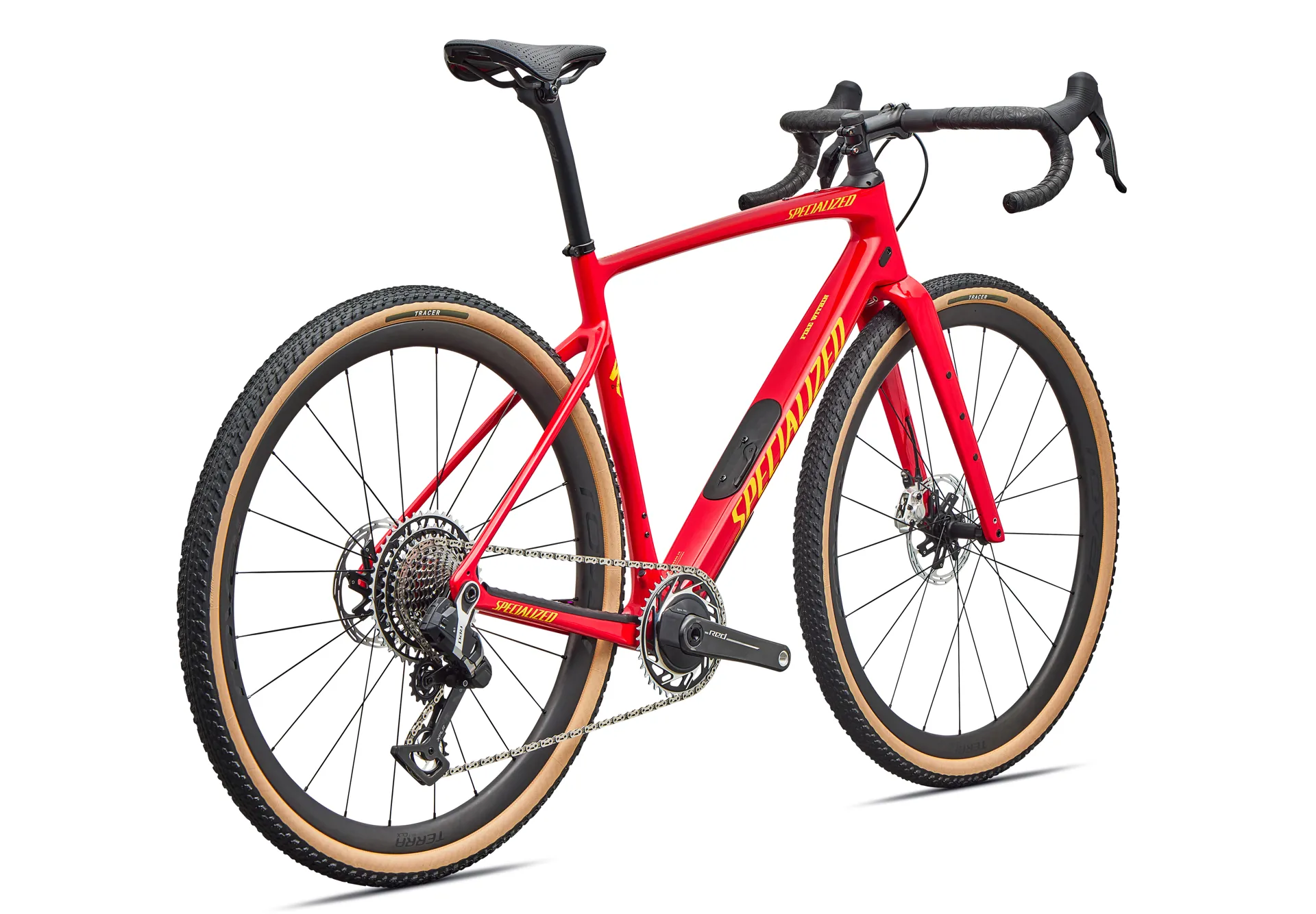

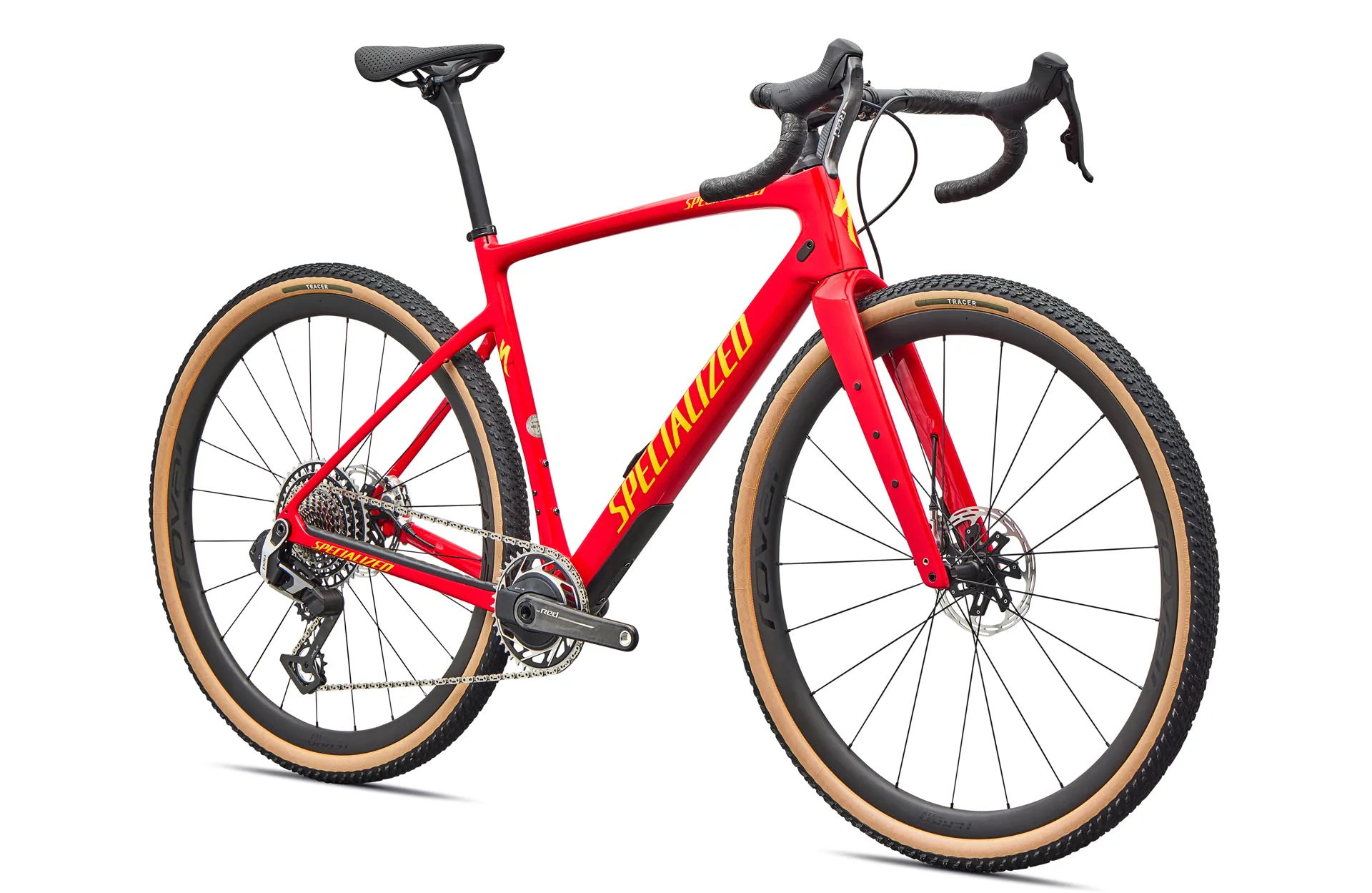

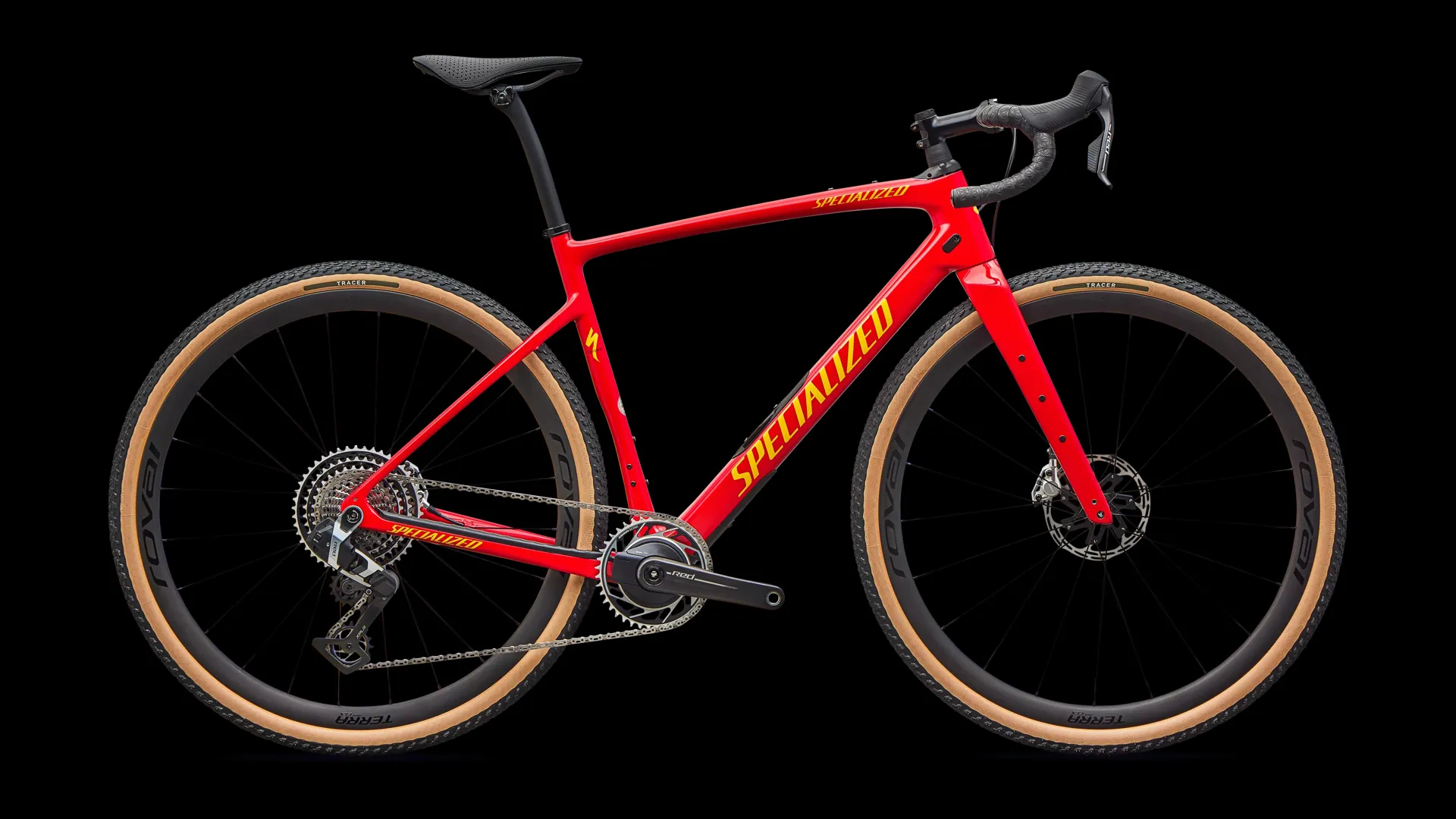

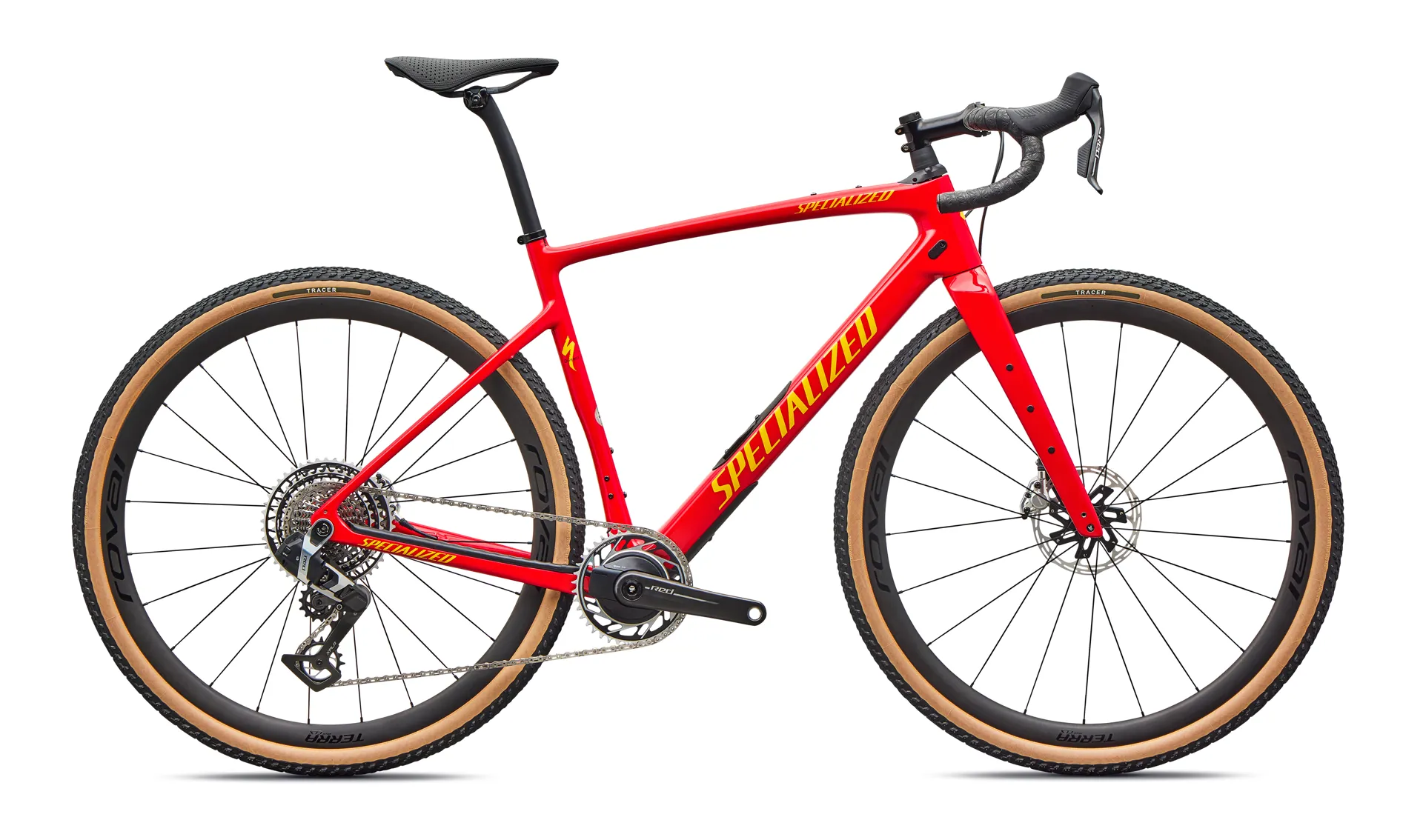

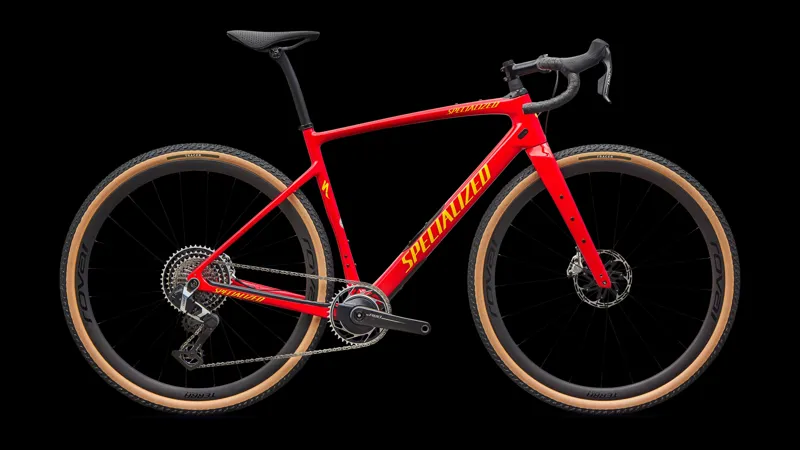

2026 Specialized Diverge 4 Pro LTD SRAM Red XPLR Gravel Bike - Gloss Vivid Red

Season:2026

Brand:Specialized

Code:42943875468573

The Specialized Diverge 4 Pro LTD SRAM Red XPLR Gravel Bike is the ultimate machine for riders who demand race-ready performance and adventure-ready versatility. Built with a lightweight FACT 9r carbon frame, this gravel bike combines cutting-edge innovation with world-class components, making it one of the fastest and most capable gravel bikes available today.

Designed to dominate both competitive gravel racing and long-distance adventure rides, the Diverge 4 Pro LTD is equipped with Future Shock 3.3 suspension, delivering unmatched comfort and control on rough terrain. With massive tyre clearance, integrated SWAT 4.0 storage, and Roval Terra CLX II carbon wheels, this bike is built to tackle anything from all-out race days to multi-day bikepacking epics.

  • Lightweight FACT 9r carbon frame – engineered for stiffness, speed, and comfort.
  • Future Shock 3.3 suspension – smooths out rough gravel roads for better traction and control.
  • SRAM Red AXS XPLR groupset with Quarq power meter – wireless electronic shifting with pro-level precision.
  • Roval Terra CLX II carbon wheels – fast, durable, and tubeless-ready for all gravel conditions.
  • SWAT 4.0 in-frame storage – the biggest storage system in gravel bikes for tools, snacks, or essentials.
  • Massive tyre clearance – for wide gravel tyres that maximise grip and versatility.
  • Featherweight build – just 8.01kg for elite-level climbing and acceleration.

The Diverge 4 Pro LTD gravel bike is the definition of versatility: equally at home chasing podiums on race day or disappearing into the wilderness for an off-grid adventure. With pro-level SRAM Red AXS XPLR components, class-leading Future Shock suspension, and the reliability of Specialized’s advanced carbon engineering, this bike sets the new benchmark for performance gravel racing and endurance riding.

Technical Information
  • Frame
    Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
  • Seat Binder
    Specialized Alloy, 30.8mm
  • Fork
    Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc

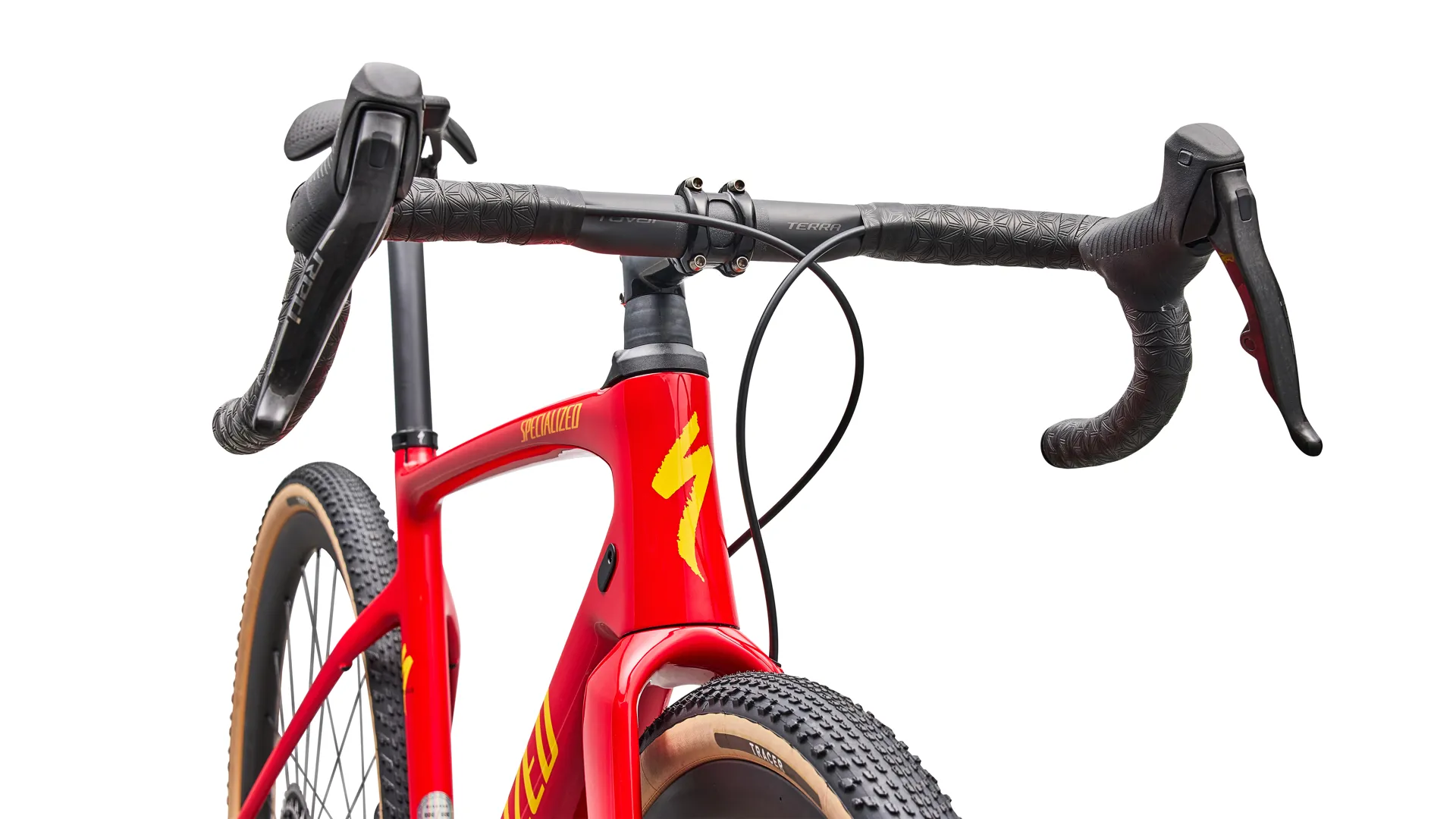

  • Handlebars
    Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
  • Saddle
    S-Works Power with Mirror
  • Stem
    Roval Alpinist, 7075 alloy, titanium bolts, 6-degree rise
  • Tape
    Supacaz Super Sticky Kush
  • Seatpost
    Roval Terra Carbon Seat Post, 20mm Offset
  • Front Brake
    SRAM RED AXS, hydraulic disc
  • Rear Brake
    SRAM RED E1, hydraulic disc
  • Rear Derailleur
    SRAM RED XPLR, 13sp
  • Shift Levers
    SRAM RED AXS E1
  • Bottom Bracket
    SRAM DUB BSA 68 Wide
  • Cassette
    SRAM RED XPLR, 13sp, 10-46t
  • Chain
    SRAM RED E1 Chain
  • Crankset
    SRAM RED AXS, Quarq Power Meter, 40t Chainring
  • SWAT
    SWAT 4.0 internal downtube storage
  • Front Wheel
    Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 21h, Roval LF13 hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes
  • Rear Wheel
    Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes
  • Front Tyre
    Tracer 700x45, Tan Sidewall, Tubeless Ready
  • Rear Tyre
    Tracer 700x45, Tan Sidewall, Tubeless Ready
  • Inner Tubes
    Presta, 700x32-50mm
  • Weight
    8.01 kg (17 lb, 10.5 oz)
  • Weight Size
    56
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

SIZING

Height in ft4'8" - 5'0"5'0" - 5'4"5'4" - 5'7"5'7" - 5'10"5'9" - 5'11"5'11" - 6'2"6'2" - 6'5"6'5" - 6'8"
Height in cm142 - 152cm152 - 163cm163 - 170cm170 - 178cm175 - 180cm180 - 188cm188 - 196cm196 - 203cm
Bike Size4448525456586164

GEOMETRY

Size49cm52cm54cm56cm58cm61cm
BB Drop85mm85mm85mm85mm85mm85mm
Bike Standover Height700mm725mm754mm779mm805mm832mm
Chainstay Length430mm430mm430mm430mm430mm430mm
Fork Length, Full391mm391mm391mm391mm391mm391mm
Fork Rake/Offset55mm55mm55mm55mm55mm55mm
Front Centre604mm613mm626mm645mm665mm686mm
Head Tube Angle70°70.5°71°71°71°71°
Head Tube Length90mm104mm116mm135mm161mm187mm
Reach365mm374mm387mm400mm412mm425mm
Seat Tube Angle74.5°74°74°74°74°74°
Seat Tube Length400mm430mm470mm500mm530mm560mm
Stack563mm578mm592mm610mm634mm659mm
Top Tube Length, Horizontal521mm537mm556mm575mm593mm613mm
Trail72mm68mm65mm65mm65mm65mm
Wheelbase1019mm1031mm1041mm1060mm1081mm1102mm
Crank Length165mm170mm172.5mm172.5mm175mm175mm
Handlebar Length380mm400mm420mm420mm440mm440mm
Stem Length60mm70mm80mm90mm100mm100mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length330mm330mm380mm380mm380mm380mm
