For the Specialized Demo Race Downhill Mountain Bike, all-out speed has always been the ultimate goal.
For the Specialized Demo Race Downhill Mountain Bike, all-out speed has always been the ultimate goal.
Specialized

2022 Specialized Demo Race Downhill Mountain Bike - Gloss Red Onyx

£6,600.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

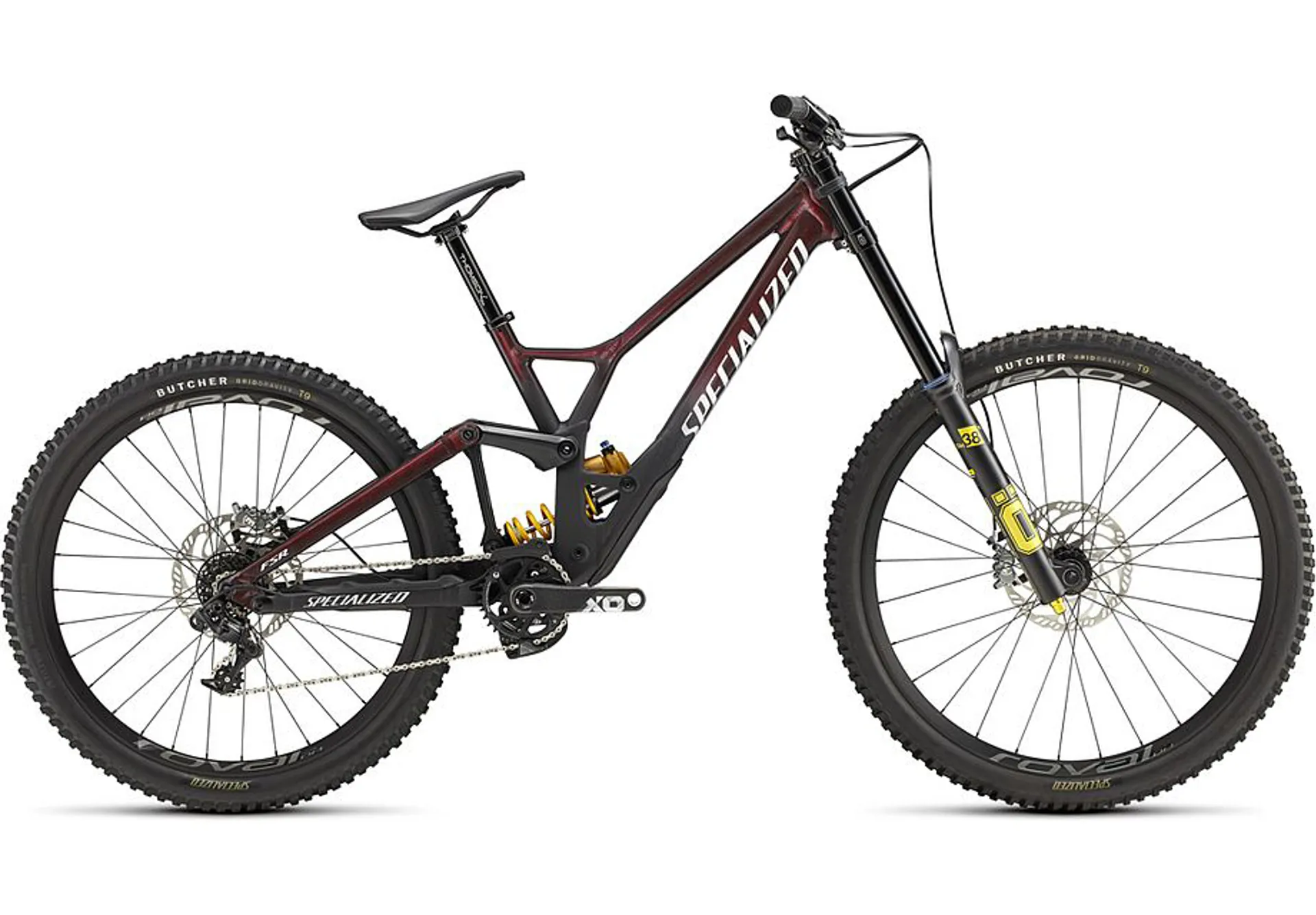

2022 Specialized Demo Race Downhill Mountain Bike - Gloss Red Onyx

Season:2022

Brand:Specialized

Code:320384331280

Speed has always been the hallmark of the Demo, and the Specialized Demo Race Mountain Bike continues this tradition with a cutting-edge design. Featuring a flexible wheel-size frame, the Demo Race lets riders capitalise on a 29-inch front wheel for traction and a 27.5-inch rear wheel for agility, a combination long tested by World Champion Loïc Bruni and recently approved by the UCI. Despite this, the Demo Race secured both the Downhill World Championship and overall World Cup titles in its debut season.

Now, this winning configuration is available directly from the box. The Demo Race includes an adjustable rear end that allows for seamless switching between 27.5 and 29-inch wheel sizes, catering to different terrains and riding styles while maintaining optimal chainstay length and bottom-bracket height.

Engineered for speed on demanding trails, the Demo Race features a suspension design with a rearward axle path that minimises rear wheel hang-up, thereby enhancing overall velocity. The high-performance suspension system from Öhlins, paired with SRAM’s DH-specific XO1 drivetrain, ensures reliable performance from the start gate to the finish line.

The Demo Race M5 alloy frame is meticulously crafted to exploit the benefits of a 29-inch front wheel for superior traction and a 27.5-inch rear wheel for nimble handling. It also provides the flexibility to adjust rear wheel size to suit various terrains and riding preferences, with an adjustable rear end that ensures precise chainstay length and bottom-bracket height.

The Öhlins TTX 22 M coil shock is built to tackle the most demanding World Cup Downhill tracks, offering external low-speed compression and rebound adjustments with a Trunnion mount for added durability. Additionally, the Öhlins DH38 m.1 fork delivers 200mm of travel, offering exceptional small bump tracking and absorbing landings from even the most aggressive drops, resulting in smoother, faster, and more confident runs.

Technical Information
  • frame
    M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
  • rear shock
    Ohlins TTX 22 M Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225x75
  • fork
    Ohlins DH38 M.1 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 20x110mm, 58mm offset, 200mm of travel
  • stem
    Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
  • handlebars
    Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
  • grips
    Deity, Knuckleduster, Black
  • saddle
    Body Geometry Henge DH, hollow titanium rails, 130mm
  • seatpost
    Thomson, alloy, straight, 12-degree clamp
  • front brake
    Magura MT7, 4-piston caliper, hydraulic disc, 200mm
  • rear brake
    Magura MT7, 4-piston caliper, hydraulic disc, 200mm
  • rear derailleur
    SRAM X01 DH, 7-speed, trigger
  • shift levers
    SRAM X01 DH, trigger, 7-speed
  • cassette
    SRAM X01 DH, 7-speed, 10-24t
  • chain
    Sram PC1130 w/ Powerlink, 11-speed
  • crankset
    SRAM X01 DH, DUB, carbon, Direct mount ring, 165mm
  • chainrings
    34T
  • bottom bracket
    SRAM DUB, 83mm
  • rims
    Roval 29" Alloy DH, 28mm internal width, 28h, tubeless ready
  • front hub
    Alloy, sealed cartridge bearings, 20x110mm, 28h
  • rear hub
    DT Swiss 350, SRAM XD freehub, 6-bolt disc, high-low flange, sealed cartridge bearings, 12x148mm spacing, 28h
  • spokes
    DT Swiss Competition, stainless steel, 14g
  • front tyre
    Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
  • rear tyre
    Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 27.5x2.3"
  • inner tubes
    Standard, Presta Valve
  • seat binder
    Alloy, 34.9mm
  • As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information
Size in ft5'2" - 5'9"5'5" - 6'0"5'8" - 6'4"
Size in cm158 - 175cm165 - 183cm173 - 193cm
Equivalent to Bike SizeSML
Bike SizeS2S3S4

DEMO (STYLE SPECIFIC-SIZING) MY21 SIZING GUIDE

S-Sizing is based on what matters; rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be more nimble, thanks to their shorter reach and front-center measurement, while bigger S-Sizes deliver more stability and a roomier ride.

  • SIZE DOWN FOR MORE MANEUVERABILITY
  • SIZE UP FOR MORE STABILITY

GEOMETRY

SizeS2S3S4
BB Drop25mm25mm25mm
BB Height350mm350mm350mm
B-B Height (27.5 mid)345mm345mm345mm
B-B Height (29 mid)355mm355mm355mm
Chainstay Length (mid)443mm443mm443mm
Chain-Stay Length (27.5)438mm438mm438mm
Chain-Stay Length (29)448mm448mm448mm
Fork Rake/Offset56mm56mm56mm
Front Centre801mm821mm841mm
Front-Center (27.5 mid)801mm821mm841mm
Front-Center (29 mid)801mm821mm841mm
Head Tube Angle62.8°62.8°62.8°
Head-Tube Angle (27.5 mid)62.5°62.5°62.5°
Head-Tube Angle (29 mid)63.2°63.2°63.2°
Head Tube Length105mm105mm105mm
Reach426mm446mm466mm
Reach (27.5 mid)423mm443mm463mm
Reach (29 mid)430mm450mm470mm
Seat Tube Angle78.2°76.8°76.8°
Seat-Tube Angle (27.5 mid)77.8°76.4°76.4°
Seat-Tube Angle (29 mid)78.5°77.1°77.1°
Seat Tube Length394mm420mm420mm
Stack632mm632mm632mm
Stack (27.5 mid)635mm635mm635mm
Stack (29 mid)629mm629mm629mm
Trail130mm130mm130mm
Trail (27.5 mid)132mm132mm132mm
Trail (29 mid)127mm127mm127mm
Wheelbase (mid)1244mm1264mm1284mm
Wheelbase (27.5)1239mm1259mm1279mm
Wheelbase (29)1249mm1269mm1289mm
Crank Length165mm165mm165mm
Handlebar Width800mm800mm800mm
Stem Length50mm50mm50mm
Saddle Width130mm130mm130mm
Seatpost Length367mm367mm367mm
