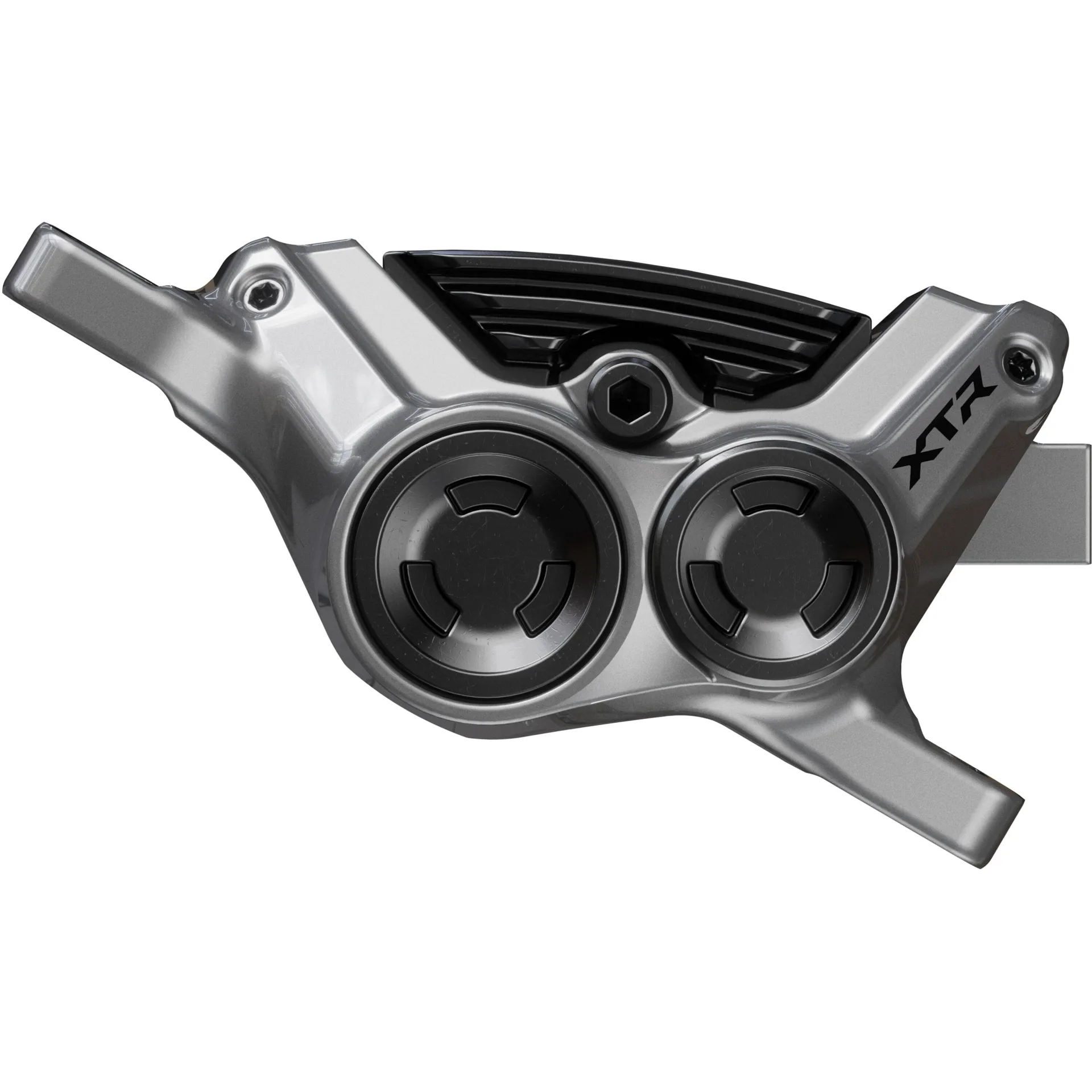

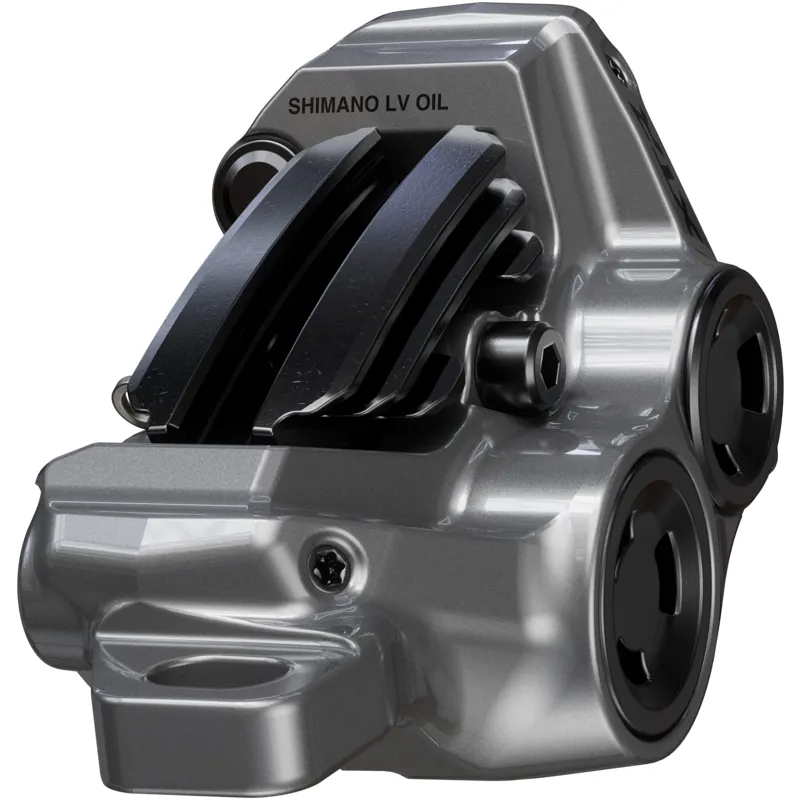

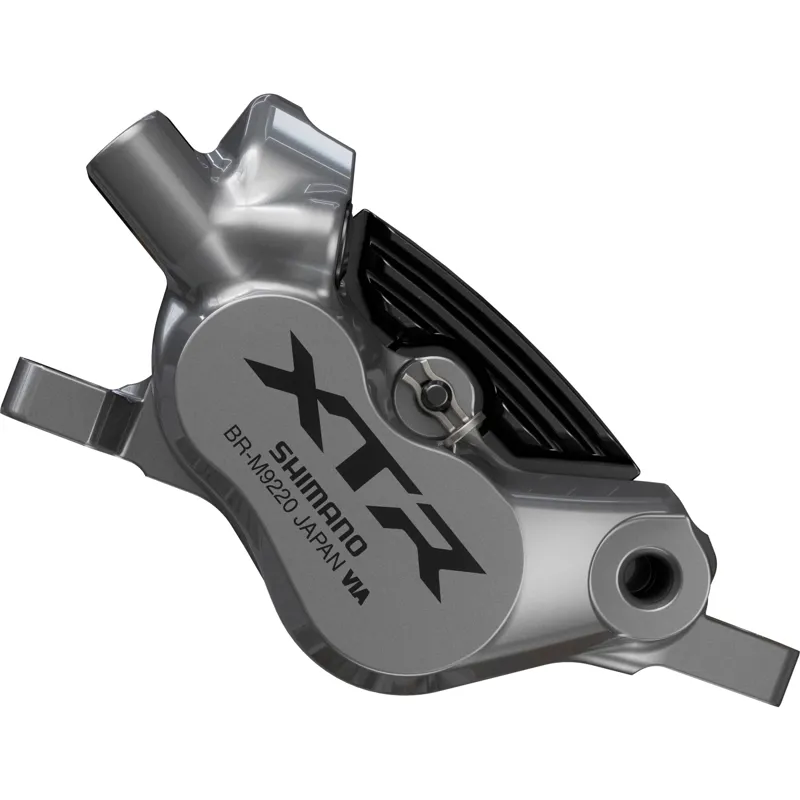

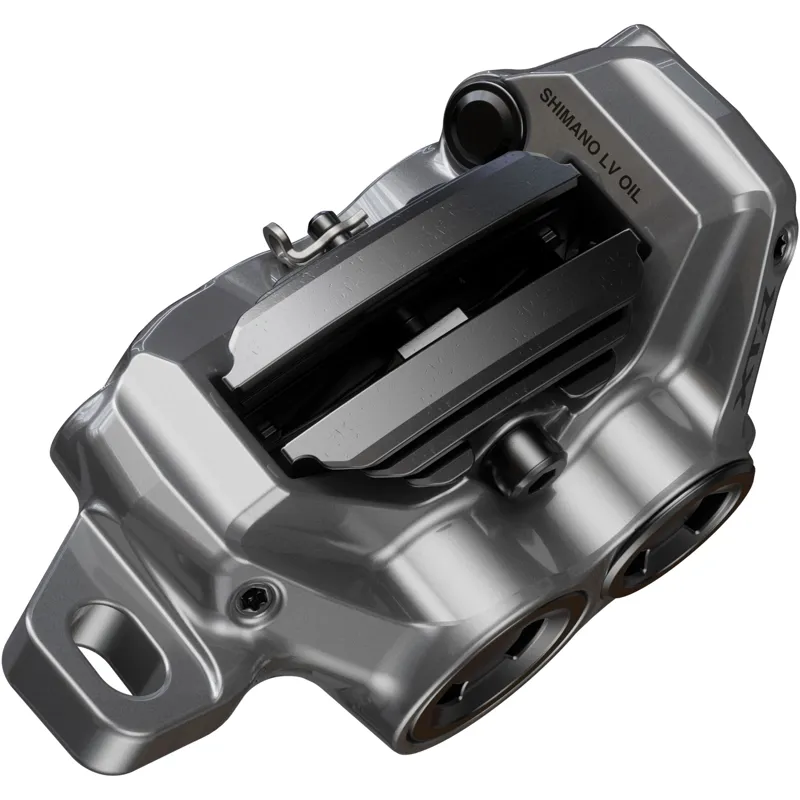

Shimano XTR BR-M9220 4-Piston Hydraulic Disc Brake Calliper | Post Mount MTB Brake Calliper for Front or Rear Use
The Shimano XTR BR-M9220 4 Pot Disc Brake Calliper delivers elite-level braking power, control and reliability for serious mountain bike riders. Built with Shimano’s cutting-edge XTR hydraulic disc brake technology, this lightweight yet powerful 4-piston MTB brake calliper is designed for aggressive trail riding, enduro, downhill and high-performance mountain biking.
- Premium Shimano XTR BR-M9220 4 Pot disc brake calliper
- High-performance hydraulic MTB brake calliper
- Suitable for front or rear brake use
- Post mount design for versatile mountain bike setup
- Dual-diameter 4-piston design for power and control
- Opposed 4-piston layout improves braking stability and pad wear
- Lightweight forged one-piece calliper body
- Increased rigidity for precise braking response
- Anti-rattle pad structure for quieter performance
- Compatible with a choice of adapters and rotor sizes
- Recommended for use with Ice Tech Centre Lock rotors
- Supports 160mm, 180mm and 203mm rotors
- Compatible with Ice Tech resin or sintered brake pads
- Optional finned pads improve heat dissipation
- Includes P03A-RF resin pads with fins
- Easy one-way oil bleeding
- Shim-less mounting system
- Designed for use with Low Viscosity Oil
- Ideal for MTB, trail, enduro and downhill riding
Featuring a dual-diameter opposed 4-piston design, the Shimano XTR BR-M9220 provides strong, controlled braking with improved modulation and consistent stopping power on demanding terrain. The opposed piston layout helps reduce leading effect, improve pad wear and increase braking stability when riding steep descents, technical trails and fast off-road sections.
The super-lightweight forged one-piece calliper body increases rigidity while helping reduce overall weight, giving riders precise braking response without unnecessary bulk. An anti-rattle pad structure with a wider pad back plate and narrower ovalised pad pin hole helps improve brake feel and reduce unwanted noise on rough trails.

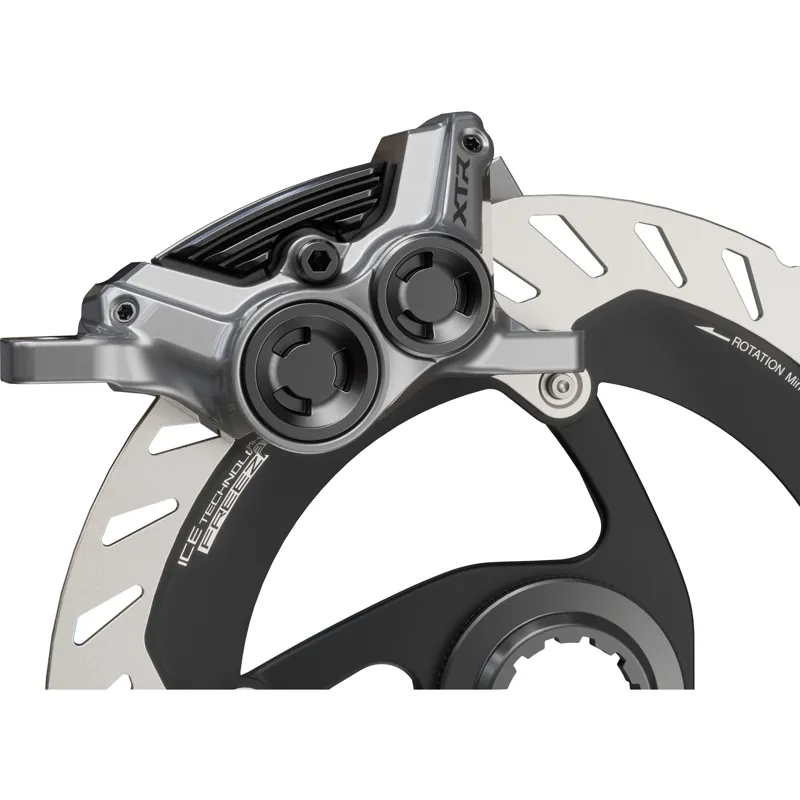

Designed for versatile setup options, this post mount hydraulic disc brake calliper can be used on the front or rear of compatible mountain bikes with a choice of adapters and rotor sizes. For optimum braking performance, Shimano recommends use with Ice Tech Centre Lock rotors in 160mm, 180mm or 203mm options.
The BR-M9220 is compatible with Shimano Ice Tech brake pads in resin or sintered compounds, with optional aluminium radiation fin pads available for improved heat dissipation and reduced brake surface temperature. It also includes P03A-RF resin pads with fins for dependable heat control and smooth braking performance.
With easy one-way oil bleeding, shim-less mounting and compatibility with Shimano Low Viscosity Mineral Oil, the Shimano XTR BR-M9220 brake calliper is engineered for consistent piston movement, stable lever feel and reliable braking force across a wide range of riding conditions.
