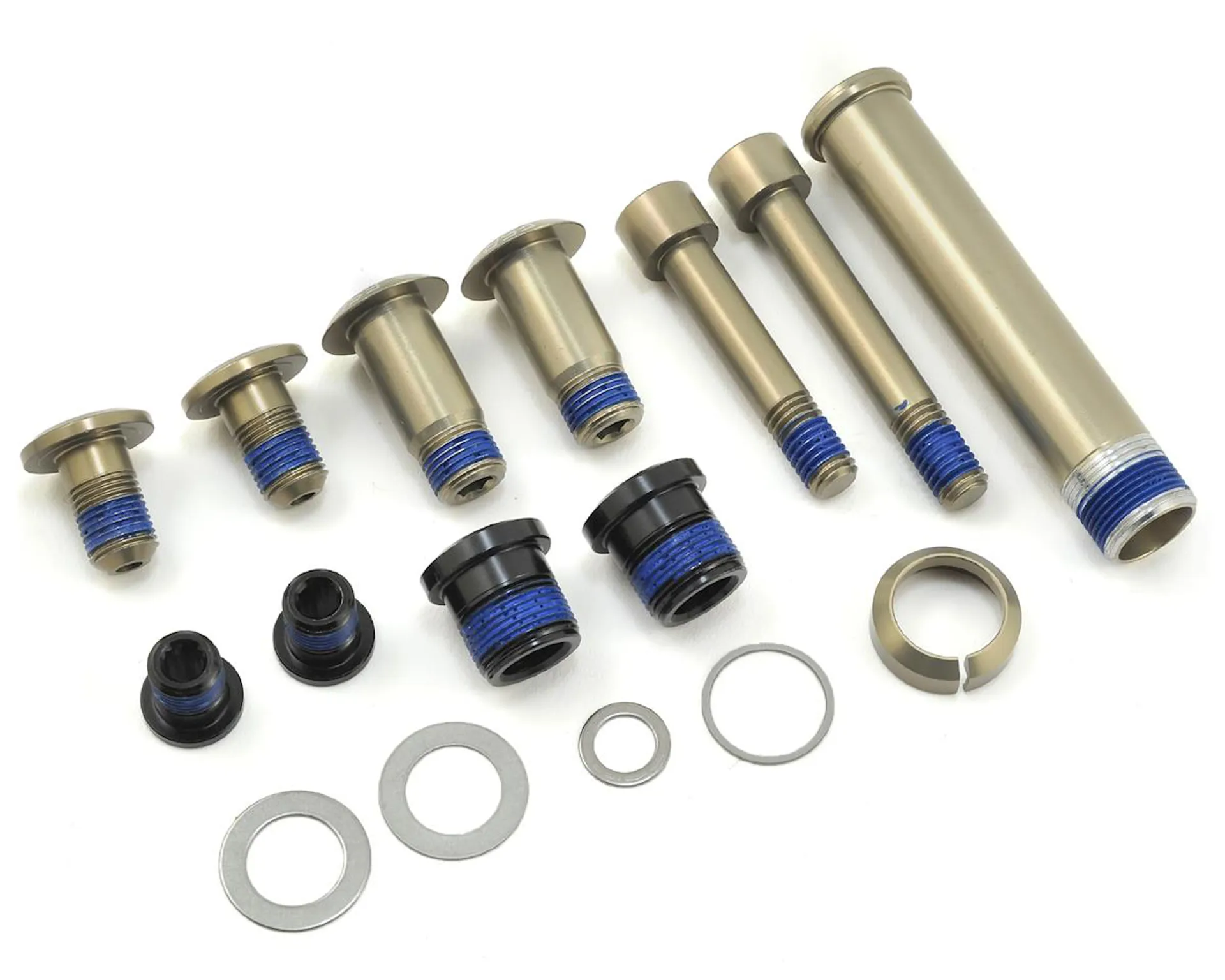

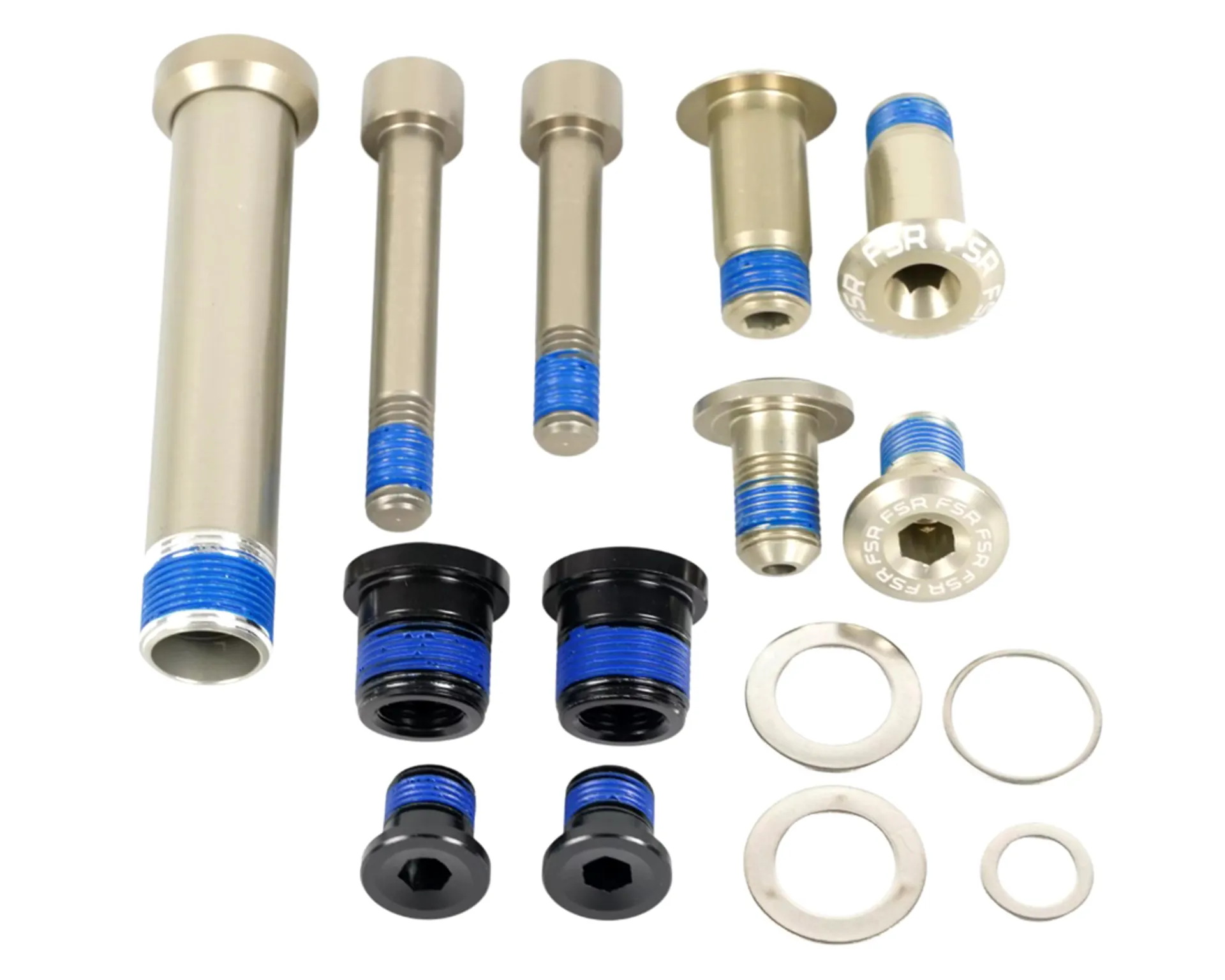

Specialized S160500003 Bolt Kit 2016 Camber FSR

Brand:Specialized

Code:s160500003

Specialized S160500003 Bolt Kit 2016 Camber FSR

Suspension pivot bolt kit for 2016 - 2018 Camber bikes

  • Main Pivot (Chainstay) Axle: 15mm W x 77.5mm L - Alloy - Torque: 182 in-lbf (20.5 Nm) - 1 pcs.
  • Main Pivot (Chainstay) Axle Cone: 15mm ID x 20.5mm OD x 6.7mm W - Alloy - 1 pcs.
  • Main Pivot (Chainstay) Washer: 15.5mm ID x 18mm OD x 0.7mm W - Steel - 1 pcs.
  • Seatstay Horst Link Pivot Bolt: 12mm W x 28.3mm W - Alloy - Torque: 113 in-lbf (12.8 Nm) - 2 pcs.
  • Seatstay Horst Link Pivot Washer: 12.8mm ID x 20mm OD x 0.5mm W - Steel - 2 pcs.
  • Shock Link to Seat Tube Pivot Bolt: 10mm W x 17.4mm L - Alloy - Torque: 96 in-lbf (10.8 Nm) - 2 pcs.
  • Shock Link to Seatstay (Inner) Pivot Bolt: 10mm W x 14mm L - Alloy - Torque: 96 in-lbf (10.8 Nm) - 2 pcs.
  • Shock Link to Seatstay (Outer) Pivot Bolt: 15mm W x 18.6mm L - Alloy - Torque: 152 in-lbf (17.2 Nm) - 2 pcs.
  • Upper Shock Eye Bolt (Carbon Frame): 8mm W x 54mm L - Alloy - Torque: 113 in-lbf (12.8 Nm) - 1 pcs.
  • Upper Shock Eye Bolt (Alloy Frame): 8mm W x 42mm L - Alloy - Torque: 113 in-lbf (12.8 Nm) - 1 pcs.
This item is used on the following models:
  • 2018 Women's Camber Comp Carbon 27.5
  • 2018 Women's Camber Comp 27.5
  • 2018 Women's Camber 27.5
  • 2018 Men's S-Works Camber 29
  • 2018 Men's Camber Expert 29
  • 2018 Men's Camber Expert 27.5
  • 2018 Men's Camber Comp Carbon 29 - 2x
  • 2018 Men's Camber Comp Carbon 29 - 1x
  • 2018 Men's Camber Comp Carbon 27.5
  • 2018 Men's Camber Comp 29
  • 2018 Men's Camber Comp 27.5
  • 2018 Men's Camber 29
  • 2018 Men's Camber 27.5
  • 2017 S-Works Camber 650b
  • 2017 S-Works Camber 29
  • 2017 Camber Pro Carbon 650b
  • 2017 Camber Pro Carbon 29
  • 2017 Camber Expert Carbon 29
  • 2017 Camber Comp Carbon 650b
  • 2017 Camber Comp Carbon 29 2x
  • 2017 Camber Comp Carbon 29
  • 2017 Camber Comp 650b
  • 2017 Camber Comp 29
  • 2017 Camber 650b
  • 2017 Camber 29
  • 2016 S-Works Camber 650b Module
  • 2016 S-Works Camber 650b
  • 2016 S-Works Camber 29 Module
  • 2016 S-Works Camber 29
  • 2016 Camber Grom
  • 2016 Camber Expert Carbon 650b
  • 2016 Camber Expert Carbon 29
  • 2016 Camber Elite Carbon 650b
  • 2016 Camber Elite Carbon 29
  • 2016 Camber Comp Carbon 650b
  • 2016 Camber Comp Carbon 29
  • 2016 Camber Comp 650b
  • 2016 Camber Comp 29
  • 2016 Camber 650b
  • 2016 Camber 29
