Compatible with 2016, 2017, 2018 Stumpjumper FSR Bikes and Frames
Compatible with 2016, 2017, 2018 Stumpjumper FSR Bikes and Frames
Specialized

Specialized S160600001 MY16-18 SJ FSR I1 Suspension Bearing Kit

£99.90
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Specialized S160600001 MY16-18 SJ FSR I1 Suspension Bearing Kit

Brand:Specialized

Code:S160600001

Specialized S160600001 MY16-18 SJ FSR I1 Suspension Bearing Kit

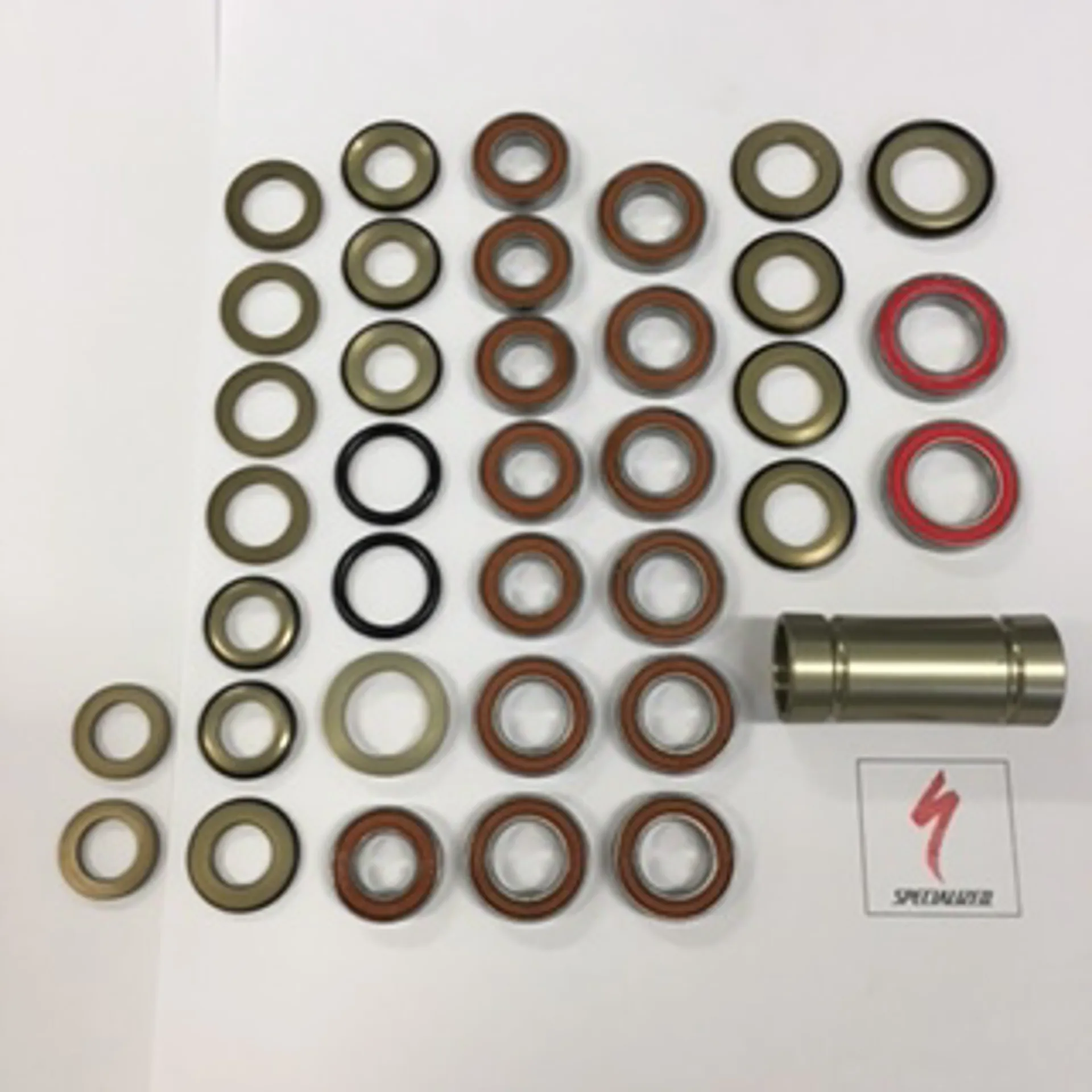

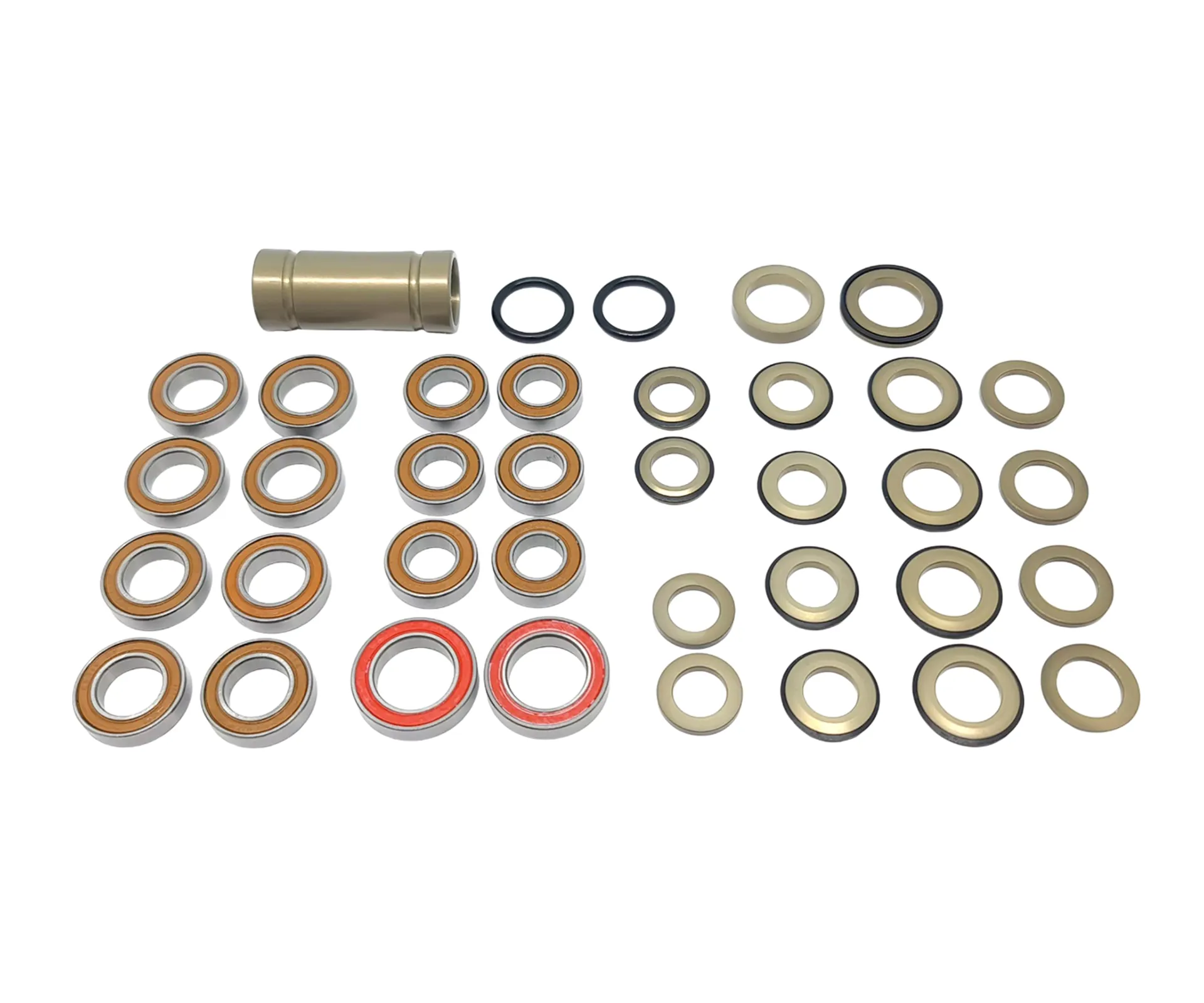

Suspension pivot bearing kit for 2016 - 2018 Stumpjumper FSR (I1) bikes with all bearings and spacers

  • Horst Link pivot and Shock Link to Extension pivot Bearing: 6801V-2RS - 12mm ID x 21mm OD x 5mm W - 8 pcs.
  • Shock Link to Seat tube pivot and Shock Link to Seatstay pivot Bearing: 6800V-2RS - 10mm ID x 19mm OD x 5mm W - 4 pcs.
  • Main Pivot (Chainstay) Bearing: 1524F - 15mm ID x 24mm OD x 5mm W - 2 pcs.
  • Horst Link pivot Outer Spacer with Dust Shield: 12.1mm ID x 20mm OD x 2.5mm W - 4 pcs. (Chamfer faces Bearing)
  • Shock Link to Seatstay pivot Outer Spacer with Dust Shield: 10.1mm ID x 18mm OD x 2.5mm W - 4 pcs. (Chamfer faces Bearing)
  • Horst Link pivot middle Spacer: 12.1mm ID x 18.5mm OD x 2mm W - 2 pcs.
  • Shock Link to Seatstay pivot Outer Spacer with Dust Shield: 10.1mm ID x 16.5mm OD x 2mm W - 2 pcs.
  • Shock Link to Seat tube pivot Spacer with Dust Shield: 10.1mm ID x 16.5mm OD x 3mm W - 2 pcs. (Chamfer faces Bearing)
  • Main Pivot Sleeve: 15mm ID x 19mm OD x 44mm W - 1 pc.
  • Main Pivot (Driveside) Spacer: 15.1mm ID x 21.6mm OD x 3.9mm W - 1 pc.

Used on:

  • 2018 Stumpjumper Pro 29/6Fattie
  • 2018 Stumpjumper Pro 27.5
  • 2018 Stumpjumper Expert 6Fattie/29
  • 2018 Stumpjumper Expert 29/6Fattie
  • 2018 Stumpjumper Expert 27.5
  • 2018 Stumpjumper Expert 11m - 6Fattie
  • 2018 Stumpjumper Expert 11m - 27.5
  • 2018 Stumpjumper Comp Carbon 6Fattie/29
  • 2018 Stumpjumper Comp Carbon 29/6Fattie
  • 2018 Stumpjumper Comp Carbon 27.5
  • 2018 Stumpjumper Comp Alloy 6Fattie/29
  • 2018 Stumpjumper Comp Alloy 29/6Fattie
  • 2018 Stumpjumper Comp Alloy 27.5
  • 2018 Stumpjumper Comp Alloy 27.5
  • 2018 Stumpjumper Coil Carbon 29/6Fattie
  • 2018 SJ FSR EXPERT CARBON 29 - WF
  • 2018 SJ FSR EXPERT CARBON 27.5 - WF
  • 2018 S-Works Stumpjumper Carbon 29/6Fattie Frame
  • 2018 S-Works Stumpjumper 6Fattie
  • 2018 S-Works Stumpjumper 29/6Fattie
  • 2018 S-Works Stumpjumper 27.5 Frame
  • 2018 S-Works Stumpjumper 27.5
  • 2018 Rhyme Expert Carbon 27.5
  • 2018 Rhyme Comp Carbon 27.5
  • 2018 Rhyme Comp 27.5
  • 2017 Stumpjumper FSR Pro Carbon 6Fattie
  • 2017 Stumpjumper FSR Pro Carbon 29
  • 2017 Stumpjumper FSR Expert Carbon 6Fattie
  • 2017 Stumpjumper FSR Expert Carbon 650b
  • 2017 Stumpjumper FSR Expert Carbon 29
  • 2017 Stumpjumper FSR Expert 6Fattie
  • 2017 Stumpjumper FSR Expert 6Fattie
  • 2017 Stumpjumper FSR Expert 650b
  • 2017 Stumpjumper FSR Comp Carbon 6Fattie
  • 2017 Stumpjumper FSR Comp Carbon 650b
  • 2017 Stumpjumper FSR Comp Carbon 29
  • 2017 Stumpjumper FSR Comp 6Fattie
  • 2017 Stumpjumper FSR Comp 650b
  • 2017 Stumpjumper FSR Comp 29
  • 2017 S-Works Stumpjumper FSR 6Fattie
  • 2017 S-Works Stumpjumper FSR 6Fattie
  • 2017 S-Works Stumpjumper FSR 6Fattie
  • 2017 S-Works Stumpjumper FSR 650b Frame
  • 2017 S-Works Stumpjumper FSR 650b
  • 2017 S-Works Stumpjumper FSR 650b
  • 2017 S-Works Stumpjumper FSR 29 Frame
  • 2017 S-Works Stumpjumper FSR 29
  • 2017 Rhyme Pro Carbon 6Fattie
  • 2017 Rhyme Comp Carbon 6Fattie
  • 2017 Rhyme Comp Carbon 650b
  • 2017 Rhyme Comp 6Fattie
  • 2017 Rhyme Comp 650b
  • 2016 Stumpjumper FSR Expert Carbon 650B Warranty Replacement Frame
  • 2016 Stumpjumper FSR Expert Carbon 29 Warranty Replacement Frame
  • 2016 Stumpjumper FSR Expert 6Fattie
  • 2016 Stumpjumper FSR Expert 650b
  • 2016 Stumpjumper FSR Expert 29
  • 2016 Stumpjumper FSR Elite 650b
  • 2016 Stumpjumper FSR Elite 29
  • 2016 Stumpjumper FSR Comp Carbon 6Fattie Warranty Replacement Frame
  • 2016 Stumpjumper FSR Comp Carbon 6Fattie
  • 2016 Stumpjumper FSR Comp Carbon 650b
  • 2016 Stumpjumper FSR Comp Carbon 650B Warranty Replacement Frame
  • 2016 Stumpjumper FSR Comp Carbon 29 Warranty Replacement Frame
  • 2016 Stumpjumper FSR Comp Carbon 29
  • 2016 Stumpjumper FSR Comp 6Fattie Warranty Replacement Frame
  • 2016 Stumpjumper FSR Comp 6Fattie
  • 2016 Stumpjumper FSR Comp 650b
  • 2016 Stumpjumper FSR Comp 650B Warranty Replacement Frame
  • 2016 Stumpjumper FSR Comp 29 Warranty Replacement Frame
  • 2016 Stumpjumper FSR Comp 29
  • 2016 Stumpjumper FSR Carbon 6Fattie Frame
  • 2016 Stumpjumper FSR Carbon 6Fafttie Warranty Replacement Frame
  • 2016 Stumpjumper FSR Carbon 650b Frame
  • 2016 Stumpjumper FSR Carbon 29 Frame
  • 2016 S-Works Stumpjumper FSR Carbon 6FATTIE Warranty Replacement Frame
  • 2016 S-Works Stumpjumper FSR Carbon 650 Warranty Replacement Frame
  • 2016 S-Works Stumpjumper FSR Carbon 29 Warranty Replacement Frame
  • 2016 S-Works Stumpjumper FSR 6Fattie
  • 2016 S-Works Stumpjumper FSR 650b Frame
  • 2016 S-Works Stumpjumper FSR 650b
  • 2016 S-Works Stumpjumper FSR 29 Frame
  • 2016 S-Works Stumpjumper FSR 29
  • 2016 Rhyme FSR Expert Carbon 6Fattie Warranty Replacement Frame
  • 2016 Rhyme FSR Expert Carbon 6Fattie
  • 2016 Rhyme FSR Expert Carbon 65B Warranty Replacement Frame
  • 2016 Rhyme FSR Expert Carbon 650b
  • 2016 Rhyme FSR Comp Carbon 6Fattie
  • 2016 Rhyme FSR Comp Carbon 650b
  • 2016 Rhyme FSR Comp 6Fattie Warranty Replacement Frame
  • 2016 Rhyme FSR Comp 6Fattie
  • 2016 Rhyme FSR Comp 650b Warranty Replacement Frame
  • 2016 Rhyme FSR Comp 650b
  • 2015 Stumpjumper FSR Comp EVO
Technical Information
  • Horst Link pivot and Shock Link to Extension pivot Bearing: 6801V-2RS - 12mm ID x 21mm OD x 5mm W - 8 pcs.
  • Shock Link to Seat tube pivot and Shock Link to Seatstay pivot Bearing: 6800V-2RS - 10mm ID x 19mm OD x 5mm W - 4 pcs.
  • Main Pivot (Chainstay) Bearing: 1524F - 15mm ID x 24mm OD x 5mm W - 2 pcs.
  • Horst Link pivot Outer Spacer with Dust Shield: 12.1mm ID x 20mm OD x 2.5mm W - 4 pcs. (Chamfer faces Bearing)
  • Shock Link to Seatstay pivot Outer Spacer with Dust Shield: 10.1mm ID x 18mm OD x 2.5mm W - 4 pcs. (Chamfer faces Bearing)
  • Horst Link pivot middle Spacer: 12.1mm ID x 18.5mm OD x 2mm W - 2 pcs.
  • Shock Link to Seatstay pivot Outer Spacer with Dust Shield: 10.1mm ID x 16.5mm OD x 2mm W - 2 pcs.
  • Shock Link to Seat tube pivot Spacer with Dust Shield: 10.1mm ID x 16.5mm OD x 3mm W - 2 pcs. (Chamfer faces Bearing)
  • Main Pivot Sleeve: 15mm ID x 19mm OD x 44mm W - 1 pc.
  • Main Pivot (Driveside) Spacer: 15.1mm ID x 21.6mm OD x 3.9mm W - 1 pc.
