Specialized S170500001 MY17-19 Enduro FSR Suspension Pivot Bolt Kit

Brand:Specialized

Code:S170500001

Specialized S170500001 MY17-19 Enduro FSR Suspension Pivot Bolt Kit

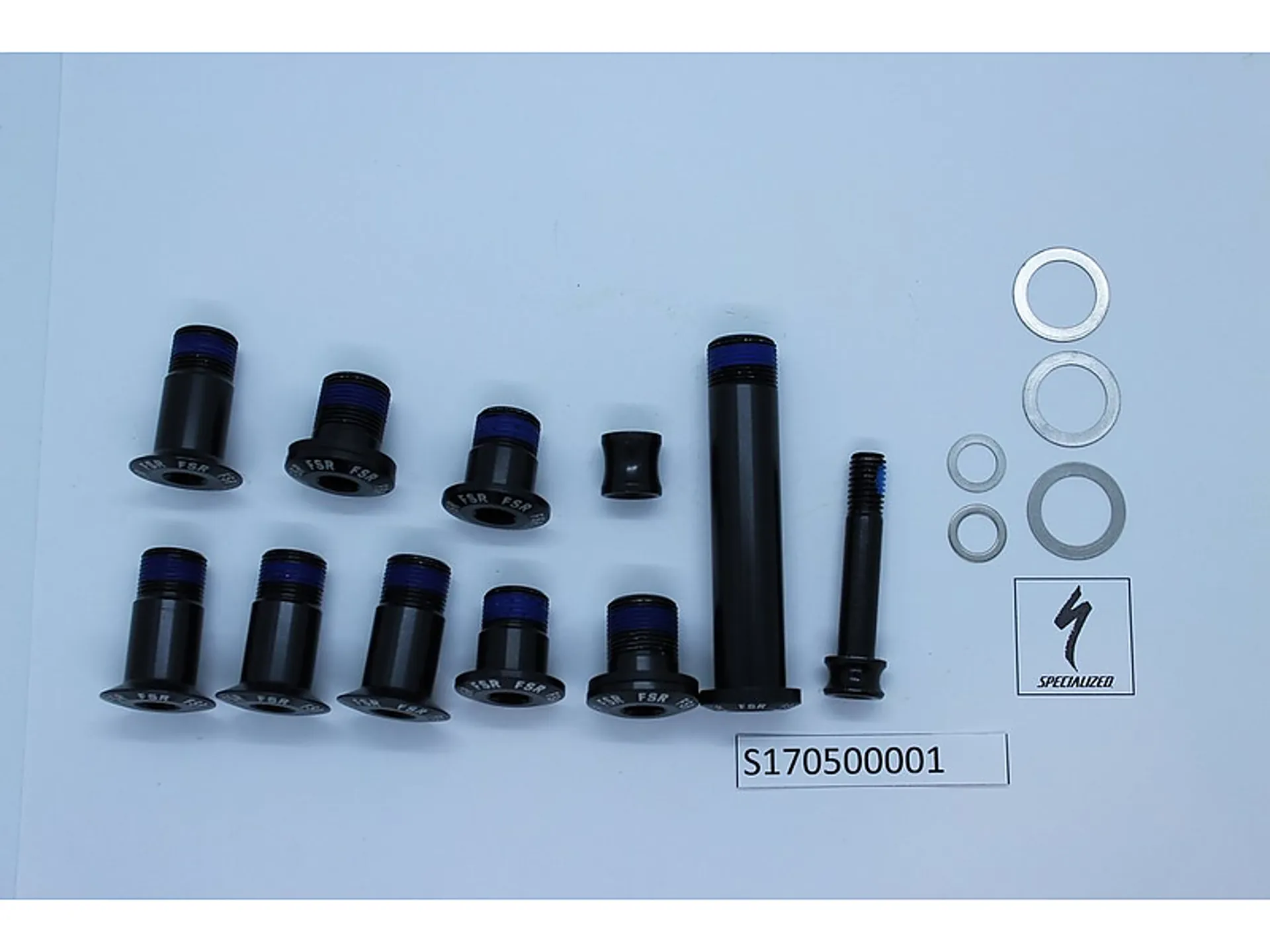

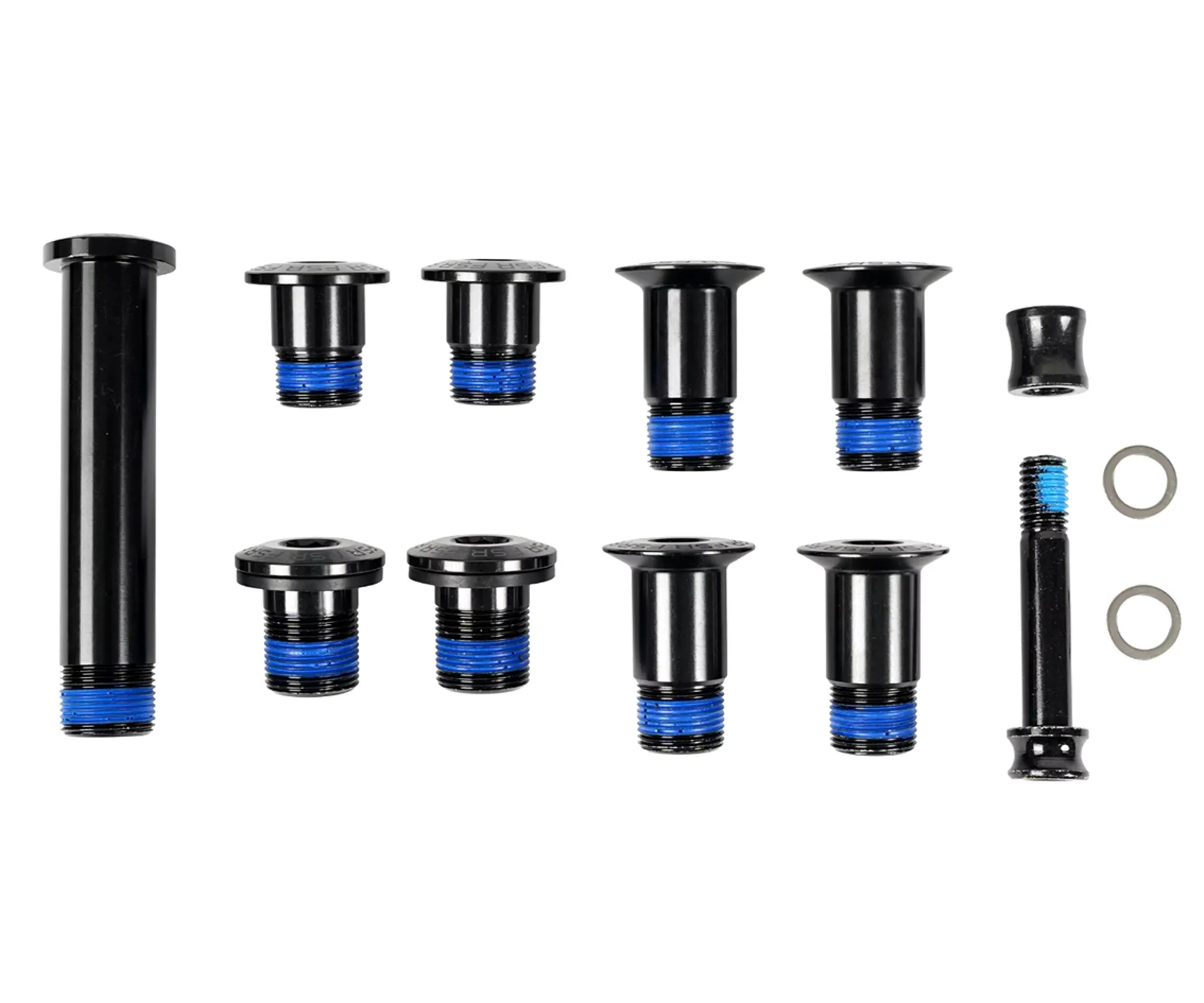

  • Suspension pivot bolt kit for 2017 - 2019 Enduro bikes with black anodized bolts
  • Main Pivot (Chainstay) Pivot Axle: 15mm W x 78.2mm L - Alloy - Torque: 175 in-lbf (19.8 Nm) - 1 pcs.
  • Main Pivot (Chainstay) Pivot Axle Washer: 15.2mm ID x 21mm OD x 0.5mm W - Steel - 1 pcs.
  • Seatstay Horst Link Pivot Bolt: 15mm W x 32.9mm L - Alloy - Torque: 140 in-lbf (15.8 Nm) - 2 pcs.
  • Shock Link to Seat Tube Pivot Bolt: 15mm W x 23.2mm L - Alloy - Torque: 175 in-lbf (19.8 Nm) - 2 pcs.
  • Shock Link to Seatstay Pivot Bolt: 15mm W x 32.9mm L - Alloy - Torque: 140 in-lbf (15.8 Nm) - 2 pcs.
  • Shock Link to Shock Extension Pivot Bolt: 15mm W x 22.7mm L - Alloy - Torque: 140 in-lbf (15.8 Nm) - 2 pcs.
  • Shock Link to Shock Extension Pivot Washer: 15.2mm ID x 21mm OD x 0.5mm W - Steel - 2 pcs.
  • Upper Shock Eye Bolt: 8mm W x 52mm L - Alloy - Torque: 140 in-lbf (15.8 Nm) - 1 pcs.
  • Upper Shock Eye Washer: 8.6mm ID x 12.5mm OD x 0.5mm W - Steel - 2 pcs.
  • Upper Shock Eye Nut: 8mm W x 13mm L - Alloy - 1 pcs.

This item is used on the following models:

  • 2022 STATUS 160 FRM
  • 2022 STATUS 160 BASE
  • 2022 STATUS 140 FRM
  • 2022 STATUS 140 BASE
  • 2021 STATUS 160 FRM
  • 2021 STATUS 160 BASE
  • 2021 STATUS 140 FRM
  • 2021 STATUS 140 BASE
  • 2019 S-Works Enduro 29
  • 2019 S-Works Enduro 27.5
  • 2019 Enduro Pro 29
  • 2019 Enduro Pro 27.5
  • 2019 Enduro Elite 29
  • 2019 Enduro Elite 27.5
  • 2019 Enduro Comp 29
  • 2019 Enduro Comp 27.5
  • 2019 ENDURO FSR SW CARBON 29/6FATTIE FRM
  • 2019 ENDURO FSR SW CARBON 27.5 FRM
  • 2019 ENDURO FSR ENDURO FSR SW CARBON 29/6FATTIE - WF
  • 2019 ENDURO FSR ENDURO FSR SW CARBON 27.5 - WF
  • 2018 S-Works Enduro 29/6Fattie USA
  • 2018 S-Works Enduro 29/6Fattie Frame
  • 2018 S-Works Enduro 29/6Fattie
  • 2018 S-Works Enduro 27.5
  • 2018 Enduro Pro 650b USA
  • 2018 Enduro Pro 29/6Fattie USA
  • 2018 Enduro Pro 29/6Fattie
  • 2018 Enduro Pro 27.5
  • 2018 Enduro Elite 29/6Fattie
  • 2018 Enduro Elite 27.5
  • 2018 Enduro Comp 29/6Fattie
  • 2018 Enduro Comp 27.5
  • 2018 Enduro Coil 29/6Fattie
  • 2018 ENDURO FSR SW CARBON 27.5 FRM
  • 2018 ENDURO FSR PRO CARBON 29/6FATTIE - WF
  • 2018 ENDURO FSR PRO CARBON 27.5 - WF
  • 2018 ENDURO FSR ELITE CARBON 29/6FATTIE - WF
  • 2018 ENDURO FSR ELITE CARBON 27.5 - WF
  • 2017 S-Works Enduro 650b Frame
  • 2017 S-Works Enduro 650b - Limited Edition Frame
  • 2017 S-Works Enduro 650b
  • 2017 S-Works Enduro 650b
  • 2017 S-Works Enduro 650b
  • 2017 S-Works Enduro 29/6Fattie Frame
  • 2017 S-Works Enduro 29/6Fattie
  • 2017 S-Works Enduro 29 - Limited Edition Frame
  • 2017 S-Works Enduro 29
  • 2017 Enduro Öhlins Coil 29/6Fattie
  • 2017 Enduro Pro Carbon 650b
  • 2017 Enduro Pro Carbon 650b
  • 2017 Enduro Pro Carbon 29/6Fattie
  • 2017 Enduro Expert Carbon 650b
  • 2017 Enduro Expert Carbon 29
  • 2017 Enduro Elite Carbon 650b
  • 2017 Enduro Elite Carbon 650b
  • 2017 Enduro Elite Carbon 29/6Fattie
  • 2017 Enduro Comp 650b
  • 2017 Enduro Comp 650b
  • 2017 Enduro Comp 29/6Fattie
