Specialized S194200050 Service Part
Specialized S194200050 Service Part
Specialized

Specialized S194200050 MY20 Levo SL Motor Bolt Kit

£18.90
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Specialized S194200050 MY20 Levo SL Motor Bolt Kit

Brand:Specialized

Code:S194200050

Specialized S194200050 MY20 Levo SL Motor Bolt Kit

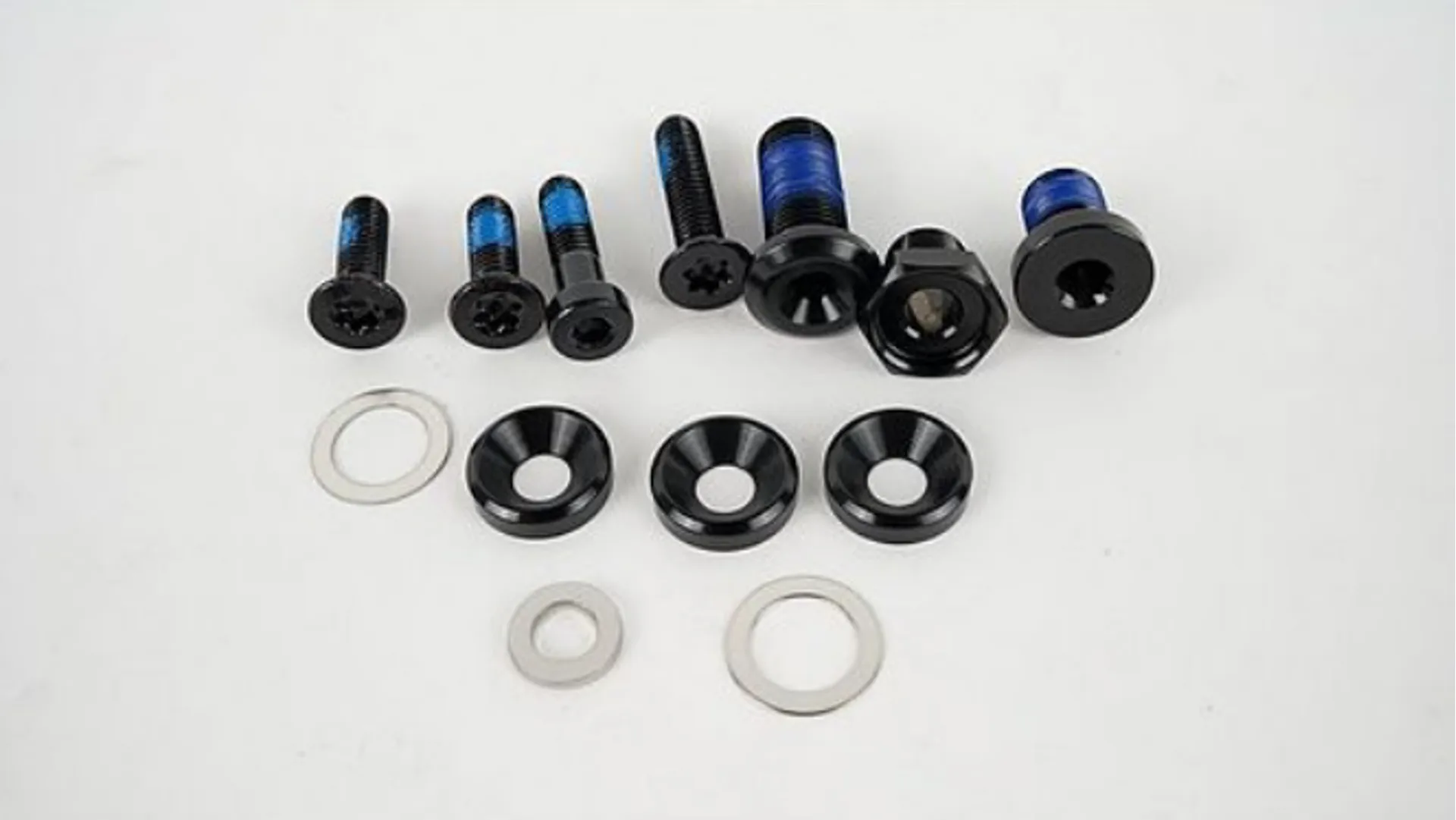

Motor mounting hardware kit for 2020 - 2022 Levo SL bikes.

  • Non-driveside Washer - 6.4mm ID x 12mm OD x 4mm W - Alloy - 3 pcs.
  • Center and Rear Non-driveside Bolt - M6 x 1.0 P x 20mm L - Steel - Torque: 89 in-lbf (10 Nm) - 2 pcs.
  • Forward Non-driveside Bolt - M6 x 1.0 P x 28mm L - Steel - Torque: 89 in-lbf (10 Nm) - 1 pcs.
  • Forward Driveside Bolt - M10 x 1.0 P x 25mm L - Alloy - Torque: 150 in-lbf (17 Nm) - 1 pcs.
  • Center Driveside Bolt - M10 x 1.0 P x 14mm L - Alloy - Torque: 150 in-lbf (17 Nm) - 1 pcs.
  • Forward and Center Washer - 11mm ID x 16mm OD x 0.5mm W - Alloy - 2 pcs.
  • Rear Driveside Bolt - M6 x 1.0 P x 22mm L - Steel - Torque: 89 in-lbf (10 Nm) - 1 pcs.
  • Rear Driveside Washer - 6.4mm ID x 12mm OD x 1.6mm W - Alloy - 2 pcs.
  • Rear Driveside Nut - M10 x 1.0 P x 9.5mm L - Alloy - 1 pcs.

Used on:

  • 2026 Turbo Levo SL 2 Comp Alloy
  • 2025 Turbo Levo SL 2 Comp Alloy
  • 2025 Turbo Levo SL 2 Comp Alloy
  • 2024 LEVO SL COMP ALLOY UL
  • 2024 LEVO SL COMP ALLOY BRA
  • 2024 LEVO SL COMP ALLOY
  • 2021 LEVO SL SW CARBON FRMSET
  • 2021 LEVO SL SW CARBON
  • 2021 LEVO SL EXPERT CARBON
  • 2021 LEVO SL COMP CARBON
  • 2021 LEVO SL COMP
  • 2020 LEVO SL SW CARBON FOUNDERS EDITION
  • 2020 LEVO SL SW CARBON
  • 2020 LEVO SL EXPERT CARBON
  • 2020 LEVO SL COMP CARBON
  • 2020 LEVO SL COMP
  • S-Works Turbo Levo SL - Warranty Frame
