Specialized S200500005 Service Part
Specialized S200500005 Service Part
Specialized

Specialized S200500005 MY21 Stumpjumper Alloy Frame Suspension Pivot Bolt Kit

£49.90
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Specialized S200500005 MY21 Stumpjumper Alloy Frame Suspension Pivot Bolt Kit

Brand:Specialized

Code:S200500005

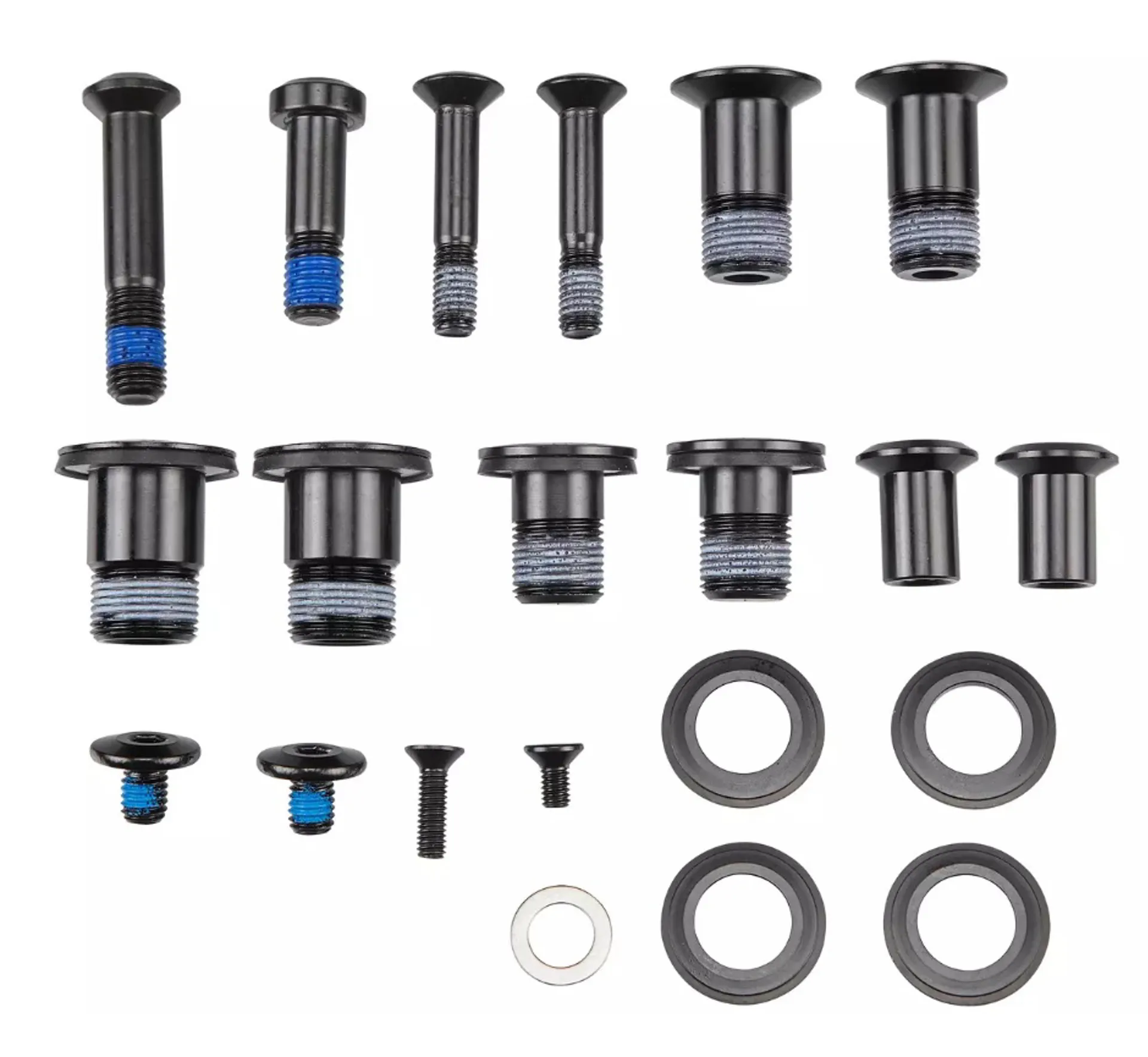

Specialized S200500005 MY21 Stumpjumper Alloy Frame Suspension Pivot Bolt Kit with Pivot Spacers#

Suspension pivot bolt kit for 2021 Stumpjumper Alloy bikes with all bolts and spacers

Used on:

  • 2024 SJ EVO ELITE ALLOY
  • 2024 SJ EVO COMP ALLOY
  • 2024 SJ EVO ALLOY LTD
  • 2024 SJ EVO ALLOY FRM
  • 2024 SJ COMP ALLOY BRA
  • 2024 SJ COMP ALLOY
  • 2024 SJ ALLOY LTD
  • 2024 SJ ALLOY BRA
  • 2024 SJ ALLOY
  • 2023 SJ EVO ELITE ALLOY
  • 2023 SJ EVO COMP ALLOY
  • 2023 SJ EVO ALLOY FRM
  • 2023 SJ COMP ALLOY
  • 2023 SJ ALLOY
  • 2022 SJ EVO ELITE ALLOY
  • 2022 SJ EVO COMP ALLOY
  • 2022 SJ EVO ALLOY FRM LTD
  • 2022 SJ EVO ALLOY FRM
  • 2022 SJ COMP ALLOY
  • 2022 SJ ALLOY
  • 2021 SJ COMP ALLOY
  • 2021 SJ ALLOY
Technical Information
  • Main Pivot (Chainstay) Driveside Bolt: Reverse Thread - 15mm W x 22mm L - Alloy - Torque: 210 in-lbf (24 Nm) - 1 pcs.
  • Main Pivot (Chainstay) Non-Driveside Bolt: 15mm W x 22mm L - Alloy - Torque: 210 in-lbf (24 Nm) - 1 pcs.
  • Seatstay Horst Link Pivot Bolt: 6mm W x 32.5mm L - Steel - Torque: 90 in-lbf (10 Nm) - 2 pcs.
  • Shock Link to Seat Tube Pivot Bolt: 12mm W x 17mm L - Alloy - Torque 180 in-lbf (20 Nm) - 2 pcs.
  • Shock Link to Shock Extension Pivot Bolt: 6mm W x 8mm L - Steel - Torque: 60 in-lbf (7 Nm) - 2 pcs.
  • Shock Link to Seatstay Pivot Bolt: 12mm W x 27mm L - Steel - Torque: 180 in-lbf (20 Nm) - 2 pcs.
  • This kit also includes all axle and pivot spacers. Refer to schematic for details.
  • Sold Seperately:
  • Rear Shock Mounting Hardware Kit: S204200032
