Specialized S230500002 Service Part
Specialized S230500002 Service Part
Specialized

Specialized S230500002 MY24 Epic Suspension Pivot Bolt Kit

£46.90
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Specialized S230500002 MY24 Epic Suspension Pivot Bolt Kit

Season:2024

Brand:Specialized

Code:S230500002

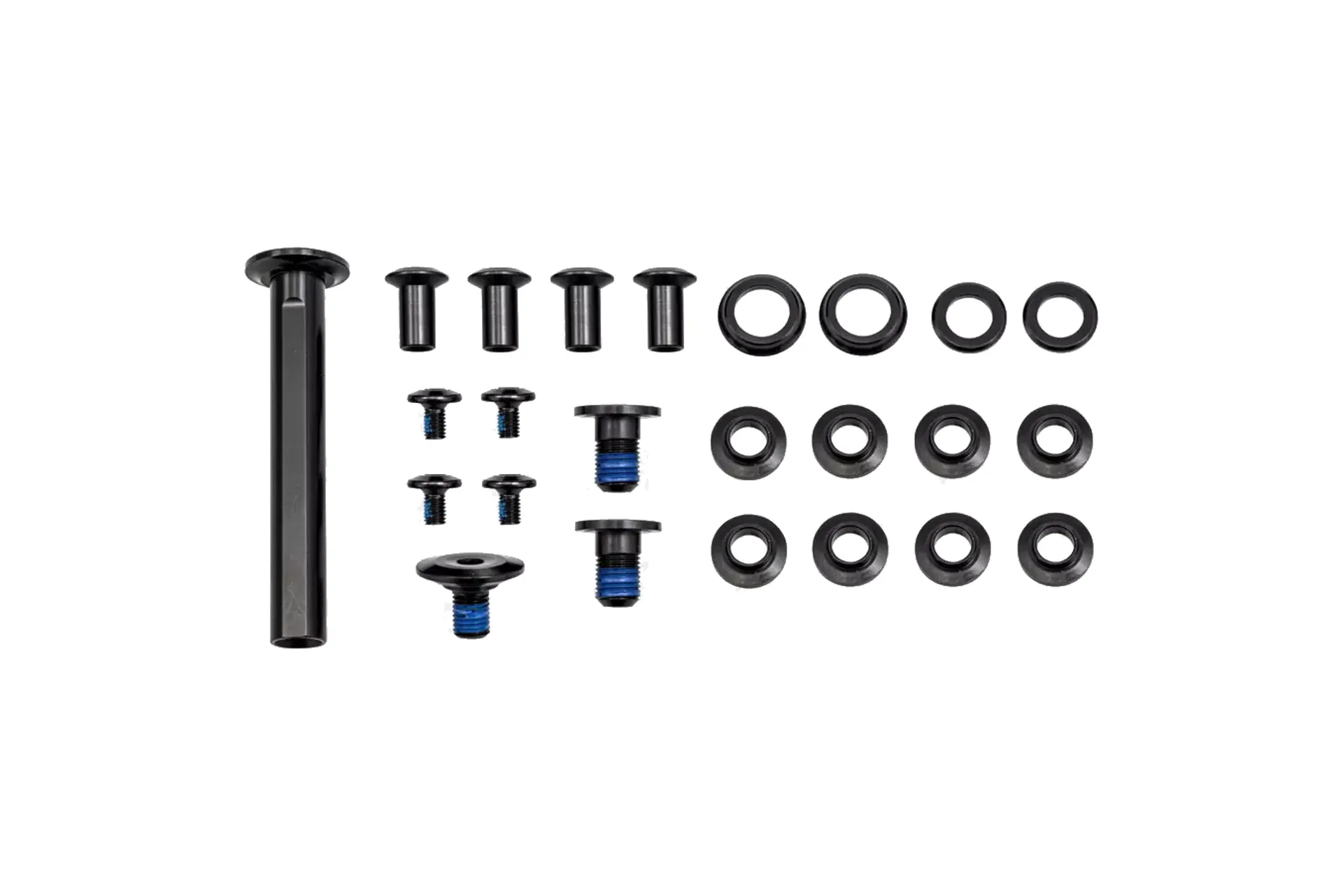

Specialized S230500002 MY24 Epic Suspension Pivot Bolt Kit with Pivot Spacers

Suspension pivot bolt kit for 2024 Epic bikes with all bolts and spacers

Used on:

  • 2026 S-Works Epic 8 Frameset
  • 2026 S-Works Epic 8 EVO AXS
  • 2026 S-Works Epic 8
  • 2026 Epic 8 Pro
  • 2026 Epic 8 Expert
  • 2026 Epic 8 EVO Pro Frameset
  • 2025 Epic 8 Pro
  • 2025 Epic 8 EVO Expert
  • 2025 Epic 8 EVO Comp
  • 2025 Epic 8 Comp
  • 2024 EPIC 8 SW FRMSET
  • 2024 EPIC 8 SW BRA
  • 2024 EPIC 8 SW - WF
  • 2024 EPIC 8 SW
  • 2024 EPIC 8 PRO EVO FRM
  • 2024 EPIC 8 PRO EVO
  • 2024 EPIC 8 PRO BRA
  • 2024 EPIC 8 PRO - WF
  • 2024 EPIC 8 PRO
  • 2024 EPIC 8 EXPERT BRA
  • 2024 EPIC 8 EXPERT
  • 2024 EPIC 8 COMP EVO BRA
  • 2024 EPIC 8 COMP EVO
  • 2024 EPIC 8 COMP BRA
  • 2024 EPIC 8 COMP
Technical Information
  • Main Pivot Axle:
    12mm W x 81mm L - Alloy - 1 pcs.
  • Main Pivot Bolt:
    8 mm W x 12.2mm L - Alloy - Torque: 89 in-lbf (10 Nm) - 1 pcs.
  • Main Pivot Spacer:
    12.1mm ID x 19.5mm OD x 3mm W - Alloy - 2 pcs.
  • Shock Link to Seat Tube Pivot Bolt:
    10mm W x 16mm L - Alloy - Torque: 89 in-lbf (10 Nm) - 2 pcs.
  • Shock Link to Seat Tube Pivot Spacer:
    10.1mm ID x 16.5mm OD x 2mm W - Alloy - 2 pcs.
  • Shock Link to Shock Extension Pivot Axle:
    8mm W x 17.23mm L - Alloy - 2 pcs.
  • Shock Link to Shock Extension Pivot Bolt:
    5mm W x 8mm L - Alloy - Torque: 53 in-lbf (6 Nm) - 2 pcs.
  • Shock Link to Shock Extension Pivot Spacer:
    8mm ID x 16.5mm OD x 2mm W - Alloy - 4 pcs.
  • Shock Link to Seatstay Pivot Axle:
    8mm W x 17.23mm L - Alloy - 2 pcs.
  • Shock Link to Seatstay Pivot Bolt:
    5mm W x 8mm L - Alloy - Torque: 53 in-lbf (6 Nm) - 2pcs.
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
