Ride big mountain trails with the 2026 Cube Stereo Hybrid ONE77 HPC AT 800 electric mountain bike. Featuring a carbon frame, 170mm suspension, Bosch CX motor with 800Wh battery, Shimano XT Di2 1x12 gears, XT hydraulic brakes with ABS Pro, mullet wheels, and Schwalbe 2.5in tyres for ultimate e-MTB performance.
Ride big mountain trails with the 2026 Cube Stereo Hybrid ONE77 HPC AT 800 electric mountain bike. Featuring a carbon frame, 170mm suspension, Bosch CX motor with 800Wh battery, Shimano XT Di2 1x12 gears, XT hydraulic brakes with ABS Pro, mullet wheels, and Schwalbe 2.5in tyres for ultimate e-MTB performance.
Cube

2026 Cube Stereo Hybrid One77 HPC AT 800 Electric Mountain Bike ActionTeam

£6,499.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2026 Cube Stereo Hybrid One77 HPC AT 800 Electric Mountain Bike ActionTeam

Season:2026

Brand:Cube

Code:103510ACTION

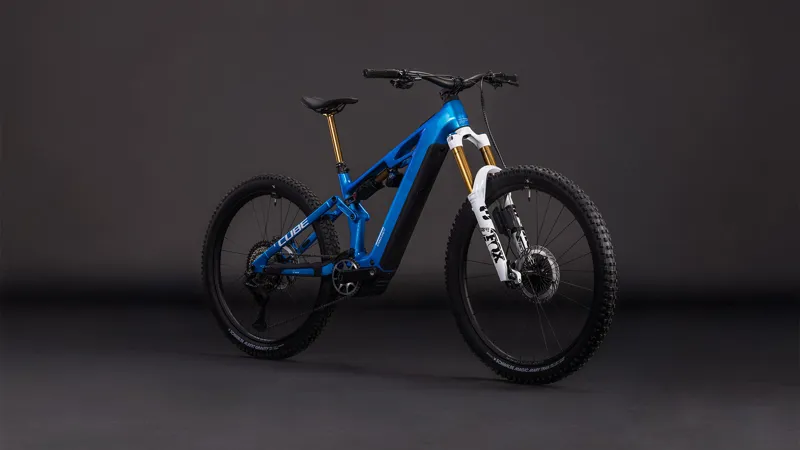

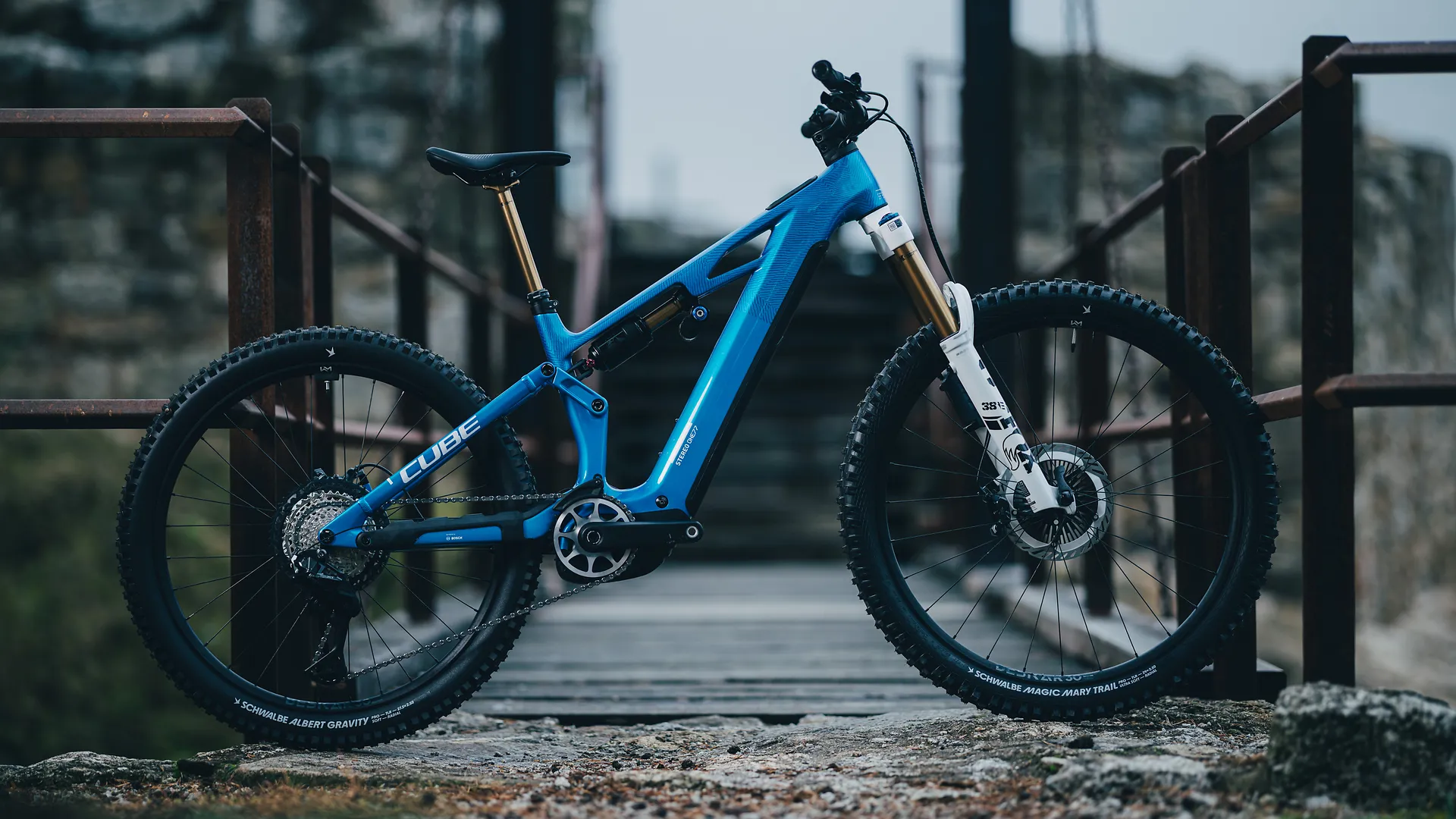

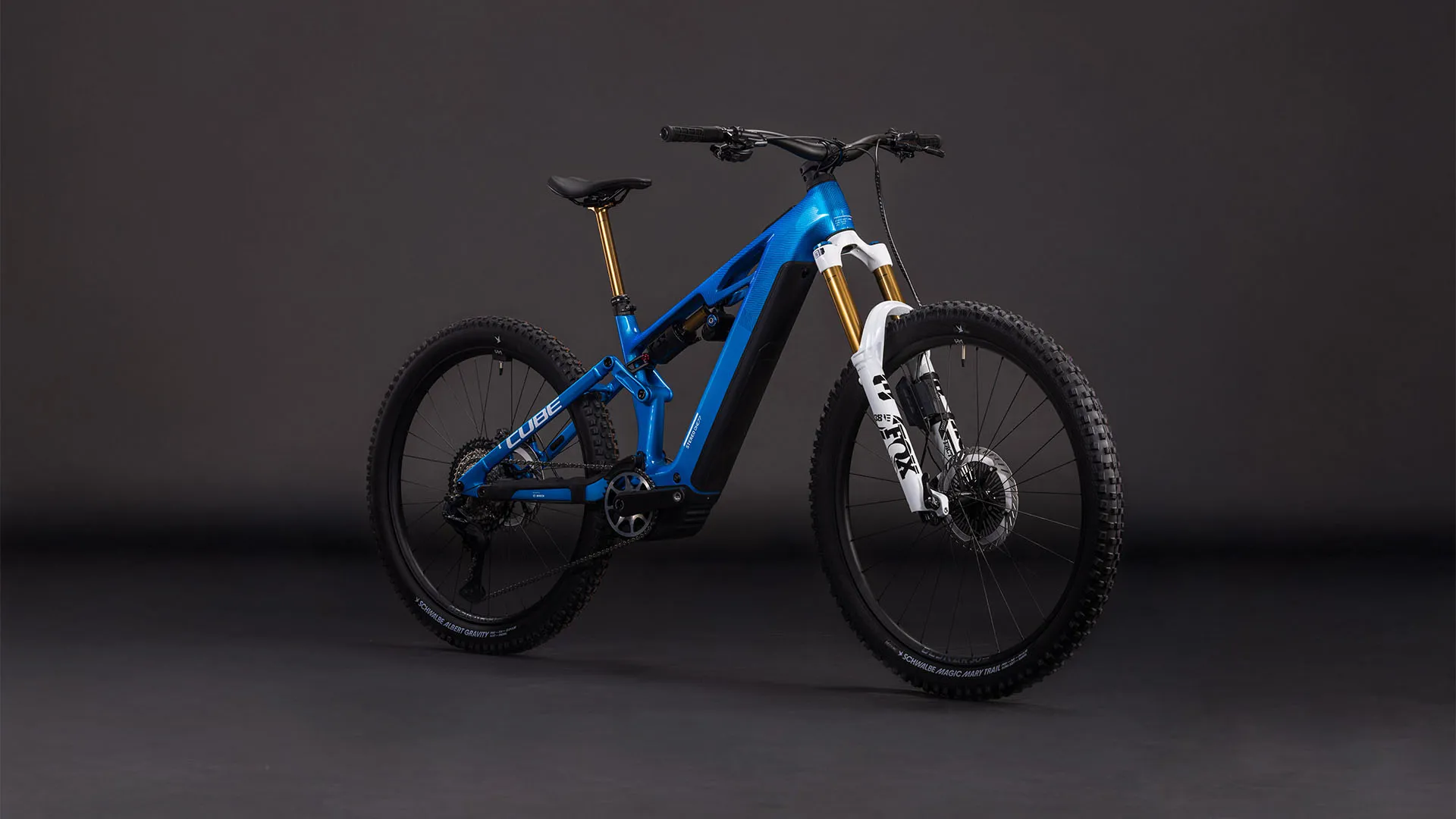

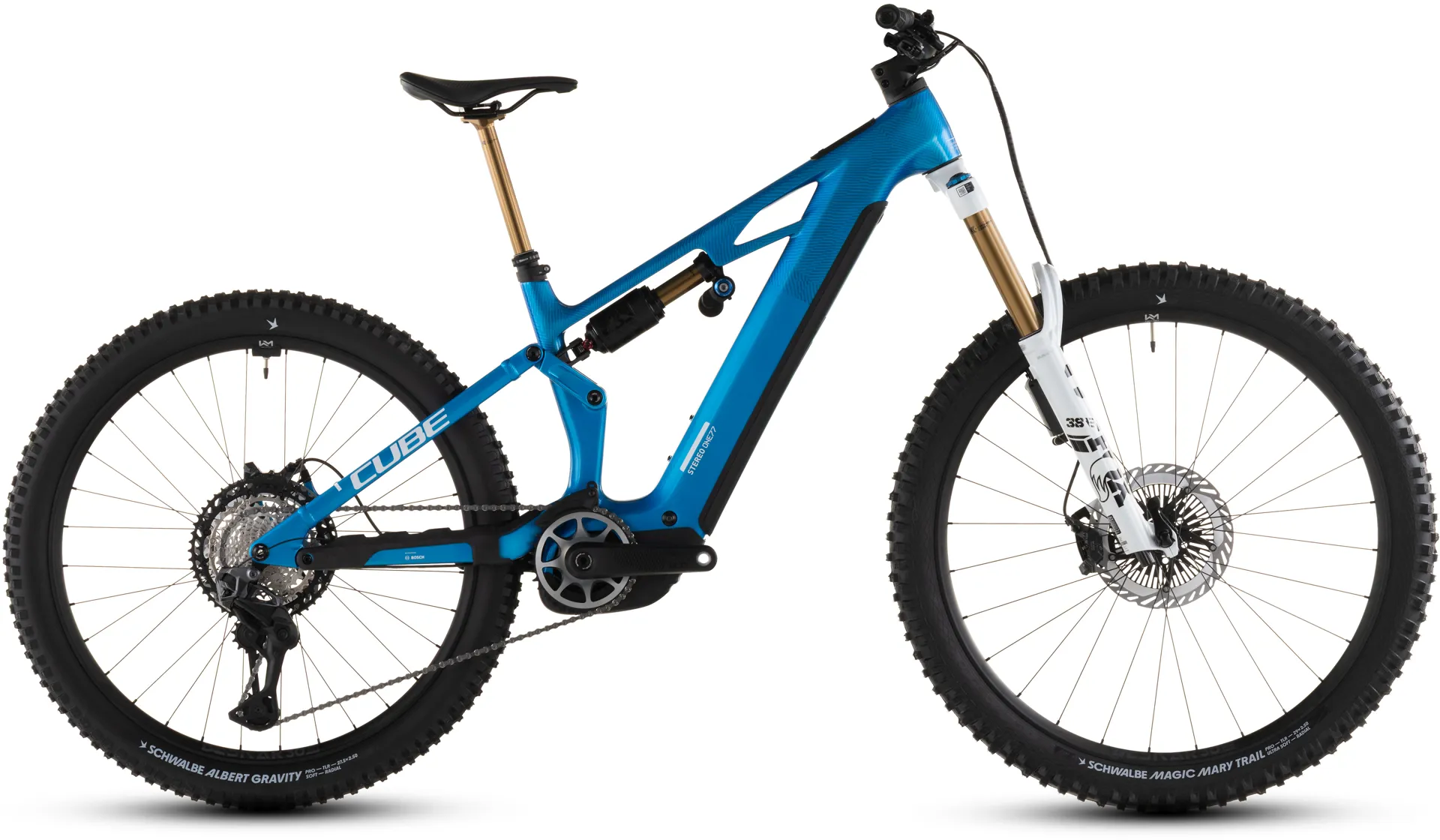

Cube Stereo Hybrid ONE77 HPC AT 800 Electric Mountain Bike | High-Performance E-MTB for Big Mountain Trails

Conquer the most demanding mountain trails with the Cube Stereo Hybrid ONE77 HPC AT 800 electric mountain bike, designed for riders who demand ultimate performance, control, and confidence on technical terrain. Built around Cube’s high-modulus carbon frame, this e-MTB features a mullet wheel setup with a 29-inch front wheel and 27.5-inch rear, combined with 170mm front and rear suspension travel for unmatched stability, traction, and agility on steep, rough trails.

  • Mullet wheel setup: 29-inch front / 27.5-inch rear for stability and agility

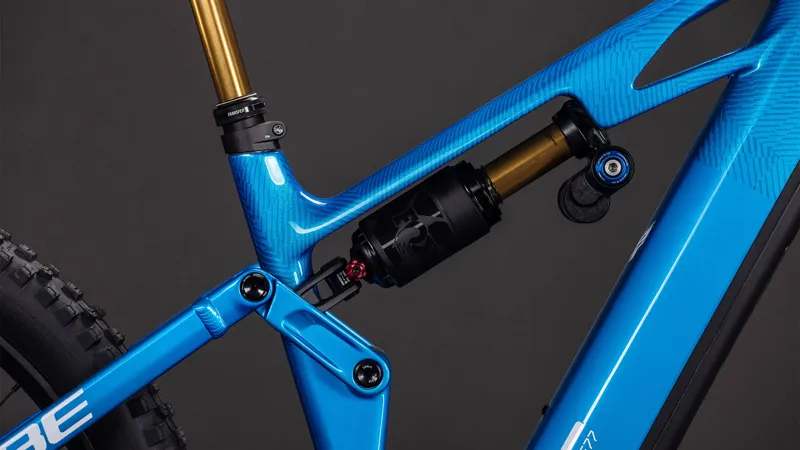

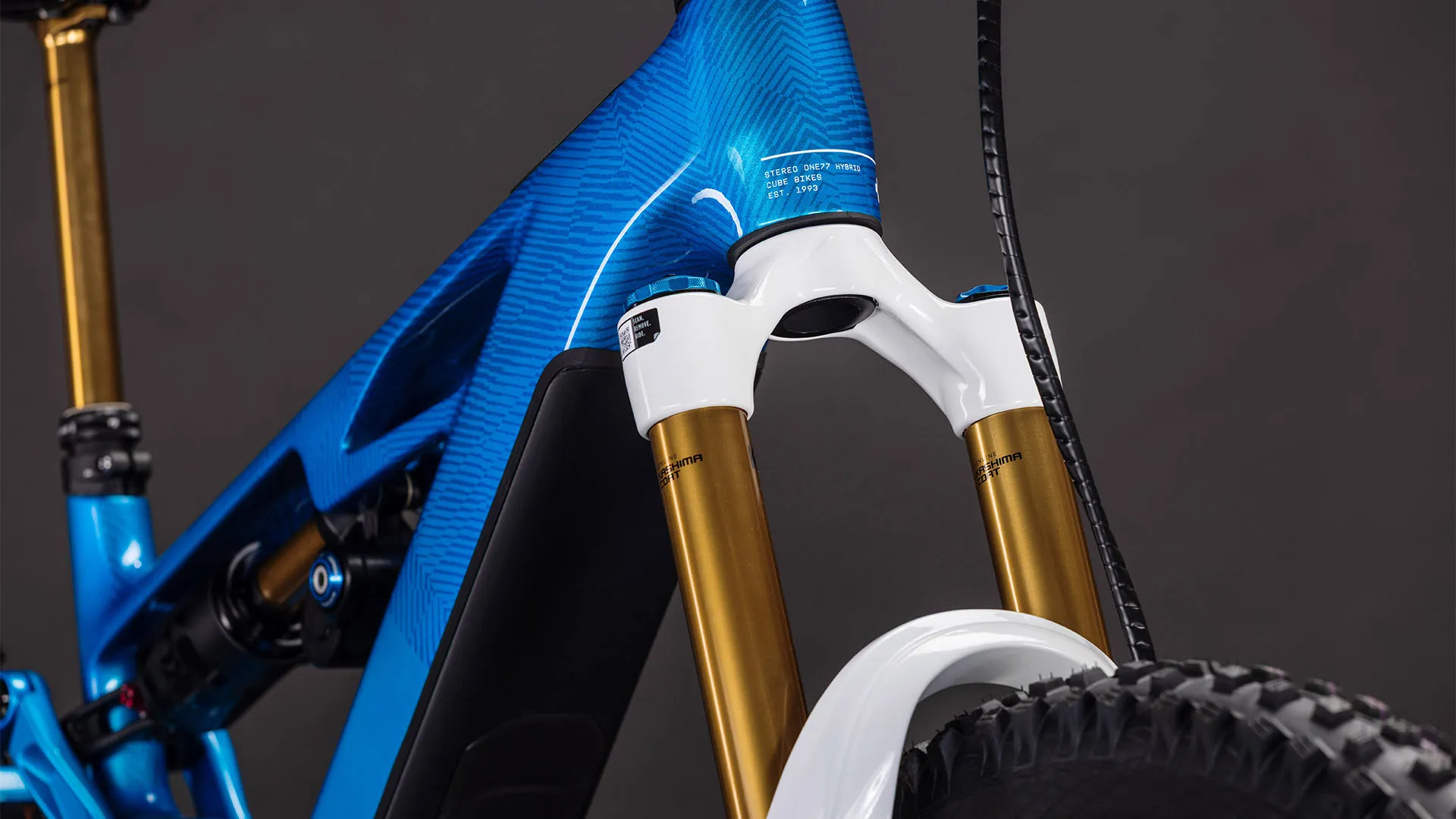

  • Full 170mm suspension travel: Fox Float 38 Factory fork and Float X2 shock for smooth performance
  • Powerful Bosch CX electric motor paired with 800Wh PowerTube battery
  • Shimano XT Di2 1x12 electronic shifting for precise gear selection
  • Shimano XT hydraulic disc brakes with ABS Pro for ultimate control and stopping power
  • Carbon Cube HPC frame with integrated cable routing for sleek looks and lightweight performance
  • Direct Mount chain guide and UDH dropout for secure drivetrain and future-proof compatibility
  • Remote dropper seatpost for technical descents and maneuverability
  • Newmen Beskar 30 mullet wheels with Schwalbe 2.5in Magic Mary and Albert tyres for maximum grip and cornering
  • Adjustable headset angle to customise handling on any trail

Powered by the Bosch Performance Line CX drive and an integrated 800Wh PowerTube battery, the Stereo Hybrid ONE77 HPC delivers smooth, consistent pedal-assist to keep you riding longer and faster. Shimano XT Di2 1x12 electronic shifting ensures precise, lightning-fast gear changes, while Shimano XT hydraulic disc brakes with ABS Pro provide reliable stopping power in all conditions.

Designed for trail domination, this e-MTB features Fox Factory Float 38 fork and Float X2 shock, a remote dropper seatpost, and a Direct Mount chain guide, keeping your drivetrain secure on rough descents. The UDH rear dropout offers durability and future-proof compatibility, while integrated cable routing and adjustable headset angle let you fine-tune handling and maintain clean, sleek aesthetics. Newmen Beskar 30 mullet wheels paired with Schwalbe Magic Mary and Albert 2.5-inch tyres deliver maximum grip, cornering precision, and control on rock gardens, roots, and loose terrain.

From the trail-ready carbon’n’gold livery to the high-performance components, the Cube Stereo Hybrid ONE77 HPC AT 800 electric mountain bike is the ultimate choice for riders seeking a premium e-MTB capable of tackling technical big mountain trails with confidence and style.

Technical Information
  • Frame
    C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
  • Size
    S, M, L, XL
  • Suspension fork
    Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm
  • Shock

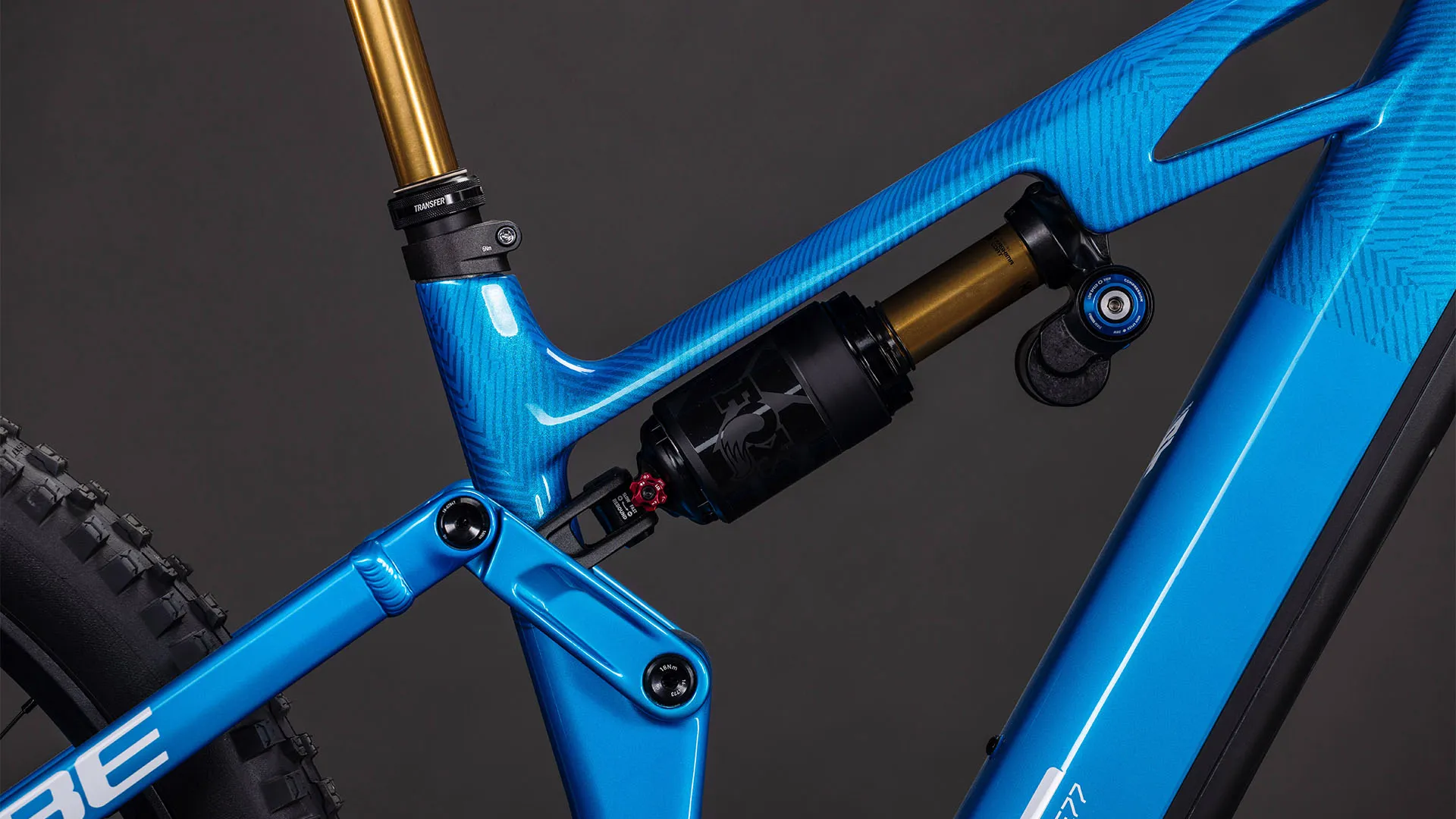

    Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever
  • Shock hardware
    Front: 30x8mm, Rear: DU-Bushing 12.7mm
  • Drive unit
    Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
  • Remote
    Bosch Mini Remote
  • Battery
    Bosch PowerTube 800
  • Display

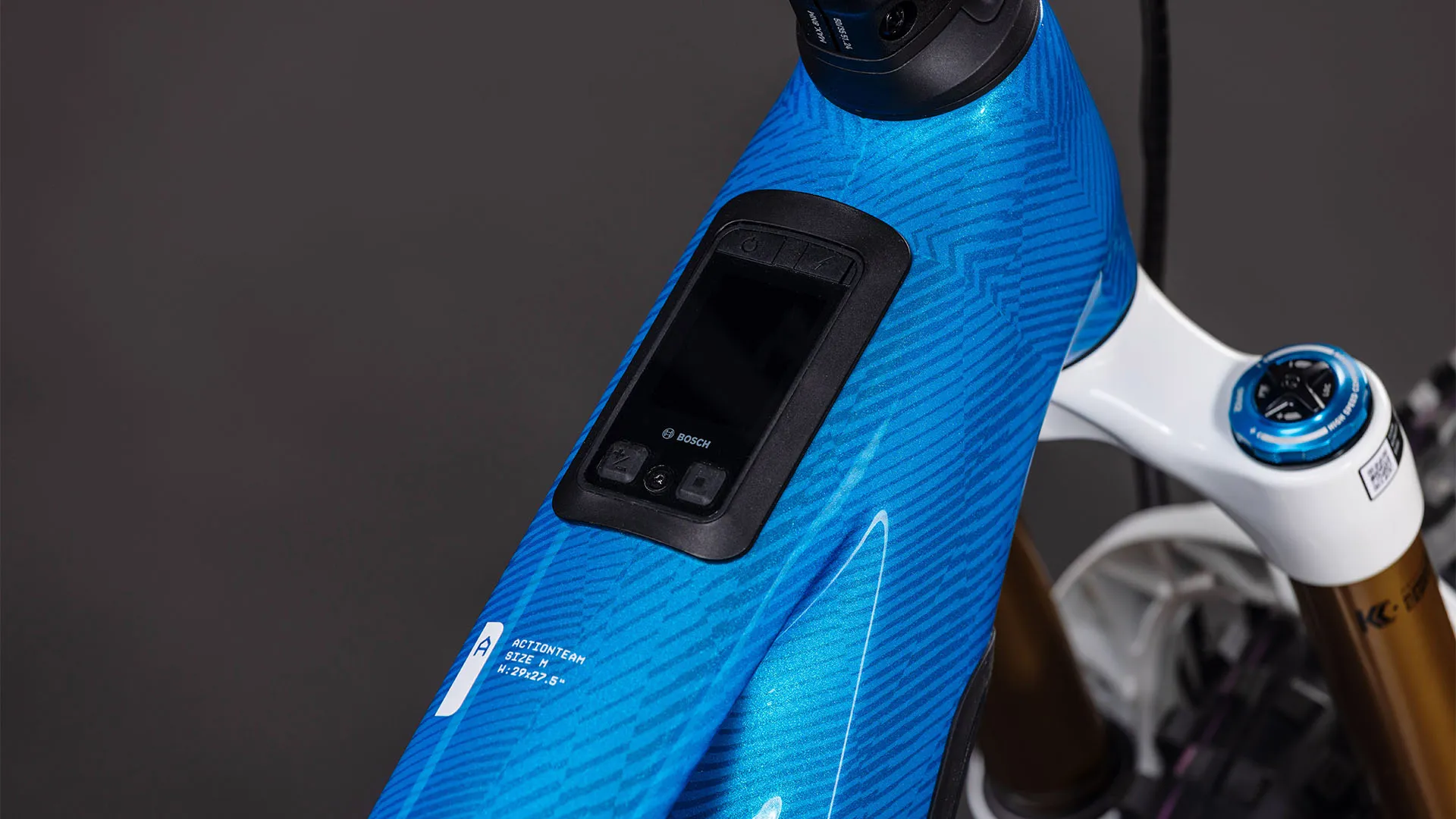

    Bosch Kiox 400C
  • Charger
    Bosch 4A
  • ABS technology
    Bosch ABS Pro
  • Brake system
    Shimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203)
  • Rear derailleur
    Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System
  • Shifters
    Shimano XT Di2 SW-M8250-IR, Direct Attach
  • Crankset

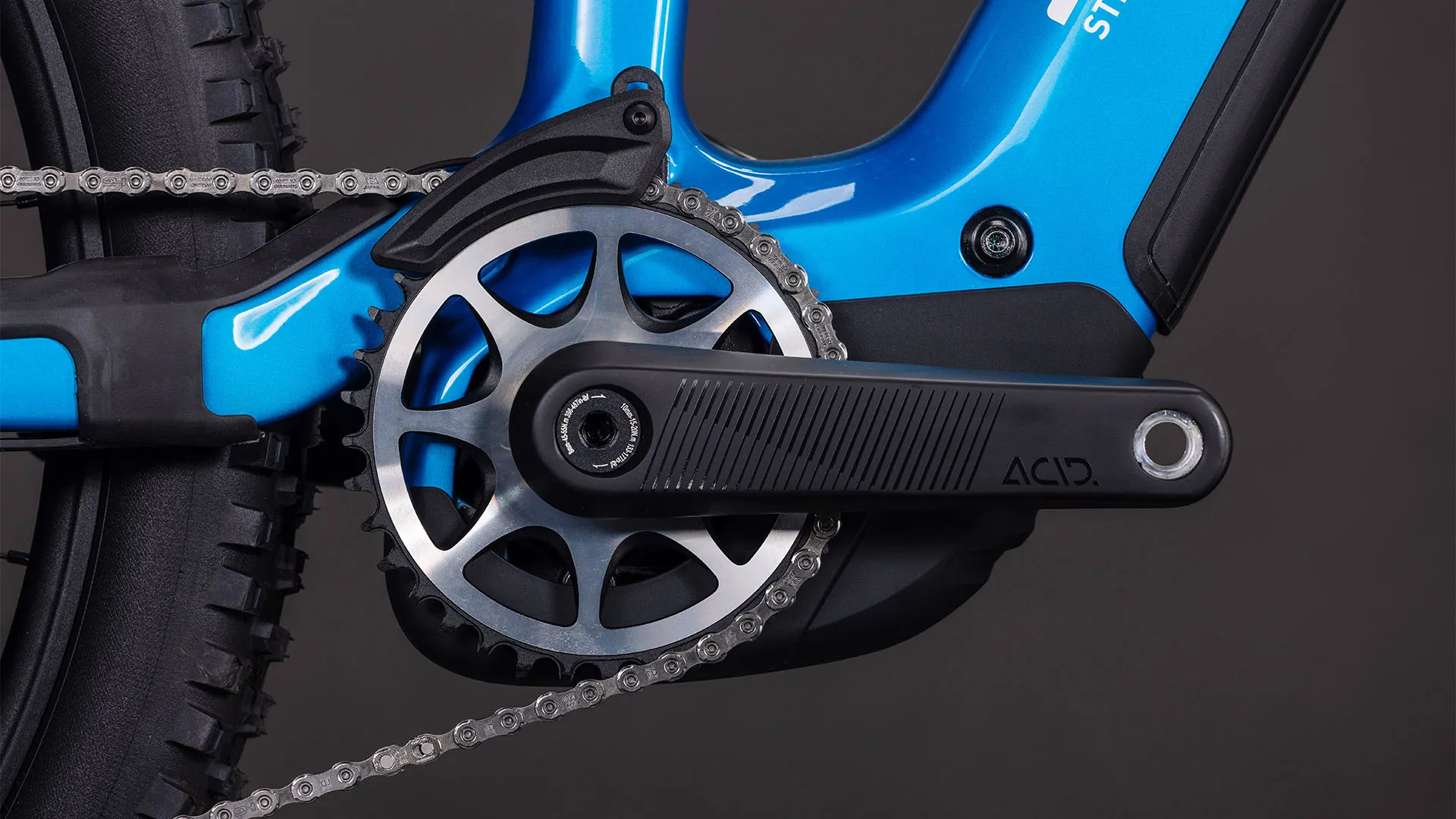

    ACID MTB Hybrid Carbon, 36T
  • Cassette
    Shimano XT CS-M8100, 10-51T
  • Chain
    Shimano XT CN-M8100
  • Chain guide
    Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
  • Headset
    ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
  • Stem
    CUBE Performance Stem E-MTB 35, FPI-Link
  • Handlebar
    Race Face ERA 35
  • Grips
    ACID Disrupt, Soft Compound
  • Wheelset
    Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
  • Front tyre
    Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5
  • Rear tyre
    Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
  • Saddle
    ACID Venec EMTB Trail 140
  • Seat post
    Fox Transfer Factory 31.6mm, Kashima Coated
  • Pedals
    ACID PP MTB
  • Weight
    24,7 kg
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

GEOMETRY

SizeSMLXL
Seat Tube370mm405mm420mm480mm
Top Tube Horizontal572/573mm597/598mm625/626mm659/661mm
Seat Angle76.7°/76.5°76.7°/76.5°76.7°/76.5°76.7°/76.5°
Head Tube Angle63.8°/64.4°63.8°/64.4°63.8°/64.4°63.8°/64.4°
Chainstays443mm443mm443mm443mm
Head Tube103mm103mm115mm130mm
Wheelbase1213/1206mm1238/1231mm1269/1261mm1305/1297mm
BB-Height to Hub13mm13mm13mm13mm
Protrusion Height - 80mm758mm754mm753mm752mm
Reach427/425mm452/450mm477/475mm506/505mm
Stack635/637mm635/637mm645/648mm659/661mm

ERGONOMICS

SizeSMLXL
Length Seat Post411mm476mm476mm541mm
Diameter Seatpost31.6mm31.6mm31.6mm31.6mm
Angle Stem12°12°12°12°
Crank Length165mm165mm165mm165mm
Diameter Tyre Maximum721mm721mm721mm721mm
Width Tyre Maximum66mm66mm66mm66mm
Stem Length50mm50mm50mm50mm
Handlebar Width780mm780mm780mm780mm
Stroke Seatpost150mm180mm180mm210mm
Rear Suspension Travel172mm172mm172mm172mm
Max. Insertion Depth Seat Post215mm255mm270mm315mm

All values are given in millimetres or degrees.
