Ride big mountain trails with the Cube Stereo Hybrid ONE77 HPC TM 800 electric mountain bike. Featuring a carbon frame, 170mm full suspension, Bosch CX 800Wh motor, Sram GX Eagle 1x12 drivetrain, mullet wheels with Continental 2.4in tyres, and Sram Maven hydraulic brakes for the ultimate Trail Motion e-MTB experience.
Ride big mountain trails with the Cube Stereo Hybrid ONE77 HPC TM 800 electric mountain bike. Featuring a carbon frame, 170mm full suspension, Bosch CX 800Wh motor, Sram GX Eagle 1x12 drivetrain, mullet wheels with Continental 2.4in tyres, and Sram Maven hydraulic brakes for the ultimate Trail Motion e-MTB experience.
Cube

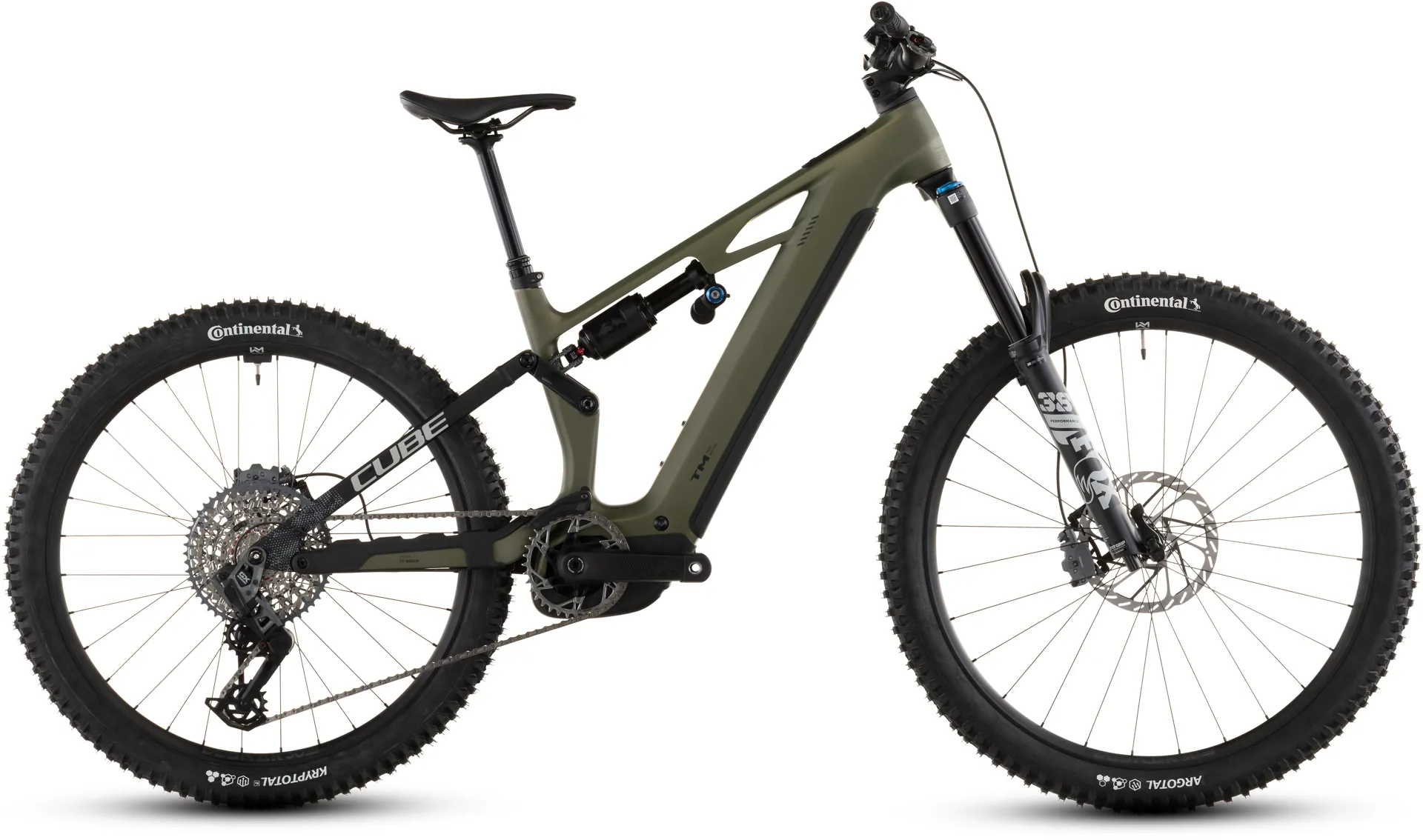

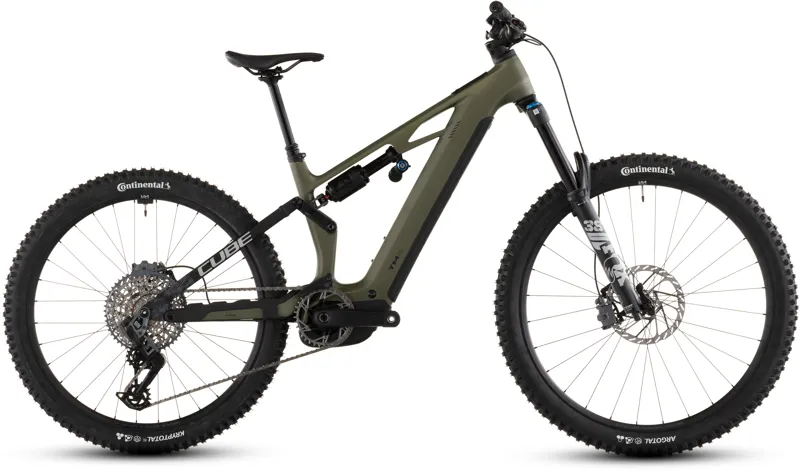

2026 Cube Stereo Hybrid One77 HPC TM 800 Electric Mountain Bike - Reed Green

£5,499.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2026 Cube Stereo Hybrid One77 HPC TM 800 Electric Mountain Bike - Reed Green

Season:2026

Brand:Cube

Code:103400REEDGRNMATRIX

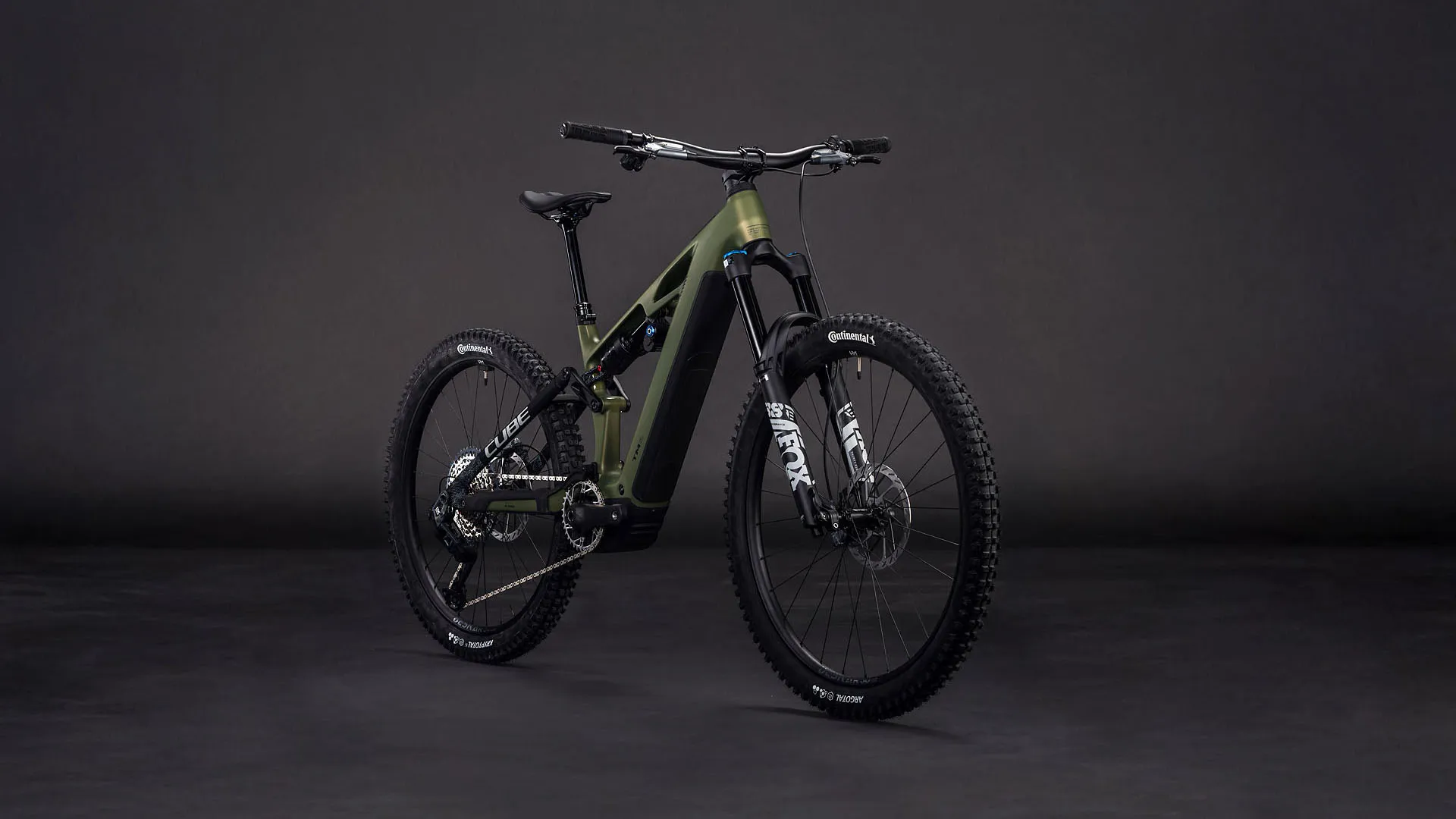

Cube Stereo Hybrid ONE77 HPC TM 800 Electric Mountain Bike – High-Performance Trail Motion E-MTB

Conquer the most challenging big mountain trails with the Cube Stereo Hybrid ONE77 HPC TM 800 electric mountain bike, a premium Trail Motion e-MTB designed for riders seeking maximum control, performance, and confidence on technical terrain. Featuring a carbon Stereo Hybrid ONE77 HPC frame, this e-MTB boasts a mullet wheel setup with a 29-inch front and 27.5-inch rear wheel, combined with 170mm of front and rear suspension travel, giving unmatched stability, traction, and agility on steep, rocky trails.

  • Carbon Stereo Hybrid ONE77 HPC frame with integrated cable routing for sleek aesthetics and reduced weight

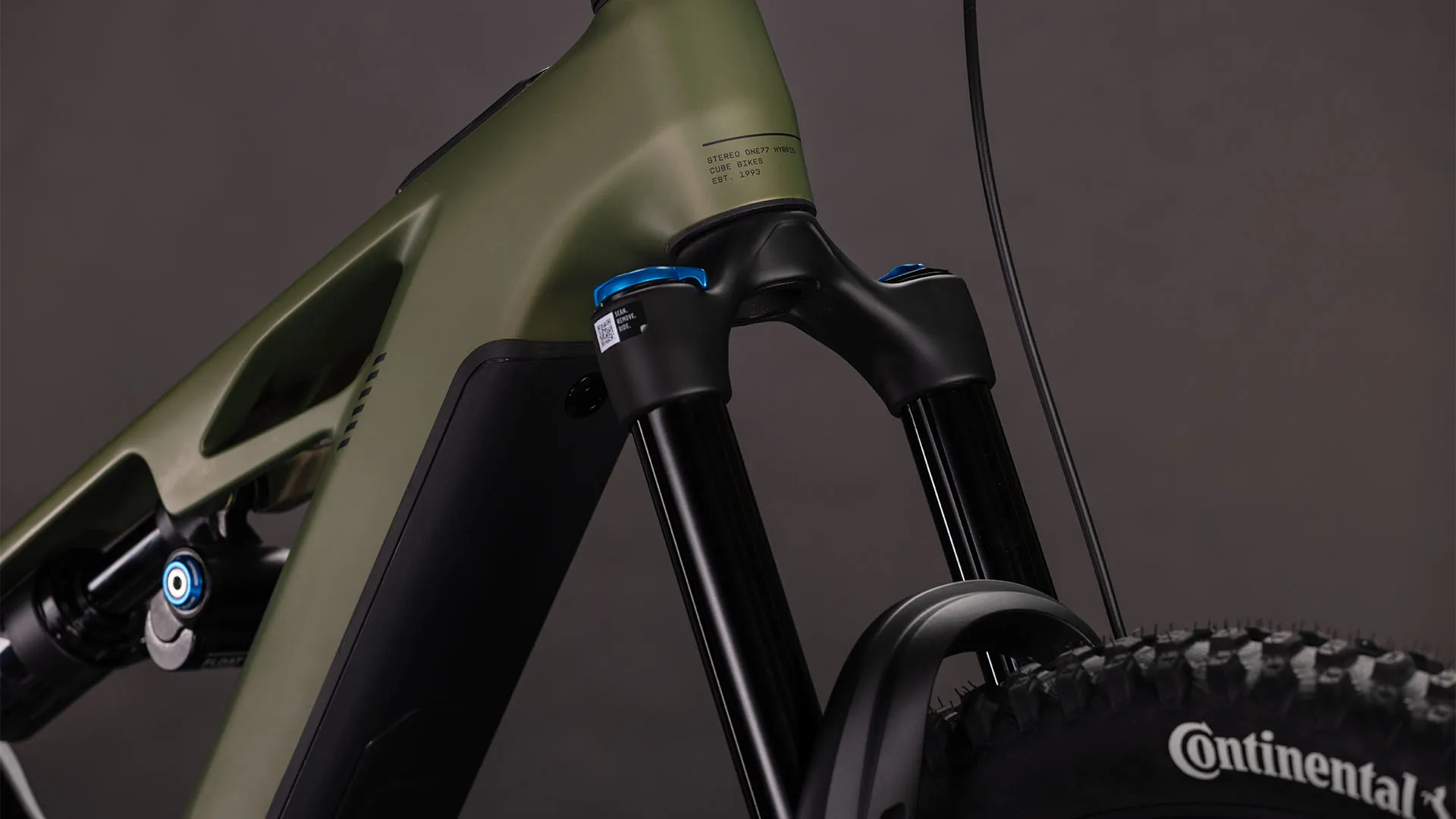

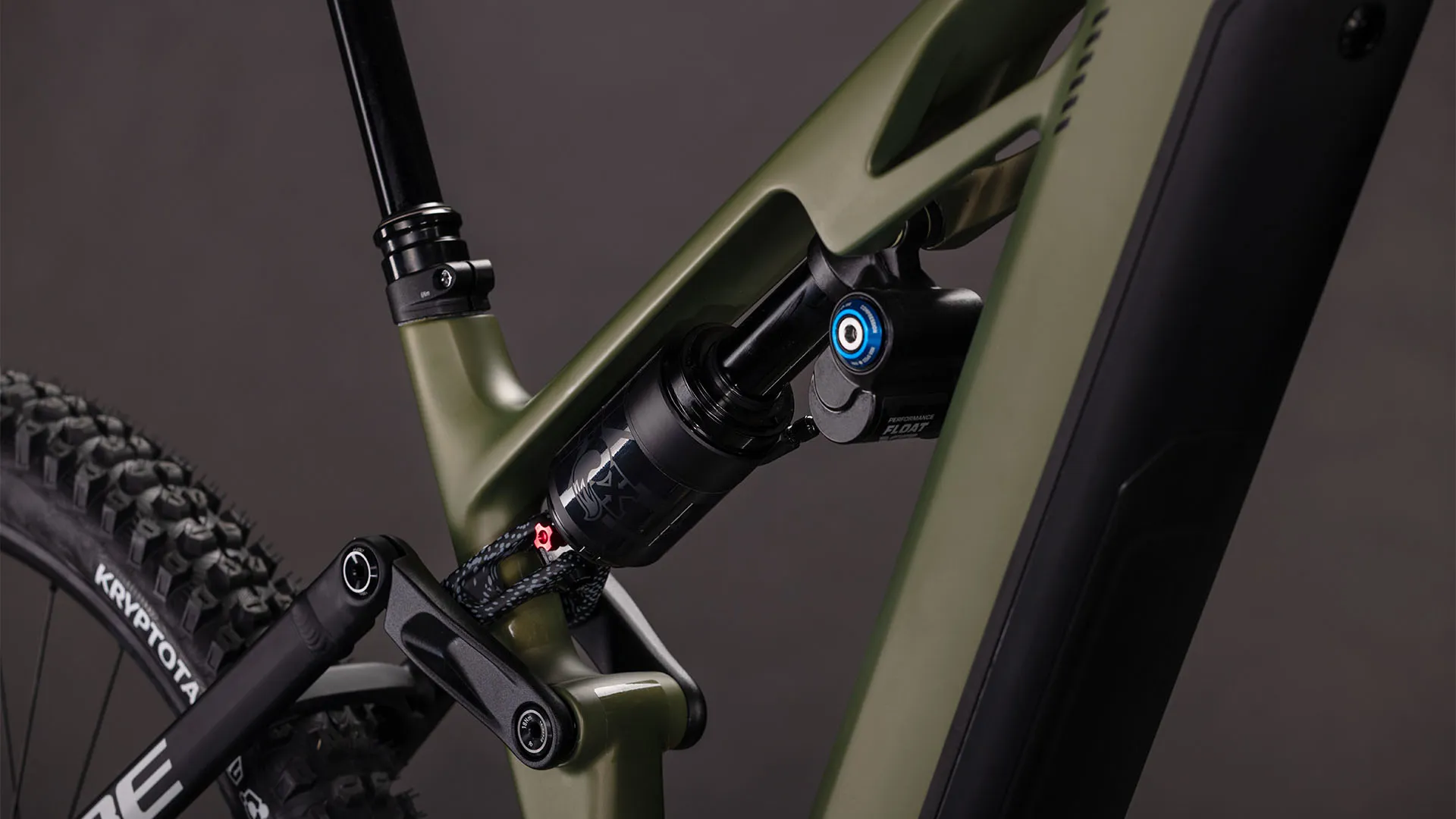

  • 170mm front and rear suspension travel with Fox Float 38 Performance fork and Float X2 Performance shock
  • Mullet wheel setup: 29-inch front / 27.5-inch rear for ultimate stability and maneuverability
  • Bosch Performance Line CX motor with 800Wh PowerTube battery for extended ride power

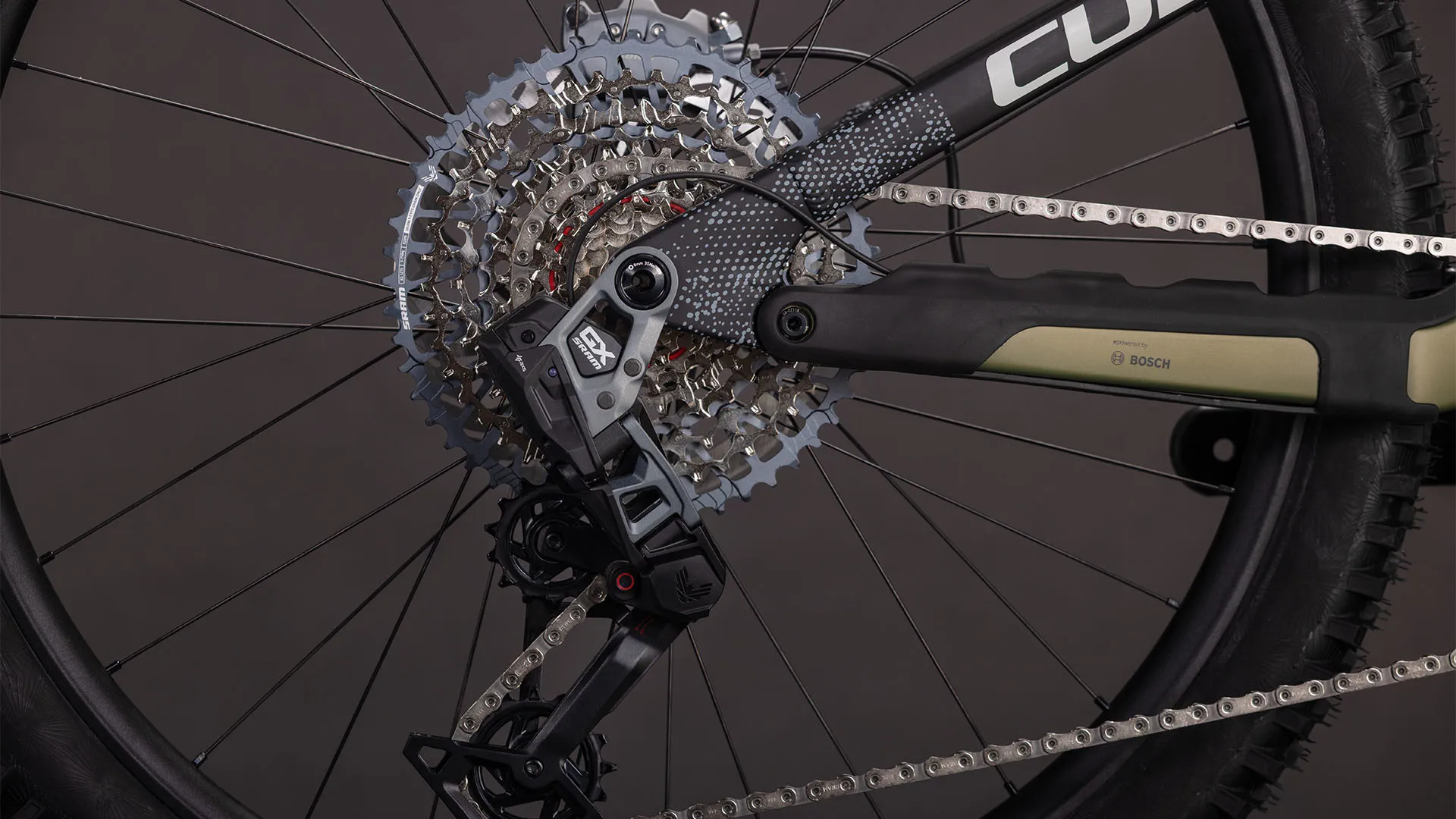

  • Sram GX Eagle 1x12 drivetrain with ACID carbon crank for precise, reliable electronic shifting
  • Newmen Beskar 30 mullet wheels with Continental Argotal and Kryptotal 2.4-inch tyres for superior grip
  • Sram Maven Bronze hydraulic disc brakes for powerful, reliable stopping

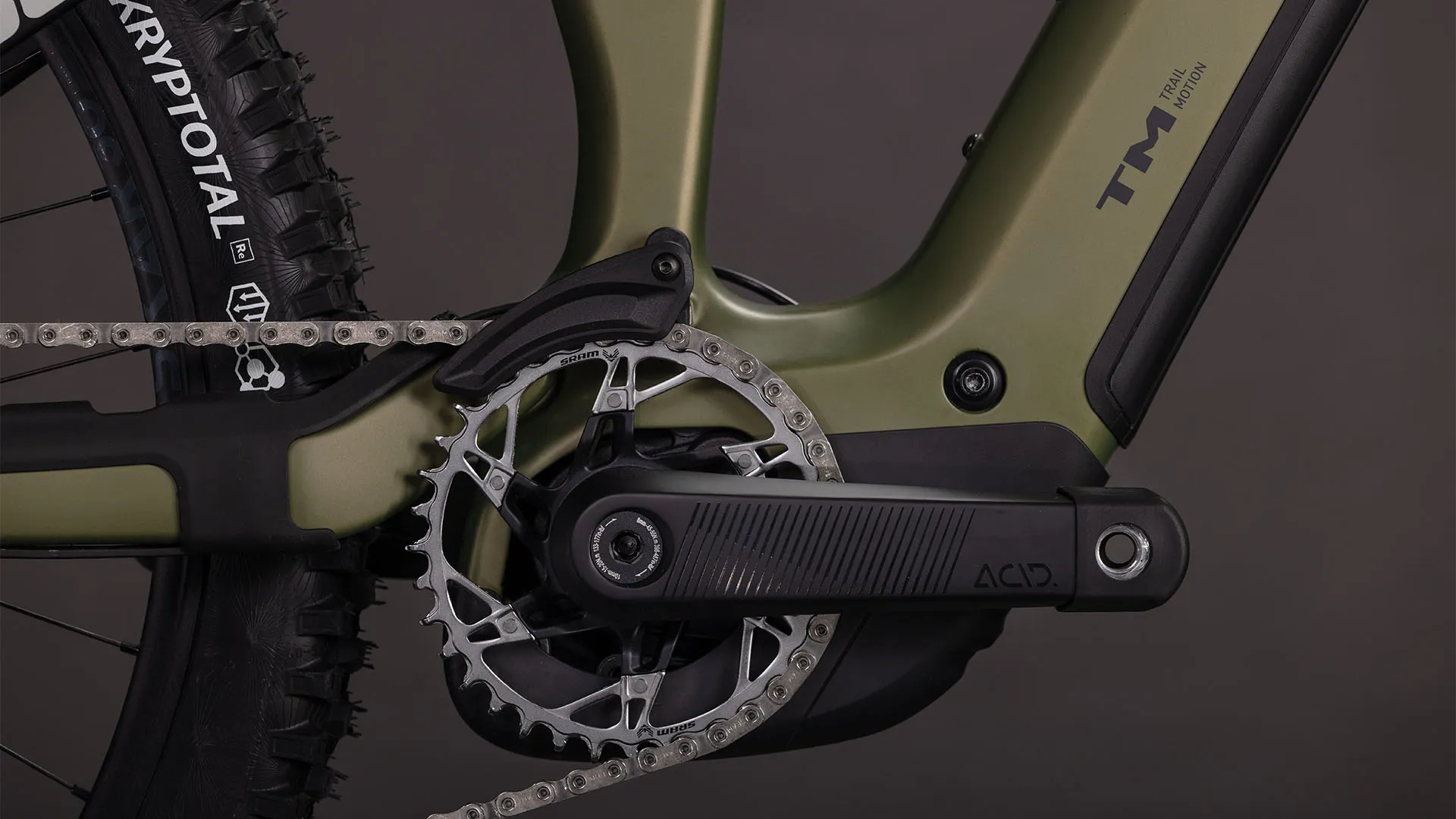

  • Direct Mount chain guide and UDH dropout for secure drivetrain and future-proof performance
  • Remote dropper seatpost for technical descents and enhanced control
  • Angle-adjustable headset for personalized handling on all trail types
  • Kiox 400C display for monitoring power, speed, and battery status

The Bosch Performance Line CX motor paired with an integrated 800Wh PowerTube battery delivers smooth, consistent pedal-assist for longer rides and faster climbs. Sram GX Eagle 1x12 drivetrain ensures precise, effortless electronic gear shifting, while the Kiox 400C display keeps all key data at your fingertips. The Fox Float 38 Performance fork and Float X2 Performance rear shock provide fully adjustable suspension for superior trail handling, keeping you in control no matter how rough the terrain.

This high-performance Trail Motion e-MTB comes equipped with a Direct Mount chain guide, UDH rear dropout, and integrated cable routing for durability, sleek aesthetics, and future-proof drivetrain performance. Newmen Beskar 30 mullet wheels shod with Continental Argotal and Kryptotal 2.4-inch tyres offer exceptional grip, cornering traction, and confidence on technical trails. Sram Maven Bronze hydraulic disc brakes provide powerful stopping in all conditions, and a remote dropper seatpost adds agility and control on steep descents.

From steep climbs to fast descents, the Cube Stereo Hybrid ONE77 HPC TM 800 electric mountain bike combines carbon frame technology, Bosch e-bike power, Trail Motion geometry, and premium components to deliver an ultimate big mountain e-MTB experience.

Technical Information
  • Frame
    C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
  • Size
    S, M, L, XL
  • Suspension fork
    Fox 38 Float Performance GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm

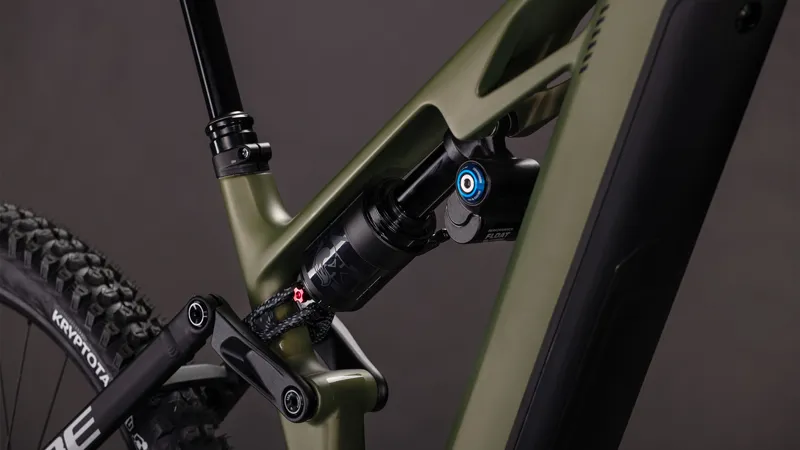

  • Shock
    Fox Float X2 Performance, 230x65mm, Adjustable HSC/LSC/LSR w/ 2-Pos. Lever
  • Shock hardware
    Front: 30x8mm, Rear: DU-Bushing 12.7mm
  • Drive unit
    Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
  • Remote
    Bosch Mini Remote
  • Battery
    Bosch PowerTube 800

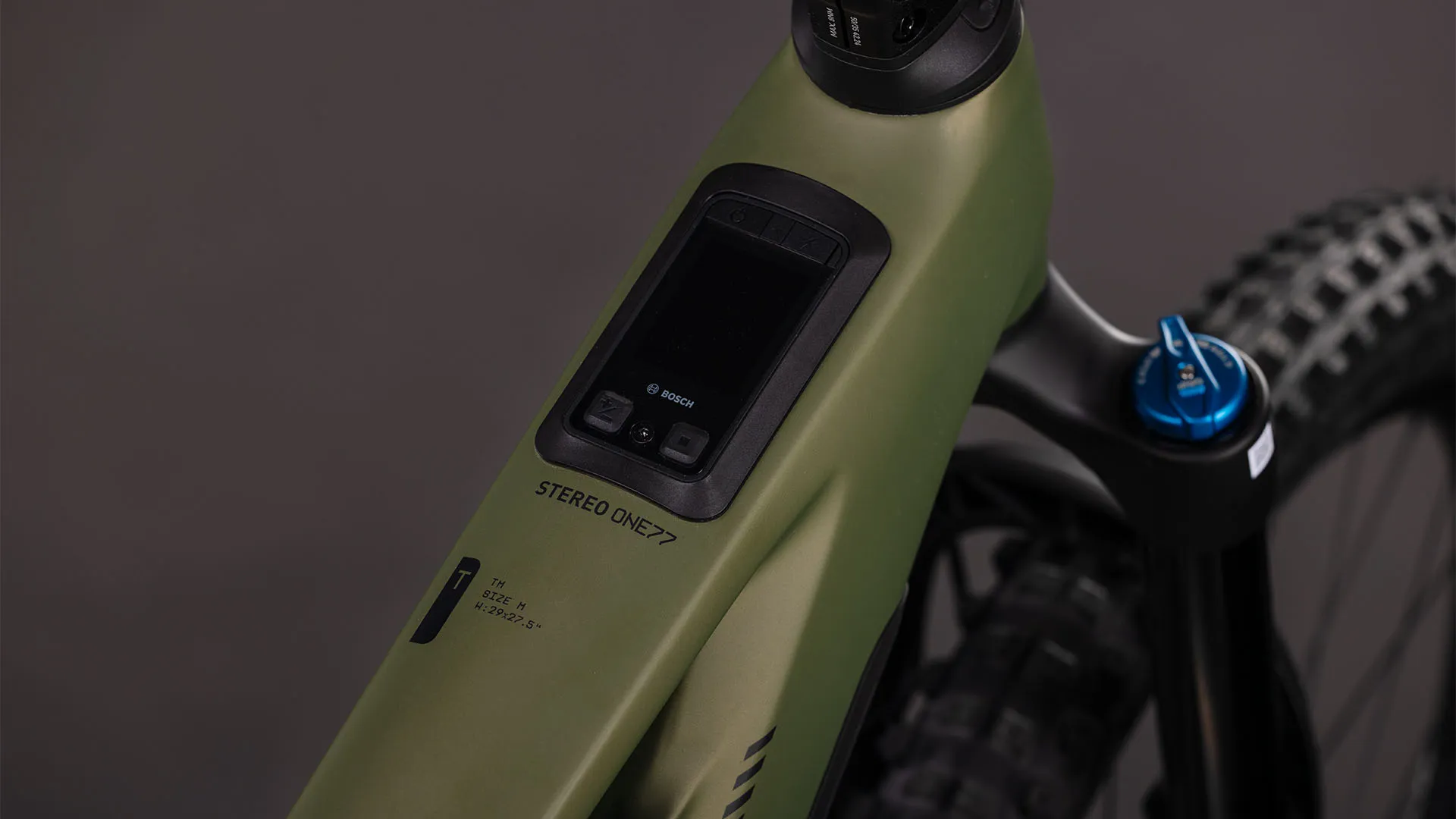

  • Display
    Bosch Kiox 400C
  • Charger
    Bosch 4A
  • Brake system
    Sram Maven Bronze, Hydr. Disc Brake (200/200)
  • Rear derailleur
    Sram GX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
  • Shifters
    Sram AXS™ Pod Controller
  • Crankset
    ACID MTB Hybrid Carbon, 36T
  • Cassette
    Sram XS-1275, 10-52T
  • Chain
    Sram GX Eagle™ Transmission
  • Chain guide
    Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
  • Headset
    ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
  • Stem
    CUBE Performance Stem E-MTB 35, FPI-Link
  • Handlebar
    CUBE Rise Trail Bar 35
  • Grips
    ACID Disrupt, Soft Compound
  • Wheelset
    Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
  • Front tyre
    Conti Argotal, Enduro Soft, Tubeless Ready, 2.4
  • Rear tyre
    Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
  • Saddle
    ACID Venec EMTB Trail 140
  • Seat post
    CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
  • Pedals
    ACID PP MTB
  • Weight
    24,6 kg
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

GEOMETRY

SizeSMLXL
Seat Tube370mm405mm420mm480mm
Top Tube Horizontal572/573mm597/598mm625/626mm659/661mm
Seat Angle76.7°/76.5°76.7°/76.5°76.7°/76.5°76.7°/76.5°
Head Tube Angle63.8°/64.4°63.8°/64.4°63.8°/64.4°63.8°/64.4°
Chainstays443mm443mm443mm443mm
Head Tube103mm103mm115mm130mm
Wheelbase1213/1206mm1238/1231mm1269/1261mm1305/1297mm
BB-Height to Hub13mm13mm13mm13mm
Protrusion Height - 80mm758mm754mm753mm752mm
Reach427/425mm452/450mm477/475mm506/505mm
Stack635/637mm635/637mm645/648mm659/661mm

ERGONOMICS

SizeSMLXL
Length Seat Post403mm462mm505mm505mm
Diameter Seatpost31.6mm31.6mm31.6mm31.6mm
Angle Stem12°12°12°12°
Crank Length165mm165mm165mm165mm
Diameter Tyre Maximum721mm721mm721mm721mm
Width Tyre Maximum66mm66mm66mm66mm
Stem Length50mm50mm50mm50mm
Handlebar Width780mm780mm780mm780mm
Stroke Seatpost120mm150mm170mm170mm
Rear Suspension Travel172mm172mm172mm172mm
Max. Insertion Depth Seat Post215mm255mm270mm315mm

All values are given in millimetres or degrees.
