Giant Revolt 0 men’s gravel bike with ALUXX aluminium frame, carbon fork, adjustable geometry, wide tyre clearance up to 53mm, and tubeless-ready performance for road, gravel, and dirt riding.

Giant Revolt 0 men’s gravel bike with ALUXX aluminium frame, carbon fork, adjustable geometry, wide tyre clearance up to 53mm, and tubeless-ready performance for road, gravel, and dirt riding.

Giant

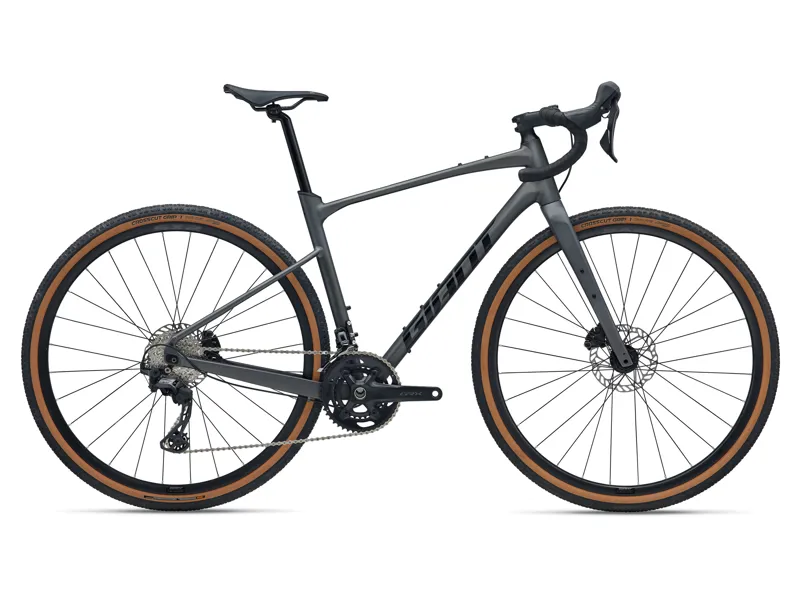

2026 Giant Revolt 0 Mens Gravel Bike - Stealth Chrome

£1,799.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2026 Giant Revolt 0 Mens Gravel Bike - Stealth Chrome

Season:2026

Brand:Giant

Code:9080018SGRNthCLR

The Giant Revolt 0 Men’s Gravel Bike is a versatile and durable aluminium gravel bike designed to handle everything from smooth tarmac to rough gravel roads and dirt tracks. Built as an all-rounder for adventure, commuting, and endurance riding, the Revolt 0 delivers confident handling, adaptable geometry, and all-day comfort across mixed terrain.

The frame is constructed using Giant’s ALUXX Aluminium Technology, featuring lightweight yet strong 6061 alloy tubing for an ideal balance of efficiency and durability. A composite carbon fork enhances ride quality by absorbing vibrations, providing smoother handling and improved control on uneven gravel and rugged surfaces.

Engineered for confident and stable handling, the Revolt 0 features endurance-focused geometry with shorter chainstays, a longer reach, shorter stem, and lower bottom bracket drop. This setup improves agility, cornering precision, and stability when riding fast on loose or technical terrain.

To enhance comfort without sacrificing performance, the frame incorporates dropped seatstays with thin tubing to reduce road chatter. Giant’s D-Fuse technology, including the D-Fuse handlebar and seatpost, works as an integrated system to absorb shocks and vibrations while maintaining stiffness for climbing, sprinting, and high-speed cornering.

The Flip Chip rear dropout allows riders to fine-tune the bike’s geometry to suit different riding styles and surfaces. Choose the short wheelbase setting for quicker acceleration and responsive handling, or switch to the long setting for added stability at speed and increased tyre clearance. In the long position, the Revolt 0 accommodates wide gravel tyres up to 53mm, making it ideal for aggressive gravel riding and bikepacking. The frame also supports 30.9mm round or dropper seatposts for added versatility.

Additional performance features include OverDrive oversized steering for precise front-end control and a tubeless-ready wheel system that delivers fewer punctures, improved traction, reduced rolling resistance, and a smoother ride.

The Giant Revolt 0 Men’s Gravel Bike is the perfect choice for riders seeking a reliable, adaptable, and comfortable gravel bike that performs across roads, gravel, and dirt.

Technical Information
  • Sizes
    XS, S, M, M/L, L, XL
  • Frame
    ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips
    cork tape with gel
  • Stem
    Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant D-Fuse, alloy, 14mm offset
  • Saddle
    Giant Grit
  • Shifters
    Shimano GRX RX-610, 2x12
  • Front Derailleur
    Shimano GRX RX-820
  • Rear Derailleur
    Shimano GRX RX-820
  • Brakes
    Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano GRX RX-610 hydraulic
  • Cassette
    Shimano 105, 11x34
  • Chain
    KMC X12L-1
  • Crankset
    Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, threaded
  • Rims
    Giant S-X2 , alloy
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    stainless
  • Tyres
    Giant Crosscut Grip TR, 700x40c, tubeless
  • Extras
    tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
  • Max Tyre Clearance
    53mm
  • Weight
    The most accurate way to determine any bike’s weight is to have us weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All Giant bikes are designed for best-in-class weight and ride quality.
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

SIZING

Size in ft5'3" - 5'7"5'7" - 5'11"5'9" - 6'1"5'10" - 6'3"6'2" - 6'7"
Size in cm159 - 171cm169 - 181cm174 - 186cm179 - 191cm189 - 200cm
Bike SizeSMM/LLXL

GEOMETRY

SizeS
Short | Long
M
Short | Long
M/L
Short | Long
L
Short | Long
XL
Short | Long
Seat Tube Length450mm470mm490mm510mm530mm
Seat Tube Angle73.5°73.5°73°73°73°
Top Tube Length550mm560mm575mm585mm600mm
Head Tube Length135mm150mm165mm180mm195mm
Head Tube Angle71°71.5°72°72°72°
Fork Rake50mm50mm50mm50mm50mm
Trail72 / 75mm68 / 72mm65 / 68mm65 / 68mm65 / 68mm
Wheelbase1025 / 1035mm1030 / 1040mm1035 / 1045mm1045 / 1055mm1061 / 1071mm
Chain Stay Length430 / 440mm430 / 440mm430 / 440mm430 / 440mm430 / 440mm
Bottom Bracket Drop80 / 81mm80 / 81mm80 / 81mm80 / 81mm80 / 81mm
Stack570mm586mm602mm616mm630mm
Reach381mm387mm391mm397mm407mm
Stand Over Height734 / 741mm752 / 759mm769 / 776mm786 / 793mm801 / 810mm
Handlebar Width420mm440mm440mm460mm460mm
Stem Length60mm70mm80mm80mm90mm
Crank Length170mm172.5mm172.5mm175mm175mm
Wheel Size700c x 42c700c x 42c700c x 42c700c x 42c700c x 42c
