Giant Revolt Advanced 2 men’s gravel bike with Advanced Composite carbon frame, D-Fuse handlebar and seatpost, adjustable geometry, tubeless-ready wheels, and tyre clearance up to 53mm for road, gravel, and dirt riding.

Giant Revolt Advanced 2 men’s gravel bike with Advanced Composite carbon frame, D-Fuse handlebar and seatpost, adjustable geometry, tubeless-ready wheels, and tyre clearance up to 53mm for road, gravel, and dirt riding.

Giant

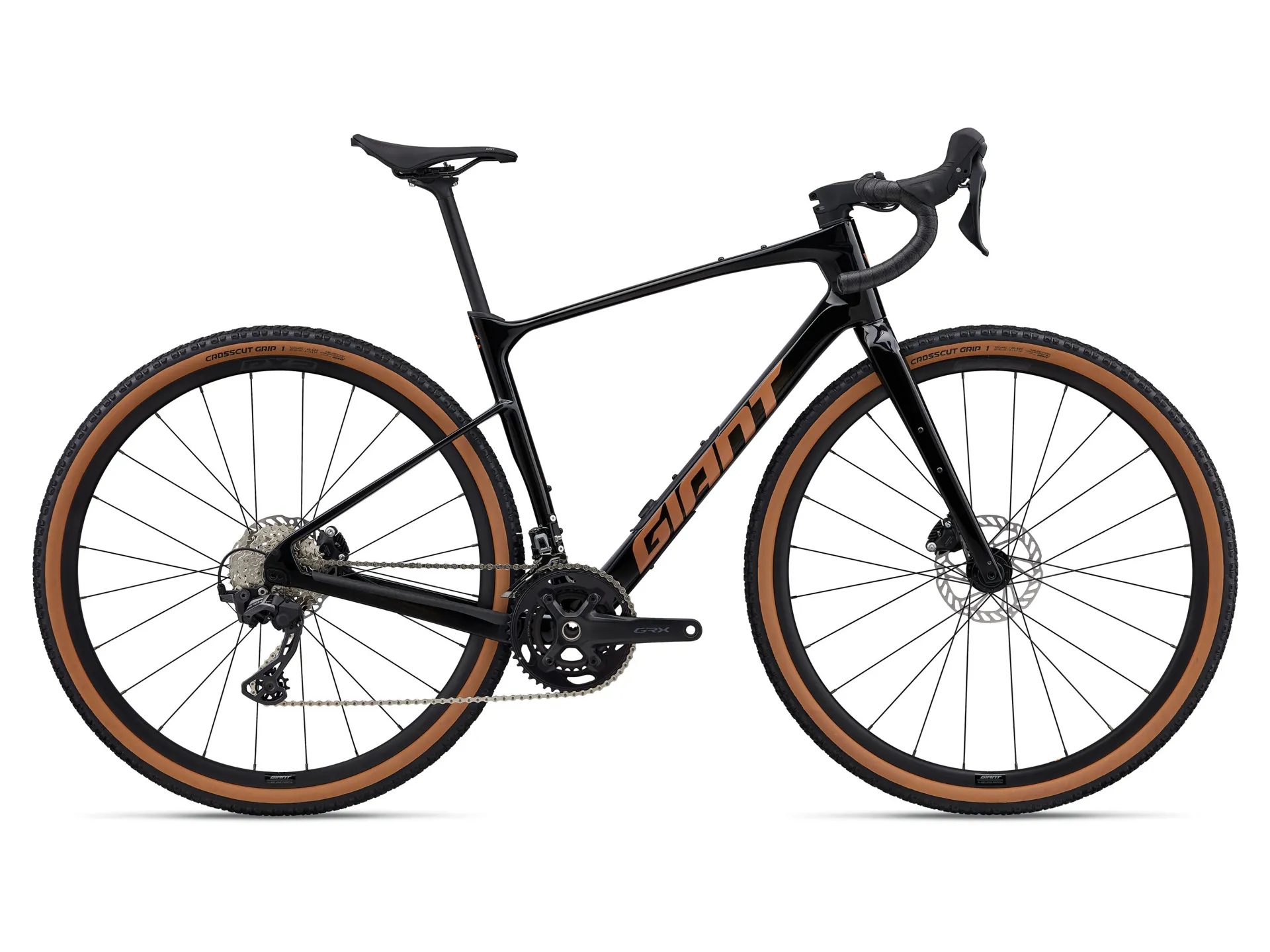

2026 Giant Revolt Advanced 2 Mens Gravel Bike - Carbon

£2,499.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2026 Giant Revolt Advanced 2 Mens Gravel Bike - Carbon

Season:2026

Brand:Giant

Code:9080024CBN

The Giant Revolt Advanced 2 Men’s Gravel Bike is a high-performance carbon gravel bike built to tackle rough roads, gravel trails, and dirt paths with speed, control, and comfort. Designed for endurance rides, adventure cycling, and gravel racing, this bike combines a lightweight Advanced Composite frame, smooth ride compliance, and adjustable geometry for ultimate versatility on mixed terrain.

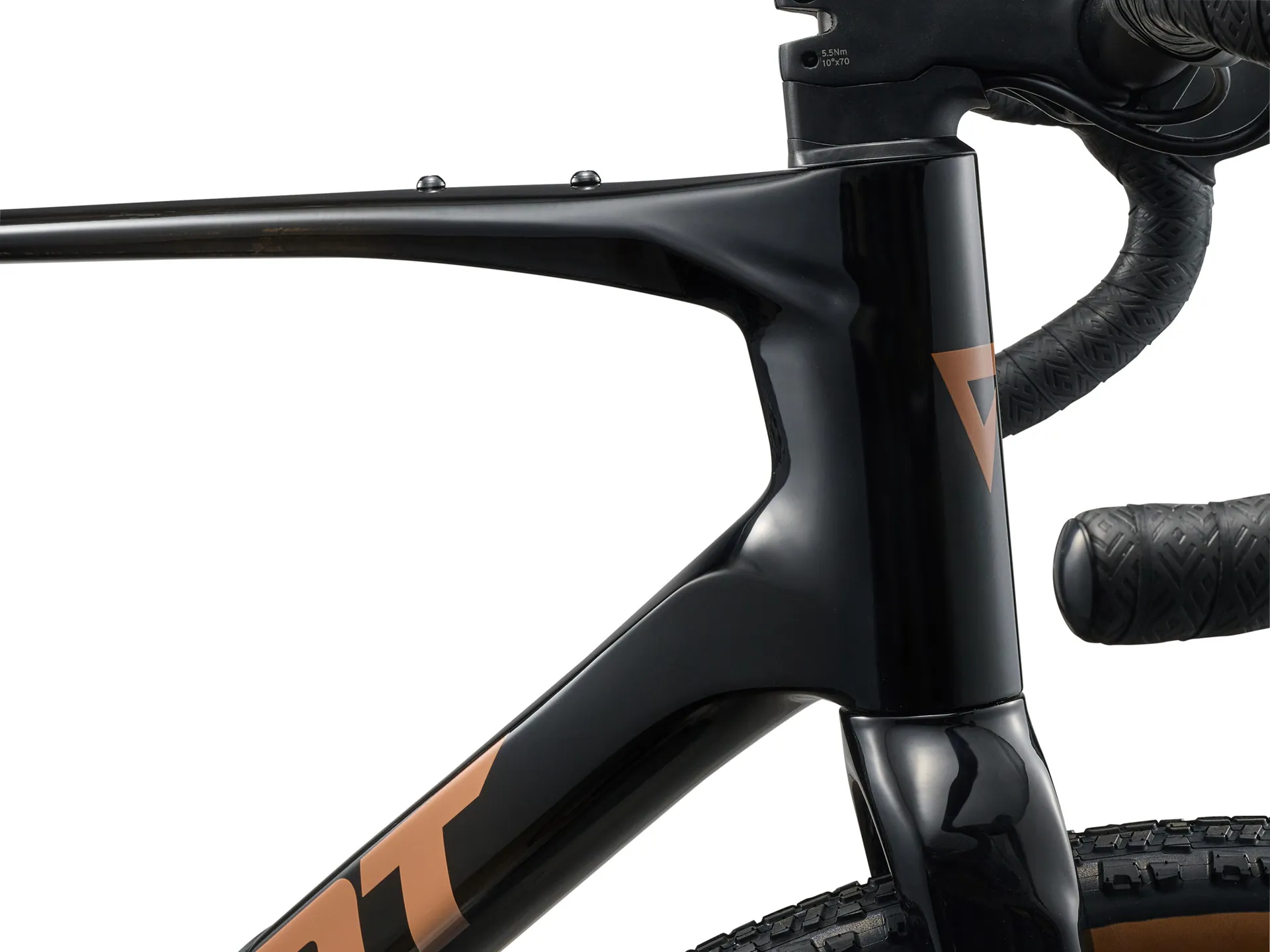

The Advanced Composite carbon frame and fork save over 160g compared to previous models while maintaining a stiffness-to-weight ratio optimized for climbing, acceleration, and responsive handling. The updated geometry features a lower bottom bracket, longer reach, and steeper head tube angle, enhancing stability and control on technical terrain and fast descents.

For tuned compliance, the Revolt Advanced 2 features dropped seatstays with thin tubing, which absorb road shocks and vibrations. Giant’s D-Fuse handlebar and seatpost system work together to smooth rough terrain while maintaining stiffness for sprinting, cornering, and climbing efficiency.

The Flip Chip rear dropout allows riders to quickly adjust the bike’s geometry and rear-wheel tyre clearance. Choose the short wheelbase for nimble handling and quick acceleration, or the long setting for improved high-speed stability. In the long position, the frame accommodates wide gravel tyres up to 53mm, and riders can select the included D-Fuse seatpost or a 30.9mm round or dropper post for added versatility.

Additional performance features include OverDrive oversized steering for precise front-end control and a tubeless-ready wheel system, providing fewer punctures, greater traction, lower rolling resistance, and a smoother ride on all surfaces.

The Giant Revolt Advanced 2 Men’s Gravel Bike is the ideal choice for riders seeking a lightweight, durable, and versatile carbon gravel bike capable of handling roads, gravel, and dirt with confidence, speed, and comfort.

Technical Information
  • Sizes
    XS, S, M, M/L, L, XL
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
  • Fork

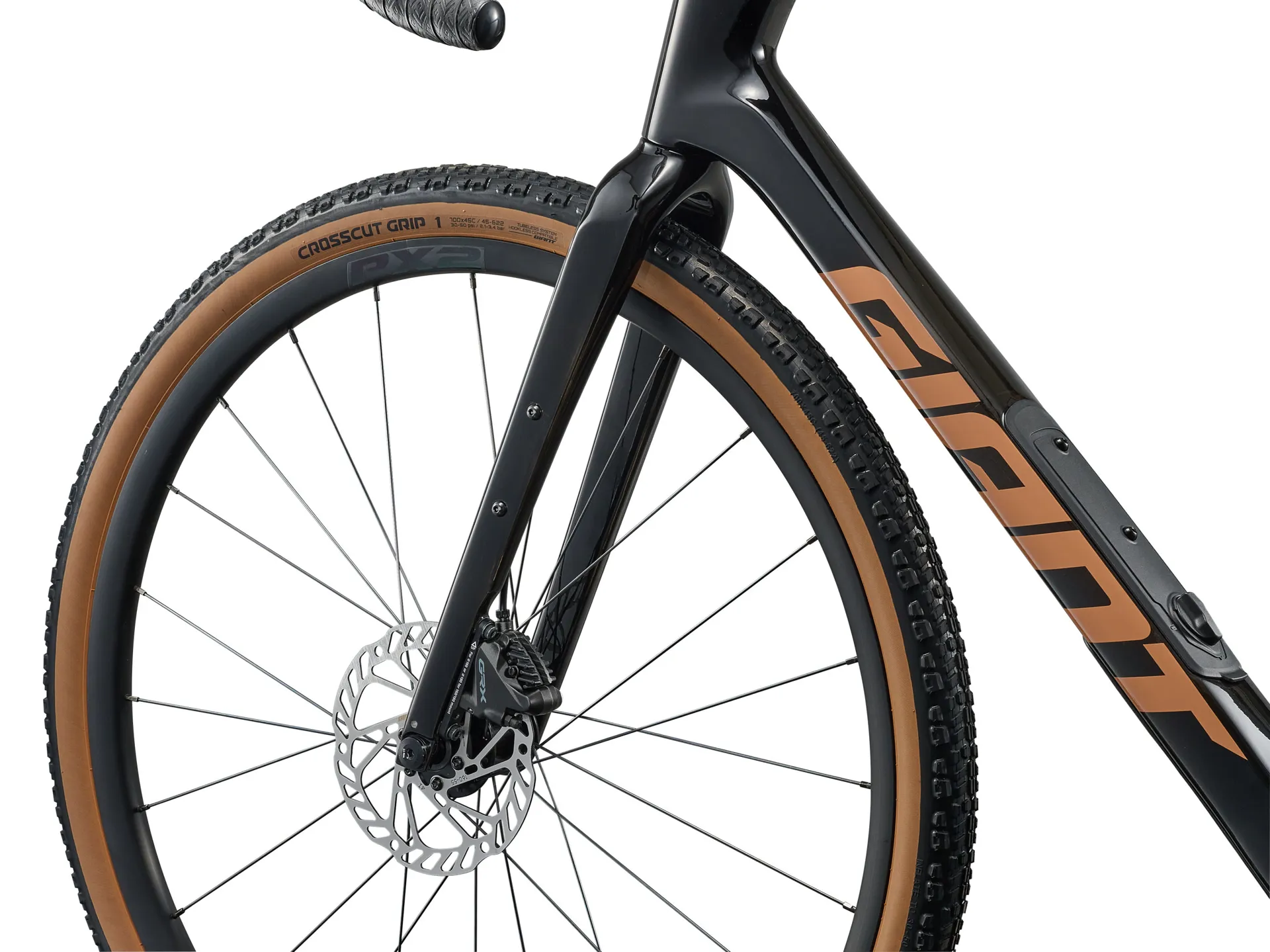

    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

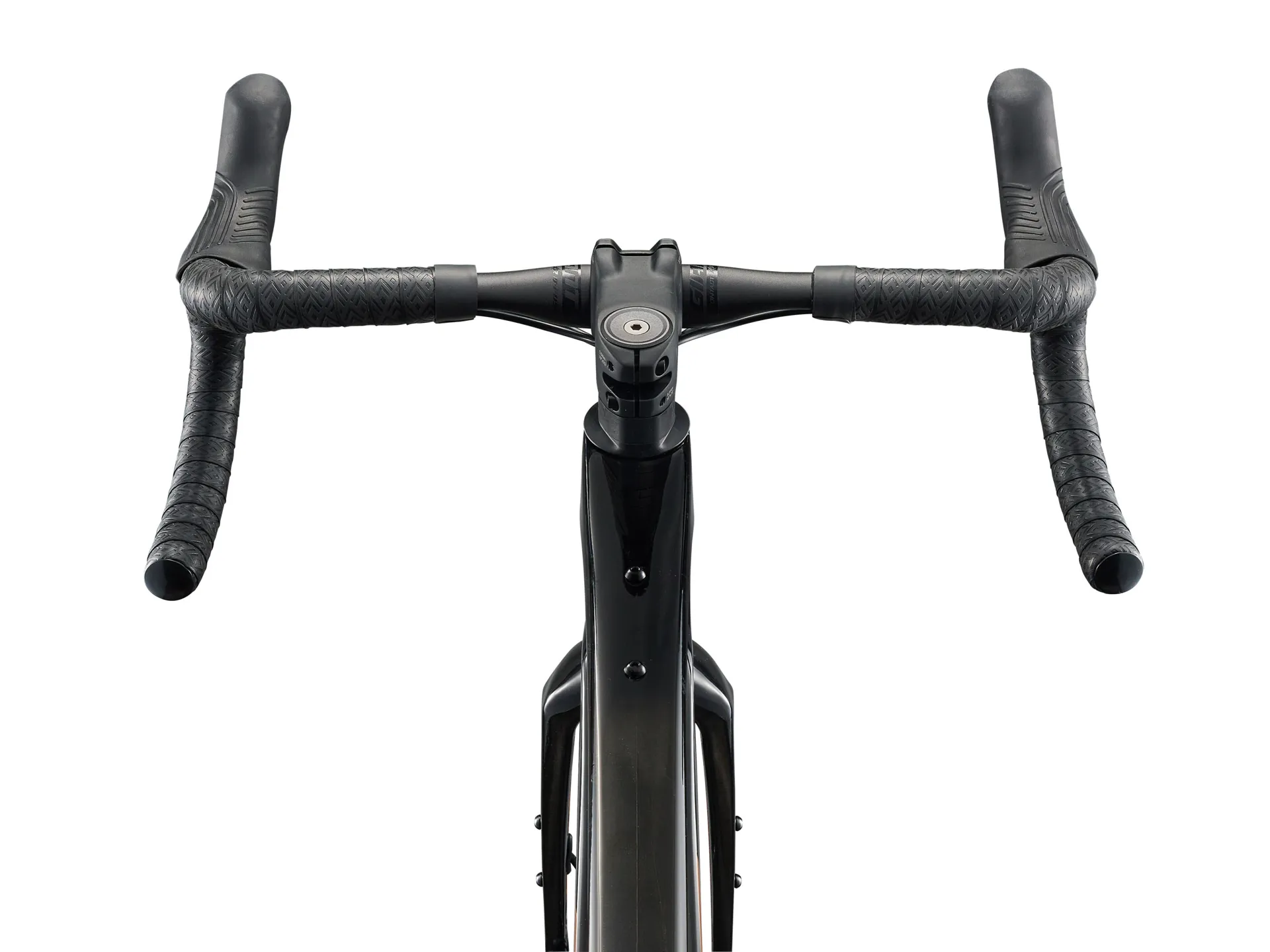

  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant D-Fuse, composite, 14mm offset
  • Saddle
    Giant Grit
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    Shimano GRX RX-610, 2x12
  • Front Derailleur
    Shimano GRX RX-820
  • Rear Derailleur
    Shimano GRX RX-820
  • Brakes
    Shimano BR-RX410hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano GRX RX-610 hydraulic
  • Cassette
    Shimano CS-HG710, 12-speed, 11x36
  • Chain
    KMC X12L-1

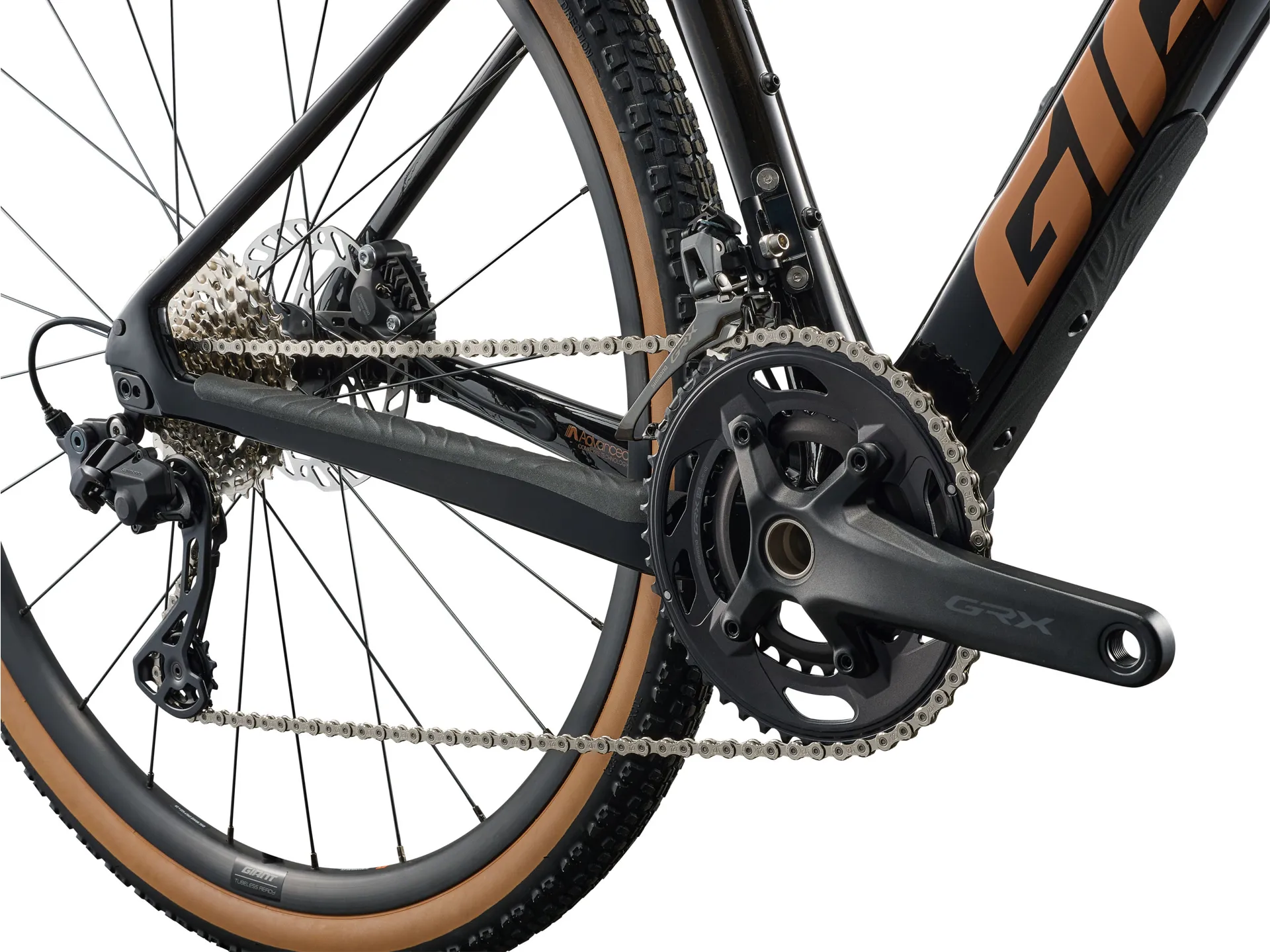

  • Crankset
    Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-X2 , alloy
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Sapim
  • Tyres
    Giant Crosscut Grip, 700x45c, tubeless
  • Extras
    tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
  • Max Tyre Clearance
    53mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
Sizing Information

SIZING

Size in ft5'3" - 5'7"5'7" - 5'11"5'9" - 6'1"5'10" - 6'3"6'2" - 6'7"
Size in cm159 - 171cm169 - 181cm174 - 186cm179 - 191cm189 - 200cm
Bike SizeSMM/LLXL

GEOMETRY

SizeXS
Short | Long
S
Short | Long
M
Short | Long
M/L
Short | Long
L
Short | Long
XL
Short | Long
Seat Tube Length430mm450mm470mm490mm510mm530mm
Seat Tube Angle74°73.5°73.5°73°73°73°
Top Tube Length540mm550mm560mm575mm585mm600mm
Head Tube Length125mm135mm150mm165mm180mm195mm
Head Tube Angle70°71°71.5°72°72°72°
Fork Rake50mm50mm50mm50mm50mm50mm
Trail78 / 82mm72 / 75mm68 / 72mm65 / 68mm65 / 68mm65 / 68mm
Wheelbase1024 / 1034mm1020 / 1030mm1026 / 1036mm1031 / 1041mm1041 / 1051mm1056 / 1066mm
Chain Stay Length425 / 435mm425 / 435mm425 / 435mm425 / 435mm425 / 435mm425 / 435mm
Bottom Bracket Drop80 / 81mm80 / 81mm80 / 81mm80 / 81mm80 / 81mm80 / 81mm
Stack556mm570mm586mm602mm616mm630mm
Reach381mm381mm387mm391mm397mm407mm
Stand Over Height724 / 731mm740 / 747mm757 / 764mm774 / 780mm791 / 797mm807 / 814mm
Handlebar Width420mm420mm440mm440mm460mm460mm
Stem Length50mm60mm70mm80mm80mm90mm
Crank Length170mm170mm172.5mm172.5mm175mm175mm
