Giant Revolt 2 men’s gravel bike with ALUXX aluminium frame, carbon fork, D-Fuse comfort system, adjustable geometry, and tubeless-ready wheels. Ideal for road, gravel, and dirt riding.

Giant Revolt 2 men’s gravel bike with ALUXX aluminium frame, carbon fork, D-Fuse comfort system, adjustable geometry, and tubeless-ready wheels. Ideal for road, gravel, and dirt riding.

Giant

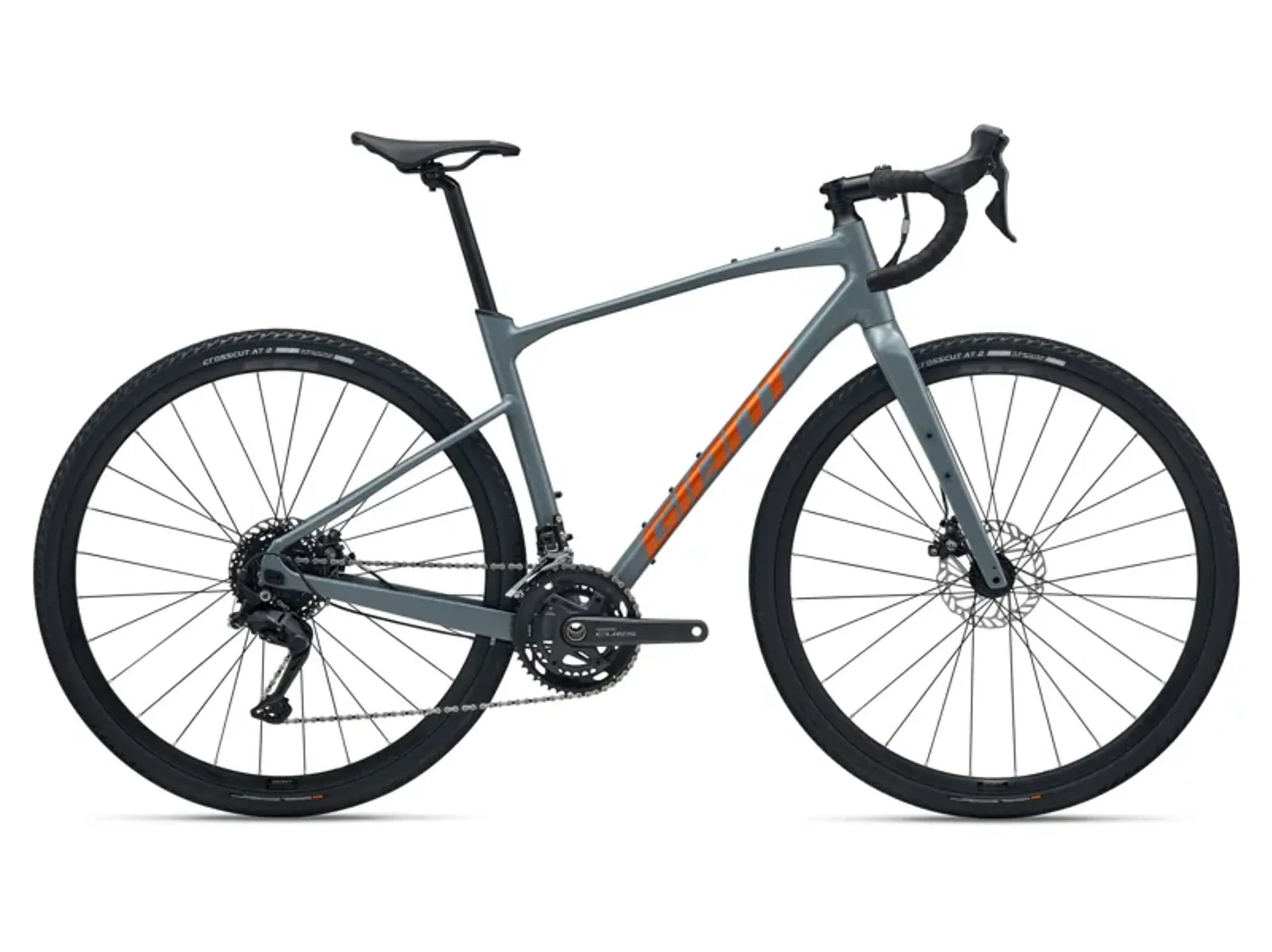

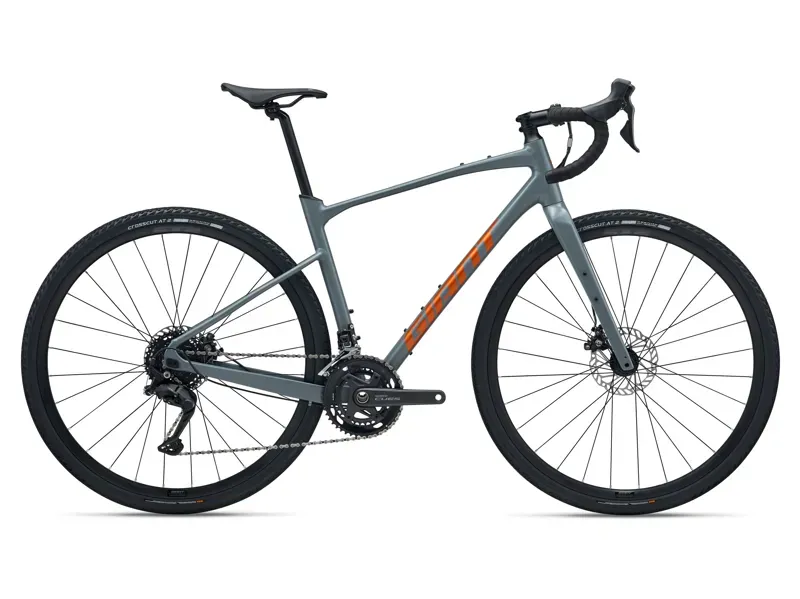

2026 Giant Revolt 2 Mens Gravel Bike - Ocean Storm

£1,199.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2026 Giant Revolt 2 Mens Gravel Bike - Ocean Storm

Season:2026

Brand:Giant

Code:9080010BluGry

The Giant Revolt 2 Men’s Gravel Bike is a versatile aluminium gravel bike built for riders who want confidence, comfort, and speed across road, gravel, and dirt surfaces. Designed as a reliable all-rounder, this bike combines durable frame construction, smooth handling, and adaptable geometry for adventure, endurance rides, or bikepacking.

Constructed with Giant’s ALUXX Aluminium Technology, the lightweight 6061 alloy frame provides excellent strength-to-weight performance for long rides, while a composite carbon fork absorbs vibrations and improves control on rough terrain.

The frame geometry is engineered for confident handling, featuring shorter chainstays, a longer reach, shorter stem, and lower bottom bracket drop to enhance stability, agility, and precision on gravel, dirt, or rugged roads.

Tuned compliance is achieved with dropped seatstays and thin tubing that reduce shocks and vibrations. Giant’s D-Fuse handlebar and seatpost work as an integrated system to smooth out rough terrain while maintaining stiffness for cornering, sprinting, and climbing.

The Flip Chip rear dropout allows riders to adjust the bike’s geometry and rear-wheel tyre clearance: the short setting improves acceleration and handling, while the long setting provides high-speed stability and accommodates wide tyres up to 53mm. Riders can choose between the included D-Fuse seatpost for maximum comfort, or a 30.9mm round or dropper post for versatility.

Additional features include OverDrive oversized steering for precise front-end control and a tubeless-ready wheel system, providing fewer punctures, greater traction, lower rolling resistance, and a smoother ride.

The Giant Revolt 2 Men’s Gravel Bike is the perfect choice for riders seeking a durable, adaptable, and performance-focused aluminium gravel bike capable of handling any terrain with comfort and control.

Technical Information
  • Sizes
    XS, S, M, M/L, L, XL
  • Frame
    ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Handlebar
    Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips
    cork tape with gel
  • Stem
    Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant D-Fuse, alloy, 14mm offset
  • Saddle
    Giant Grit
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    Shimano CUES U3030, 2x9
  • Front Derailleur
    Shimano CUES U6030
  • Rear Derailleur
    Shimano CUES U4020
  • Brakes
    Shimano BR-RS305 mechanical, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano CUES U3030 hydraulic
  • Cassette
    Shimano CS-LG300, 11x36
  • Chain
    KMC X11
  • Crankset
    Shimano FC-U6030-2, 32/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, threaded
  • Rims
    Giant S-X2, alloy
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    stainless
  • Tyres
    Giant CrossCut AT 2, 700x38c, tubeless
  • Extras
    tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
  • Max Tyre Clearance
    53mm
  • Weight
    The most accurate way to determine any bike’s weight is to have us weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All Giant bikes are designed for best-in-class weight and ride quality.
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

SIZING

Size in ft5'3" - 5'7"5'7" - 5'11"5'9" - 6'1"5'10" - 6'3"6'2" - 6'7"
Size in cm159 - 171cm169 - 181cm174 - 186cm179 - 191cm189 - 200cm
Bike SizeSMM/LLXL

GEOMETRY

SizeS
Short | Long
M
Short | Long
M/L
Short | Long
L
Short | Long
XL
Short | Long
Seat Tube Length450mm470mm490mm510mm530mm
Seat Tube Angle73.5°73.5°73°73°73°
Top Tube Length550mm560mm575mm585mm600mm
Head Tube Length135mm150mm165mm180mm195mm
Head Tube Angle71°71.5°72°72°72°
Fork Rake50mm50mm50mm50mm50mm
Trail72 / 75mm68 / 72mm65 / 68mm65 / 68mm65 / 68mm
Wheelbase1025 / 1035mm1030 / 1040mm1035 / 1045mm1045 / 1055mm1061 / 1071mm
Chain Stay Length430 / 440mm430 / 440mm430 / 440mm430 / 440mm430 / 440mm
Bottom Bracket Drop80 / 81mm80 / 81mm80 / 81mm80 / 81mm80 / 81mm
Stack570mm586mm602mm616mm630mm
Reach381mm387mm391mm397mm407mm
Stand Over Height734 / 741mm752 / 759mm769 / 776mm786 / 793mm801 / 810mm
Handlebar Width420mm440mm440mm460mm460mm
Stem Length60mm70mm80mm80mm90mm
Crank Length170mm172.5mm172.5mm175mm175mm
Wheel Size700c x 42c700c x 42c700c x 42c700c x 42c700c x 42c
