The Cube Aim One Hardtail Mountain Bike is a lightweight XC and trail MTB with a 100mm suspension fork, Shimano 2x8 drivetrain, hydraulic disc brakes, and 2.25in knobby tyres. Perfect for off-road adventures, commuting, and riders of all sizes.
The Cube Aim One Hardtail Mountain Bike is a lightweight XC and trail MTB with a 100mm suspension fork, Shimano 2x8 drivetrain, hydraulic disc brakes, and 2.25in knobby tyres. Perfect for off-road adventures, commuting, and riders of all sizes.
Cube

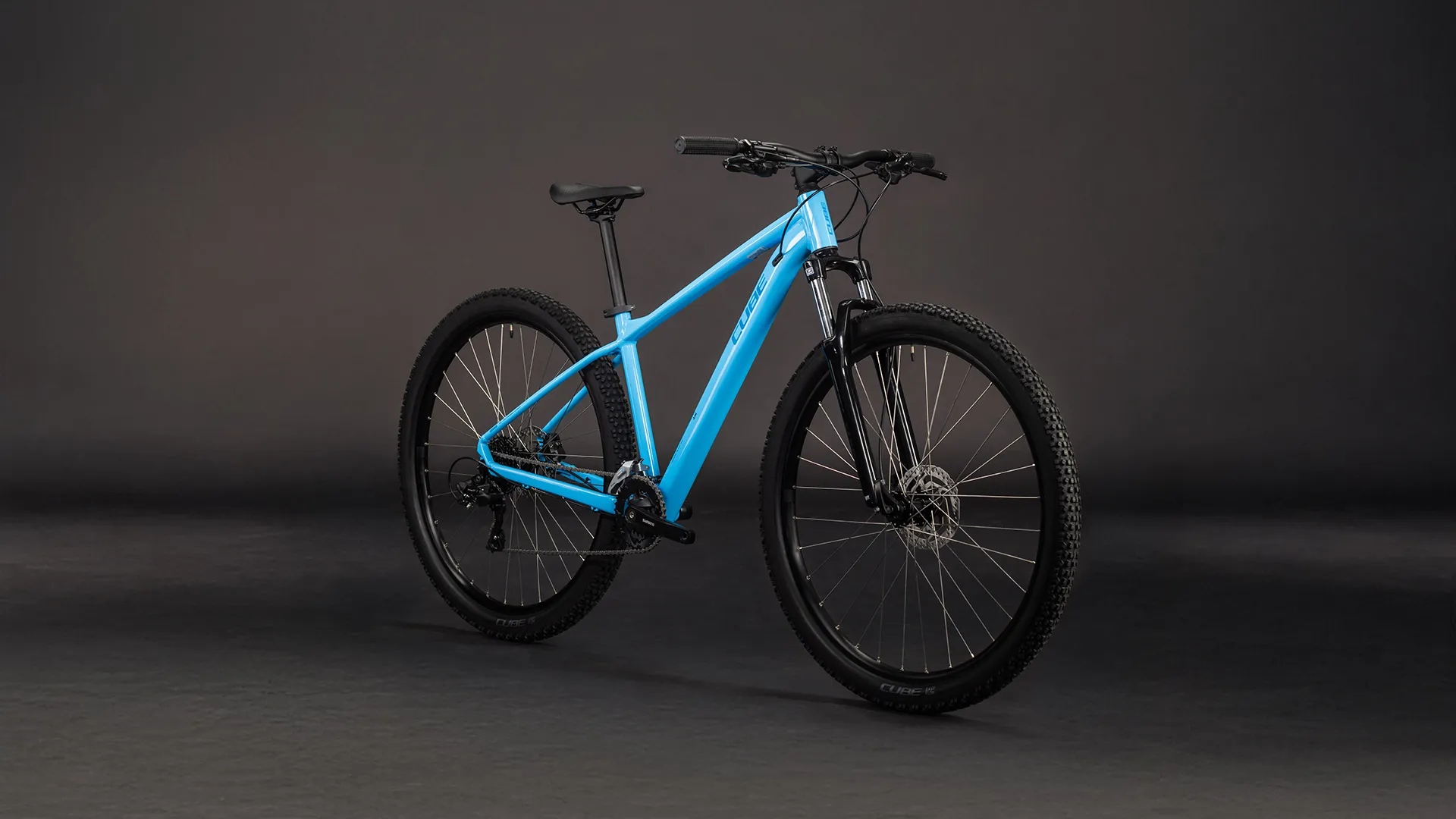

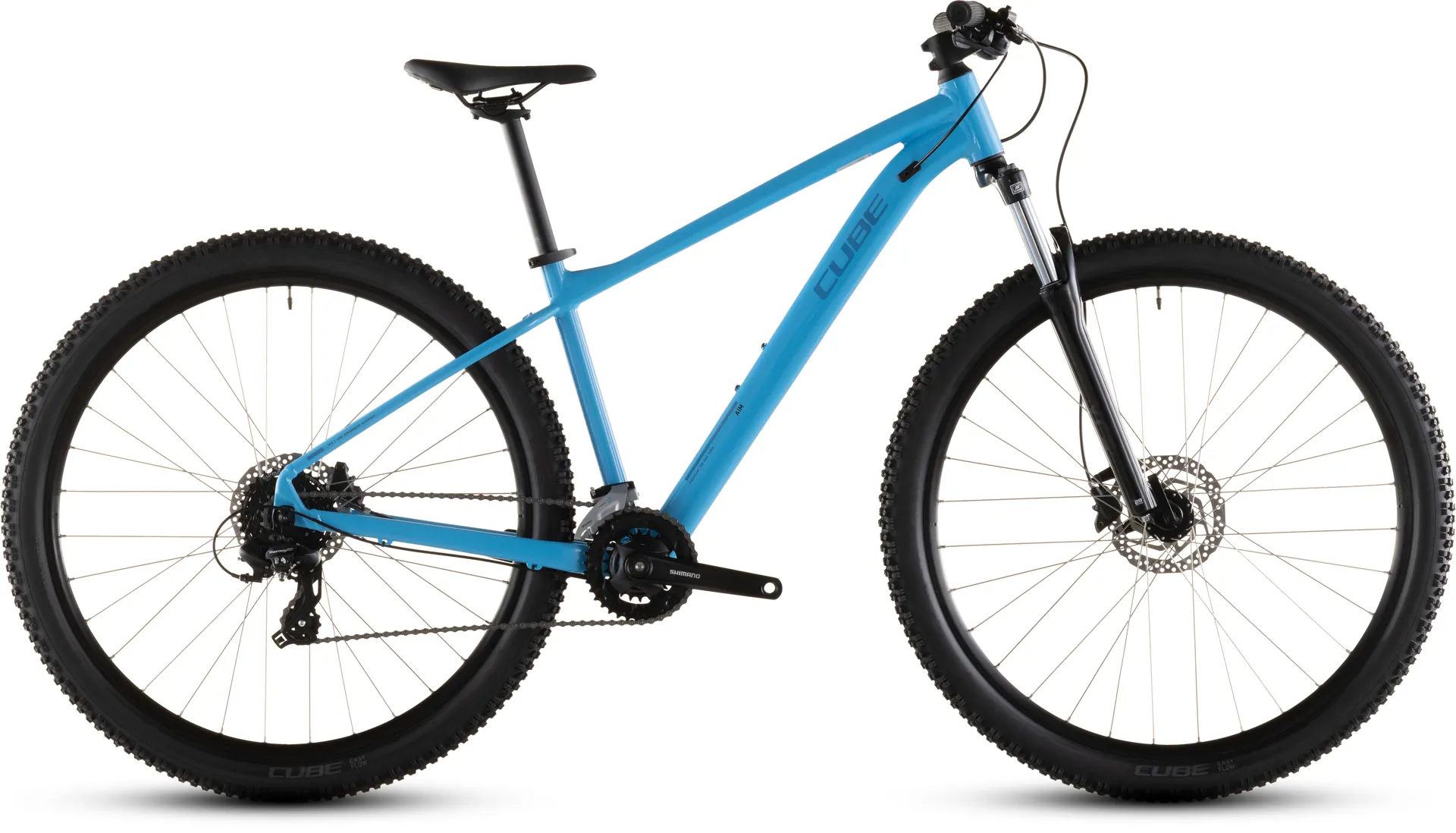

2026 Cube Aim One Hardtail Mountain Bike - Marlin Blue/Reflex

£449.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2026 Cube Aim One Hardtail Mountain Bike - Marlin Blue/Reflex

Season:2026

Brand:Cube

Code:140130MARLINBLUREFLEX

Cube Aim One Hardtail Mountain Bike | Lightweight XC & Trail MTB

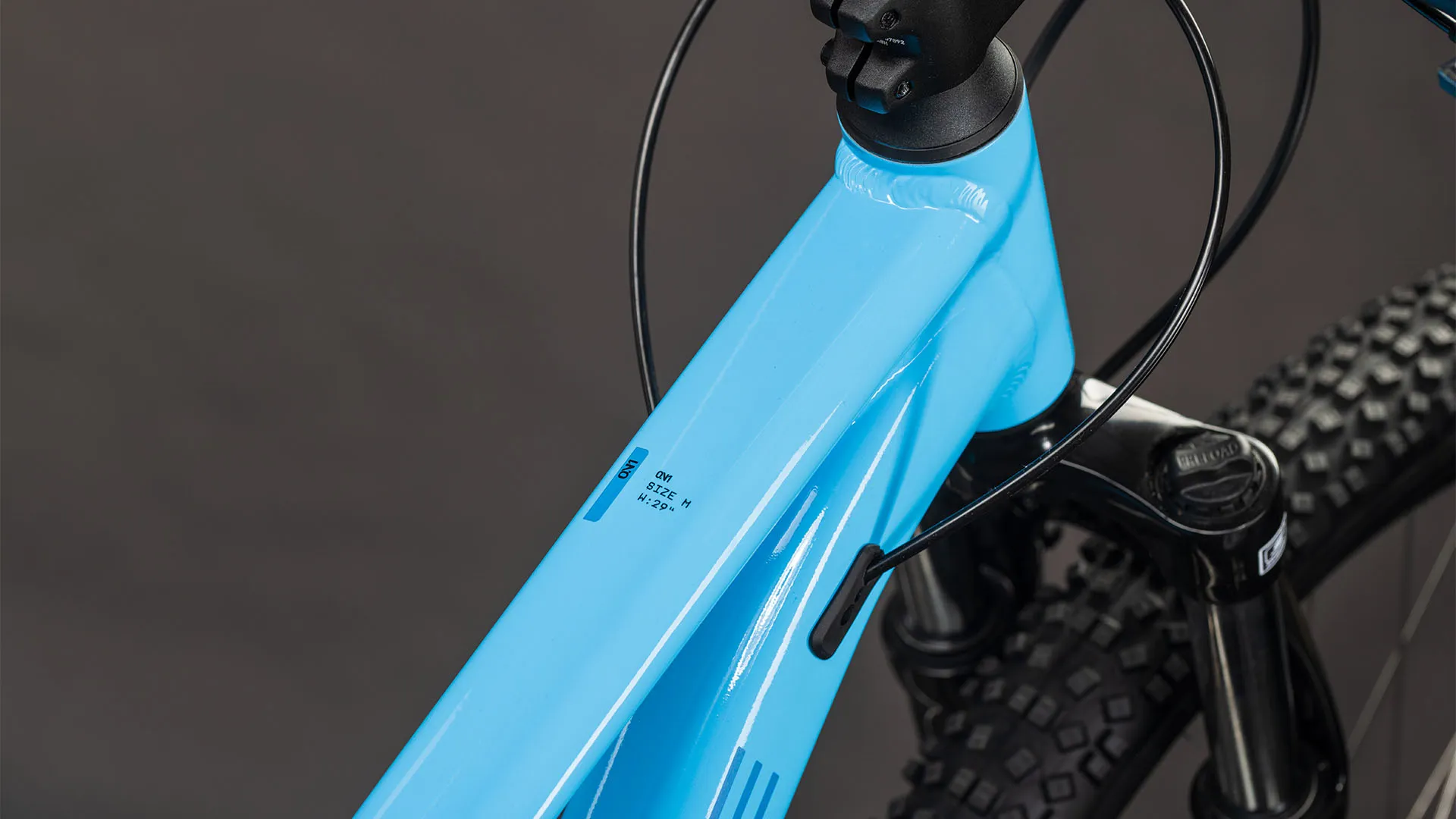

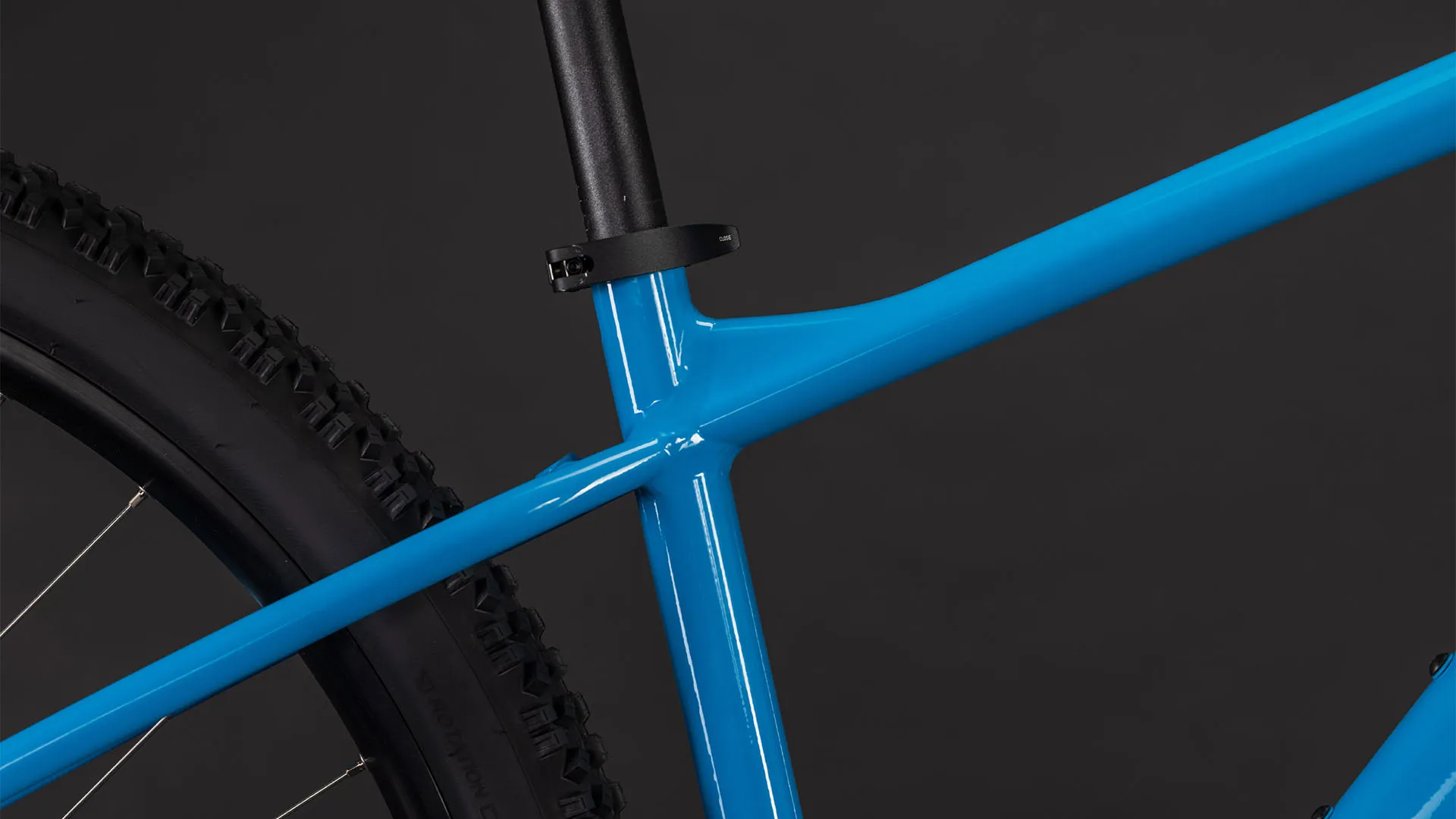

Explore new horizons with the Cube Aim One Hardtail Mountain Bike, a versatile entry-level mountain bike built for cross-country (XC) and trail riding. Featuring a lightweight aluminum frame with smooth-welded head tube and seat tube junctions, internal cable routing, and threaded bottom bracket, this hardtail MTB combines durability, performance, and clean aesthetics for riders of all levels.

  • Lightweight aluminium hardtail MTB frame with internal cable routing
  • 100mm suspension fork for smooth XC and trail rides
  • Shimano 2x8-speed drivetrain for versatile gearing on all terrains
  • Shimano hydraulic disc brakes for reliable all-weather stopping power
  • Clearance for wide 2.25in knobby tyres for grip and comfort

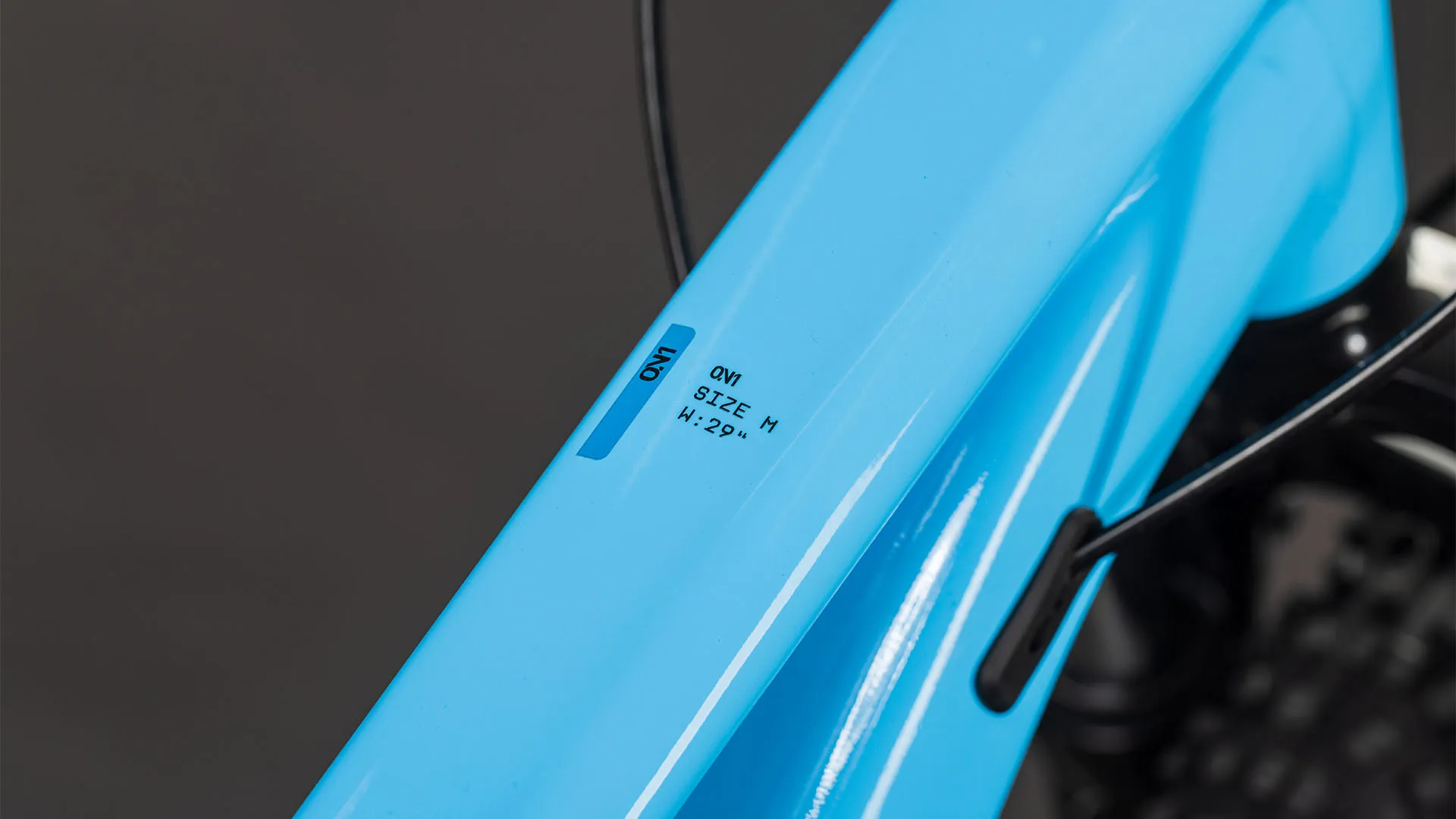

  • Size Split system for a perfect fit for every rider
  • Integrated mounts for mudguards, carrier, and kickstand

Designed with carefully engineered geometry, the Aim One delivers confident handling, a lower top tube for easier control, and plenty of clearance for wide 2.25in knobby tyres to tackle rough trails, gravel paths, or urban obstacles. The Size Split system ensures a perfect fit for every rider, from compact frames to taller riders.

Built for comfort and control, the Aim One comes equipped with a 100mm suspension fork, grippy 2.25in tyres, Shimano 2x8-speed drivetrain for smooth gear shifting, and powerful Shimano hydraulic disc brakes for reliable stopping in all conditions. Integrated mounts for ACID mudguards, carrier, and kickstand add practicality for everyday rides or adventure cycling. Whether you’re commuting, trail riding, or exploring off-road, the Cube Aim One Hardtail MTB is ready to perform.

Technical Information
  • Frame
    Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
  • Size Split
    Size Split: 27.5: XS, S // 29: M, L, XL

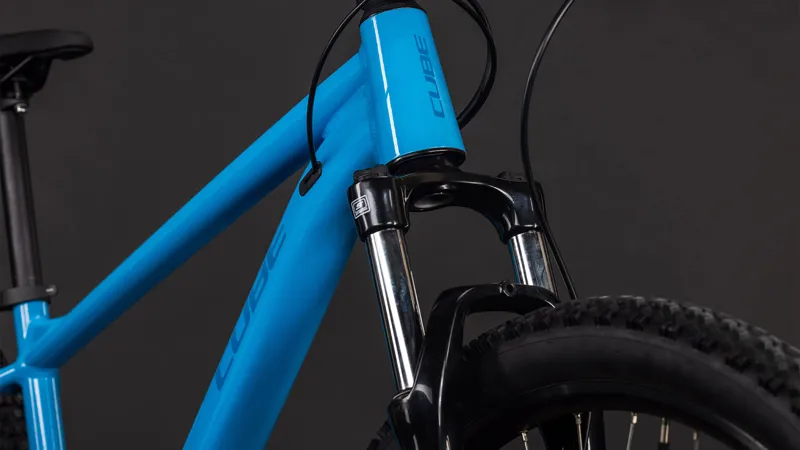

  • Suspension fork
    SR Suntour XCE, 100mm
  • Brake system
    Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
  • Front derailleur
    Shimano FD-M315, Top Swing, 31.8mm Clamp
  • Rear derailleur
    Shimano RD-TX800, 8-Speed
  • Shifters
    Shimano SL-M315, Rapidfire-Plus
  • Bottom bracket
    Thun Paso-ML, 73mm BSA

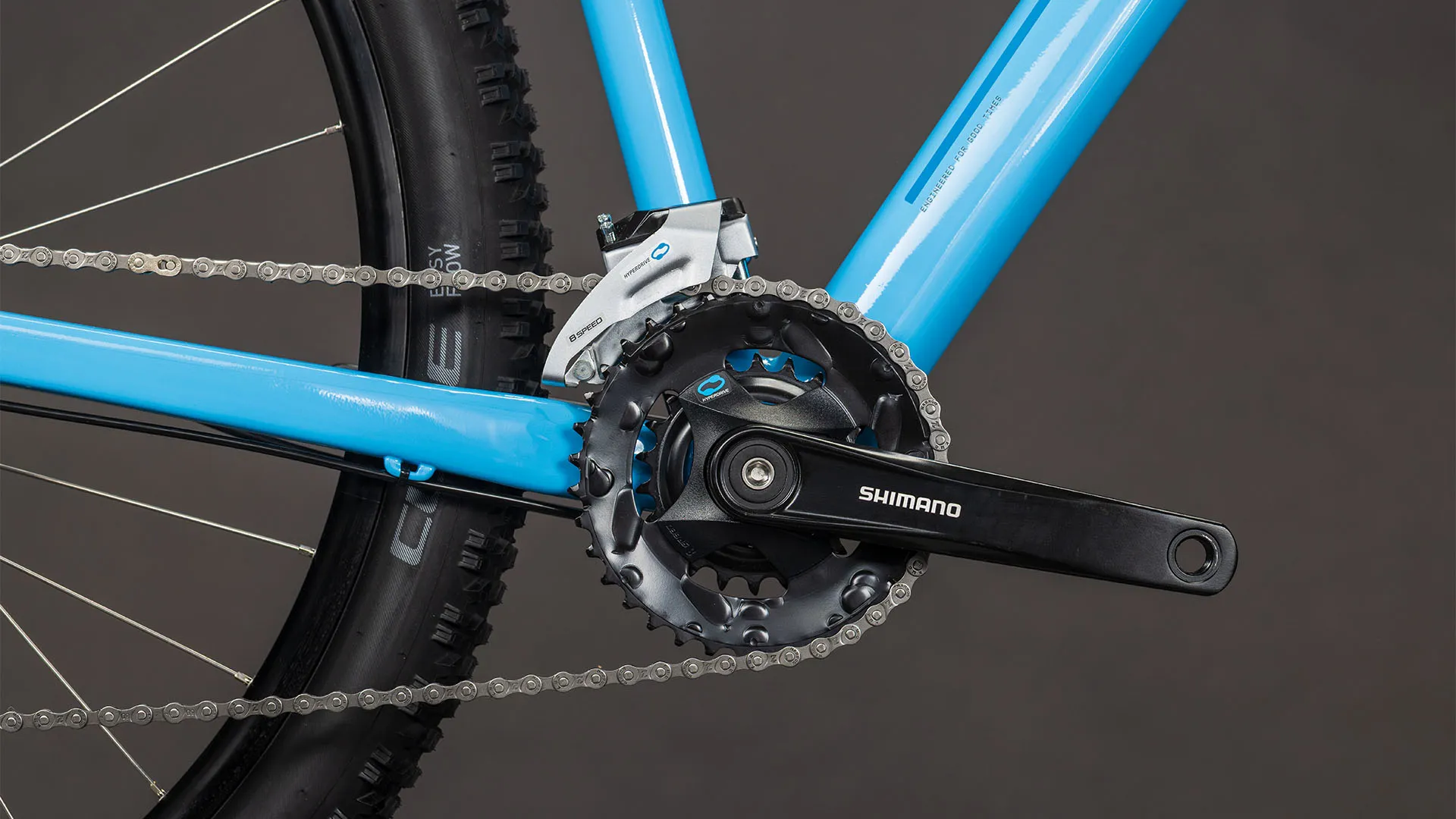

  • Crankset
    Shimano FC-M315, 36x22T, 170mm
  • Cassette
    Shimano CS-HG200, 12-32T
  • Chain
    KMC Z8.3
  • Headset
    CUBE FPH863, Semi-Integrated
  • Stem
    CUBE Performance Stem, 31.8mm
  • Handlebar
    CUBE Rise Trail Bar, 680mm
  • Grips
    ACID Icon
  • Wheelset
    ACID Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
  • Tyres
    CUBE MTB, 2.25
  • Saddle
    ACID Venec Lite
  • Seat post
    CUBE Performance Post, 27.2mm
  • Pedals
    CUBE PP MTB
  • Weight
    15,1 kg
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

GEOMETRY

SizeXSSMLXL
Seat Tube340mm370mm420mm470mm515mm
Top Tube Horizontal555mm575mm595mm615mm635mm
Seat Angle74°73.5°73.5°73.5°73.5°
Head Tube Angle68.5°68.5°68.5°68.5°68.5°
Chainstays427mm427mm450mm450mm450mm
Head Tube108mm111mm111mm122mm142mm
Wheelbase1068mm1082mm1125mm1146mm1168mm
BB-Height to Hub52mm52mm65mm65mm65mm
Protrusion Height - 80mm707mm720mm759mm792mm824mm
Reach384mm398mm409mm426mm441mm
Stack595mm598mm627mm637mm656mm

ERGONOMICS

SizeXSSMLXL
Length Seat Post350mm350mm400mm400mm400mm
Diameter Seatpost27.2mm27.2mm27.2mm27.2mm27.2mm
Angle Stem
Crank Length170mm170mm170mm170mm170mm
Diameter Tyre Maximum708mm708mm747mm747mm747mm
Width Tyre Maximum60mm60mm60mm60mm60mm
Stem Length50mm50mm60mm60mm70mm
Handlebar Width680mm680mm680mm680mm680mm

All values are given in millimetres or degrees.
