Muc-Off Precision Tubeless Bike Tyre Repair Capsule - Black

HOW TO:

1. Identify the source of the puncture and remove the debris or puncture source.
2. If the puncture requires the medium or larger worms then ream the hole several times with the knurled area of the tool, make sure you use a 45-degree angle and follow the direction of the tyre to ensure you don’t damage your tubeless tape or the tyre wall.
3. Now Grab a tyre worm (you may need to use the tool to help slide out the worms). The largest size is for MTB tyres the medium for gravel tyres and the small for road tyres, but you can select the best one for your sized hole. Now pinch one end of the worm hard between your fingers to flatten it out. (If using the thin worm thread through the tip at the end of the tool, not the main larger slot).
4. Thread through gap at the end of the tool so the worm is now sitting centrally on the tool.
5. Locate the puncture hole then insert the tool through the hole (at a 45 degree angle and follow the direction of the tyre to ensure you don’t damage your tubeless tape or the tyre wall) until the worm is around halfway through the tyre. Ensure the ends of the worm remain on the outside of the tyre.
6. Turning the tool slowly clockwise a few revolutions to twist the worm inside the tyre and slowly pull up to remove, leaving the worm in your tyre and the hole plugged.
7. Re-inflate tyre to your desired pressure and you’re ready to roll (Muc-Off recommend a max of 80 PSI on a road bike).
8. Once you are home Muc-Off would recommend trimming the worm ends down with a knife so there is a minimum of 3-5mm still sticking out the tyre. (Be careful when trimming).

TOP TIP! Simply trim down your different sized worms into singles or doubles and place them inside the capsule so you have multiple options for different sized punctures.

WARNING: Keep out of reach of children. The tool has SHARP EDGES so use with caution. For Road tyres we strongly recommend replacing your plugged tyre once it’s safe to do so, particularly if you want to use with high psi.

(We recommend a max of 80 PSI on a road bike!)

SPECIFICATIONS

• Capsule/body: 6061 Aluminium

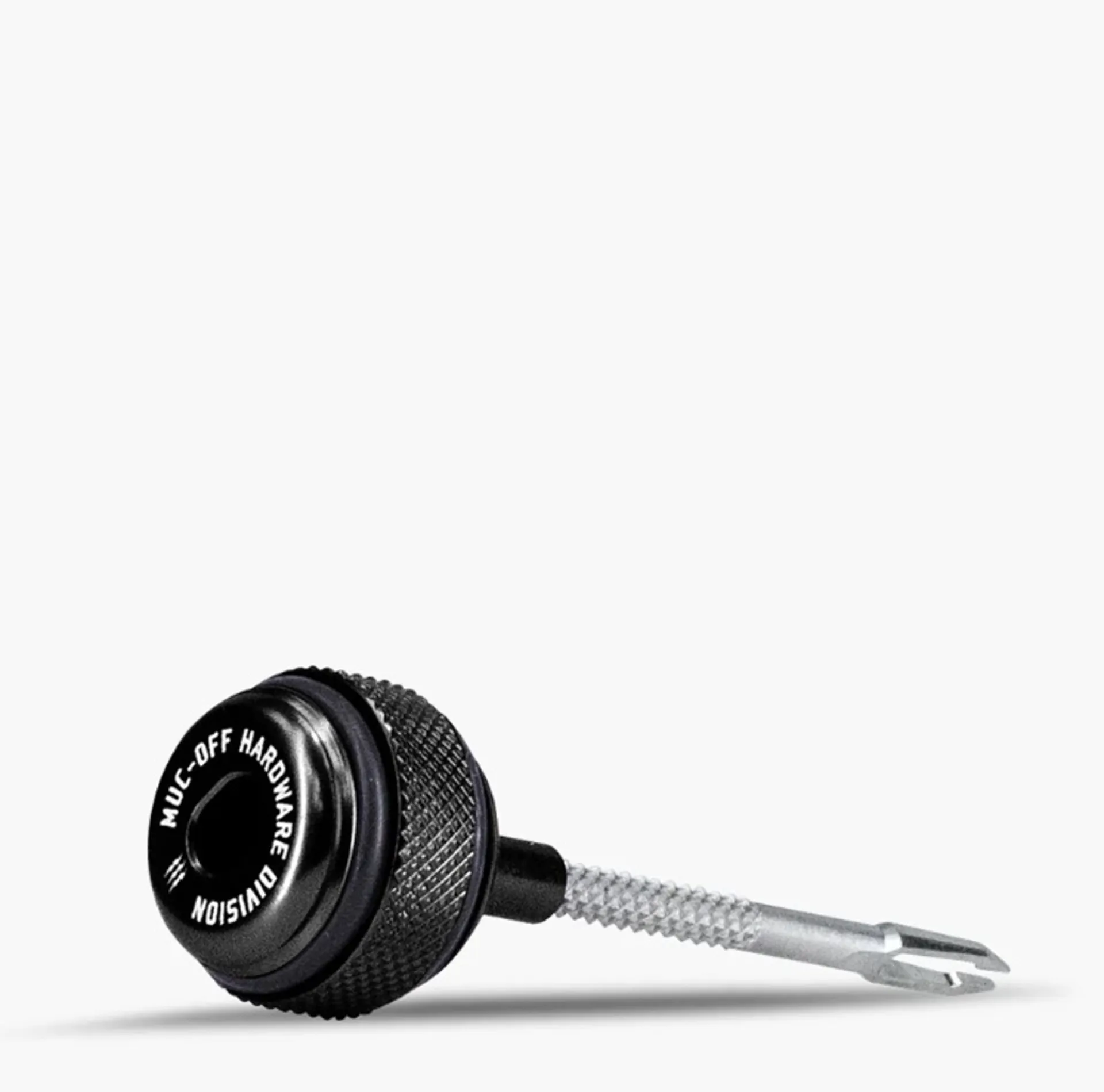

• Puncture Plug tool/reamer: 304 Stainless Steel
• Weight: ~26g (excluding plugs)
• 66 mm x 20 mm
• Colours: Available in Black and Pink

WHAT'S INCLUDED:

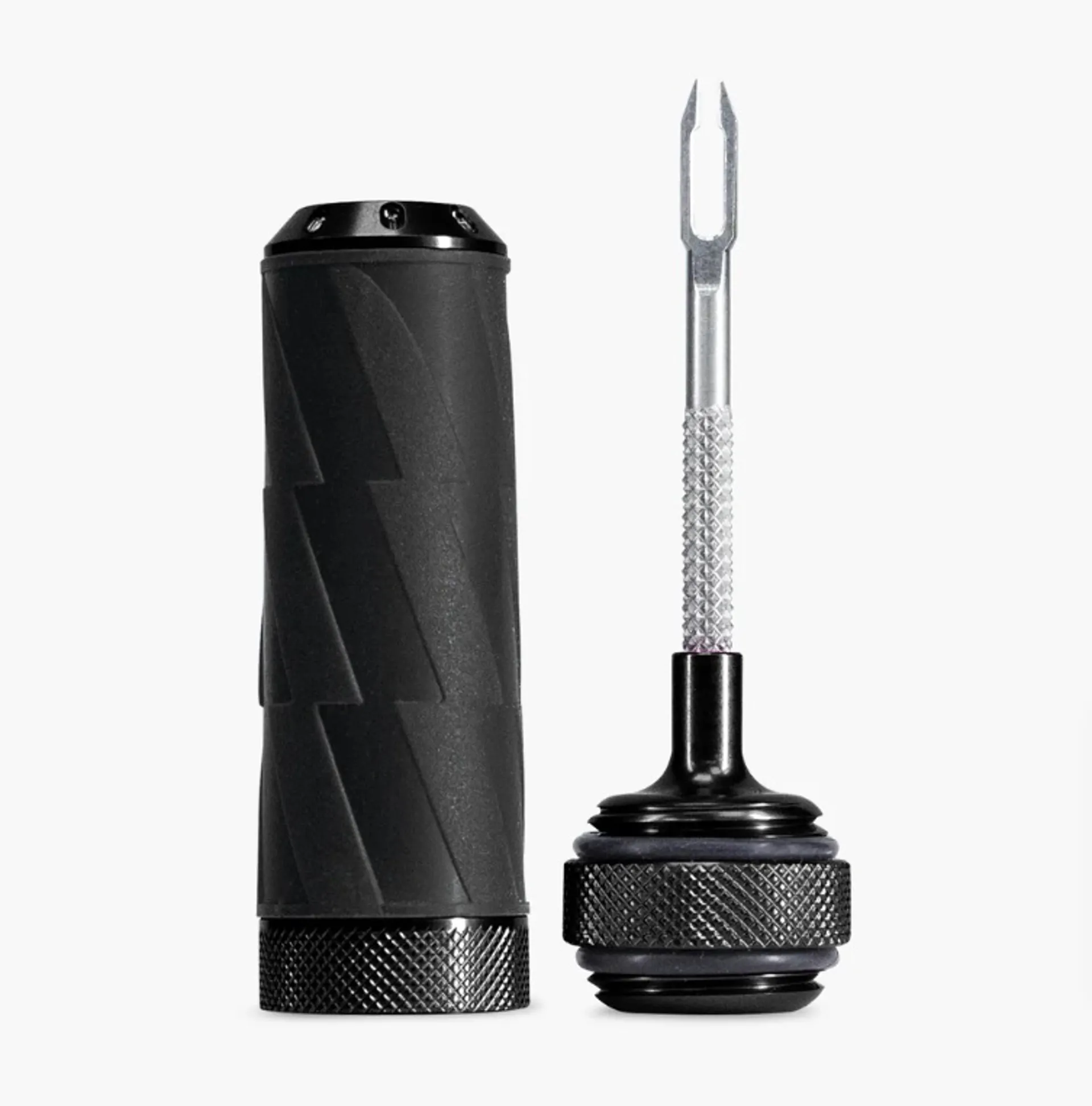

• Puncture Plug 2in1 tool and capsule
• Supplied with 15 plugs: 5 thin, 5 medium, 5 thick (Refill packs available separately).

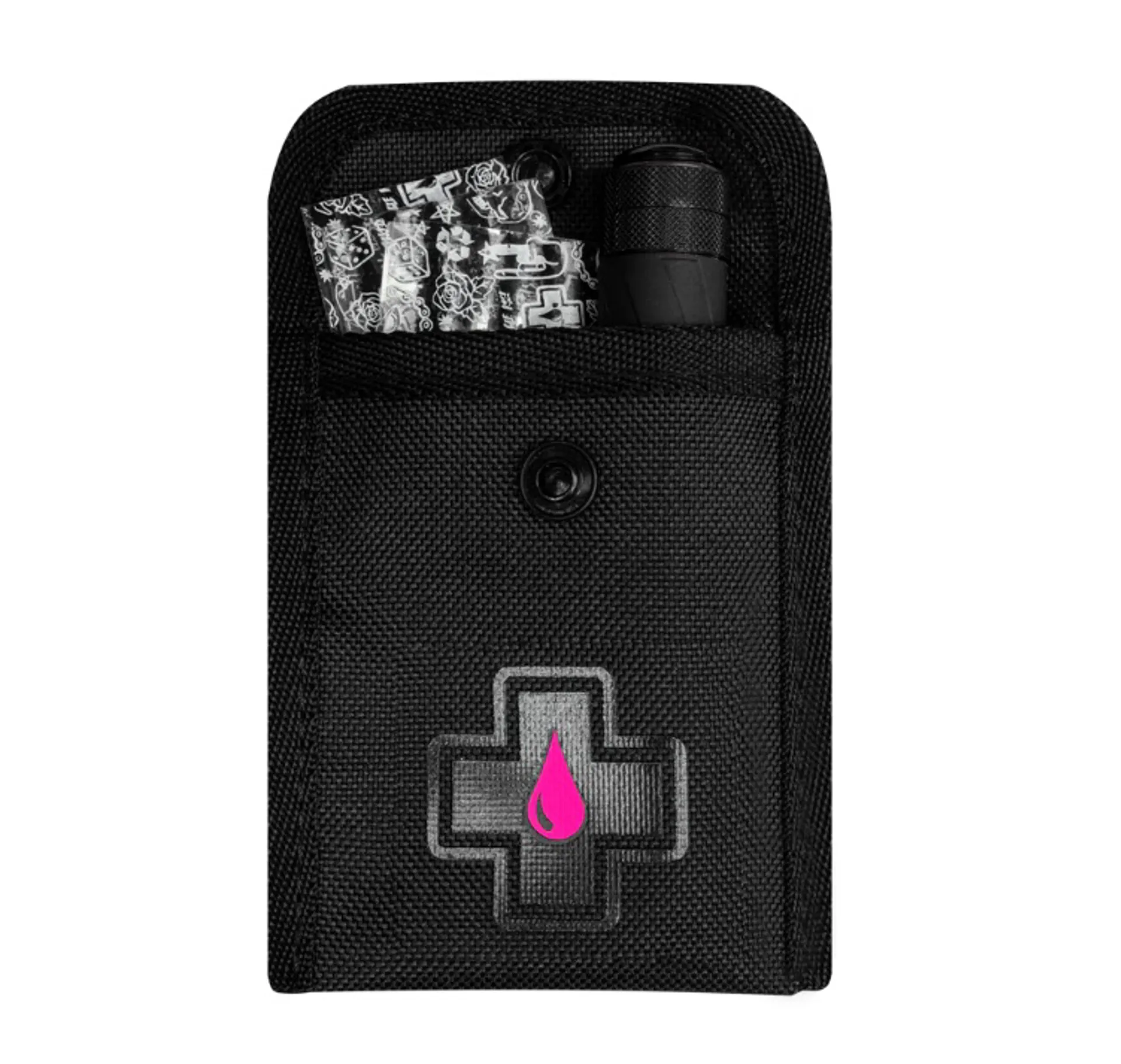

• Cordura® stash pouch
